Glass Clamps for balustrades and glass panels
Glass clamp holders secure toughened glass panels in balustrades, partitions and enclosures. This category covers 50 clamps in AISI 304, AISI 316 and zamak, for flat surfaces or for round tube. They are intended for installers and fabricators who need to match glass thickness, mounting system and finish quickly.
What you will find in this category

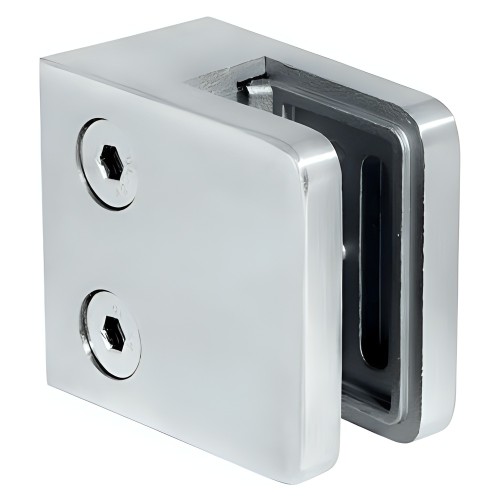

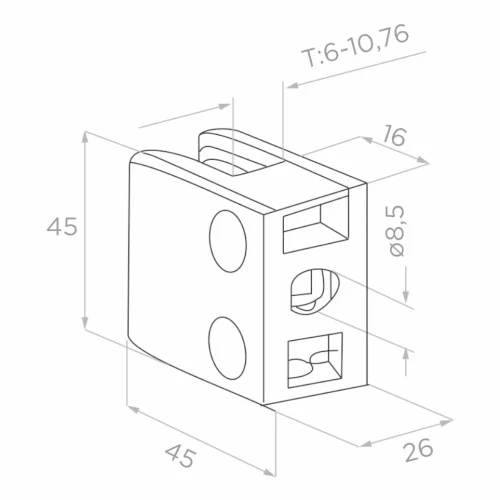

- Rectangular clamps 45×45×26 mm for glass 6–10.76 mm, for flat or tube mounting, in AISI 304, AISI 316 or zamak.
- Clamps 50×40×26 mm with securing pin for glass 6–10.76 mm, for flat surfaces or 42.4 mm and 48.3 mm tube.
- Rounded clamps 63×45×28 to 63×45×30 mm with securing pin for glass 6–10.76 mm or 6–12.76 mm.
- Larger clamps with bracket and pin: 52×52×32 mm for glass 8–12.76 mm and 65×55×37 mm for glass 12–17.52 mm.
- End clamp 60×50×28 mm and central side clamp 60×60×28 mm for glass 8–10.38 mm, with A4-70 screws.
- Corner 90° clamps (72×45×30 and 82×45×30 mm) and a 180° holder (95×45×30 mm) for glass 6–12.76 mm.
How to choose
- Glass thickness: most clamps (33 of 50) take 6–10.76 mm. Others cover 6–12.76 mm, 8–12.76 mm, 8–10.38 mm and 12–17.52 mm.
- Material: AISI 304 is the most common (33 products). AISI 316 is offered in 5 products. Zamak (12 products) is listed for indoor use.
- Mounting system: choose flat (31 products) for surface fixing. Choose 42.4 mm (15) or 48.3 mm (3) to match the tube or post.
- Finish: satin, polished, powder-coated anthracite or black. Raw zamak can be finished to suit the project.
- Position and extras: choose end, central, 90° or 180° versions. Check whether a securing pin, bracket or rubber gaskets are included.
Typical applications
These clamps are used in glass balustrades, glass partitions, conservatories and glazed enclosures. Screw fixing allows quick, repeatable installation on flat structural elements or directly on tube, without welding. A rubber gasket keeps the glass from touching the metal. Where the product description says it is sold separately, order it with the clamp.
Frequently asked questions
Do the clamps include a securing pin?
Many do. The 50×40, 63×45, 52×52, 65×55 and corner models list a securing pin. Some versions also include a bracket. Check the product description.
Are rubber gaskets supplied?
Not always. For the 180° holder and one 45×45×26 mm clamp, gaskets are stated as sold separately. Another 45×45×26 mm clamp is listed with a rubber gasket.
Which clamps fit round tube?
Models marked system 42.4 mm fit Ø42.4 mm tube. Models marked system 48.3 mm fit Ø48.3 mm tube. Flat system clamps are for surface mounting.
Not sure which clamp suits your glass and post? Contact our technical support for help with selection.
