Distribution Boards and Control Boxes for PV Installations
This range of Distribution Boards and Control Boxes covers IP65 plastic enclosures, hermetic PV distribution boards, DC+AC junction boxes with surge protection and inspection boxes for lightning protection systems. It is intended for installers building photovoltaic and general electrical installations, indoors and outdoors, who need an empty housing or a pre-equipped junction box.
What you will find in this category

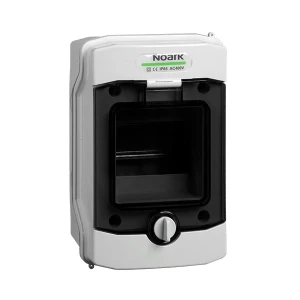

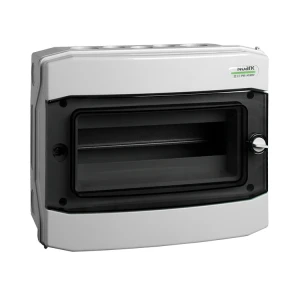

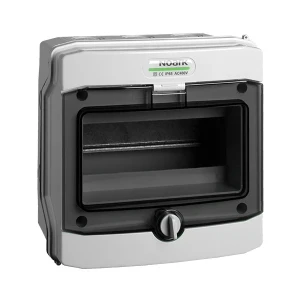

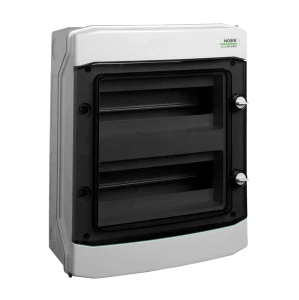

- Surface-mounted plastic enclosures, IP65: 4, 8 and 12 modules in 1 row, and 2x12 modules in 2 rows. Rated 400V AC / 1500V DC, with transparent door, DIN rails and N+PE terminals.

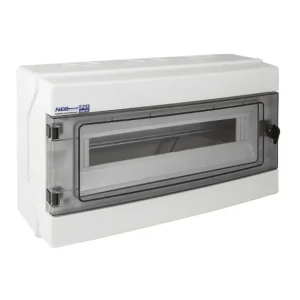

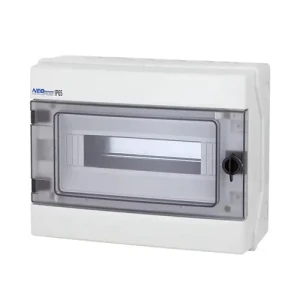

- Hermetic PV distribution boards RH-12 and RH-18: ABS, IP65, 1000V DC, 330x260x138 mm and 435x260x138 mm, operating range -25°C to +60°C.
- DC+AC junction boxes with Type 1+2 surge protection: 3-phase, 10 A to 50 A circuit breakers, IP65, with transparent door or MC4 connectors depending on the model.

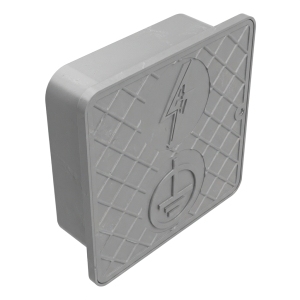

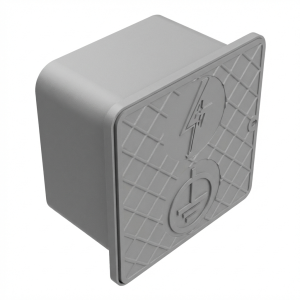

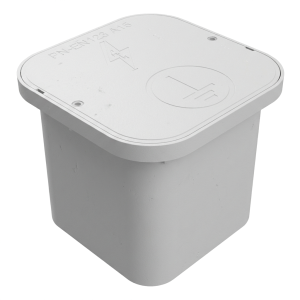

- Plastic control boxes for lightning protection systems: wall-mounted 150x150x100 mm and 168x145x55 mm, ground box 200x200x165 mm.

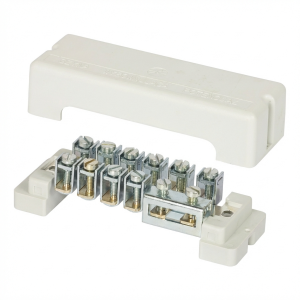

- Equipotential busbar: 10 terminals for 4-35 mm² and one 30x4 mm flat bar terminal.
How to choose
- Application: choose an empty enclosure or hermetic board to fit your own devices. Choose a junction box if you need a circuit breaker and surge protection already installed.
- Size: match the module count (4, 8, 12, 18 or 2x12) to the devices, leaving space for N+PE terminals. RH boards accept devices 68 and 75 mm deep.
- Voltage: the plastic enclosures are rated 400V AC / 1500V DC. The RH boards and several junction boxes are rated 1000V DC.
- Protection devices: check the circuit breaker rating (10, 16, 20, 40 or 50 A), the number of PV strings or inputs, and whether an RCD is fitted. SH-355 includes a 300 mA Type A RCD.
- Environment: IP65 suits outdoor mounting. For lightning protection, choose a wall-mounted or ground box that matches the installation point.
Typical applications
The plastic enclosures serve as housings for circuit breakers, fuses and other devices in renewable energy systems, residential and commercial buildings, industrial environments and control panels. Junction boxes link PV strings with AC circuits and add surge protection. Control boxes and the busbar are used in lightning protection and bonding.
Frequently asked questions
What is included with the IP65 plastic enclosures?
The 4, 8, 12 and 2x12 module enclosures come with a transparent door, DIN rails and N+PE terminals. They are surface-mounted.
Which junction boxes include surge protection?
All the Noark junction boxes have a DC+AC Type 1+2 surge protection device and a 3-phase circuit breaker. Ratings range from 10 A to 50 A.
Can the junction boxes be installed outdoors?
They have IP65 enclosures. SH-90 and SH-91 are described as suitable for indoor and outdoor installation, and SH-717 and SH-729 for outdoor installation.
