Junction Box Noark SH-355 3-Phase 40A with DC+AC Surge Protection
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
5 kg
Description

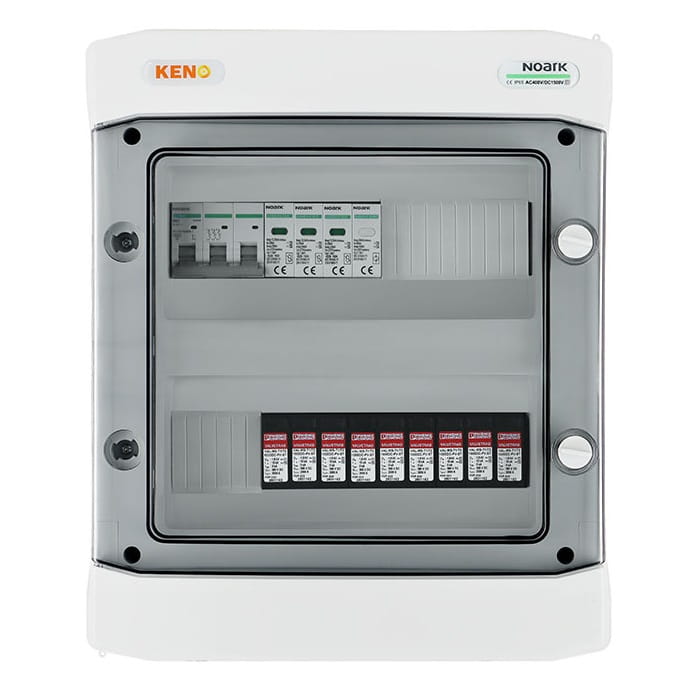

Noark Connection Box with DC+AC Surge Protection Device 40A 3-Phase SH-355
Connection box with DC + AC surge protection device, type 1+2, model SH-355 DCAC
The connection distribution board, designed for powering photovoltaic inverters, provides not only protection against the effects of short circuits and overloads, but also against indirect and direct discharges on both current sides - both alternating and direct.
It is designed for use in earthed and isolated PV installations, and thanks to its high IP protection rating, it can be installed outdoors. The distribution board structure is adapted for surface mounting and, depending on the equipment, can perform various functions.
- Standard, proven enclosure: Ensuring robustness and durability, making the distribution boards ready to meet diverse installation requirements.
- Option to install a key lock: Provides an additional level of security and restricts access to electrical equipment to authorised personnel only.
Basic parameters DC side
| Parameter | Value |
|---|---|
| Number of PV string inputs | outputs | 3 | 3 |
| Number | Type of DC surge protection device | Type | 3 | Phoenix | T1/T2 |
| Connection type | Panel-mount MC4 Stäubli |
Basic parameters AC side
| Parameter | Value |
|---|---|
| AC surge protection device | Type | Noark | T1/T2 |
| Overcurrent circuit breaker | Noark B40A 3P |
| Residual current device | 1 x 300mA type A |
DC surge protection device (SPD) used
| Parameter | Value |
|---|---|
| Manufacturer / Model | PHOENIX/VAL-MS-T1/T21000DC-PV/2+V |
| Surge protection | T1 / T2 |
| Open circuit voltage UOCSTC | ≤ 975 V DC |
| Maximum discharge current Imax (8/20) μs | 40 kA |
| Response time tA | ≤ 25 ns |
| Lightning impulse current (10/350) μs, charge | 2.5 As |
| Lightning impulse current (10/350) μs, specific energy | 6.25 kJ/Ω |
| Lightning impulse current (10/350) μs, peak value Iimp | 5 kA |
| Total discharge current Itotal (8/20) μs | 40 kA |
| Total discharge current Itotal (10/350) μs | 5 kA |
| Insulation resistance Riso | > 5 GΩ (at 500 V DC) |
| Nominal discharge current In (8/20) μs | 15 kA |
| Rated load current IL | 80 A |
| Continuous operating current ICPV | < 20 μA |
| Maximum continuous operating voltage UCPV | 1170 V DC |
| Short-circuit withstand ISCPV | 2000 A |
| Residual voltage Ures | ≤ 3.5 kV (at In) |
| - | ≤ 2.9 kV (at 5 kA) |
| - | ≤ 3.2 kV (at 10 kA) |
| - | ≤ 3.7 kV (at 20 kA) |
| - | ≤ 4.1 kV (at 30 kA) |
| - | ≤ 4.6 kV (at 40 kA) |
| Protective conductor current IPE | ≤ 20 μA DC |
| - | ≤ 350 μA AC |
| Protection level Up | ≤ 3.5 kV |
| Standby power consumption PC | ≤ 25 mVA |
Overcurrent circuit breaker (MCB) used (1)
| Parameter | Value |
|---|---|
| Manufacturer / Model | Noark / Ex9BN 3P B40 |
| Rated current | 40A; 3-P |
| Rated operational voltage Ue | 230/415 V AC |
| - | 72 V DC per pole (1P, 2P) |
| - | 48 V DC per pole (3P, 4P) |
| Minimum voltage | 12 V AC/DC |
| Rated impulse withstand voltage Uimp according to IEC 60898-1 | 6 kV |
| Rated impulse withstand voltage Uimp according to IEC 60947-2 | 6 kV |
| Rated short-circuit capacity Icn according to IEC 60898-1 | 6 kA |
| Rated short-circuit capacity Icn according to IEC 60947-2 | 10 kA |
| Rated insulation voltage Ui | 690 V AC |
| Number of poles | 3 |
| Frequency | 50/60 Hz |
| Characteristic | B |
| Design according to | IEC/EN 60898-1, IEC/EN 60947-2 |
| Mechanical endurance | 20,000 operations |
| Electrical endurance | 10,000 operations |
| Energy limitation class | 3 |
| Utilisation category | A |
| Supply direction | Either (from top or bottom) |
AC surge protection device (SPD) used
| Parameter | Value |
|---|---|
| Manufacturer / Model | Noark Ex9UE1+2 12.5 3PN 275 |
| Connection | L-N/PE, N-PE |
| Design according to | EN 61643-11 |
| SPD type | Type 1+2 (class I+II, B+C, T1+T2) |
| Cartridge design | MOV (Varistor)GDT (Spark gap) |
| Rated voltage Un | 230 V AC |
| Reference test voltage UREF | 255 V AC |
| Maximum continuous operating voltage Uc | 275 V AC 255 V AC |
| Frequency f | 25 kA per pole 50 kA per pole |
| Specific energy W/R | 156.25 kJ/Ω |
| Maximum impulse current Iimp (10/350 μs) | 12.5 kA per pole 50 kA per pole |
| Maximum discharge current Imax (8/20 μs) | 50 kA per pole |
| Voltage protection level Up for current In | 1.5 kV |
| Voltage protection level Up for current Imax | 1.8 kV 1.5 kV |
| Voltage protection level Up for 5 kA (8/20 μs) | 1 kV |
| N-PE Follow current extinguishing capability Ifi | 100 A |
| 5 s | 335 V |
| 200 ms | 335 V, 1200 V |
| Leakage current IPE at UREF | ≤ 1 mA |
| SPD voltage for 1mA current | 387 - 473 V |
| Response time | ≤ 25 ns ≤ 100 ns |
| Maximum fuse backup protection | 160 A gG |
| Short-circuit current withstand capability | 50kA |
| Short-circuit withstand ISCCR | 10kA |
| Current factor k | 1kA |
| LV system type | TN-S, TT (3+1) |
Residual current device (RCD) used
| Parameter | Value |
|---|---|
| Manufacturer / Model | Noark / Ex9L-N 300mA |
| Design according to | EN 61008 |
| Number of poles | 2 / 4 |
| Characteristic | A |
| Rated operational voltage Ue | 240/415 V AC |
| Rated current | 40 / 63 A |
| Minimum voltage for RCD function | Voltage independent |
| Voltage range for test button | 150 — 440 V |
| Frequency f | 50 Hz |
| Rated insulation voltage Ui | 500 V |
| Rated conditional short-circuit current Inc | 6 kA |
| Rated residual current IΔn | 300mA |
| Sensitivity | sensitive to sinusoidal, rectified pulsating and smooth residual current, high frequency (1 kHz) |
| Operating time | instantaneous |
| Rated impulse withstand voltage Uimp | 6 kV |
| Current impulse withstand | 3000 A |
| Mechanical endurance | 20,000 operations |
| Electrical endurance | 4,000 operations |
Maximum fuse backup protection against overload
| Parameter | Value |
|---|---|
| In = 40 A | 32 A gG |
| In = 63 A | 50 A gG |
Maximum fuse backup protection against short-circuit effects
| Parameter | Value |
|---|---|
| In = 40 A | 63 A gG |
| In = 63 A | 63 A gG |
Rated making and breaking capacity Im
| Parameter | Value |
|---|---|
| In = 40 A | 500 A |
| In = 63 A | 630 A |
| Supply direction | Either (from top or bottom) |
