Balcony Brackets for Mounting PV Panels on Balustrades
Balcony Brackets in this category are used to fix a photovoltaic panel to a balcony balustrade, terrace railing or other barrier. The range holds a complete mounting set for installers working on multi-family housing and on sites without space for a classic roof or ground-mounted installation.
What you will find in this category

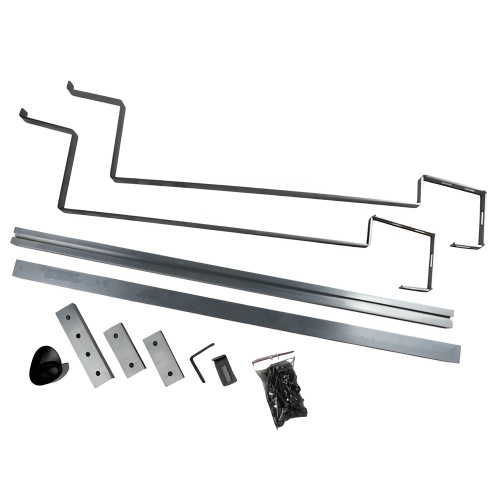

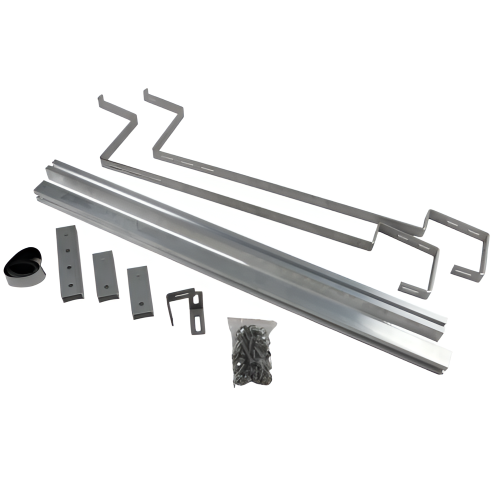

- Complete PV mounting set for a balcony balustrade (Synerga Balus 2, code GPV-200-02), with a set weight of 8 kg.
- Brackets and angle brackets 65×65 made of H17 stainless steel.
- Aluminium profiles 40×40×1040 mm made of 6060 aluminium.
- EPDM gasket, 0.8 m.
- Mounting angle of 10° for panels up to 1140 mm in height.
How to choose
- Mounting location: the set is designed for balcony balustrades, terrace railings and similar barriers.
- Panel height: check that the panel is no more than 1140 mm in height.
- Mounting angle: the set gives a fixed angle of 10°. Confirm that it suits the site.
- Materials: H17 stainless steel brackets and 6060 aluminium profiles are intended for outdoor conditions.
- Set weight: 8 kg. Take this into account when planning handling on site.
Typical applications
The set suits multi-family housing, where a panel can be attached to a balcony balustrade or terrace railing. It also suits locations lacking space for a classic roof or ground-mounted installation. The minimalist construction combines stainless steel with aluminium for corrosion resistance and long-lasting support of the panel outdoors.
Frequently asked questions
Where can the Balus 2 set be installed?
It attaches a photovoltaic panel to a balcony balustrade, terrace railing or other barrier. It is intended for multi-family housing and places without space for a roof or ground-mounted system.
What is the set made of?
The brackets and angle brackets 65×65 are H17 stainless steel. The 40×40×1040 mm profiles are 6060 aluminium. The set also includes a 0.8 m EPDM gasket.
What panel size and angle does it support?
The mounting angle is 10°, and the panel can be up to 1140 mm in height.
Need help choosing a set for your balustrade? Contact technical support and we will help you select the right solution.
