Description

Synerga Balus 2 – PV mounting set for balcony balustrade XL

Synerga Balus 2 is a complete mounting set enabling a photovoltaic panel to be attached to a balcony balustrade, terrace railing or other barrier. Dedicated to multi-family housing and locations lacking space for a classic roof or ground-mounted installation. The minimalist construction combines H17 stainless steel with 6060 aluminium, ensuring corrosion resistance and long-lasting, safe support of the panel in outdoor conditions.

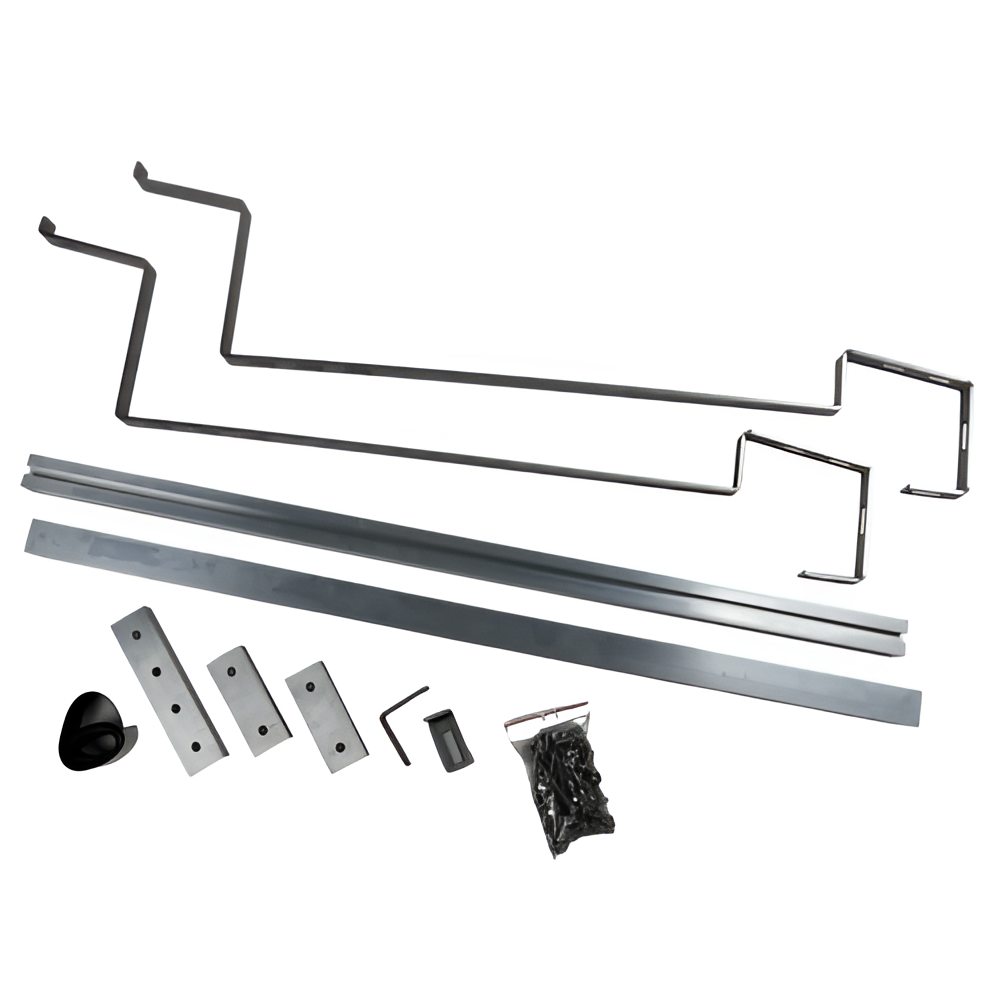

Balus 2 mounting set – all components laid out: brackets, aluminium 40x40 profiles, connectors and a full set of screws

Set contents

Hanger brackets (holders) made of H17 stainless steel – 2 pcs

Adjustable 65×65 angle brackets made of H17 stainless steel – 2 pcs

Aluminium mounting profiles 40×40×1040 mm – 2 pcs

Aluminium connectors – 2 pcs + additional connector – 1 pc

Self-adhesive EPDM gasket – 0.8 m

Full set of screws, flange nuts and connectors (M8/M10) for complete installation

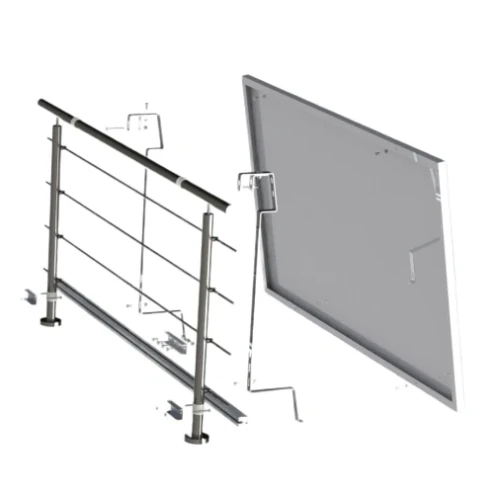

3D visualisation of the Balus 2 set installed on a balustrade with a photovoltaic panel

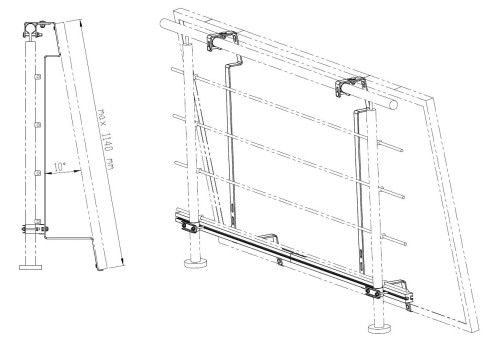

Installation diagram of the Balus 2 set – 10° tilt angle and maximum panel height of 1140 mm

Application and installation

The Balus 2 set is mounted directly onto a balcony railing. The photovoltaic panel is suspended at an angle of 10° from vertical, ensuring favourable sun exposure while maintaining stability. The construction is designed for panels with a maximum height of 1140 mm. The hanger brackets, with a thickness of 5 mm and a working height of 1134 mm, guarantee the rigidity of the entire system. The bean-shaped hole system in the brackets allows for precise adjustment of the panel's position.

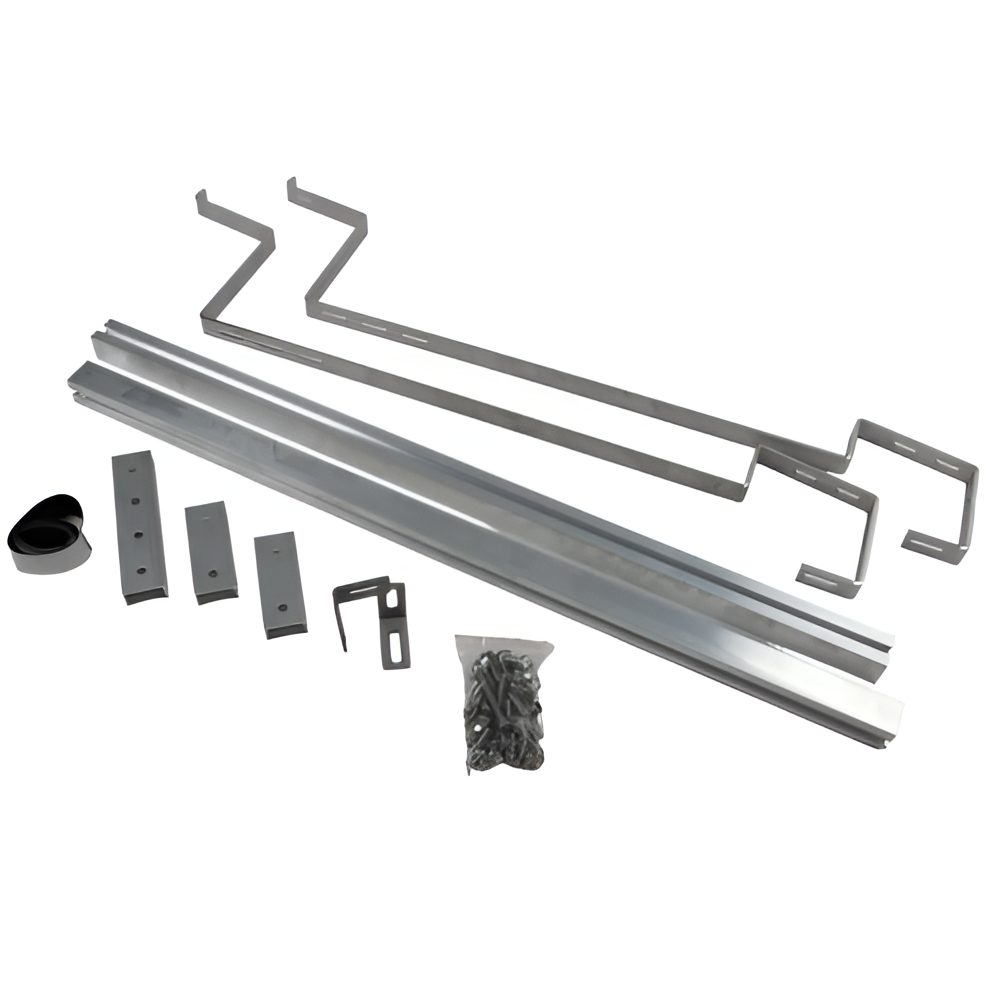

Balus 2 mounting set – alternative view of the disassembled structural components

Materials and durability

All load-bearing components — the hanger brackets and 65×65 angle brackets — are made of 1.4016 (H17) stainless steel, resistant to atmospheric corrosion. The 40×40×1040 mm mounting profiles and connectors are made of 6060 series aluminium, combining lightness with mechanical strength. The EPDM gasket protects the railing from scratching and dampens vibration. Thanks to the use of anti-corrosion materials, the entire structure is designed for many years of outdoor use without the need for additional maintenance.

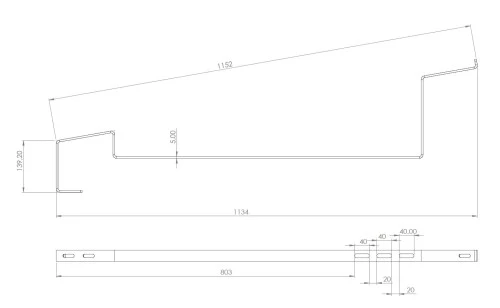

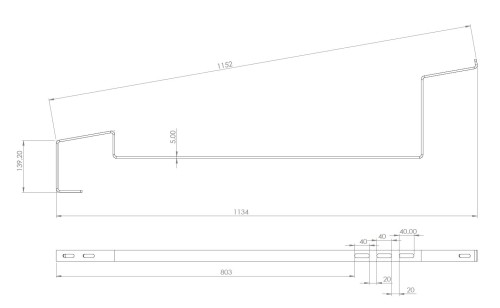

Dimensional drawing of the hanger bracket – height 1134 mm, material thickness 5 mm, adjustment holes

Technical specification

Maximum panel height: 1140 mm

Panel tilt angle: 10°

Mounting profiles: 40×40×1040 mm (6060 aluminium)

Brackets (hanger brackets): 1.4016/H17 stainless steel, thickness 5 mm

Angle brackets: 65×65 mm, 1.4016/H17 stainless steel

Connectors: 6060 aluminium

Gasket: EPDM, self-adhesive, 0.8 m

Package weight: 8 kg

Package dimensions: 115×37×8 cm

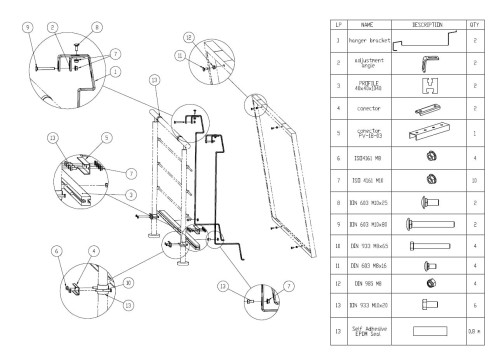

Exploded view drawing of the Balus 2 set with a BOM parts list

Video presenting the PV mounting set components – aluminium profiles, angle brackets, holders as well as screws and nuts

Safety
