Gate Hinges for Swing Gates and Wicket Gates
Hinges in this category carry swing gates and wicket gates made of steel or fitted to masonry posts. The range covers weld-on, bolt-on, plate and built-in versions with thread sizes from M10 to M24. Most are adjustable after installation. They are intended for installers, metalworkers and gate builders.
What you will find in this category

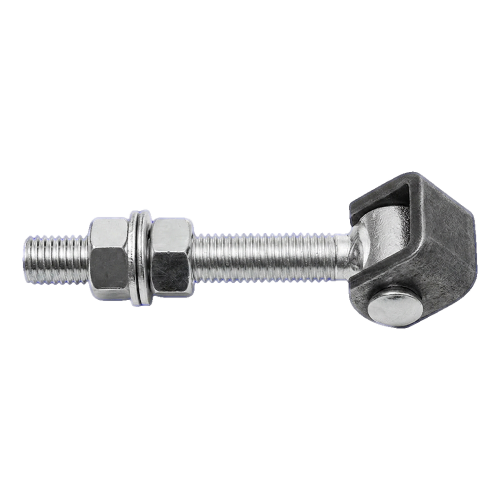

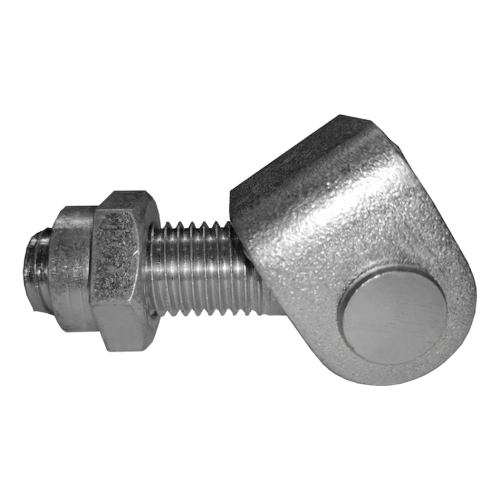

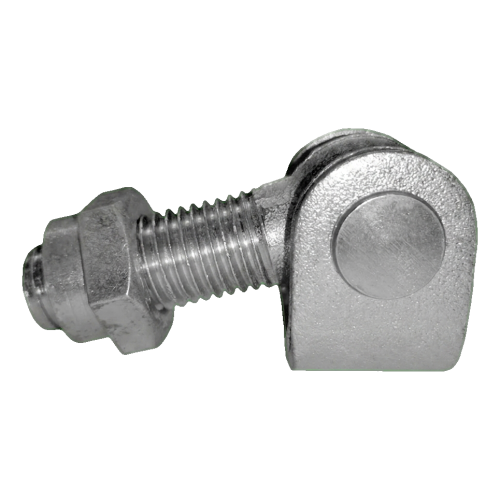

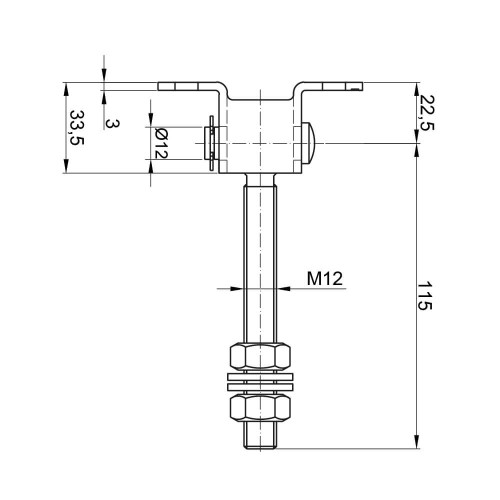

- Adjustable weld-on hinges: M12 to M20 thread, adjusting nut, galvanised steel with a black or raw eye.

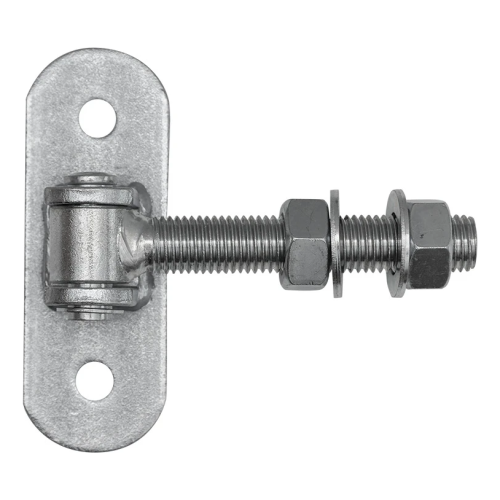

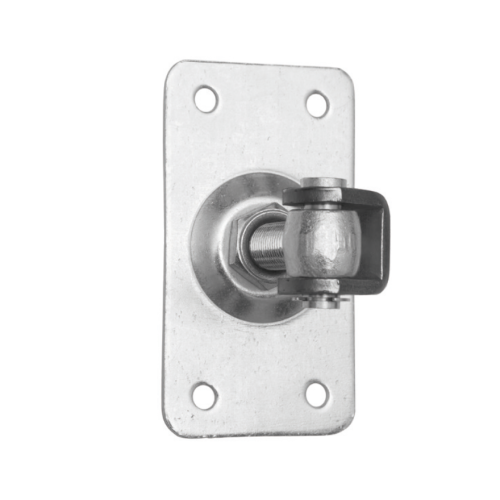

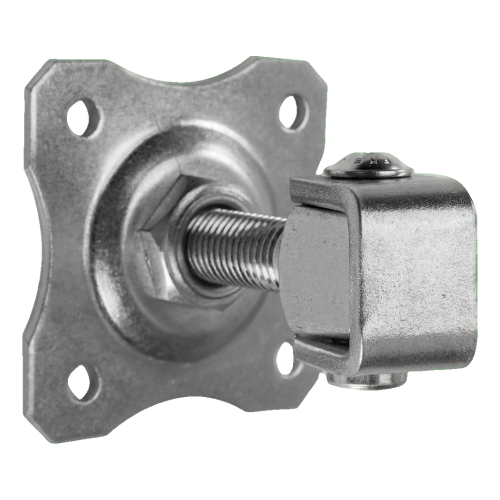

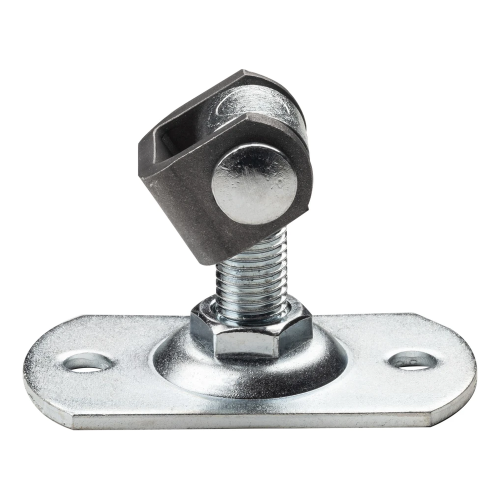

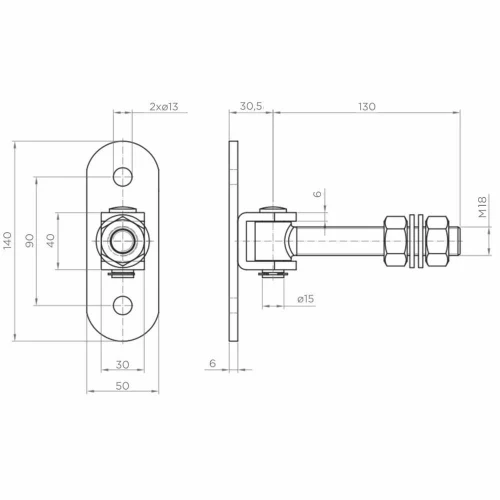

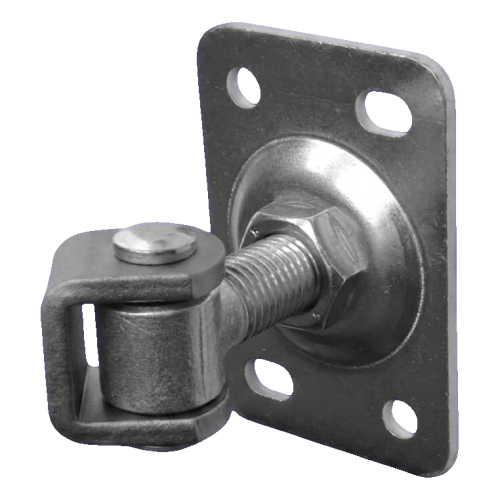

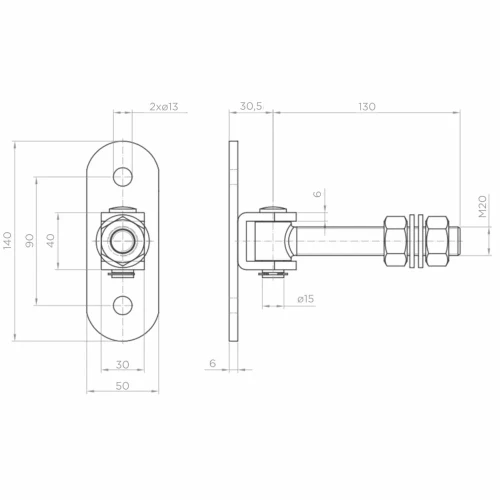

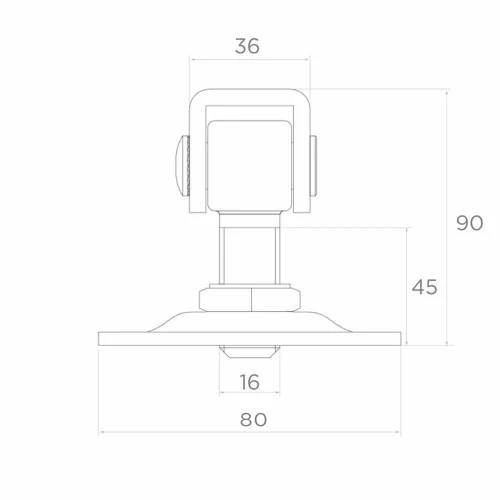

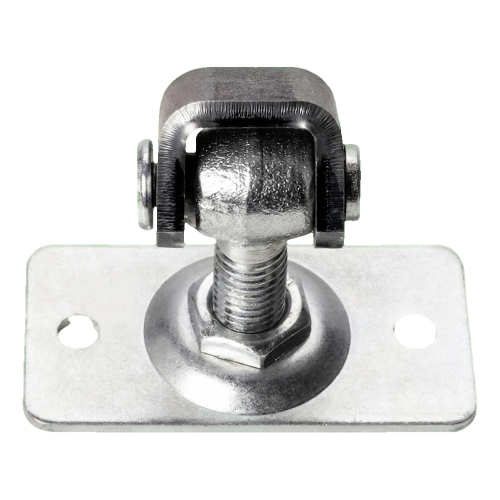

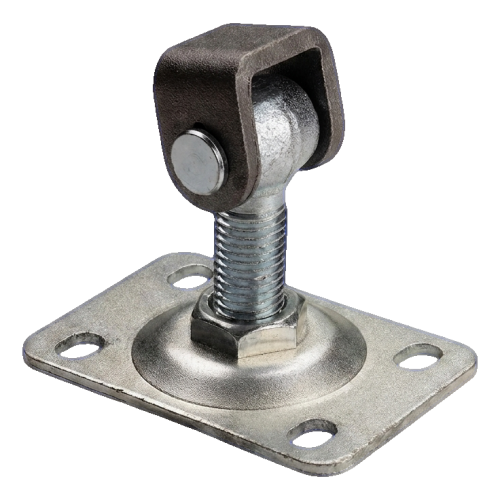

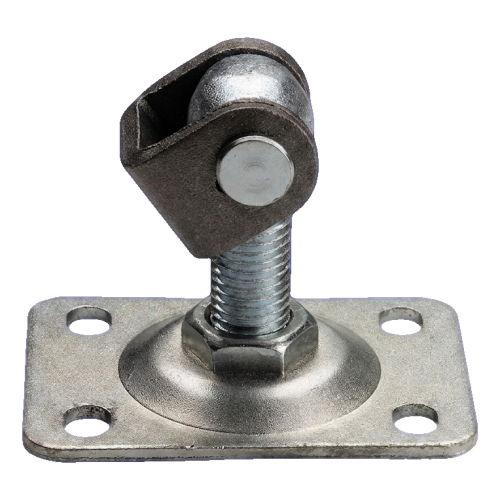

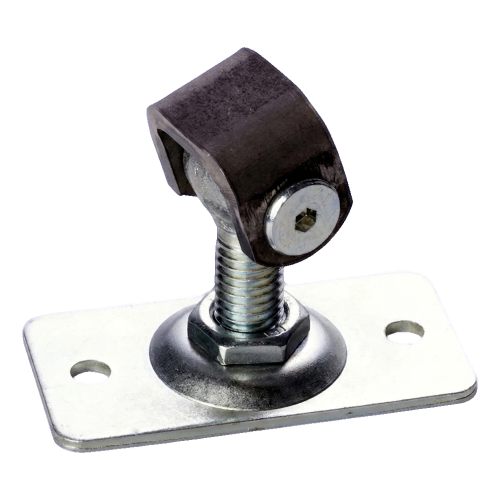

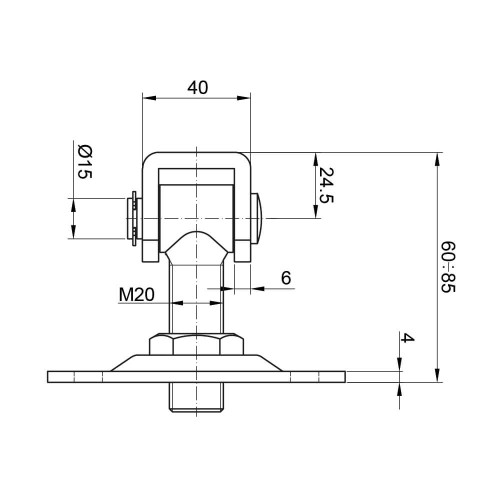

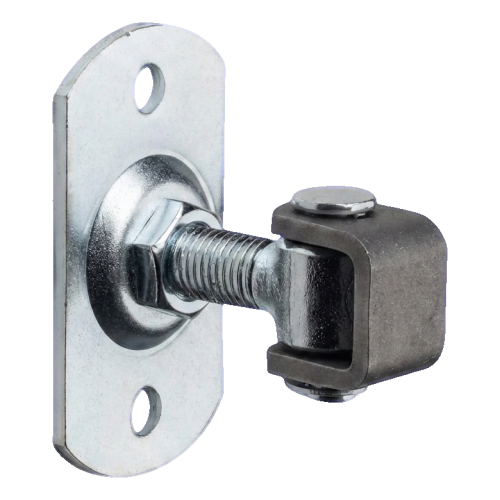

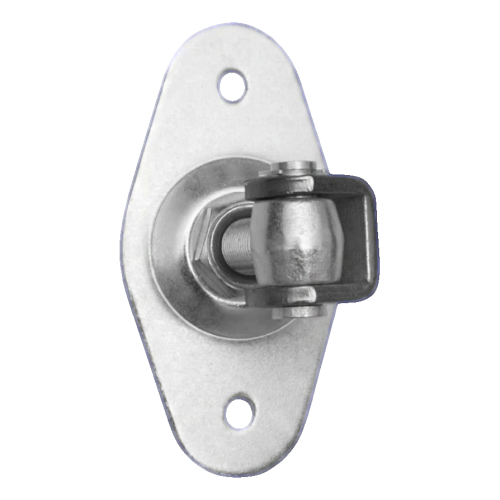

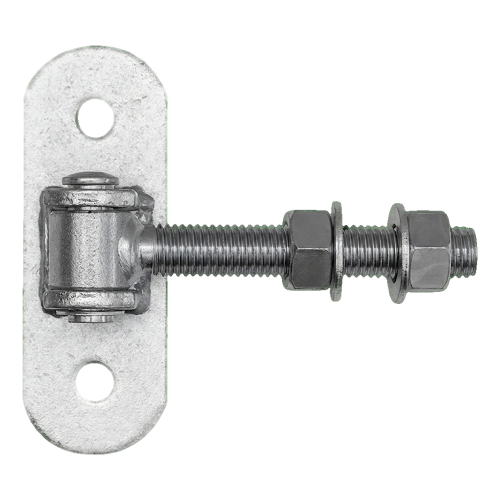

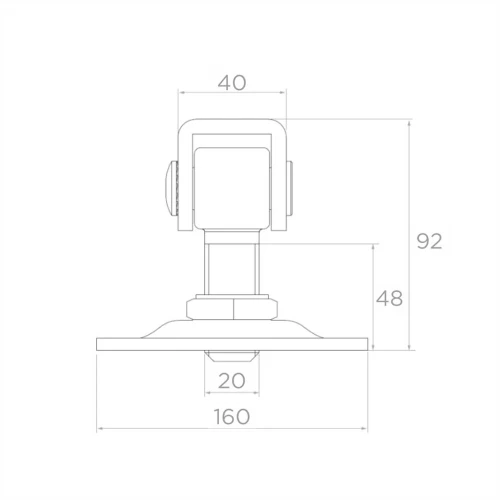

- Hinges with mounting plate: M16 plates such as 80×80 mm and 75×55 mm, M20 plate 100×100 mm, with four fixing holes.

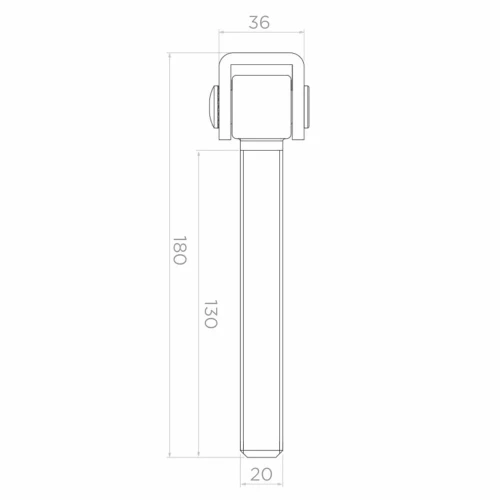

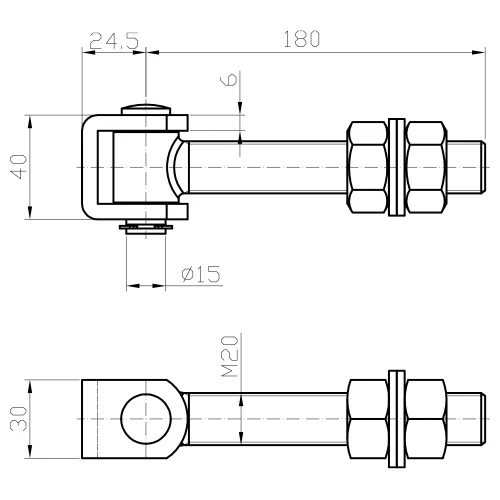

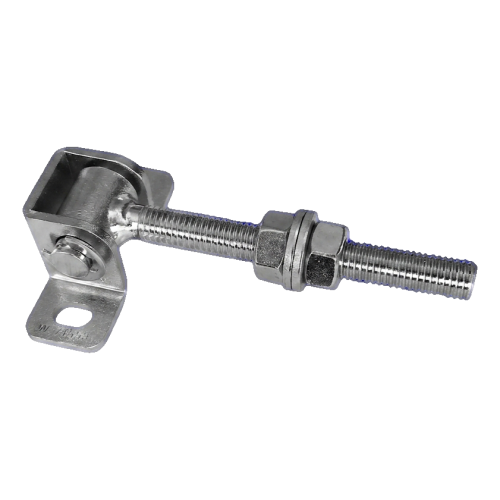

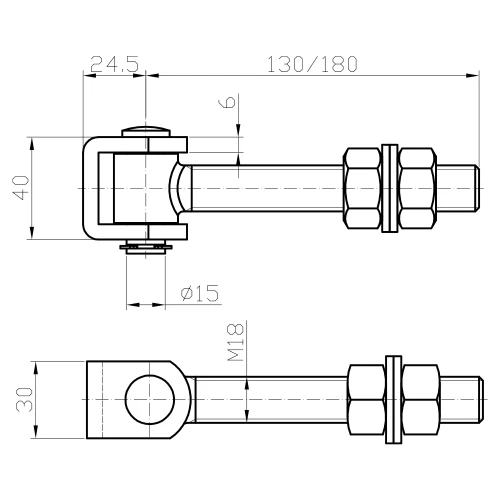

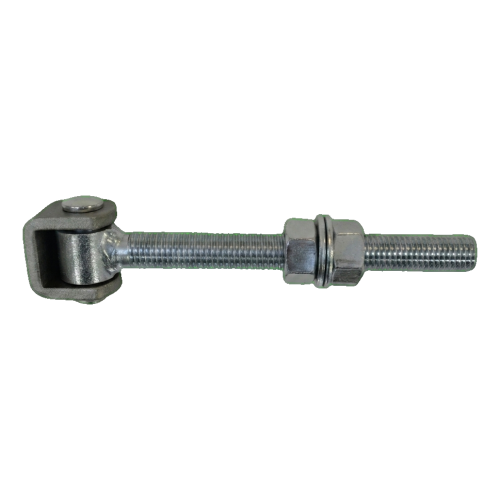

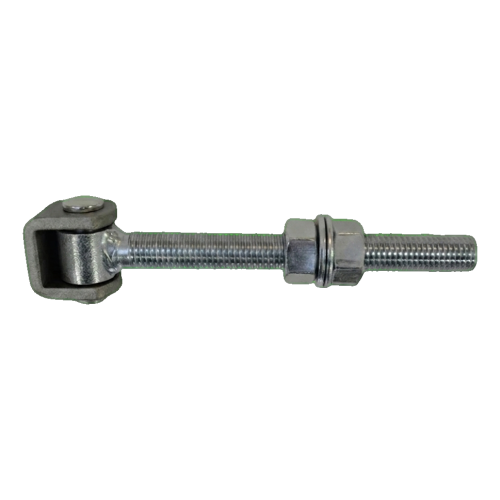

- Long bolt-on hinges: M16 to M20, lengths 150-180 mm, some with circlip, galvanised steel.

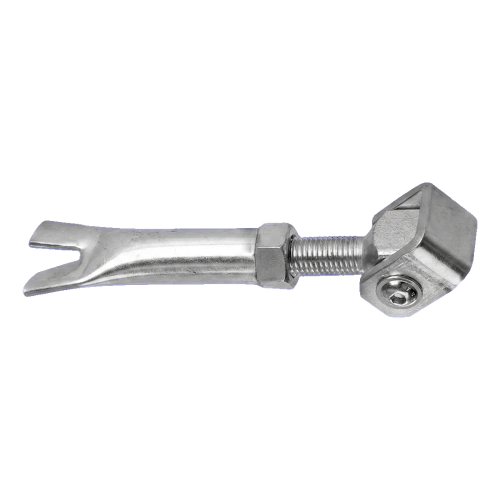

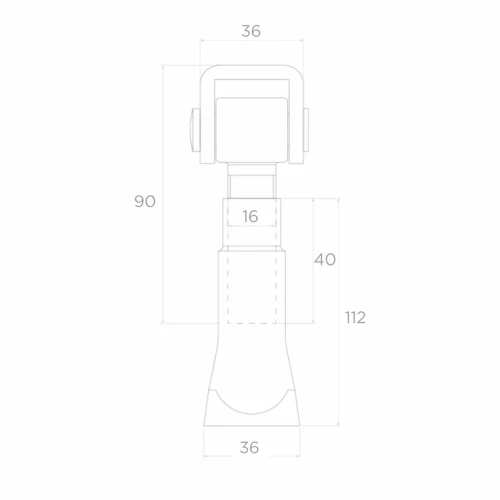

- Built-in hinges for masonry: M16 with 90 mm spindle and 112 mm anchor.

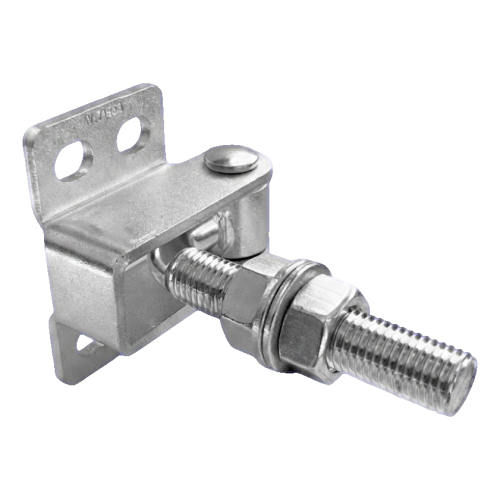

- AISI 304 stainless hinges and hinge plates: M12 to M20, satin or raw finish.

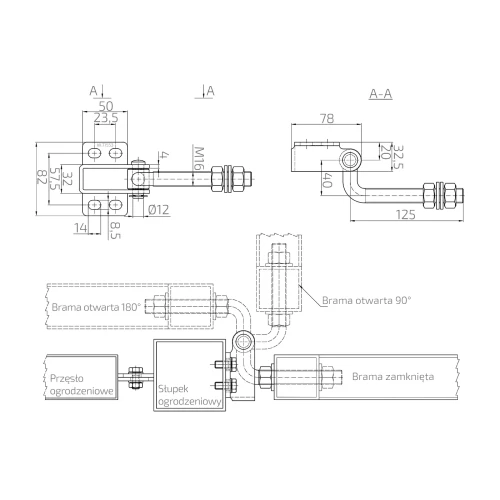

- Compact and 180° hinges: Quick-Fix aluminium set for gates up to 60 kg, and M16 weld-in hinge with 180° opening.
- Related components: steel connector L120 for M18 hinges and B-SAFE stainless steel safety cable.
How to choose
- Load capacity: check the rating per pair on a 2 m leaf. Examples: M12 40 kg, M16 65 kg, M18 80 kg, M20 105 kg, and up to 120 kg for one M20 model.
- Thread size: M16 and M20 are the most common in the range. Match the thread to the gate weight.
- Mounting method: choose weld-on, with plate, bolt-on or wall-embedded to suit the leaf and post material.
- Material and finish: galvanised steel suits most outdoor gates. AISI 304 is available where stainless steel is required.
- Adjustment range: compare the stated range, for example 42-62 mm or 50-85 mm, to allow for levelling and sagging.
Typical applications
These hinges are fitted to swing gates, garden gates and wicket gates. Weld-on types go onto steel frames and posts. Plate and built-in types suit steel or masonry structures. The adjusting nut lets you realign a leaf that has sagged or moved with temperature, without dismantling the gate.
Frequently asked questions
Can the gate be adjusted after installation?
Yes. Adjustable hinges have a threaded pin with an adjusting nut. Turning the nut realigns the leaf, for example after sagging, without removing the gate.
What load can a pair of hinges carry?
It depends on the model. Listed ratings per pair on a 2 m leaf include 40 kg (M12), 65 kg (M16), 80 kg (M18) and 105 kg (M20). Check the product data.
Are stainless steel hinges available?
Yes. Nine products are made of AISI 304 stainless steel, in M12 to M20, with satin or raw finish.
Not sure which hinge suits your gate? Contact technical support and we will help you select the right size and mounting method.
