Adjustable M12 hinge bolt-on both sides – 74×38 mm base for gates and wickets

Go to Product feedback

Adjustable M12 hinge with steel threaded bolt, bolt-on both sides. 74×38 mm base, plate thickness 2.5 mm. Adjustment range 42-58 mm, pair load capacity 35 kg. For wickets and gates. Weight 0.21 kg.

Go to full description
with VAT without VAT
Price €5.87
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] zawiasy #113

  • Thread type M12
  • Mounting Method Bolt-On
  • Material Steel

Description

Adjustable M12 hinge bolt-on both sides – 74×38 mm base for gates and wickets

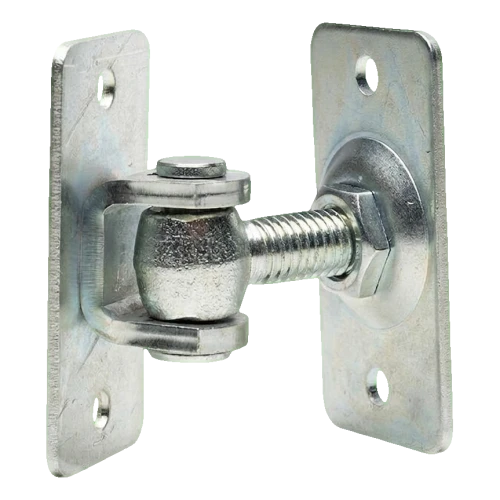

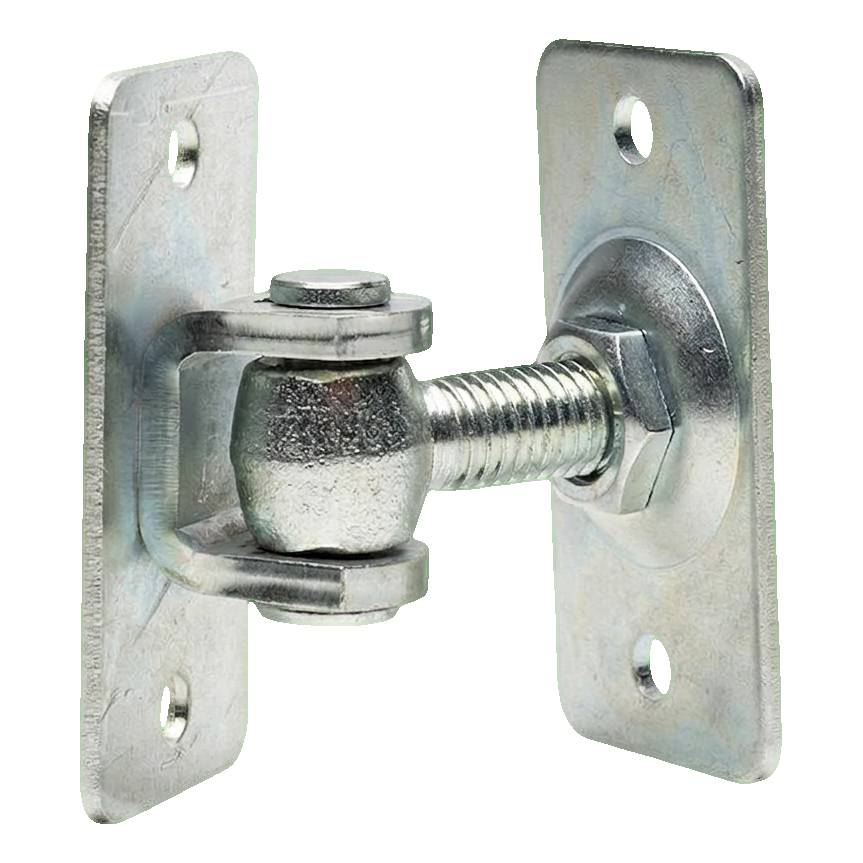

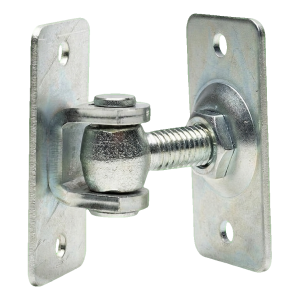

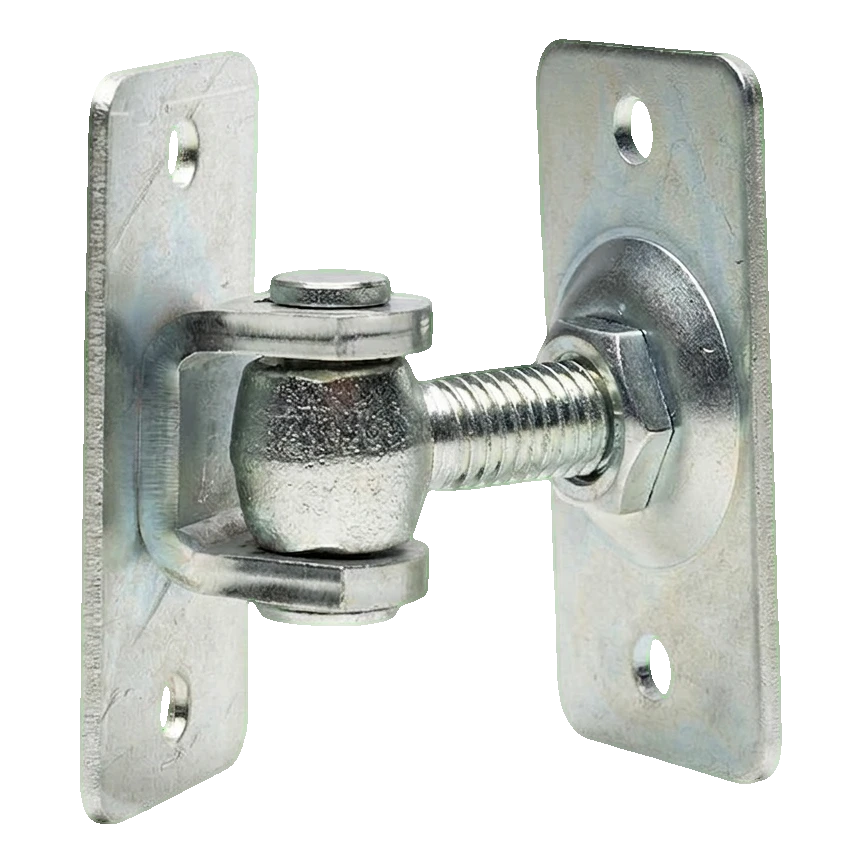

Adjustable M12 hinge bolt-on both sides – front view
Adjustable M12 hinge bolt-on both sides – front view

Adjustable M12 hinge with steel threaded bolt is a durable and practical hardware designed for mounting wickets and gates. The bolt-on both sides construction eliminates the need for welding — simply bolt both mounting plates to the post and leaf, which significantly reduces installation time on site.

The ball joint of the hinge enables leaf position adjustment within the range of 42–58 mm, allowing precise positioning of the wicket or gate even in case of minor mounting deviations. The permissible load capacity of a pair of hinges is 35 kg per leaf, which is sufficient for handling standard fence wickets and lightweight gates.

Dimensions and technical data

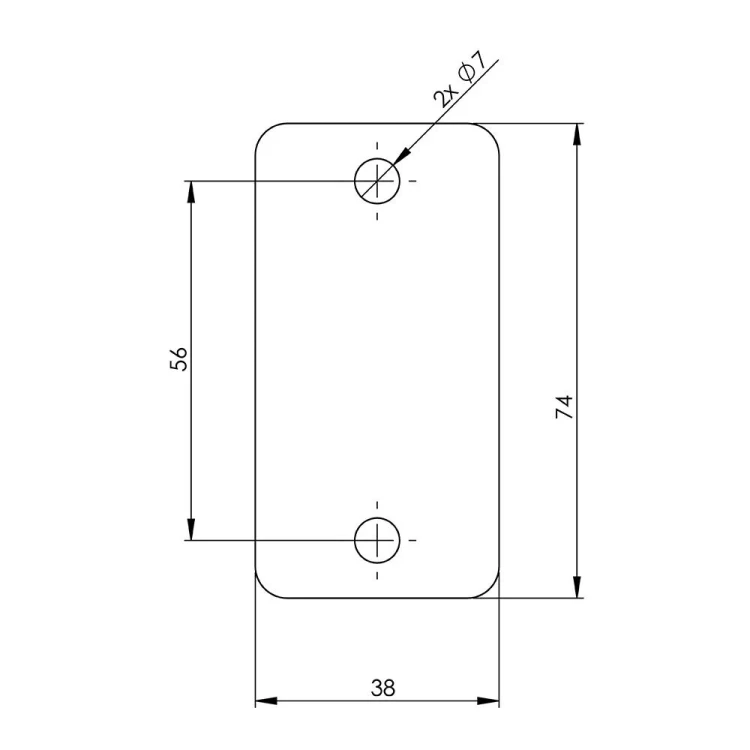

Dimensional drawing of hinge mounting plate – front view
Dimensional drawing of hinge mounting plate – front view
  • Bolt thread: M12
  • Base dimensions (mounting plate): 74 × 38 mm
  • Mounting plate thickness: 2.5 mm
  • Mounting holes spacing: 56 mm
  • Number of mounting holes in plate: 2 × Ø7 mm
  • Adjustment range (distance between plates): 42–58 mm
  • Joint bracket height: 28 mm
  • Permissible load capacity of pair of hinges: 35 kg
  • Material: steel
  • Mounting: bolt-on both sides (without welding)
  • Weight: 0.21 kg

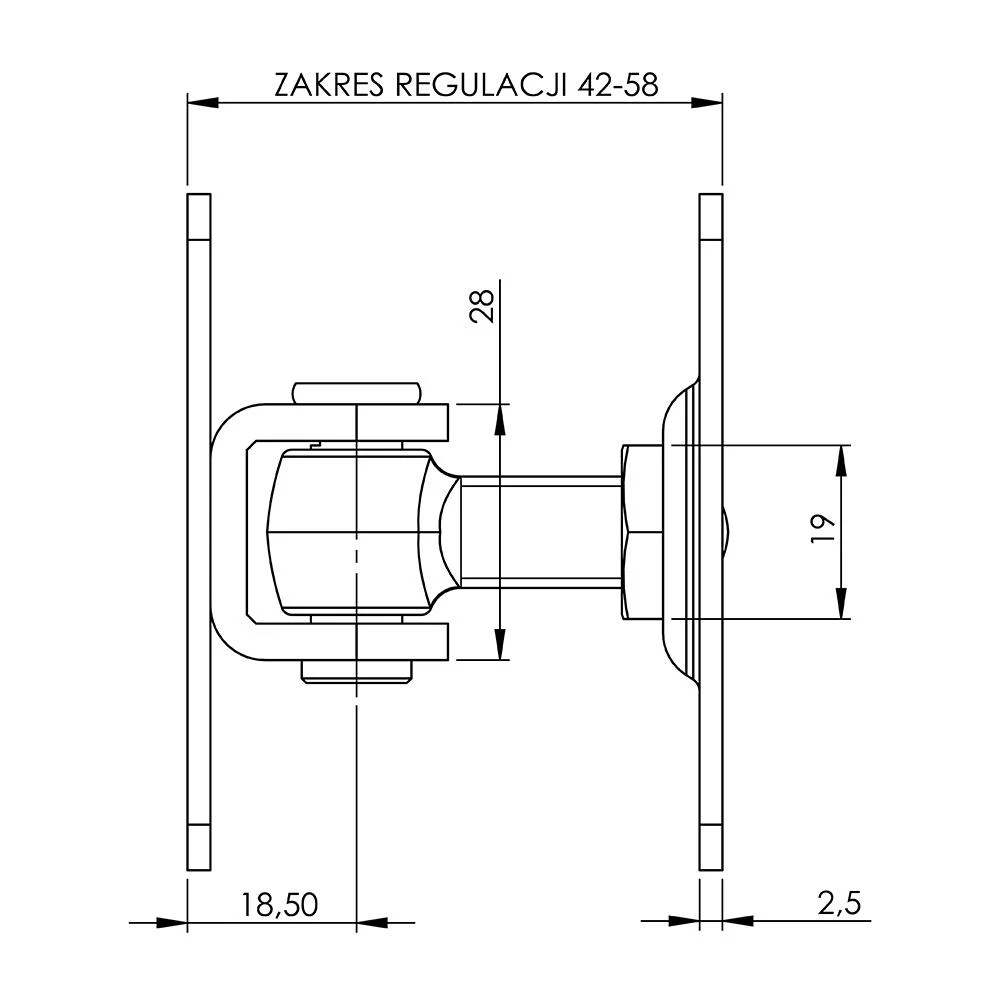

Dimensional drawing of adjustable hinge – side view with adjustment range 42–58 mm
Dimensional drawing of adjustable hinge – side view with adjustment range 42–58 mm

Advantages for installer

  • Installation without welding — both sides of the hinge are fastened with bolts, so no welder or specialist qualifications are needed
  • Post-installation adjustment — the 42–58 mm range allows correction of leaf positioning without dismounting
  • Mechanical damage resistance — steel construction ensures durability in outdoor conditions
  • Universal application — suitable for wickets, lightweight gates and fence leaves

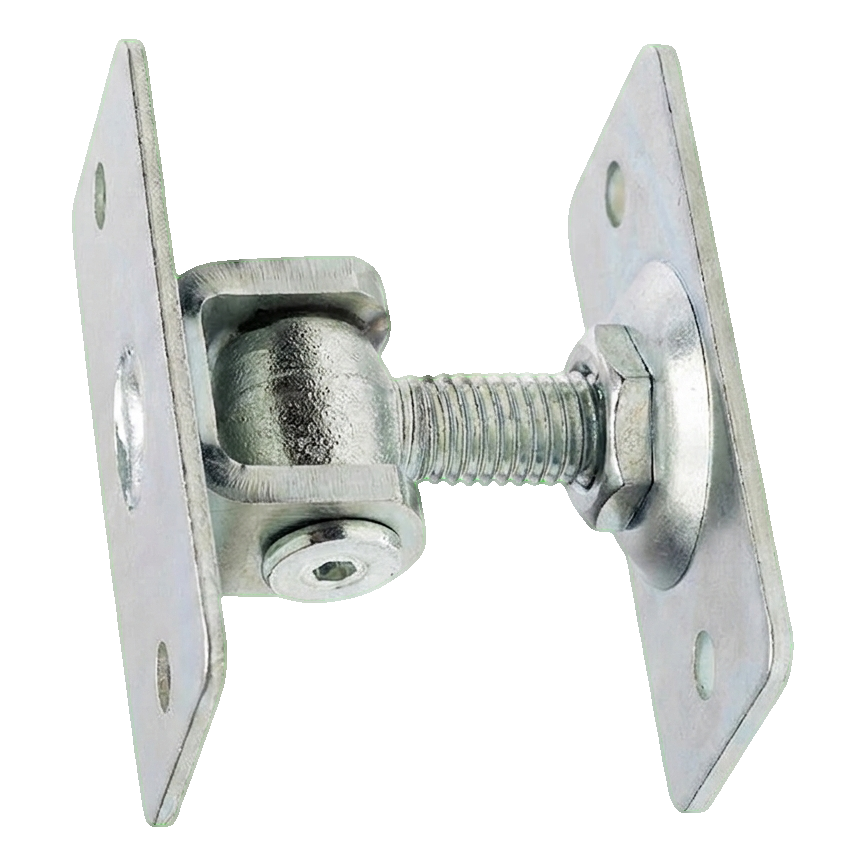

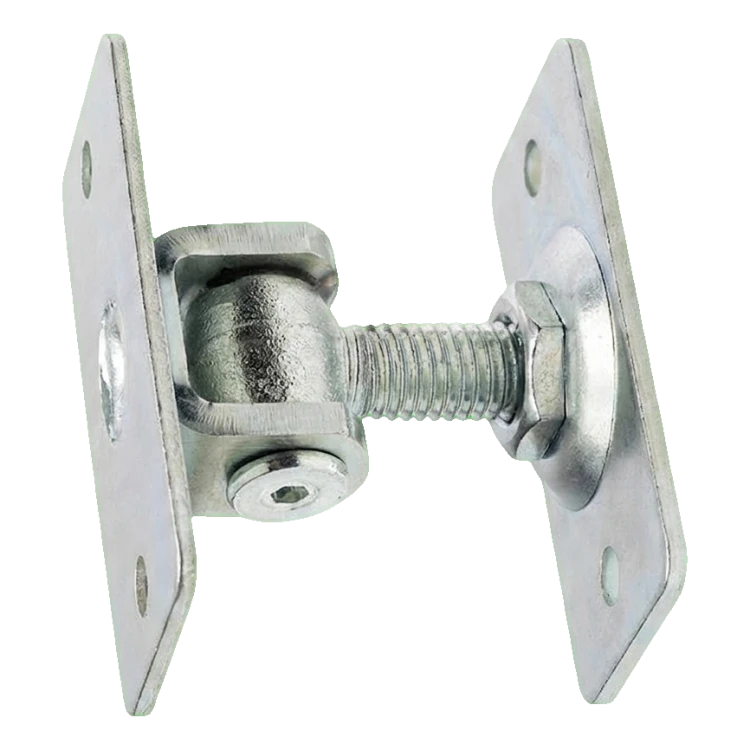

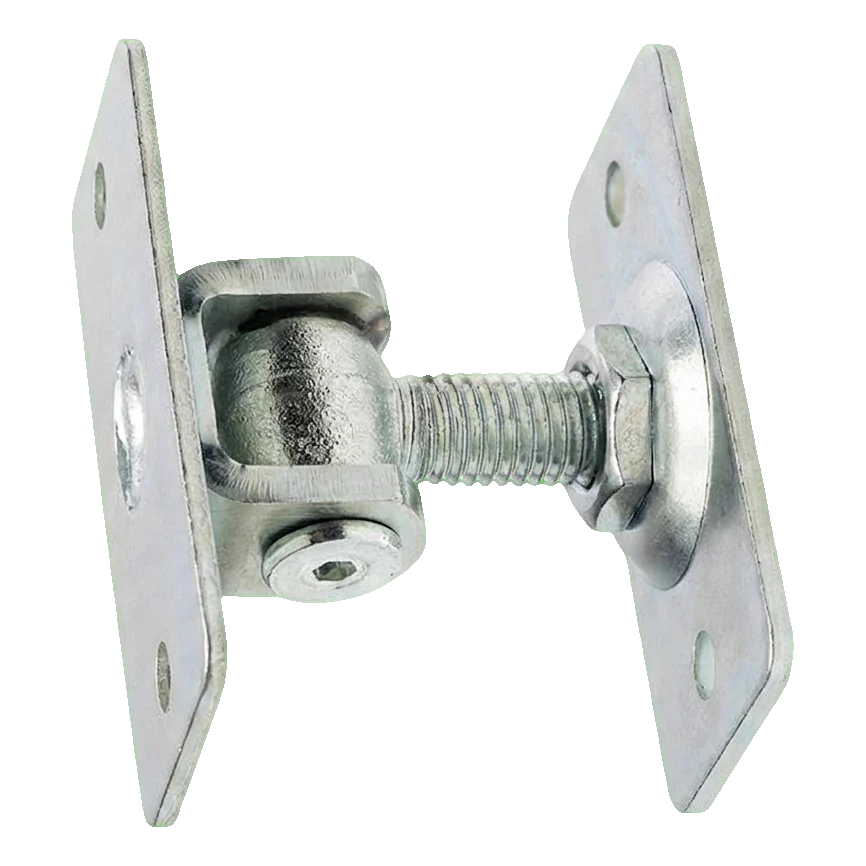

Adjustable M12 hinge bolt-on both sides – view from other side
Adjustable M12 hinge bolt-on both sides – view from other side

Each mounting plate has two Ø7 mm holes spaced at 56 mm, which facilitates fitting to typical fence posts. The hinge is supplied pre-assembled — simply bolt it to the structure and adjust the leaf distance using the M12 thread.
