Bolts and Latches for Gates and Wickets
This category contains locking elements for securing gates, wicket gates and agricultural doors. It currently offers a galvanised spring bolt with a 420 mm length and a ⌀14 mm pin. It is intended for installers and builders who need a sturdy, easy-to-operate lock for a gate leaf.
What you will find in this category

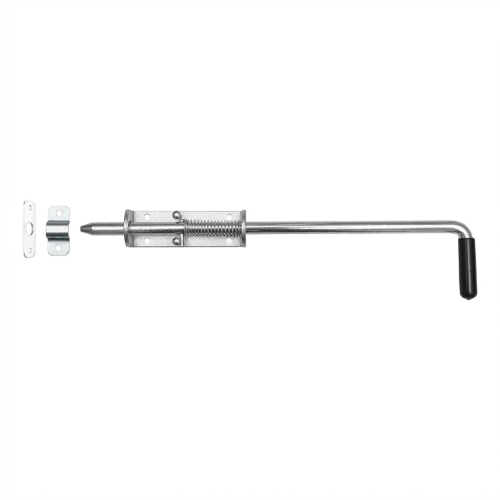

- Spring bolt, 420 mm long, with a ⌀14 mm bolt (code 000-239).
- Spring mechanism with a stroke of 89 mm, released with one hand.
- Handle with a plastic guard, suited to use in low temperatures.
- Mounting bracket 23×52 mm with ⌀6.2 mm holes, included in the set.
- Galvanised finish.
How to choose
- Bolt diameter: the ⌀14 mm pin gives high mechanical resistance and holds the gate leaf stable when locked.
- Length and stroke: check that the 420 mm length and 89 mm stroke suit your leaf and the position of the catch.
- Mounting: the bracket measures 23×52 mm and has ⌀6.2 mm holes. Select screws to match these holes and your substrate.
- Finish: the bolt is galvanised, which suits outdoor gates and agricultural doors.
- Operation: the spring mechanism and handle allow quick one-handed release in daily use.
Typical applications
The spring bolt secures gates, wicket gates and agricultural doors. The spring mechanism locks reliably and speeds up everyday operation. The ergonomic handle with a plastic guard stays comfortable to use in low temperatures. The bolt is fixed with screws through the mounting bracket.
Frequently asked questions
What are the main dimensions of the spring bolt?

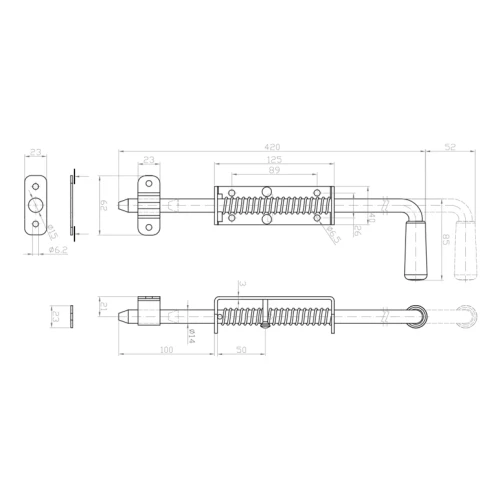

The bolt is 420 mm long with a ⌀14 mm pin and an 89 mm stroke. The mounting bracket measures 23×52 mm.
How is the bolt fixed?
It is mounted with screws. The set includes a mounting bracket with ⌀6.2 mm holes.
Where can it be used?
It is designed for gates, wicket gates and agricultural doors.
Need help choosing a bolt for your gate? Contact our technical support and we will help you select it.
