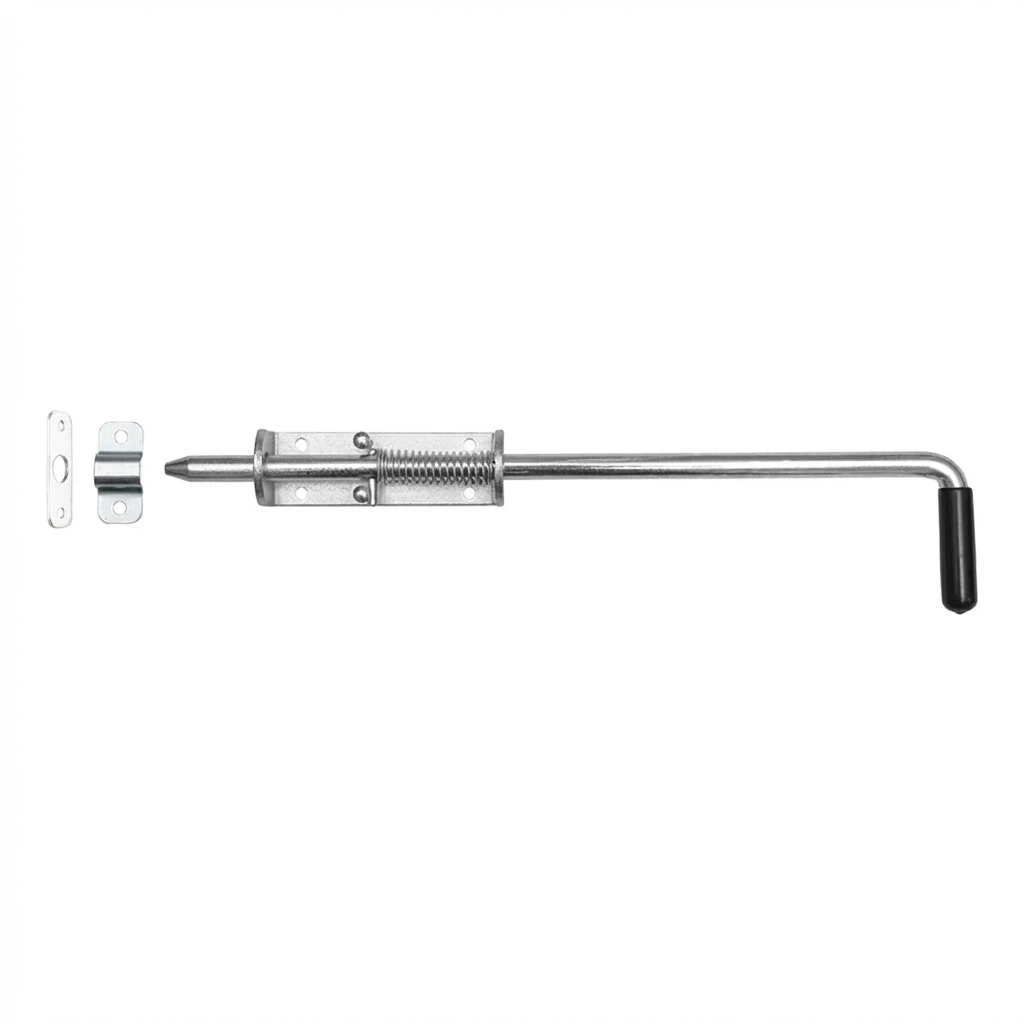

Spring bolt galvanised 420x14 mm
Leave feedback on the product
Spring bolt with ⌀14 mm bolt, length 420 mm, stroke 89 mm. Mounting bracket 23×52 mm, holes ⌀6.2 mm. Finish: galvanised.
Product code: 000-239
Product features
[PIM] rygle-zasuwy #119
- Material Steel
- Finish Electrolytic Zinc
Description
Spring bolt 420×14 mm galvanised – for gates and wickets
Spring bolt with a length of 420 mm is a robust locking element designed to secure gates, wicket gates and agricultural doors. The spring mechanism ensures reliable locking and quick one-handed release, significantly speeding up everyday operation. The ergonomic handle with a plastic guard provides comfortable use even in low temperatures.
The construction based on a ⌀14 mm diameter pin provides high mechanical resistance and stable locking of the gate leaf. The bolt is mounted using screws – the set includes a mounting bracket with ⌀6.2 mm holes, enabling quick and secure fixing to wood, steel or fence posts. The galvanised coating protects against corrosion, guaranteeing long-lasting outdoor use.
Technical specifications
- Overall length: 420 mm
- Pin diameter: ⌀14 mm
- Spring guide length: 125 mm (pin stroke: 89 mm)
- Spring housing width: 26 mm (height: 16.5 mm)
- Mounting bracket dimensions: 23 × 52 mm, holes ⌀6.2 mm
- Bracket arm length: 85 mm, projection: 52 mm
- Finish: electro-galvanised
- Fixing method: screw-mounted
- Weight: 0.83 kg

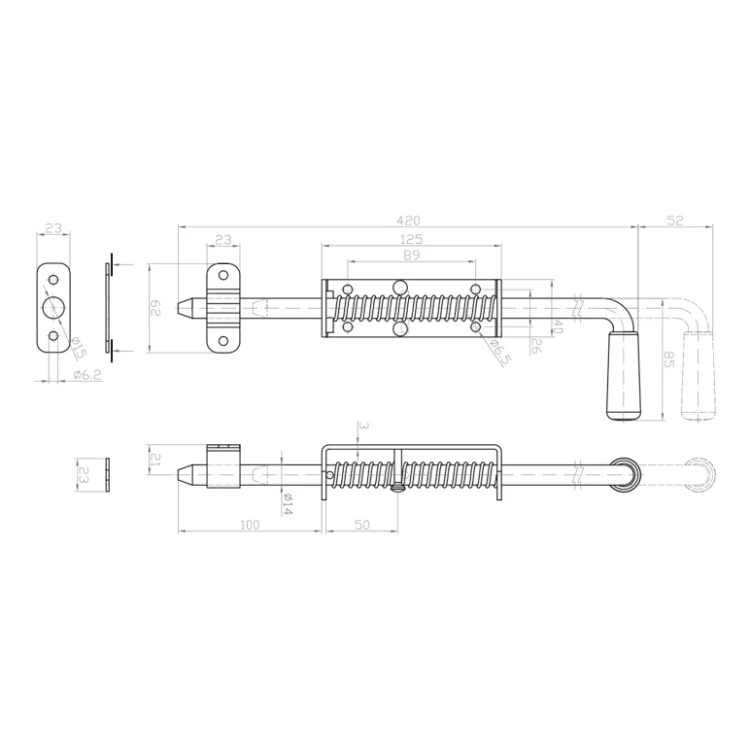

The technical drawing shows the full geometry of the bolt with all dimensions indicated. Thanks to its straightforward construction and standard fixing points, the product can be used in both new fencing installations and when upgrading existing gates. The spring mechanism automatically keeps the pin in the locked position, eliminating the risk of the gate opening accidentally due to wind or vibration.
