Connectors for Timber Structures: Brackets and Plates
The Connectors category holds 33 steel products for joining timber elements to each other or to concrete. It covers beam, anchor, mounting and wide angle brackets, plus perforated and flat connector plates. They suit roof trusses, pergolas, decking frames and light framing, and are meant for installers and builders.
What you will find in this category

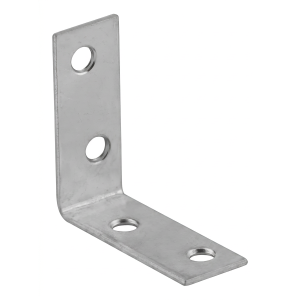

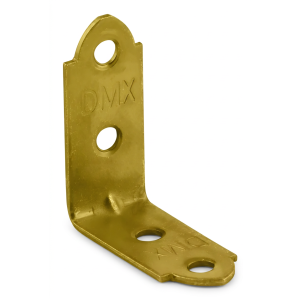

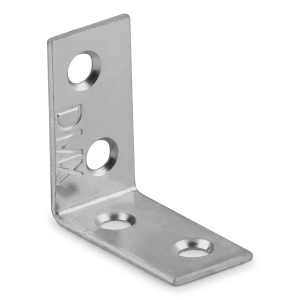

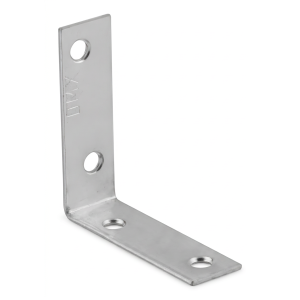

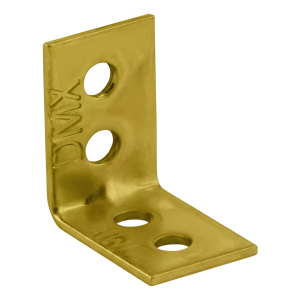

- Mounting angle brackets (10): from 25×25×17 mm to 75×75×17 mm in KW versions, thickness 1.5-3.0 mm, plus adjustable KR brackets.

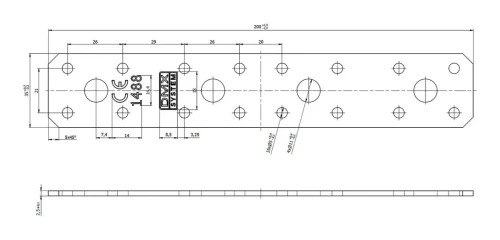

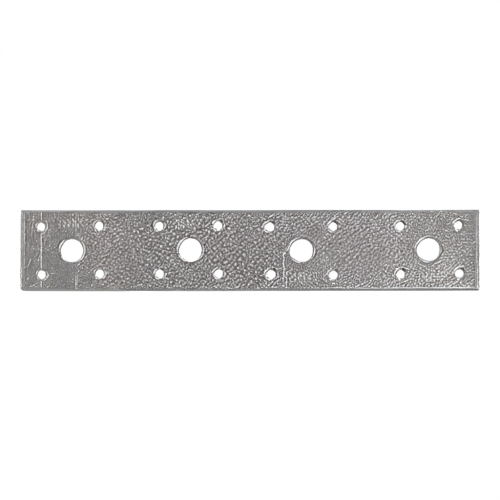

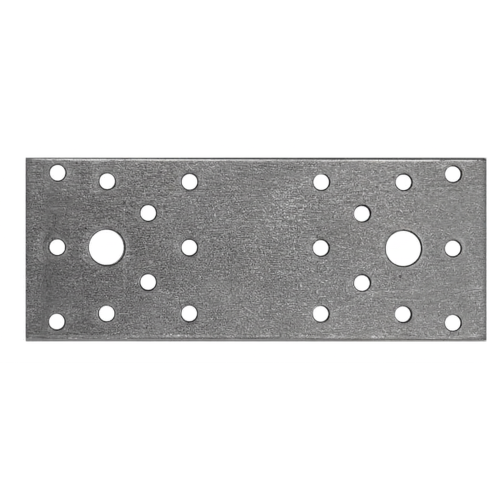

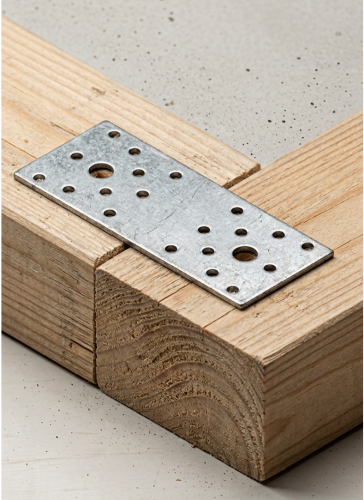

- Perforated plates (9): 40×80 mm to 80×200 mm, 2.0 mm thick, DX51D + Z275 steel, 8-40 holes ø5 mm.
- Anchor angle brackets (5): lengths 200-400 mm, thickness 2.0 or 4.0 mm, for anchoring timber in concrete.
- Beam angle brackets (4): three-dimensional S235 steel brackets, thickness 3.0-5.0 mm, holes Ø4.5-7.5 mm.
- Wide angle brackets (3): 30×30×30 mm to 60×60×60 mm, thickness 1.5-2.0 mm, gold zinc finish.
- Flat timber connector plates (2): LP 2 and LP 3, 2.5 mm thick, with 20-22 mounting holes.
How to choose
- Connector type: use anchor brackets for timber on concrete, beam brackets for rigid joints between beams, and perforated plates for connections in a single plane.
- Sheet thickness: products range from 1.5 mm to 5 mm. Heavier beam brackets (KB 3, KB 4) are 5.0 mm thick.
- Load capacity: where stated, values run from 2.51 kN to 10.60 kN. Check the value for the exact size you need.
- Material and finish: all products are steel. Grades include S235, DX51D + Z275 and DC01, with yellow, gold or hot-dip zinc coatings.
- Hole layout and fixings: check the hole diameter and whether it suits your nails, screws or bolts. Some products carry ETA or CE marking.
Typical applications
Anchor brackets secure posts, sill beams and wall plates to a concrete substrate. Beam brackets join roof trusses, pergolas and decking frames. Perforated plates connect roof trusses and timber framing. Smaller angle brackets serve furniture, joinery and light timber structures. Adjustable KR brackets have slotted or oval holes for position adjustment.
Frequently asked questions
Which brackets anchor timber to concrete?
Anchor brackets KK 1, KK 2, KK 3, KK 11 and KK 12. The lower part is embedded in concrete, and the timber is fixed to the protruding section.
Why do beam angle brackets have staggered holes?
The staggered layout stops nails being driven into the same wood grain. This reduces the risk of splitting.
Is there a bracket that allows for timber movement?

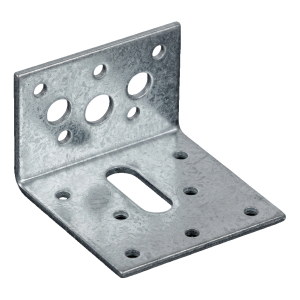

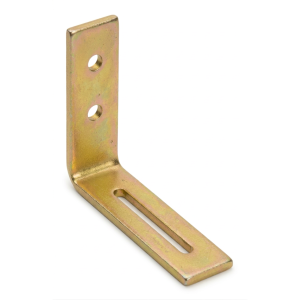

Adjustable bracket KR 1 has oval holes that compensate for timber expansion stresses. KR 2 has slotted holes for position adjustment.
Not sure which connector suits your joint? Contact technical support and we will help you select the right one.
