Anchor bracket KK2 40x300x40x2.0 mm
Leave feedback on the product

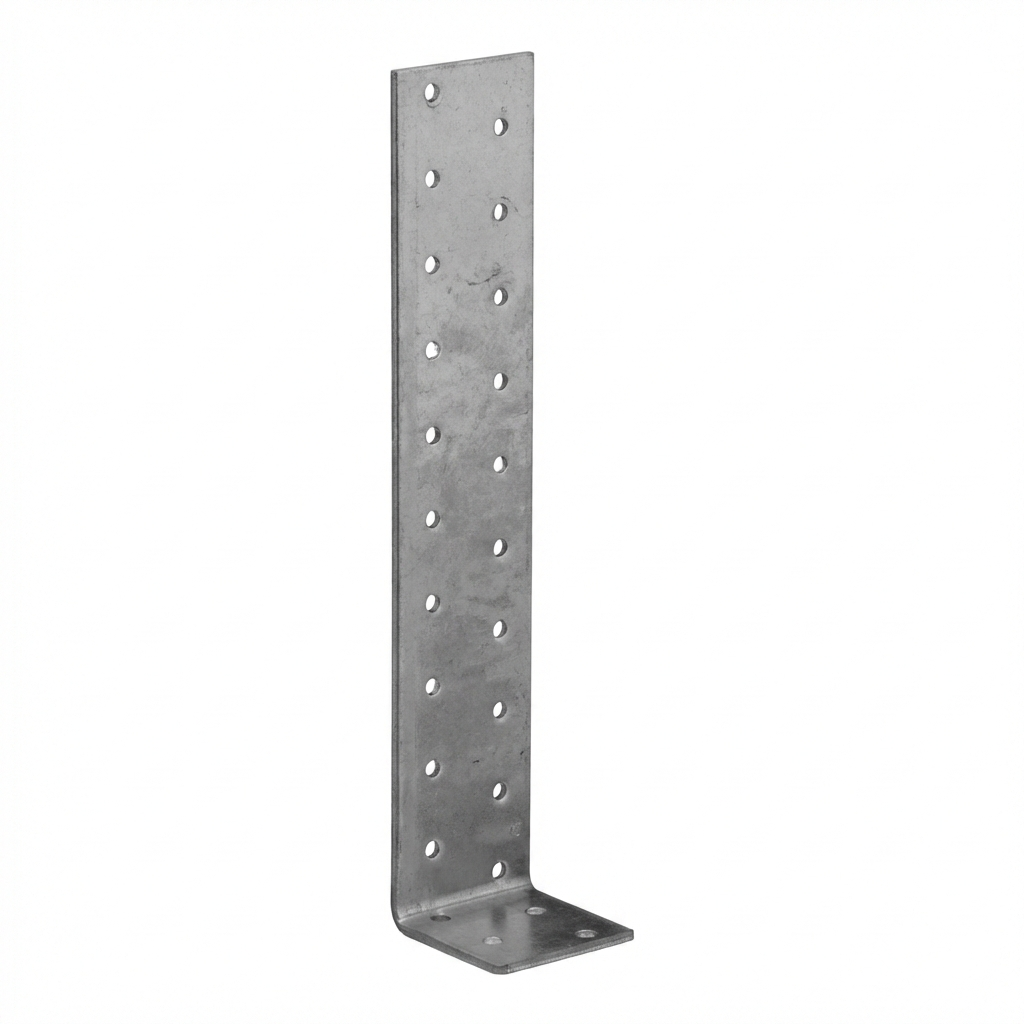

Steel connector for anchoring timber elements in concrete, dimensions 40×300×40 mm, thickness 2.0 mm, material DX51D + Z275, 34 holes ⌀5.0 mm, ETA certificate.
Product code: 000-124
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 2
- Connector Type Anchor Angle Bracket
- Material Steel
- Thread type M10
- Length [mm] 6
- Coating Black anodised
Description
Anchor Bracket KK 2 – 40×300×40×2.0 mm

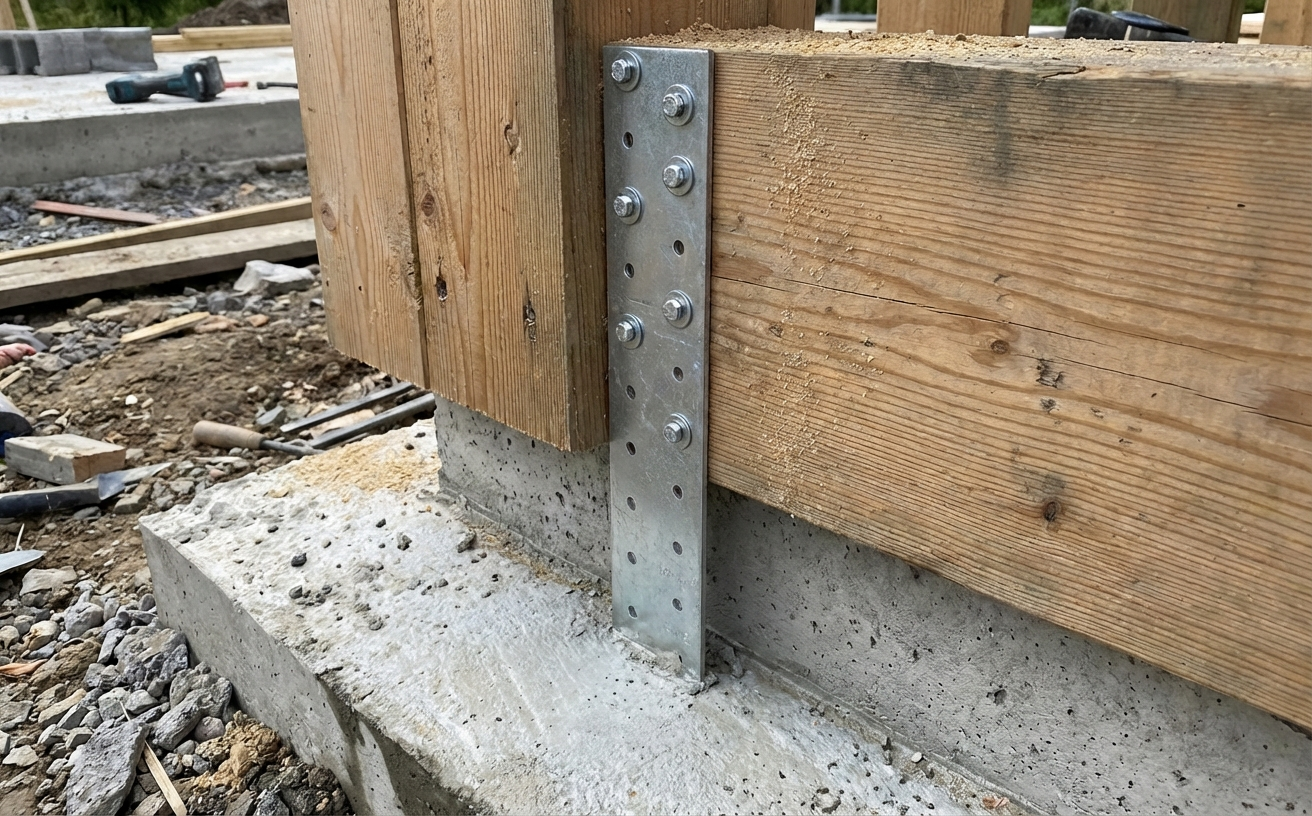

Anchor Bracket KK 2 is a tried-and-tested steel connector designed for anchoring timber elements into concrete. It is ideally suited for securing posts, sole plates, and wall plates – wherever a durable and reliable connection between a timber structure and a concrete substrate is required.

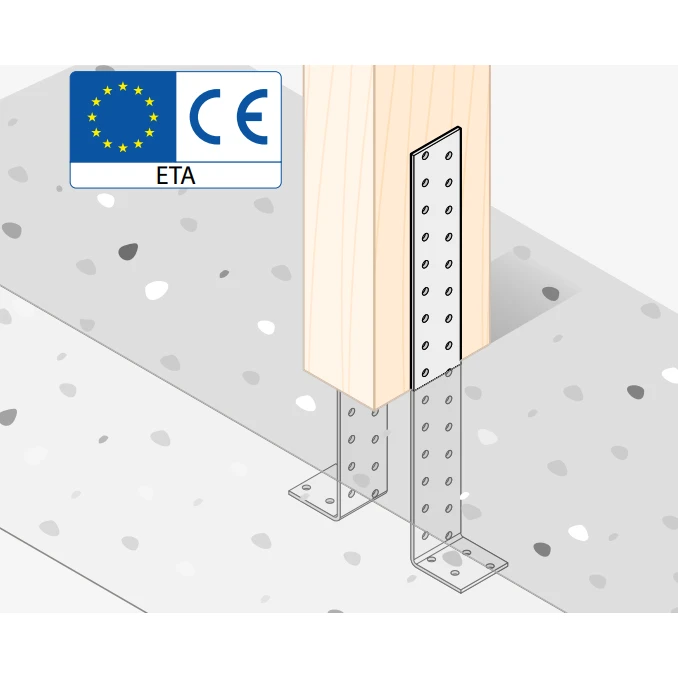

The lower part of the bracket is cast into the concrete, whilst timber beams are fixed to the protruding section. This design ensures a stable and durable connection that is resistant to operational loads. The product is certified and holds a European Technical Assessment.
Applications
- Anchoring timber elements into concrete
- Securing structural posts
- Securing sole plates
- Securing wall plates
- Securing timber stud walls

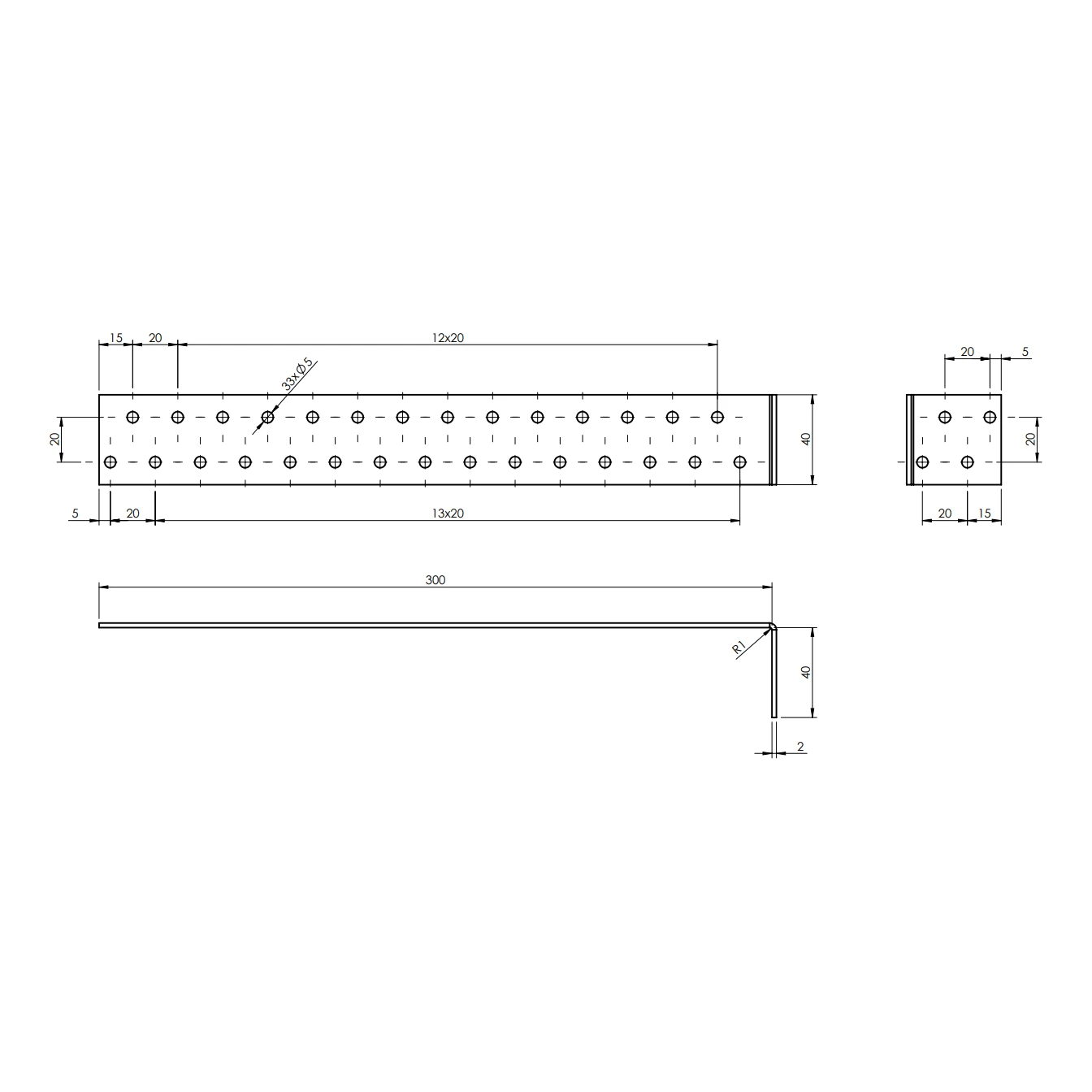

Technical Specifications
- Dimension A (length): 300 mm
- Dimension B (arm height): 40 mm
- Width: 40 mm
- Sheet thickness: 2.0 mm
- Holes: 34 pcs × ⌀5.0 mm
- Material: DX51D + Z275 sheet steel (hot-dip galvanised)
Fixing of the KK 2 bracket is carried out using ring shank nails ⌀4 mm or timber screws ⌀4 mm. With 24 fixing holes evenly distributed across both flanges, the connector ensures an optimal distribution of forces and high load-bearing capacity.
Why choose it? The KK 2 bracket is a solution valued by installation companies for its ease of installation, high load capacity, and versatility. Manufactured from hot-dip galvanised steel (Z275 coating), it guarantees long-lasting corrosion protection, making it a reliable choice for both residential and industrial construction.
