Cable system for steel balustrades: cable holders and clamps
The Cable system category contains stainless steel fittings for cable infill in steel balustrades: an end bracket, a through-cable holder, a bent bracket and a cable clamp. They suit 4-6 mm cable and mount on 42.4 mm tube or flat surfaces. The range is intended for installers and balustrade builders.
What you will find in this category

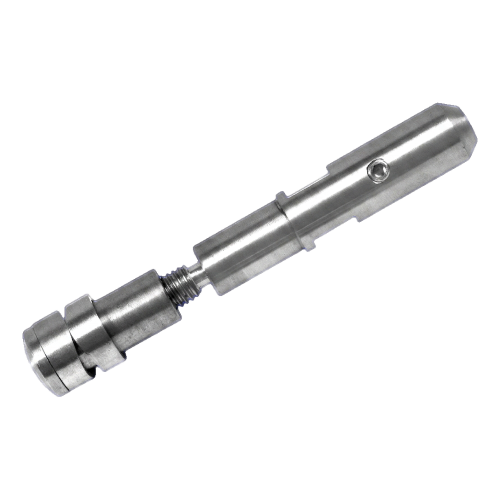

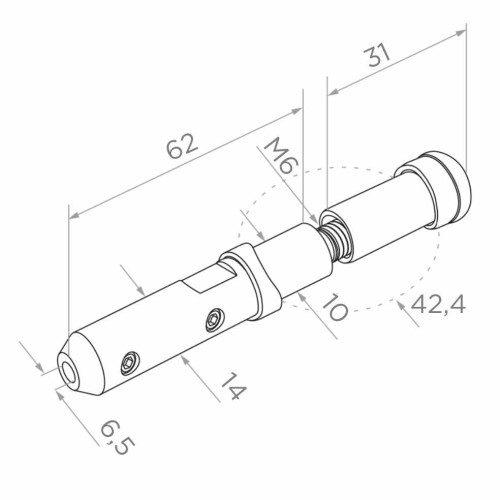

- End bracket for 6 mm cable: M6 thread, Ø 14 mm body, 62 mm length, for 42.4 mm tube or flat surface.

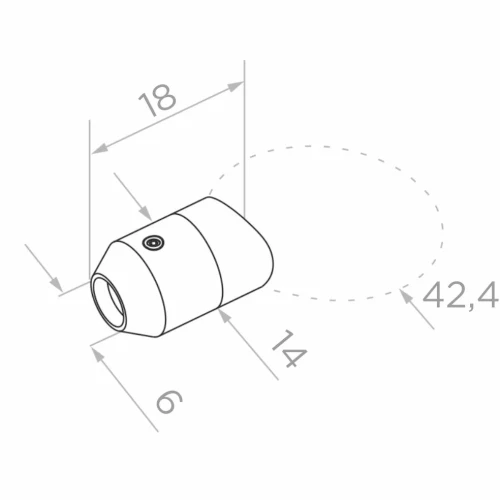

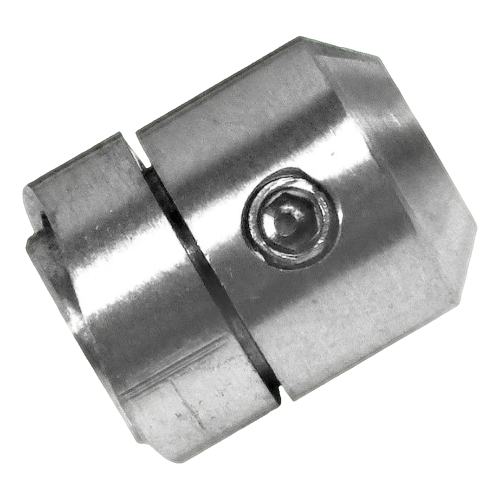

- Through-cable holder for 6 mm cable: 18 mm length, Ø 14 mm body, screw-in mounting without welding.

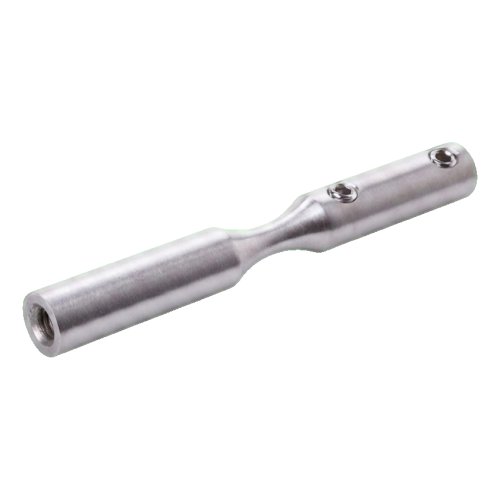

- Bent bracket for ø 4-6 mm cable: 130 mm length, Ø 12 mm body, M6 thread.

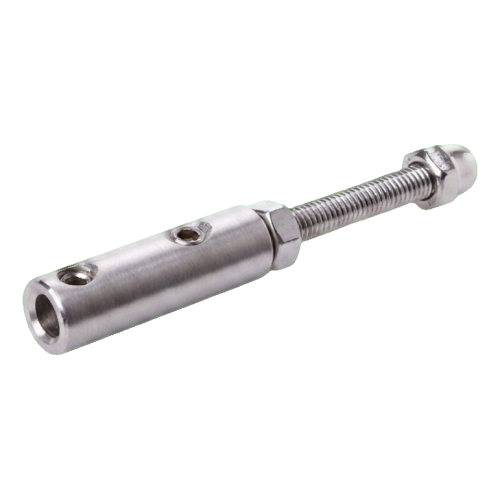

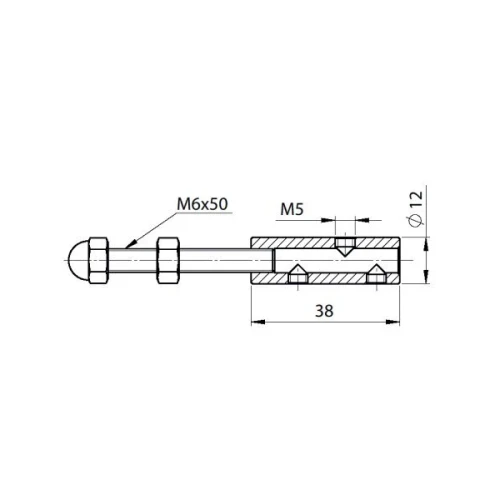

- Cable clamp for 4-6 mm cable: surface mounting, M6×50 threaded stud, M5 compression screws, 130 mm length, Ø 12 mm body.
How to choose
- Cable diameter: the end bracket and through-cable holder are for 6 mm cable. The bent bracket and cable clamp take 4-6 mm.
- Mounting surface: choose a 42.4 mm tube or a flat surface such as a wall. The cable clamp is designed for flat surfaces.
- Function in the run: use the end bracket as the starting point and the through-cable holder to pass the cable through. The bent bracket and clamp secure the cable.
- Material and finish: all four products are AISI 304 stainless steel with a satin finish.
- Fixing method: the products are screwed in, so no welding is needed on site.
Typical applications
These fittings are used in cable balustrade systems, where cable infill is an alternative to glass or bar infills. They can be fixed to terminal posts made of 42.4 mm tube, or directly to walls and other flat surfaces. The cable clamp is suited to interior and exterior balustrades.
Frequently asked questions
Do these cable fittings need welding?
No. The end bracket, through-cable holder and bent bracket are screwed in. The cable clamp is fixed by screwing its M6×50 threaded stud to the substrate.
Can they be mounted on both tube and flat surfaces?
The end bracket, through-cable holder and bent bracket fit 42.4 mm tube or flat surfaces. The cable clamp is designed for flat surfaces such as posts and walls.
Which cable sizes do they fit?
The end bracket and through-cable holder are for 6 mm cable. The bent bracket and cable clamp suit cable of 4-6 mm.
Need help choosing the right fittings for your cable balustrade? Contact our technical support for advice.
