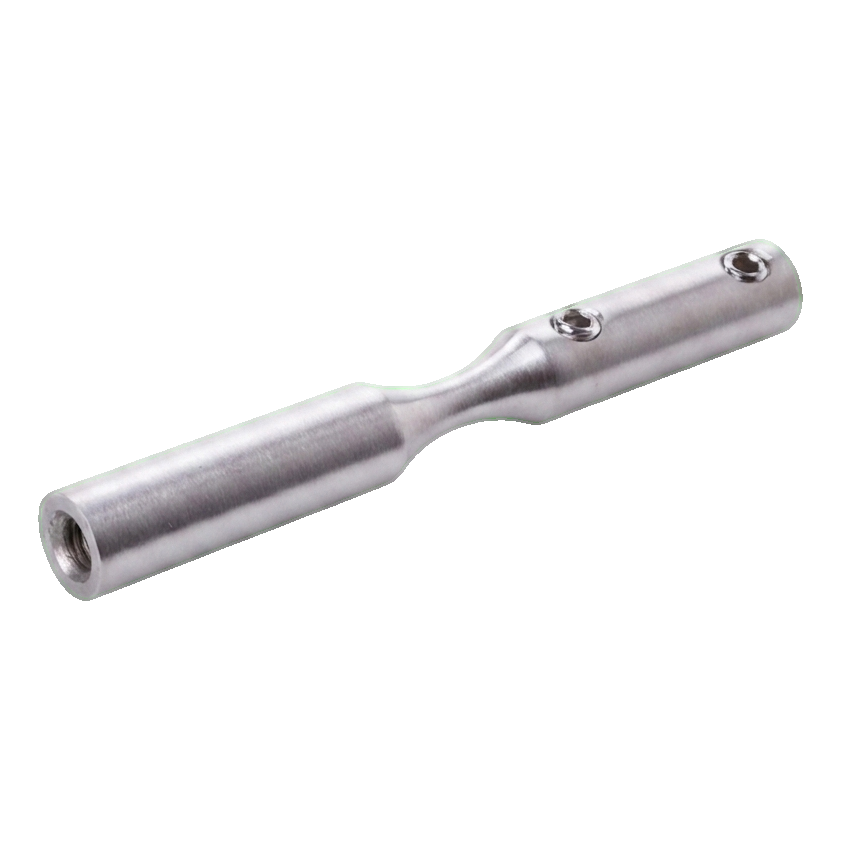

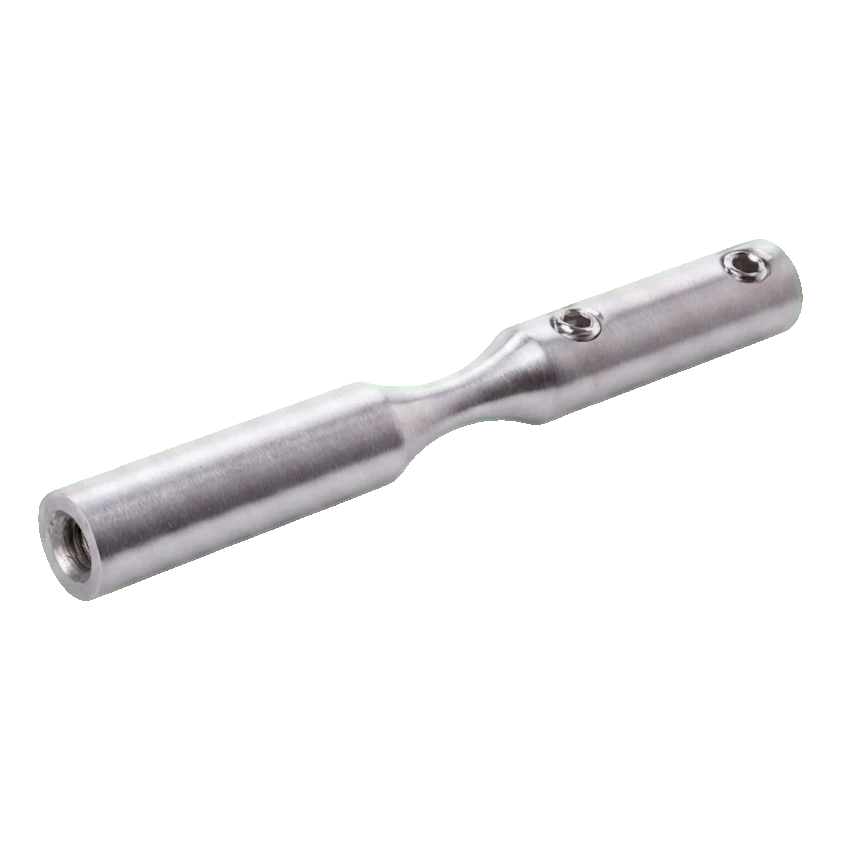

PSG bent bracket for balustrade cable ø 4–6 mm – stainless steel AISI 304, satin
Description
PSG bent bracket for balustrade cable ø 4–6 mm – stainless steel AISI 304, satin
Bent bracket for cable ø 4–6 mm by PSG is a universal element of cable systems designed for balustrade construction. It enables quick and secure mounting of stainless steel cable both to 42.4 mm diameter tube and to flat surfaces — making it suitable for the vast majority of balustrade installations without the need to order separate variants.
The element is made from stainless steel AISI 304 with satin finish ensuring high corrosion resistance and an aesthetic, understated appearance. Installation is carried out by screwing in — the bracket is equipped with M6 threads and locking holes (Ø6 mm), which guarantees stable and durable connection with the cable and load-bearing structure.
Thanks to its compact construction and low weight (55 g) the bracket is convenient to transport and quick to install — a particularly important advantage in projects involving long balustrade sections with multiple spans.
Dimensions and technical data
- Total length (L): 130 mm
- Body external diameter: Ø12 mm
- Locking hole diameter: Ø6 mm
- Internal thread: M6
- Supported cable thickness: ø 4–6 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Weight: 0.055 kg
- System type: 42.4 mm tube or flat surface
- Mounting method: screwed (screw-in)
- Manufacturer: PSG
Application
The bent bracket is designed for cable balustrade systems — serving as an alternative to glass or rod span infills. It is mounted directly on balustrade posts or on any flat surface, providing great design flexibility. Universal mounting (42.4 mm tube / flat surface) allows reducing the number of stock variants and speeding up order completion.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
