Post Bases for Welding Balustrade Posts, AISI 304
This category contains stainless steel post bases for securing balustrade posts to the substrate. All 15 products are made from AISI 304 and are mainly intended for welding. Round and square versions cover 42.4 mm, 48.3 mm and 40×40 mm post systems. They are intended for installers, fabricators and builders.
What you will find in this category
- Round bases for welding, 42.4 mm system: diameter 80, 85 or 100 mm, thickness 4-6 mm, raw or satin finish.
- Square bases for welding, 40×40 mm system: 80×80 mm or 100×100 mm, thickness 4-6 mm, raw or satin finish.

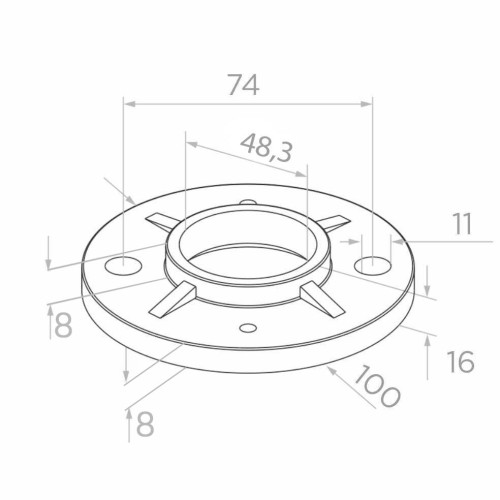

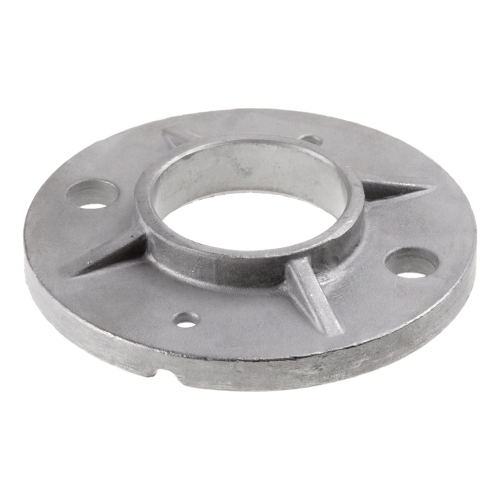

- Reinforced round base, 48.3 mm system: diameter 100 mm, 8 mm base plate, 4 reinforcing ribs.

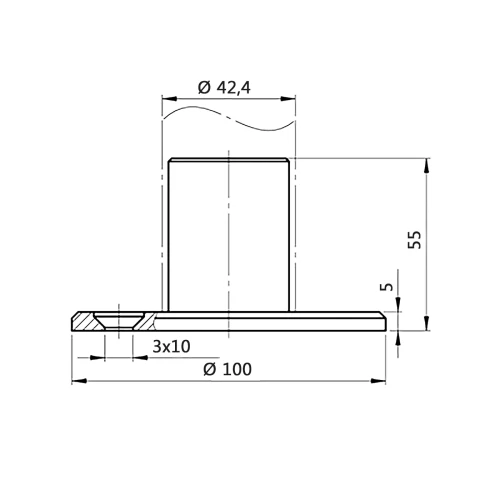

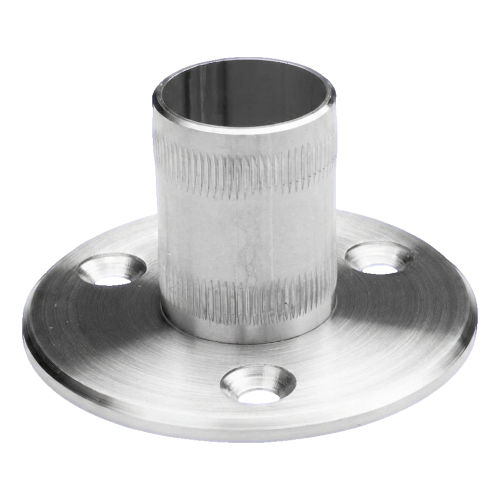

- PINOX base for driving installation: ø42.4 mm spindle, base diameter 100 mm, height 55 mm, satin finish.
How to choose
- Post system: match the central hole to the post. Most bases suit 42.4 mm tube, four suit 40×40 mm profile and one suits 48.3 mm.
- Base size and thickness: diameters or widths run from 80 to 100 mm, and thickness from 4 to 8 mm. Choose the thicker or reinforced versions where more rigidity is needed.
- Finish: 8 products have a raw finish, ready for welding and further processing. 7 have a satin finish.
- Mounting holes: round holes and slotted holes are both available. Slots (9×20 mm or 11×20 mm) allow the anchor bolt position to be adjusted.
- Installation method: choose a welded base, or the PINOX base if the post is to be driven.
Typical applications
These bases join balustrade posts to the substrate in stainless steel balustrade systems. The post is welded into the central hole, either in the workshop or on site. Slotted holes help when fitting onto uneven surfaces. After installation, the mounting area can be hidden with a dedicated cover plate, sold separately.
Frequently asked questions
Which base suits a 42.4 mm post?
Choose a base listed for the 42.4 mm system, with a 42.4 mm central hole. Ten products in this category fit that system, in 80, 85 and 100 mm diameters.
Can the mounting area be covered after installation?
Yes. The product descriptions mention a dedicated cover plate, available separately, which hides the mounting part once the base is fitted.
How do I adjust for uneven substrates?
Use a base with slotted or oval mounting holes. They allow the anchor bolt position to be adjusted, which makes positioning the post easier during installation.
Not sure which base fits your post system? Contact our technical support for help with selection.
