Balustrade post base for welding Ø80 mm – AISI 304 stainless steel satin
0
Description

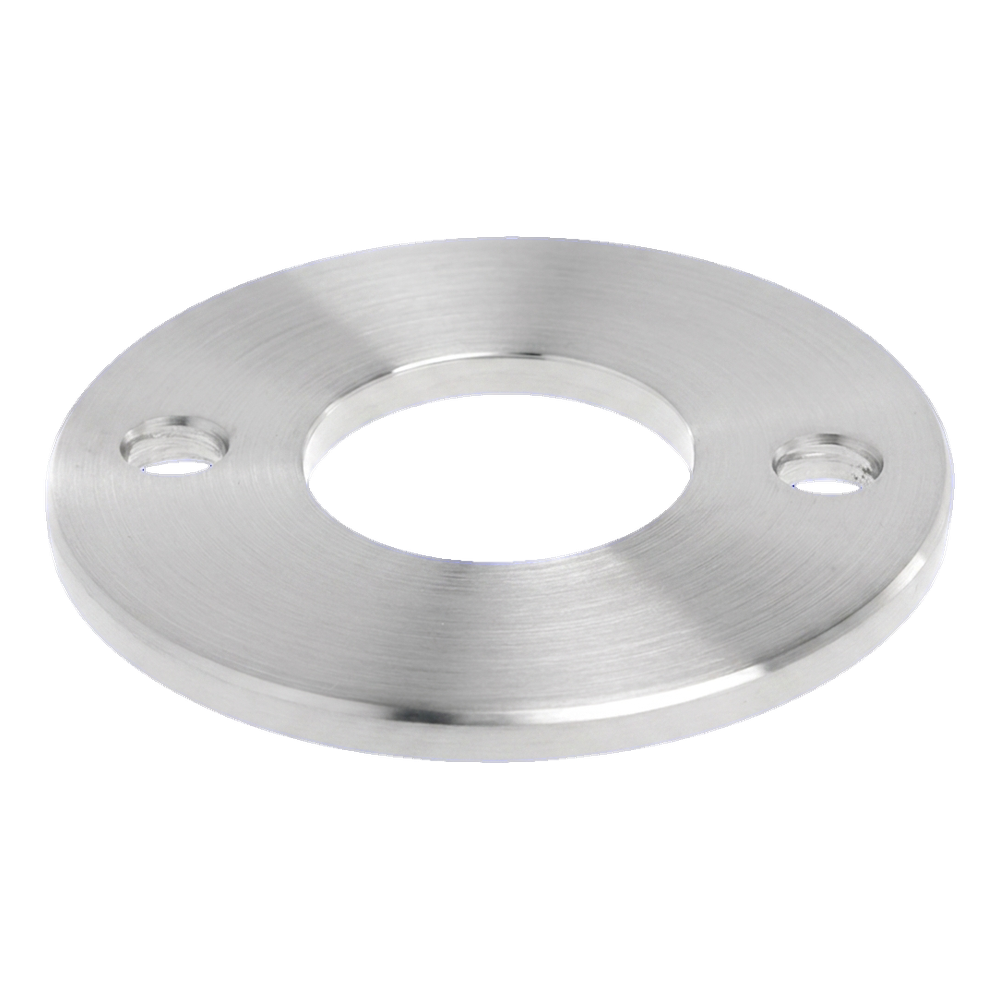

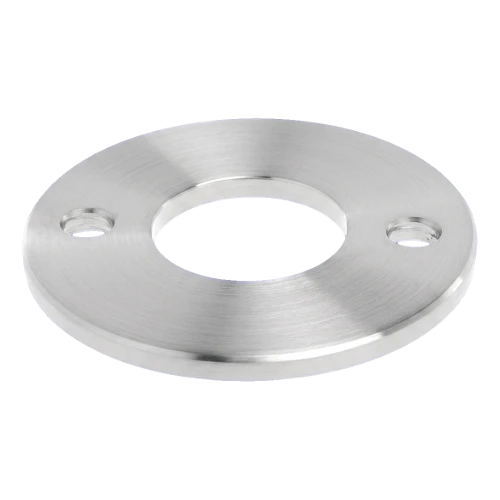

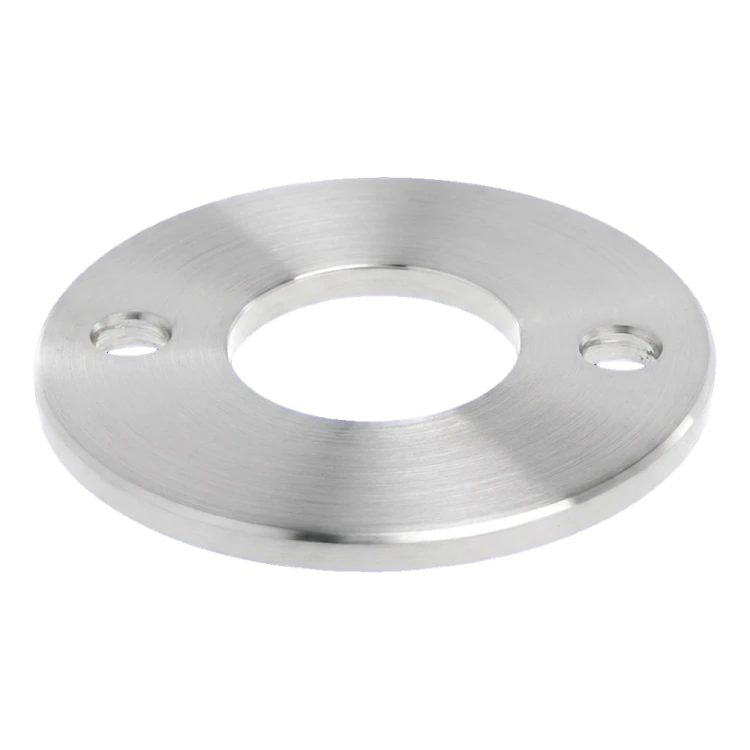

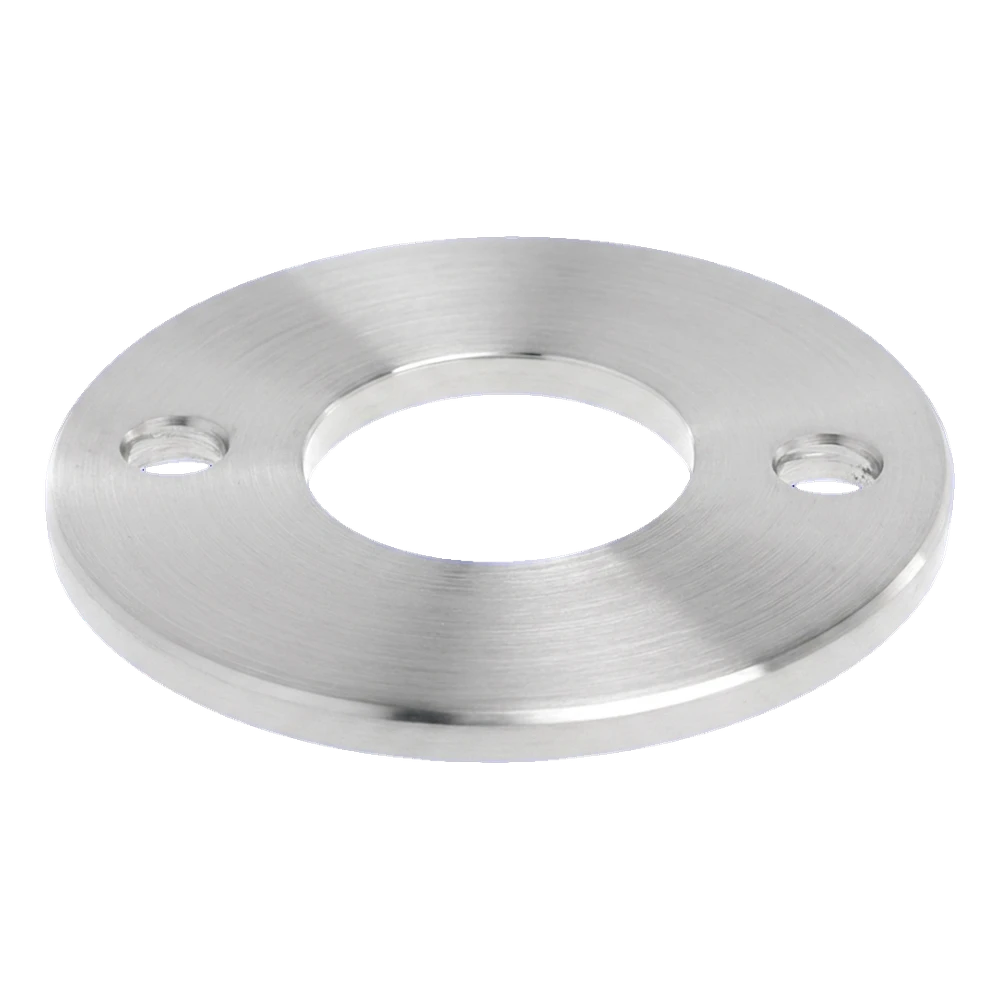

Balustrade post base for welding Ø80 mm – AISI 304 stainless steel satin
Balustrade post base for welding is a key structural element of the 42.4 mm balustrade system, providing stable and durable connection of the post to the substrate. The round flange made of AISI 304 stainless steel in satin finish combines high mechanical strength with elegant, modern appearance — perfectly complements polished and brushed stainless steel balustrade elements.
Installation involves welding a balustrade post with diameter 42.4 mm into the central hole of the base. Two mounting holes Ø8.5 mm allow additional fixing of the flange to the substrate using anchors or screws, which increases the rigidity of the entire structure. After installation, the base can be covered with a dedicated cover plate, achieving aesthetic, clean finishing of the mounting zone.

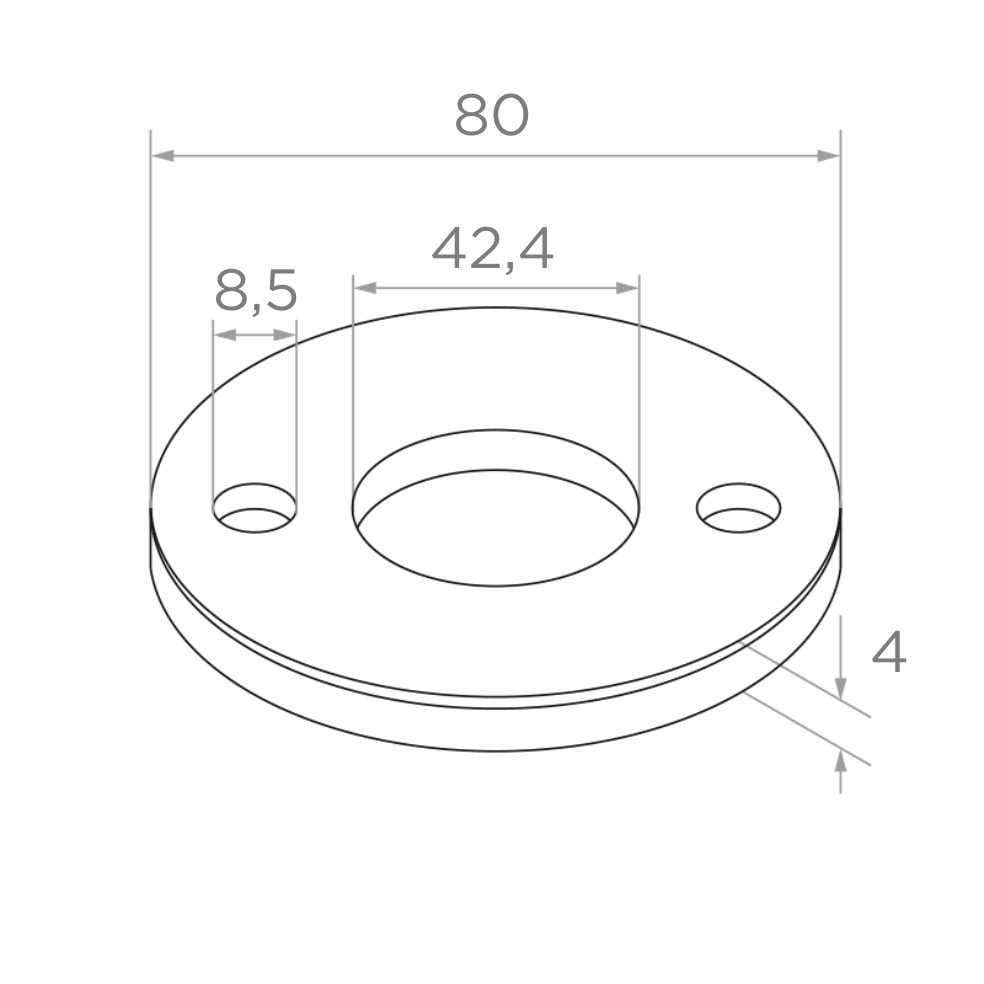

Dimensions and technical data
- External diameter: Ø80 mm
- Central hole diameter (for tube): Ø42.4 mm
- Flange thickness: 4 mm
- Mounting holes: 2 × Ø8.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Balustrade system: Ø42.4 mm
- Post mounting method: welding
- Weight: 0.19 kg
- EAN: 5901289673501
Application and compatibility
The base is designed for use in balustrade systems based on tubes with diameter 42.4 mm — the most popular standard in stainless steel balustrades. It will work well in both internal balustrades (stairs, mezzanines, galleries) and external ones (balconies, terraces, fencing). AISI 304 stainless steel guarantees corrosion resistance in internal conditions and moderate external conditions, making it a universal choice for most projects.
Other variants of post mountings are also available in the range — both round and square — in different dimensions, allowing the element to be adapted to the specifics of each balustrade project.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
