Locks - Cylinders for gates and garden gates
This range covers Locks - Cylinders and related gate hardware for fencing projects. It includes an electric strike cassette, steel posts with a built-in cassette and cylinder lock, a hold-open device and hydraulic self-closing hinges. It is intended for installers and fencing contractors who want to fit gates quickly.
What you will find in this category
- Electric strike cassette: H=280 mm set in galvanised steel with strike plate, rubber buffers and cable entry. Set weight 0.91 kg.

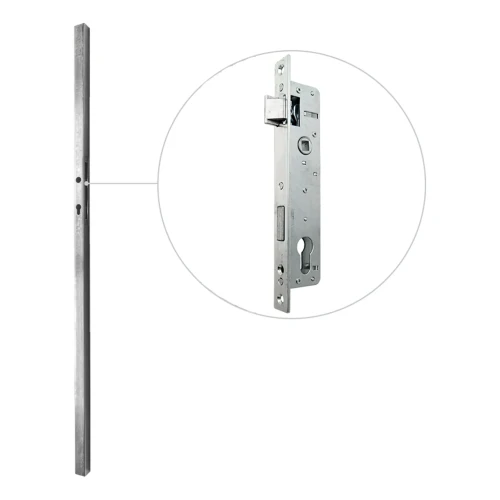

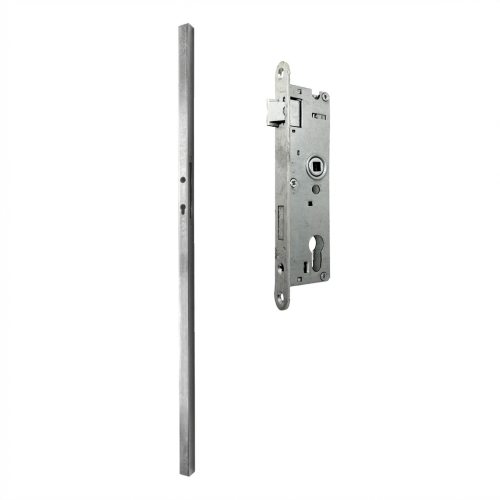

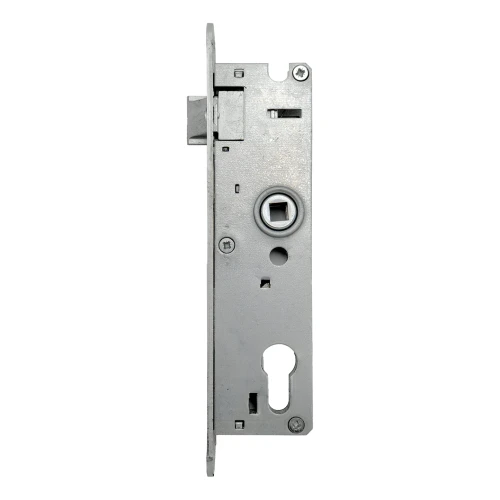

- Steel posts with cassette and lock: 40x40x1.5 mm with lock 90/20, or 60x40x1.5 mm with lock 72/34. Height 1500 mm, 8 mm spindle.
- Hold-open device: ASSA ABLOY A152 for gate self-closers. Galvanised steel body, rubber damping pad, length 64 mm, 0.3 kg.
- Hydraulic self-closing hinges: Locinox, black, 180° opening angle. Available as a two-part hinge (380×120 mm) or a 2-in-1 hinge with 400 mm upper and 215 mm lower parts.
How to choose
- Product type: decide whether you need access control (electric strike), a lockable post, a hold-open function or a self-closing hinge.
- Post section and lock spacing: choose 40x40 mm with 90/20 or 60x40 mm with 72/34. Check that the spacing and the 8 mm handle spindle suit your handle set.
- Gate material: the Locinox hinge 001-949 is suitable for metal, wooden and composite gates.
- Hinge size and adjustment: compare module dimensions and weight. The 001-949 hinge adjusts by ±20 mm vertically and horizontally.
- Finish: the electric strike cassette and hold-open device are galvanised steel. The 40x40 mm post has a raw finish.
Typical applications
The posts with cassette and lock are ready-to-install units for garden gates. They remove the need for welding and for fitting separate parts on site. The electric strike cassette speeds up access control installation on a gate post. The hold-open device keeps a gate open during deliveries or maintenance work.
Frequently asked questions
Do the posts with cassette and lock need welding?
No. The post, cassette and lock come as one unit, so installation is weld-free. Set the post in place and fit the handle.
What opening angle do the Locinox hinges give?
Both Locinox hydraulic self-closing hinges open to 180°. They combine hinge and self-closer in one unit, so no separate self-closer is needed.
Which gates suit the Locinox hinge 001-949?
It is suitable for metal, wooden and composite gates.
Not sure which lock, post or hinge fits your gate? Contact technical support and we will help you choose.
