Balustrade post base for welding fi 100 mm – stainless steel AISI 304 satin
0
Description

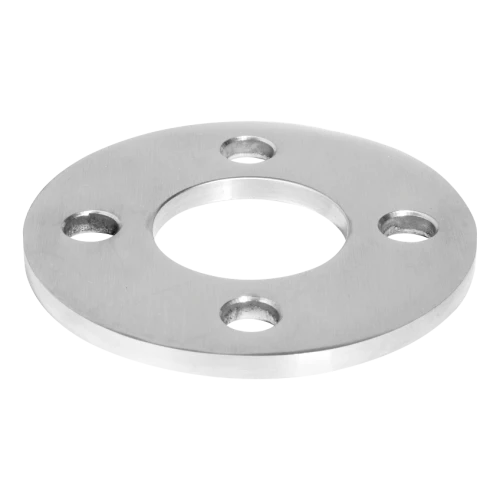

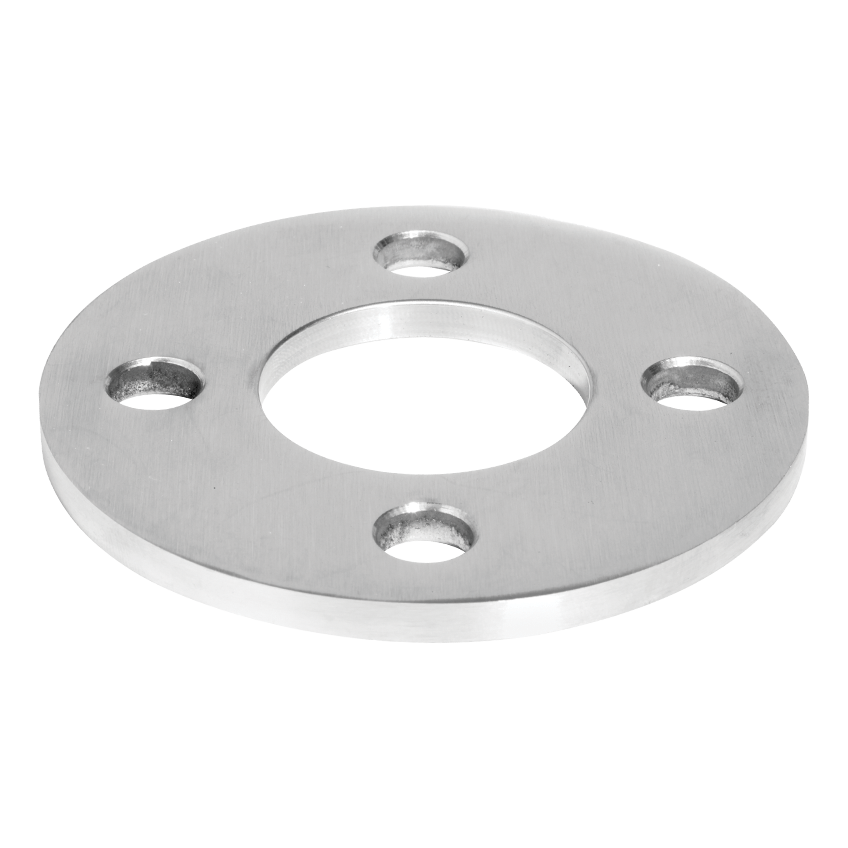

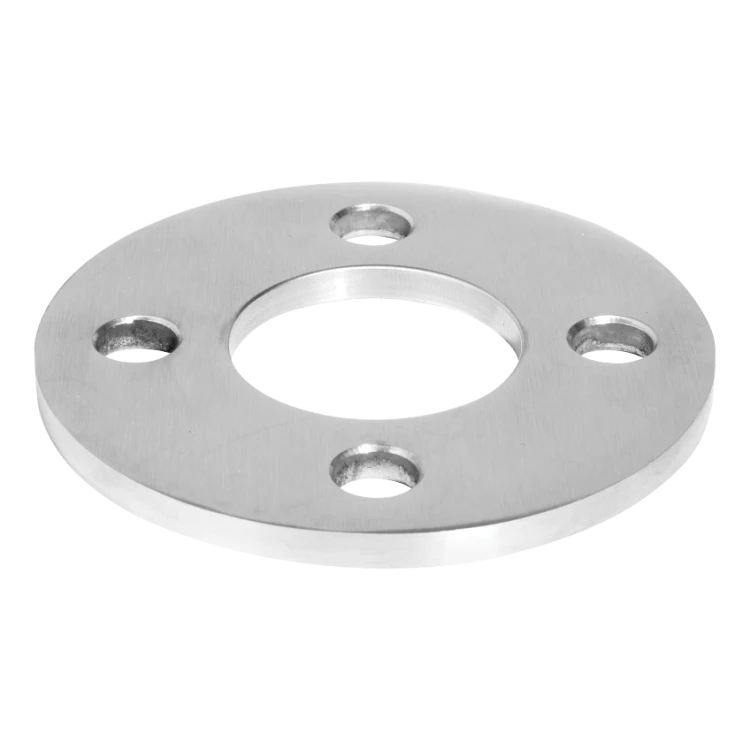

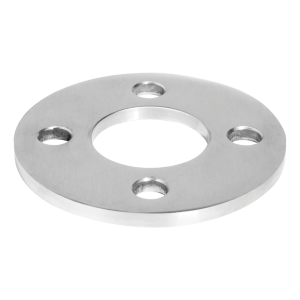

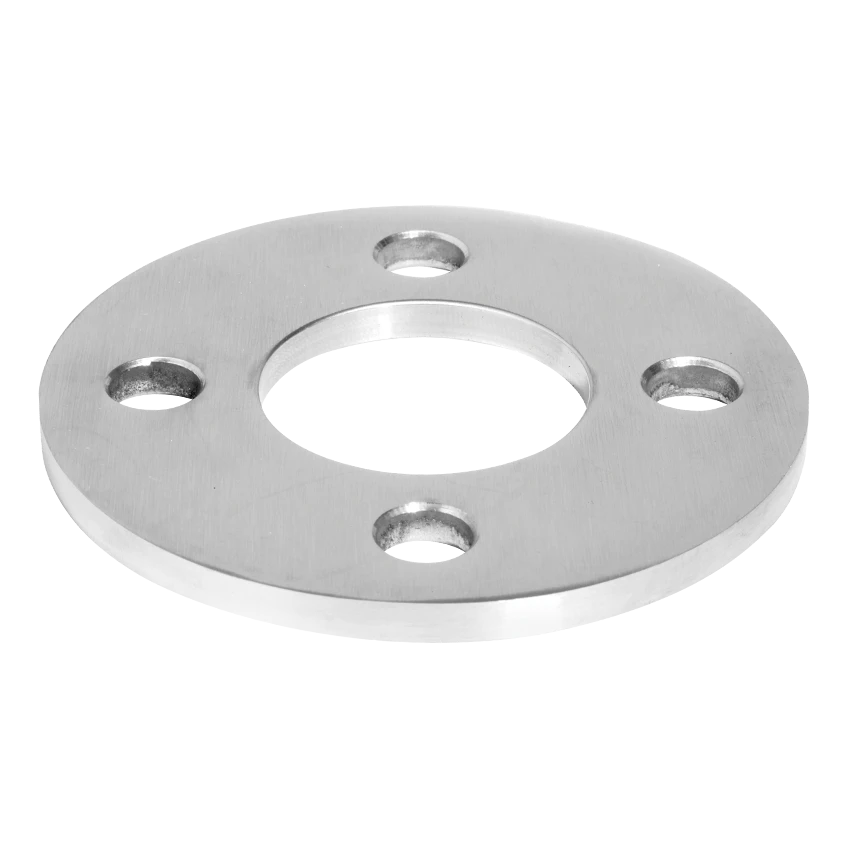

Balustrade post base for welding fi 100 mm – stainless steel AISI 304 satin
Balustrade post base is a round mounting designed for welding a post to the substrate. This structural element ensures stability and strength of the entire stainless steel balustrade construction. Made from stainless steel AISI 304 with a satin finish, it guarantees high corrosion resistance and an aesthetic, uniform appearance when combined with other components of the 42.4 mm balustrade system.
The base features four mounting holes symmetrically distributed around the perimeter, enabling secure fixing to the substrate. The mounting holes can be covered with a special cover cap, ensuring an aesthetic finish of the entire assembly without visible screw heads. The central hole with a diameter of 42.4 mm is matched to standard balustrade tubes in the 42.4 system.

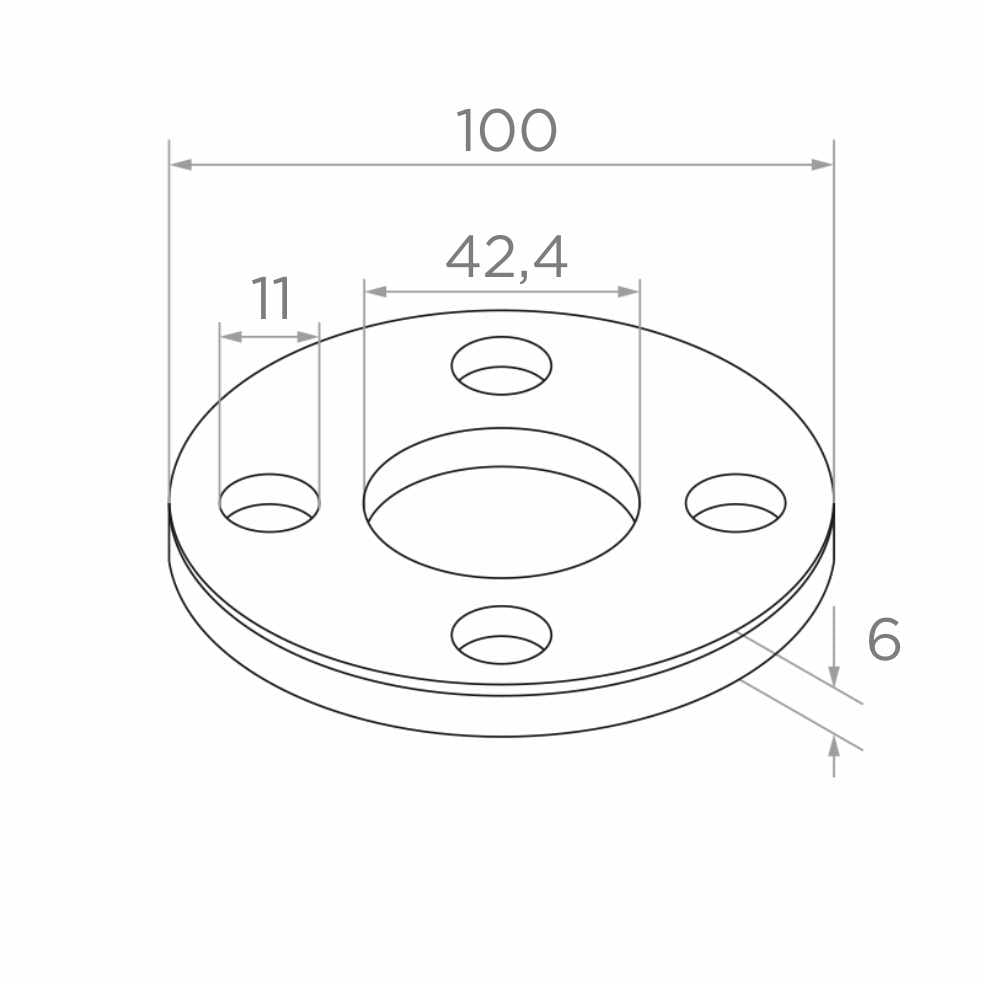

Dimensions and technical parameters
- External diameter of base: 100 mm
- Central hole diameter (for tube): 42.4 mm
- Plate thickness: 6 mm
- Mounting holes: 4 × fi 11 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Balustrade system: 42.4
- Post mounting method: welding
- Weight: 0.26 kg
- EAN: 5901289673488
Application and installation
The base is designed for mounting stainless steel balustrade posts for indoor and outdoor applications. Fixed to the substrate using four screws through fi 11 mm holes, then the tubular post is welded to it. This creates a permanent and rigid connection that ensures maximum load-bearing capacity of the structure. An ideal base element for professional installation teams implementing stainless steel balustrade systems.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
