Balustrade post base for welding 80×80 mm – stainless steel AISI 304, 40×40 system
0
Description

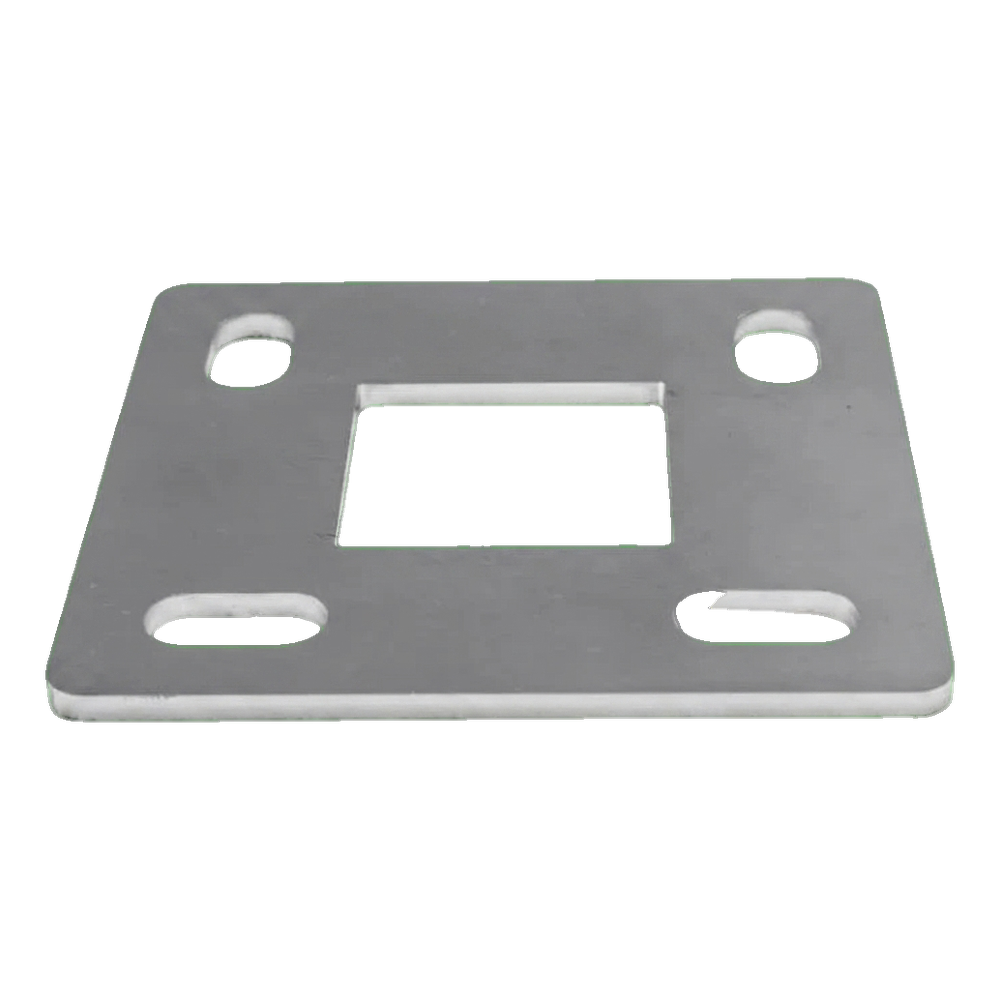

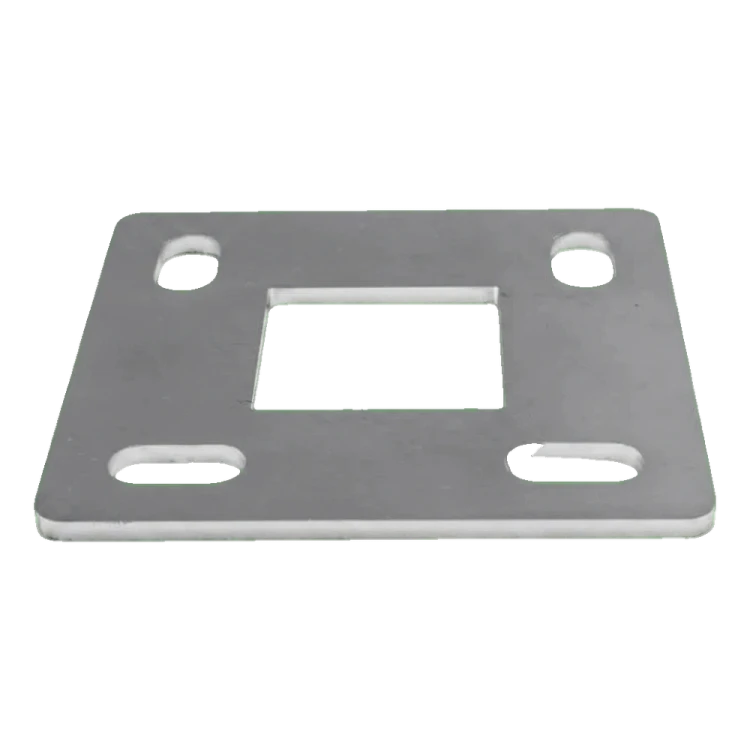

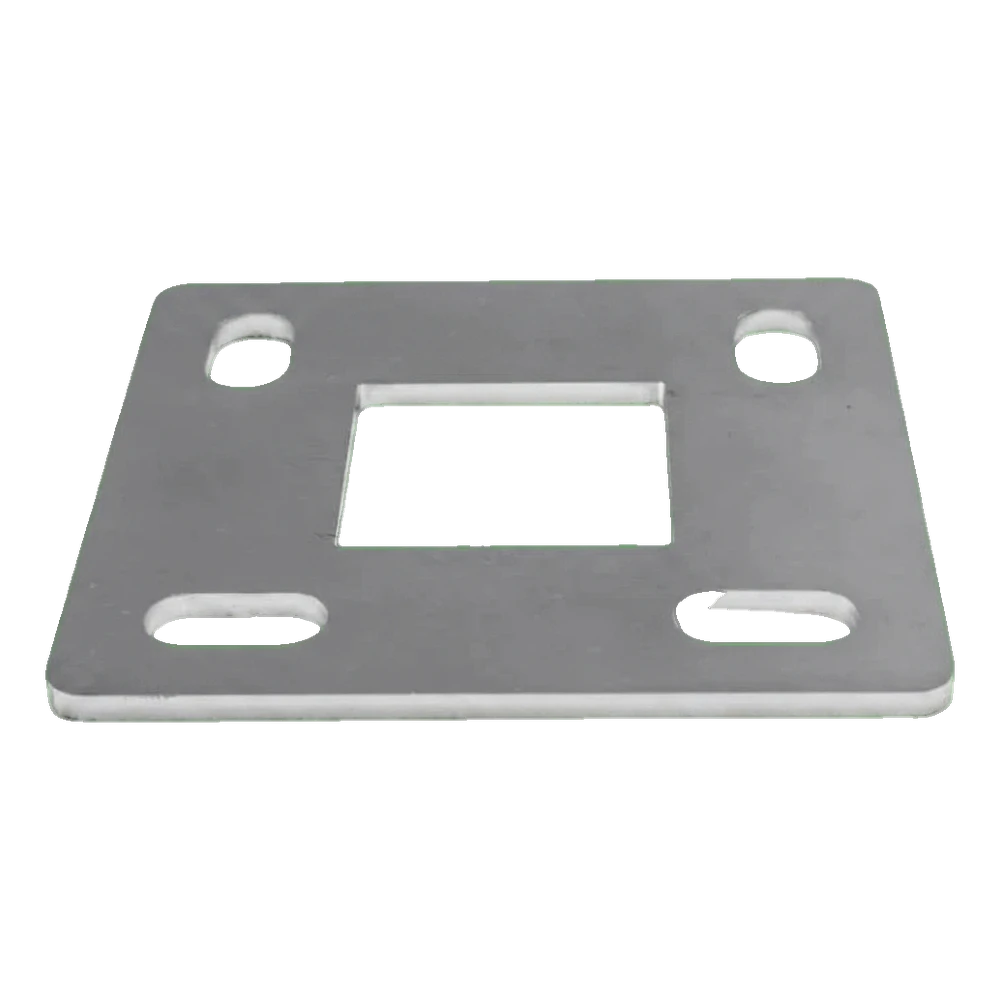

Balustrade post base for welding 80×80 mm – stainless steel AISI 304, 40×40 system
Square balustrade post base designed for welding 40×40 mm profiles. Enables secure and permanent mounting of balustrade posts to substrates using the welding method. Made from high-quality stainless steel AISI 304 with raw surface finish — ready for direct welding into structures without requiring additional processing.
Four oval mounting holes (9×20 mm) provide flexibility when anchoring to substrates — screw position adjustment facilitates precise post alignment even on uneven surfaces. The central hole 40×40 mm is matched to the standard square profile system, guaranteeing compatibility with popular balustrade posts.

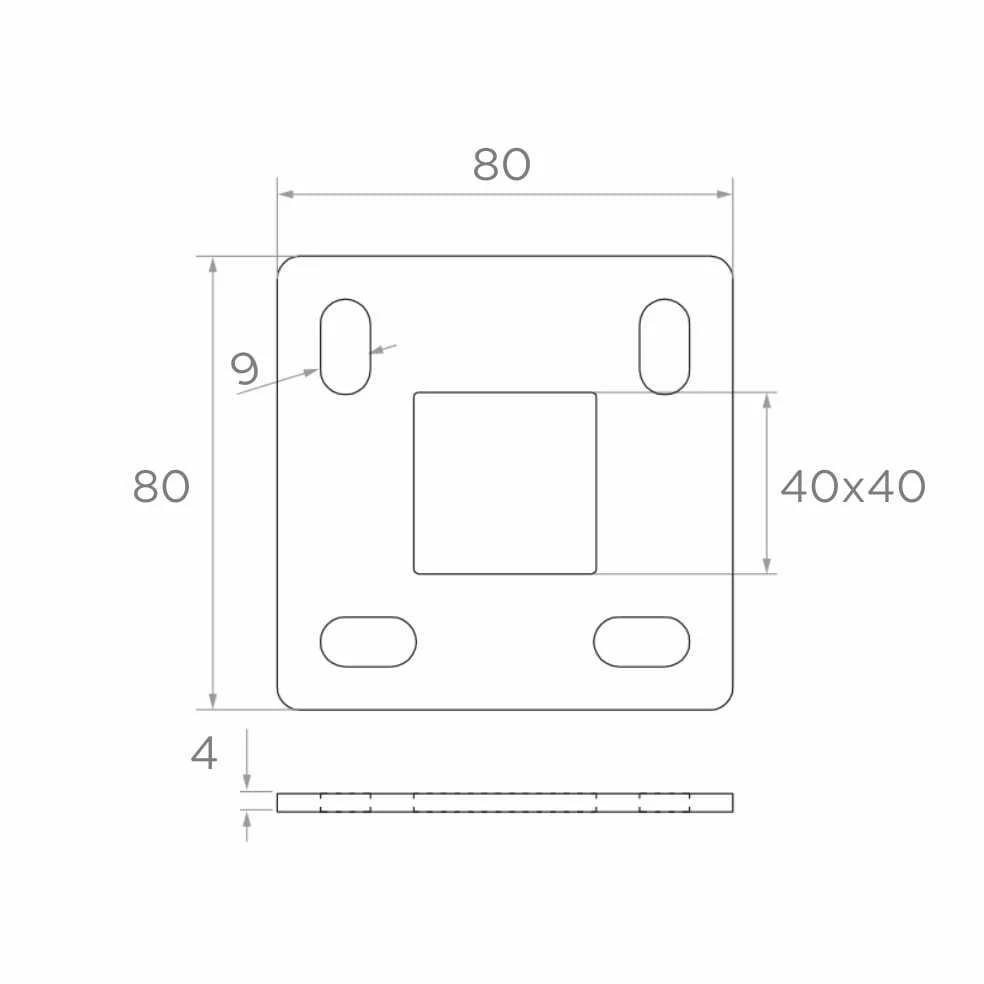

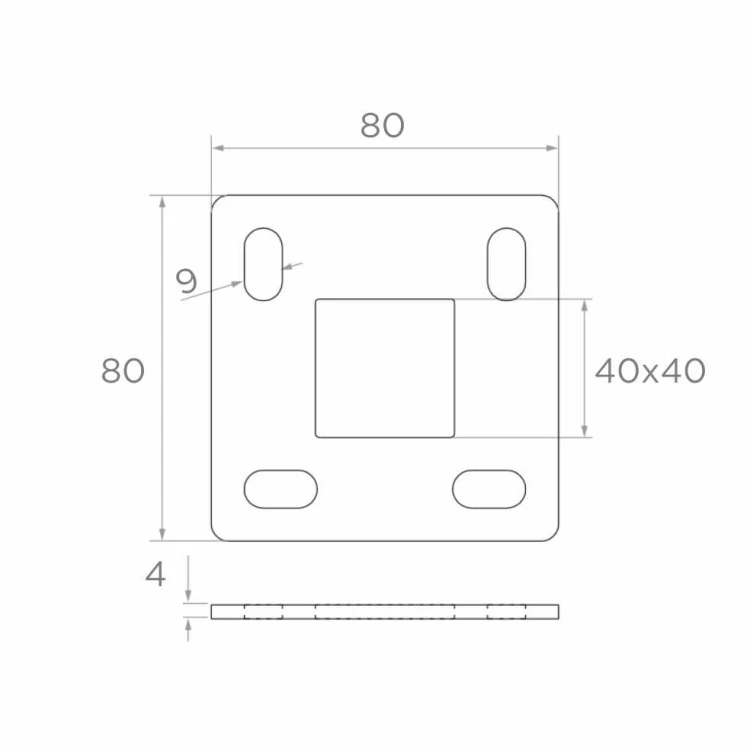

Dimensions and technical parameters
- External dimensions: 80 × 80 mm
- Central hole (for post): 40 × 40 mm
- Plate thickness: 4 mm
- Mounting holes: 4 pcs., oval 9 × 20 mm
- Material: stainless steel AISI 304
- Surface: raw (no finish)
- Profile system: 40 × 40 mm
- Weight: 0.13 kg
- EAN: 5901289673600
Application and installation
The base constitutes a key structural element of stainless balustrades — when properly mounted it ensures stability and strength of the entire structure. The balustrade post with 40×40 mm profile is seated in the central hole and welded circumferentially. The base is fixed to the substrate using anchor bolts through the oval mounting holes.
Stainless steel AISI 304 guarantees high corrosion resistance, allowing the base to perform well both indoors and outdoors. To achieve aesthetic finishing, mounting points can be covered with a dedicated cover plate (available separately), which conceals the screws and gives the structure a professional appearance.
Product advantages
- Corrosion resistance — stainless steel AISI 304 ensures long-lasting durability
- Stable construction — secure post mounting to substrate using welding method
- Easy installation — oval mounting holes enable anchor position adjustment
- Compatibility — matched to standard 40×40 mm square profile system
- Aesthetic finishing option — mounting holes can be covered with cover plates
Technical data
| Material | AISI 304 |
| Finish | Satin |
