Balustrade post base for welding 100x100 mm – stainless steel AISI 304 satin, system 40x40
0
Description
Balustrade post base for welding 100x100 mm – stainless steel AISI 304 satin, system 40x40

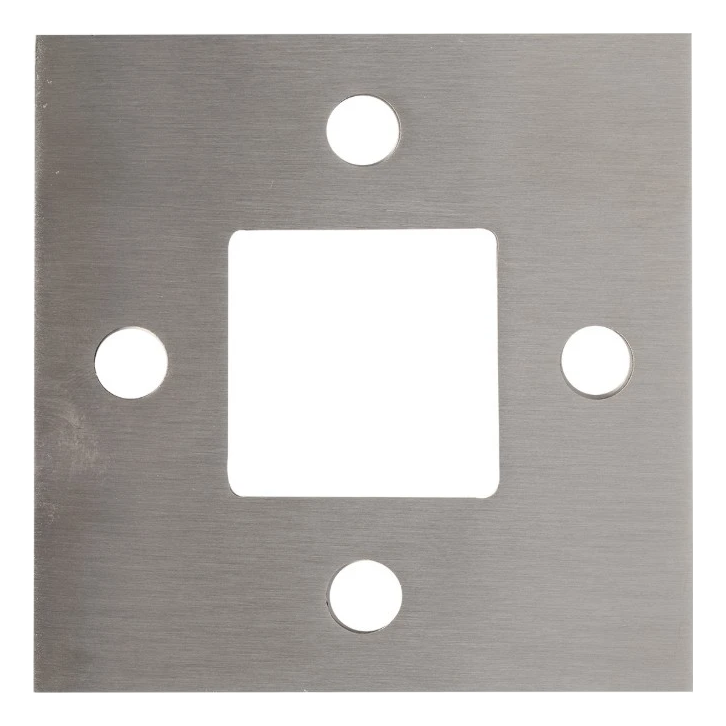

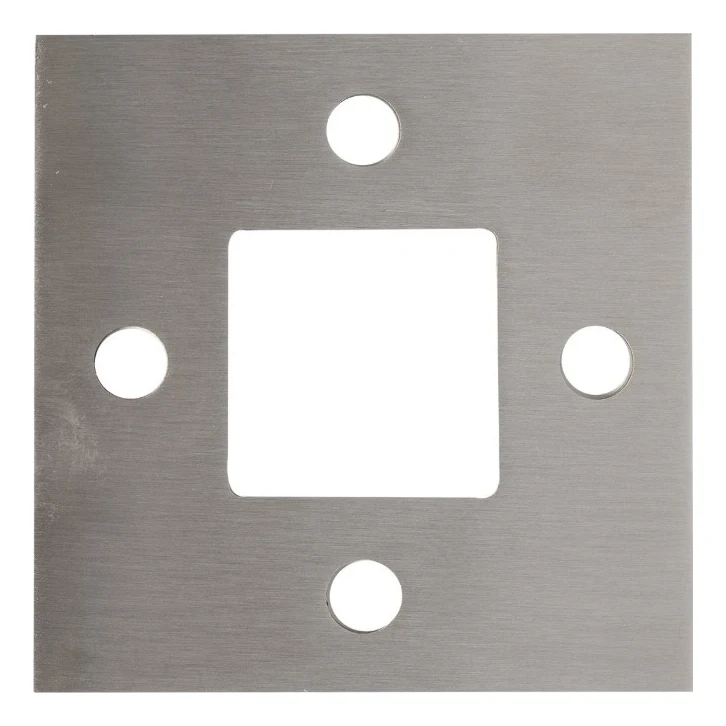

Square balustrade post base designed for welding, dedicated to 40×40 mm post systems. Made from AISI 304 stainless steel with satin finish, it provides solid and aesthetic mounting of the balustrade post to the substrate. Four mounting holes enable secure screwing of the base, and the central square hole allows for precise positioning and welding of the post.
The base is an essential structural element of every balustrade — it is responsible for the stability and strength of the entire system. After installation, the connection point can be covered with a dedicated cover plate (available separately), which will conceal the mounting holes and give the balustrade an elegant, finished appearance.
Dimensions and technical parameters
- External base dimension (D×D): 100×100 mm
- Central hole (square): 40×40 mm
- Base thickness (h): 6 mm
- Mounting holes: 4× ⌀11 mm
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Post mounting method: welding
- Weight: 0.375 kg
- EAN: 5901289673594
Application and compatibility
The base is designed for balustrade systems with square posts 40×40 mm. Ideal for mounting balustrades on terraces, balconies, staircases and mezzanines — everywhere where durable and aesthetic mounting of posts to the substrate is required. Also available in the range are bases in other dimensions and round variants, allowing the solution to be matched to the style and dimensions of any construction.
Technical data
| Material | AISI 304 |
| Finish | Satin |
