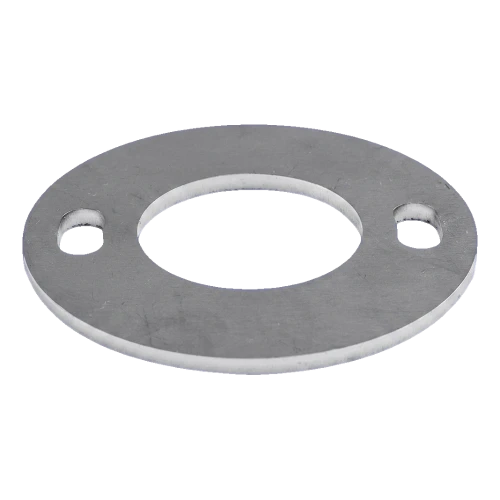

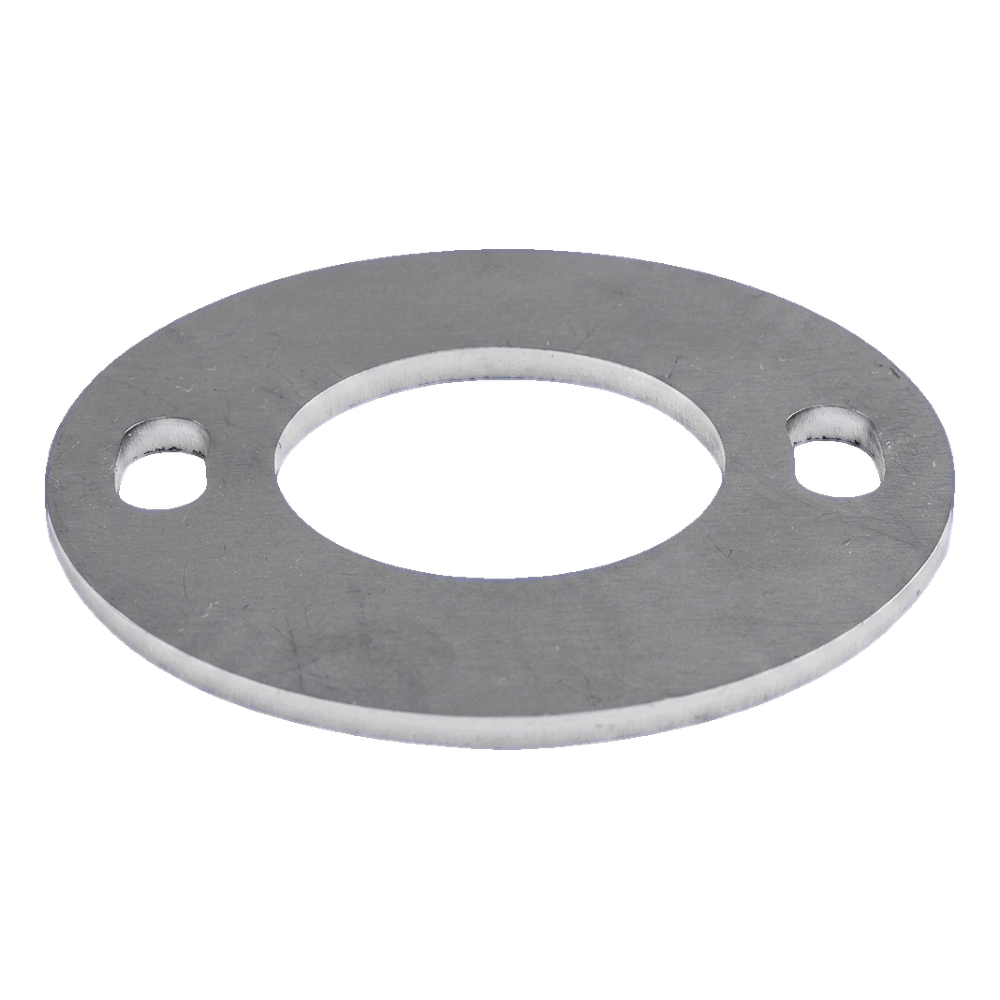

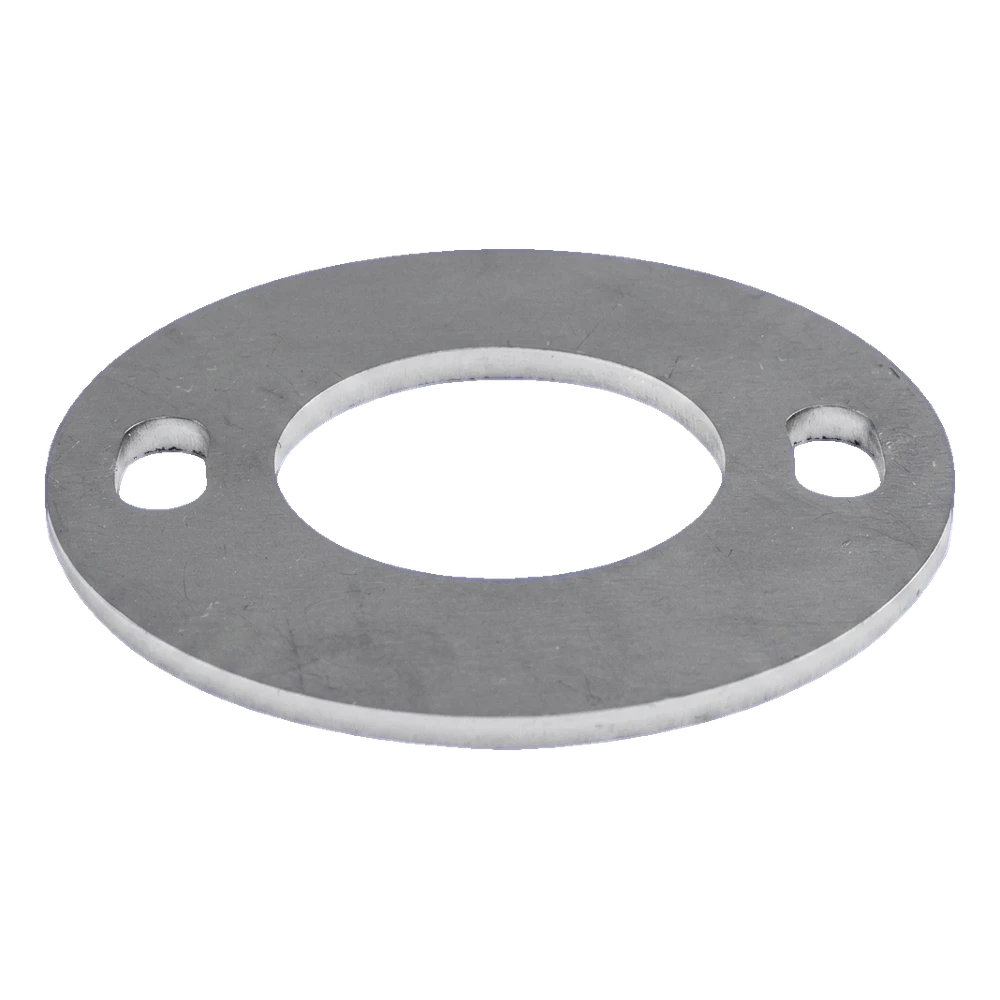

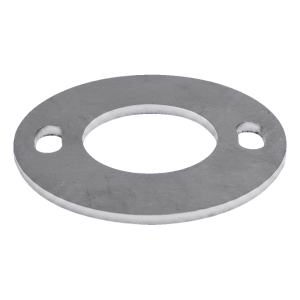

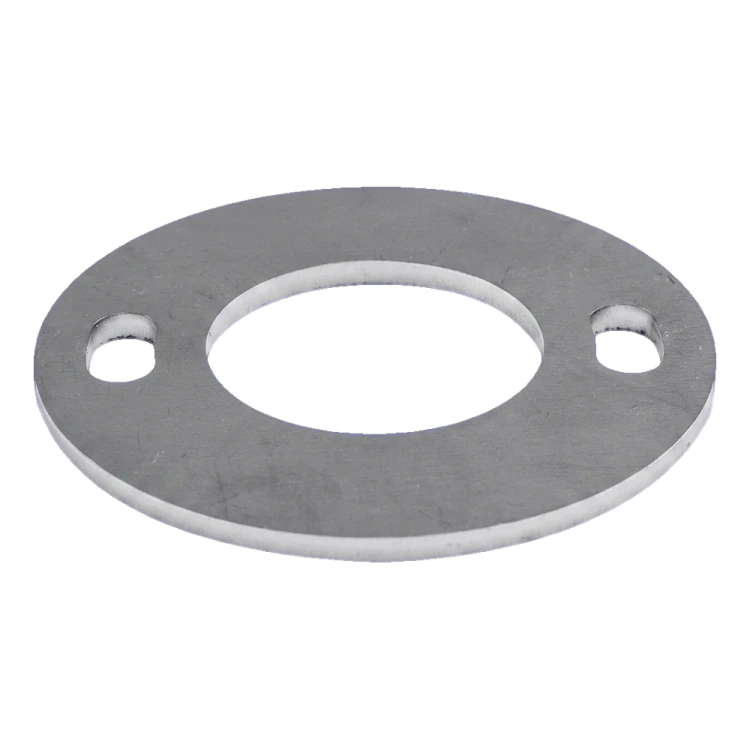

Balustrade post base plate for welding ø 80 mm – stainless steel AISI 304, 42.4 mm system
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.105 kg
Rating:
0
0
Vendor:
-
Product code:
001-160
Description
Balustrade post base plate for welding ø 80 mm – stainless steel AISI 304, 42.4 mm system
Round post base plate for welding designed for 42.4 mm balustrade systems. Structural component providing stable and durable mounting of balustrade posts to the substrate. Made from high-quality stainless steel AISI 304 with raw surface finish — ready for post welding and further processing in the workshop or directly on site.
Properly installed base plate is a crucial element affecting the stability and strength of the entire stainless steel balustrade structure. Two mounting holes enable secure bolting to the substrate, and after installation completion, the fixing points can be covered with dedicated cover caps, achieving an aesthetic finish for the whole assembly.
Technical Parameters
- External diameter of base plate: ø 80 mm
- Central hole diameter (for post): ø 42.4 mm
- Height (thickness): 4 mm
- Mounting holes: 2 × ø 8.5 mm, spacing 20 mm
- Material: stainless steel AISI 304
- Surface finish: raw (without additional finishing)
- Balustrade system: 42.4 mm
- Application: for welding
- Weight: 0.105 kg
- EAN: 5901289673495
Benefits for Installers
- Corrosion resistance — AISI 304 steel guarantees long-term performance both indoors and outdoors
- Quick installation — two ø 8.5 mm mounting holes enable efficient fixing to substrate
- Structure stabilisation — solid 4 mm thick base plate ensures secure post positioning
- Versatility — compatible with popular balustrade posts in 42.4 mm system
- Clean finish — possibility to use cover caps to conceal fixing points
Loading...
Technical data
| Material | AISI 304 |
| Finish | Raw |
| Mounting System | 42.4 mm |
