PINOX – balustrade post base ø42.4mm for driving, stainless steel satin
0
Description

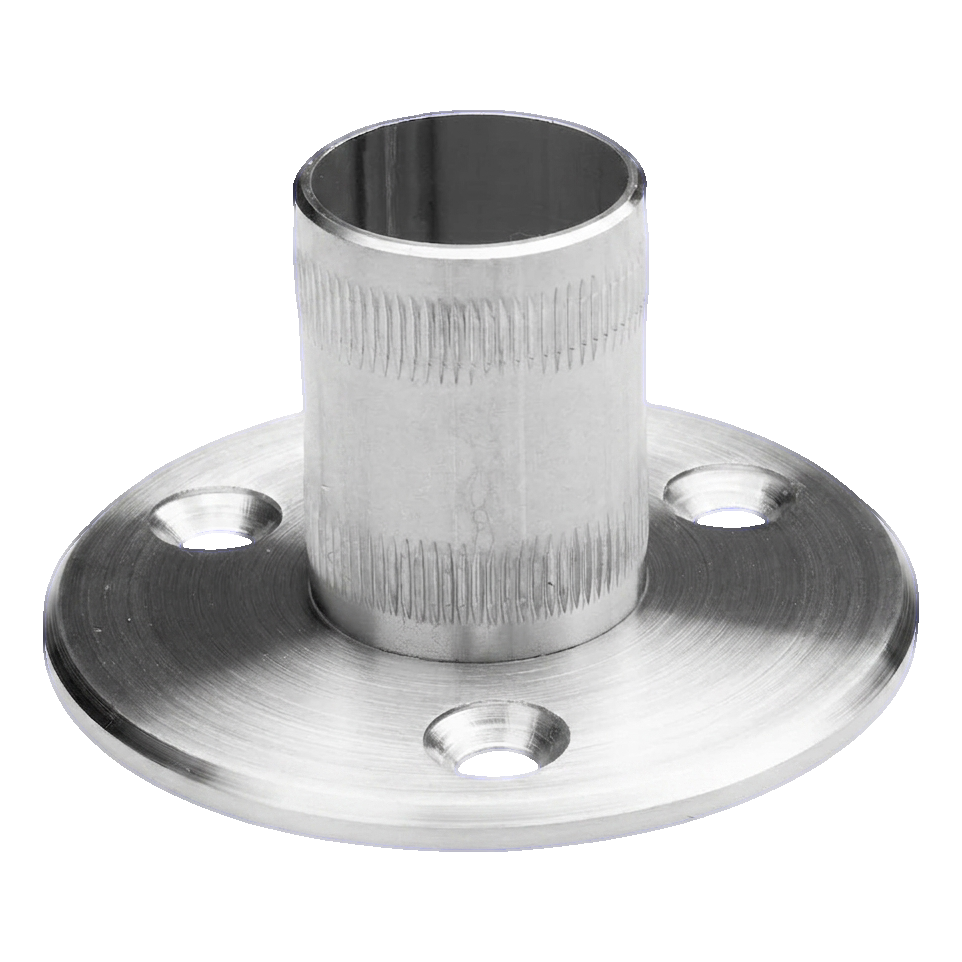

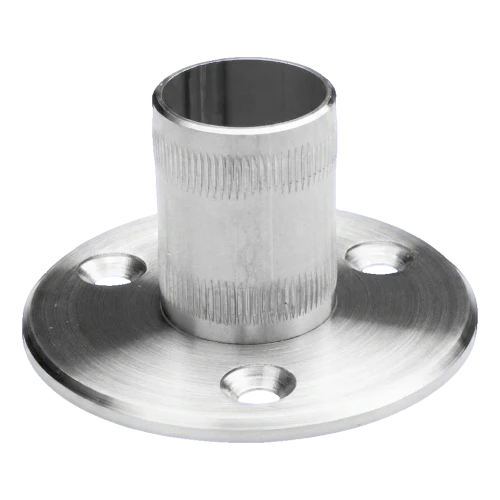

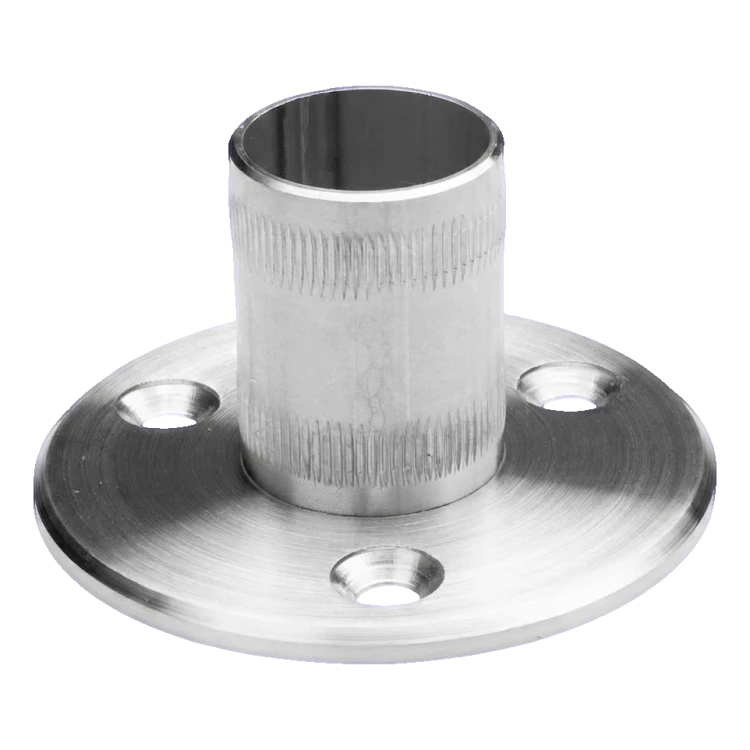

PINOX – balustrade post base ø42.4mm for driving, stainless steel satin
PINOX balustrade post base ø42.4mm is a robust mounting element designed for driving installation, forming the foundation of any balustrade structure. Manufactured from AISI 304 stainless steel with an elegant satin finish, it ensures durability and corrosion resistance even in demanding outdoor conditions. Three countersunk mounting holes enable quick and secure attachment to the substrate, ensuring stability and strength of the entire structure.
The base is an essential structural element that can be covered with a special cover plate, improving the aesthetics of the balustrade by concealing the mounting components. Thanks to precise manufacturing and compatibility with 42.4mm diameter tube, the element works perfectly with the most popular stainless steel balustrade systems.

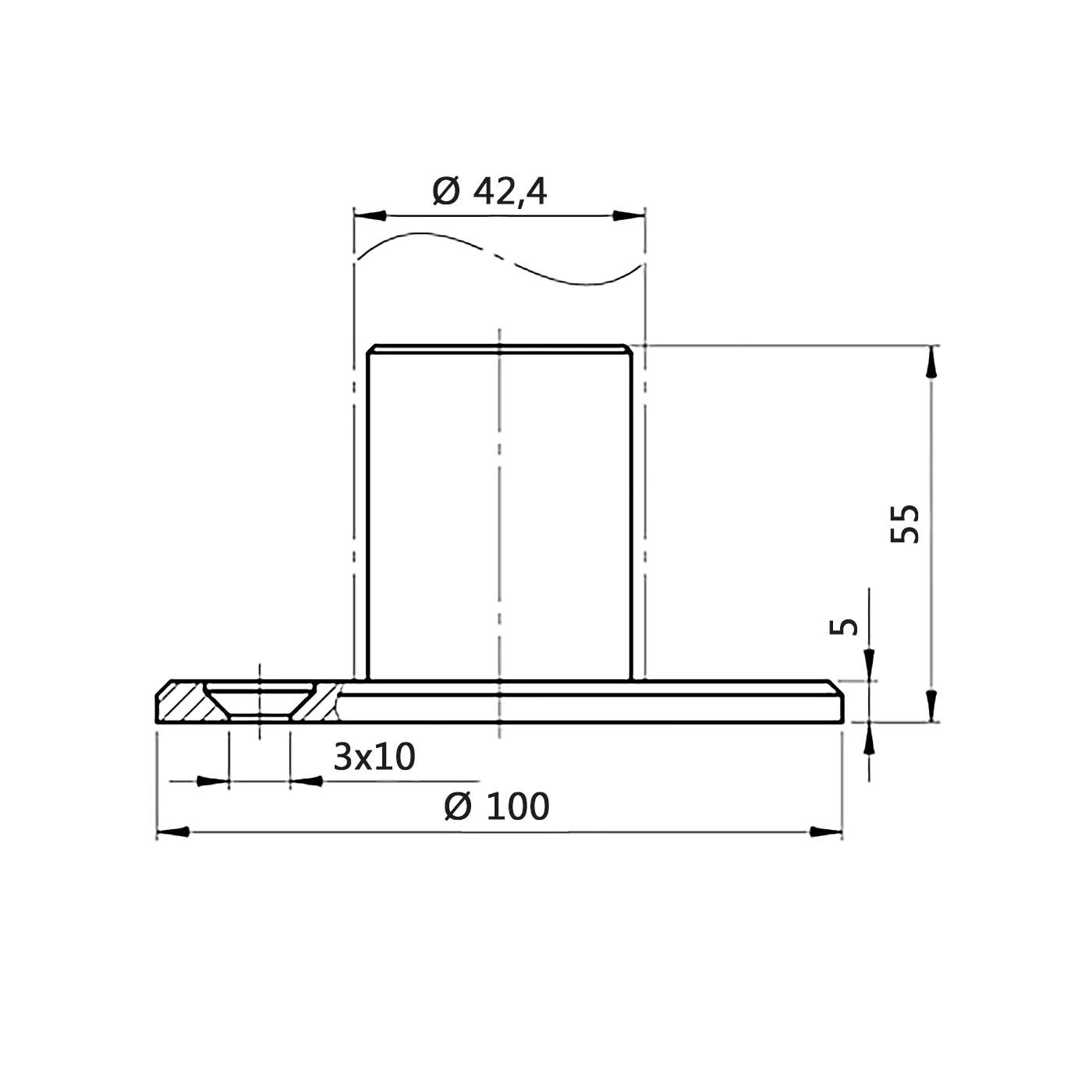

Dimensions and technical parameters
- Spindle diameter (post tube): Ø 42.4mm
- Base diameter (flange): Ø 100mm
- Total height: 55mm
- Base thickness: 5mm
- Mounting holes: 3 × Ø 10mm (countersunk for conical head)
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting type: for driving
- Weight: 0.35kg
- EAN: 5903313203838
Application
The base is intended for professional installation of balustrade posts in residential buildings, public utility buildings, on terraces and balconies. The satin finish harmoniously complements other stainless steel elements, creating an aesthetic and visually coherent structure. For installation companies, this means reduced finishing work and faster project completion.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
