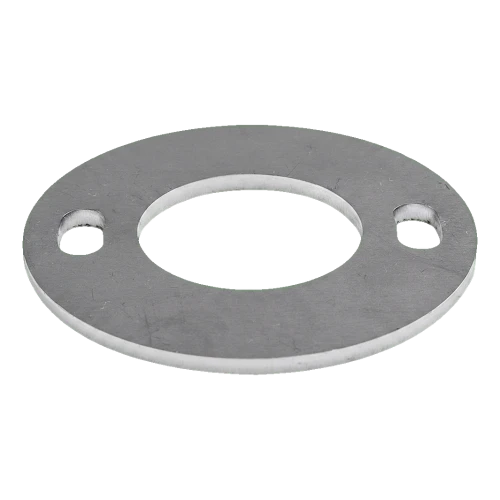

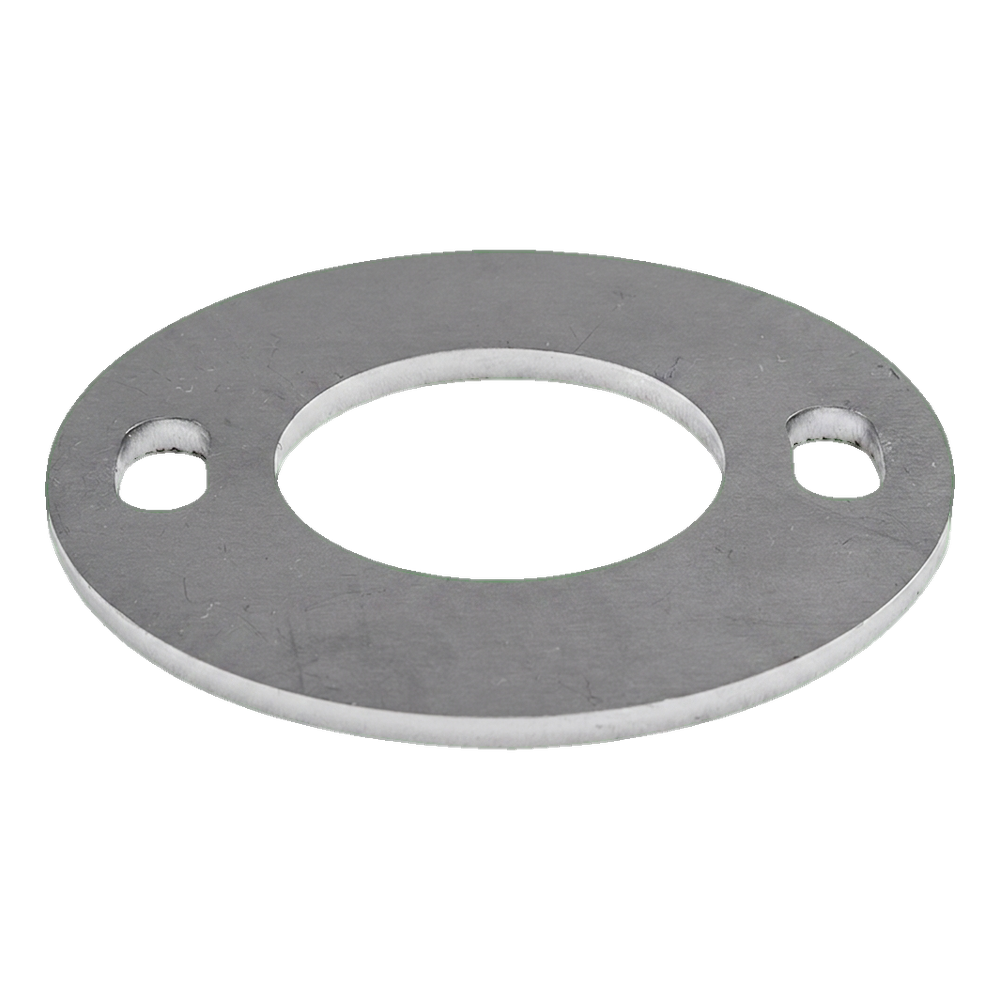

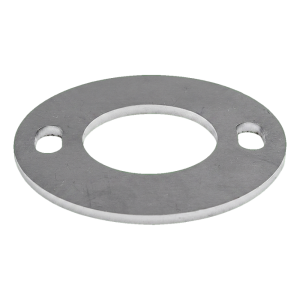

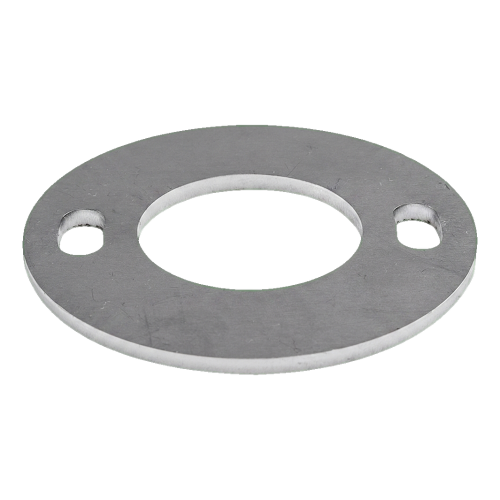

Balustrade post base plate for welding fi 100 mm – stainless steel AISI 304
0
Description

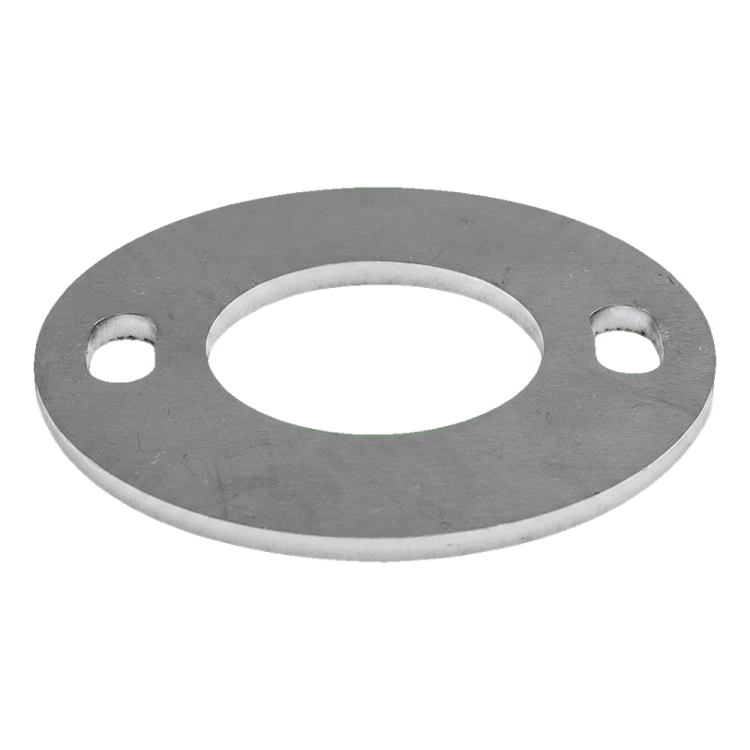

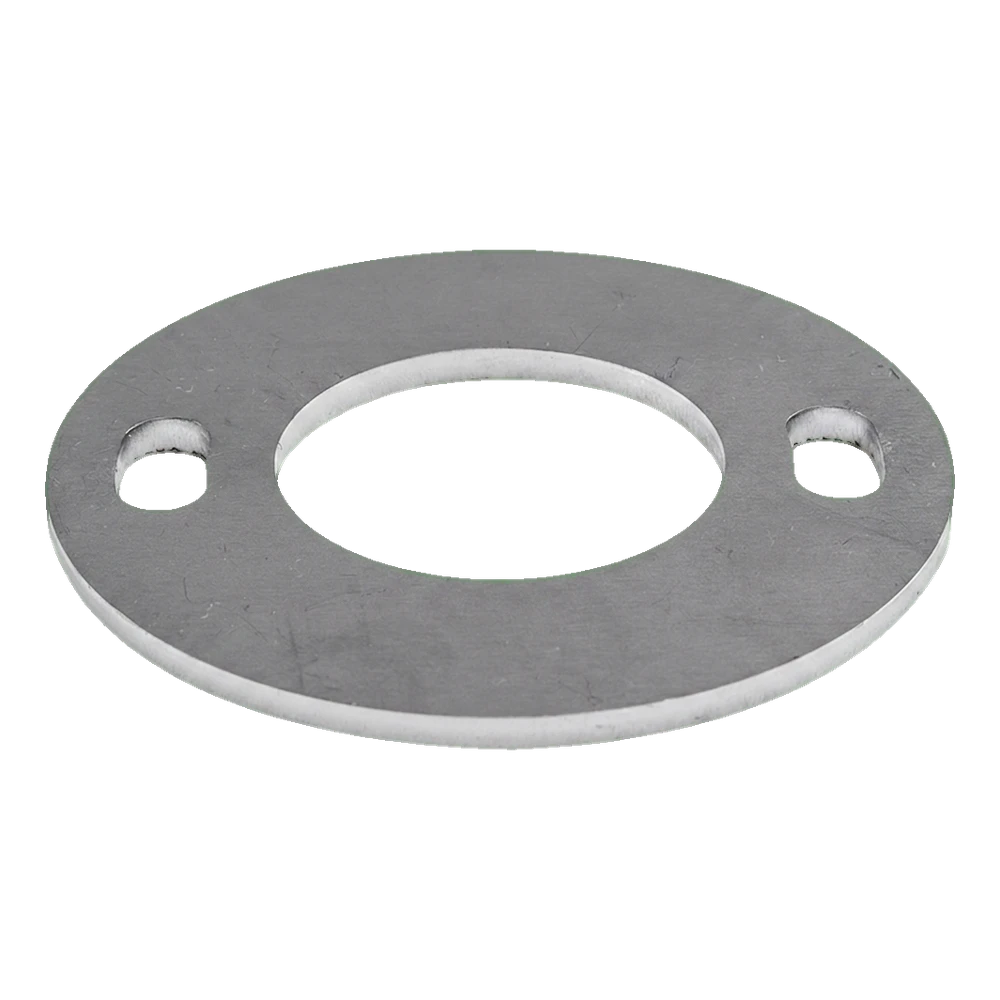

Balustrade post base plate for welding fi 100 mm – stainless steel AISI 304
Round post base plate for welding designed for mounting balustrade posts in the 42.4 mm system. Solid structural element made of stainless steel AISI 304 ensures stable and durable connection of the post to the substrate. Raw surface enables trouble-free welding — after installation, mounting points can be covered with a dedicated cover plate, achieving an aesthetic, professional finish for the entire structure.
Thanks to two elongated mounting holes (slots), the base plate allows for precise adjustment of the post position during installation. This practical solution significantly speeds up assembly work and eliminates the need for drilling additional holes in the substrate. High corrosion resistance of AISI 304 steel makes this element suitable for both indoor and outdoor conditions.
Dimensions and technical parameters
- External diameter (D): 100 mm
- Central hole diameter (Ø): 42.4 mm
- Base plate thickness (h): 4 mm
- Mounting holes (a): 2× slot 11 × 20 mm
- Material: stainless steel AISI 304
- Surface: raw (unfinished)
- System: 42.4
- Shape: round
- Post mounting method: welding
- Weight: 0.19 kg
- EAN: 5901289673433
Application
The base plate is intended for mounting balustrade posts with tube diameter 42.4 mm by welding method. Ideal for stainless steel balustrade structures on staircases, terraces, balconies and in public buildings. Compatible with round cover plates fi 100 mm, which allow you to hide mounting points and achieve an elegant appearance of the finished balustrade.
Technical data
| Material | AISI 304 |
| Finish | Raw |
| Mounting System | 42.4 mm |
