Balustrade post base for welding ⌀100 mm – stainless steel AISI 304, system 42.4
0
Description

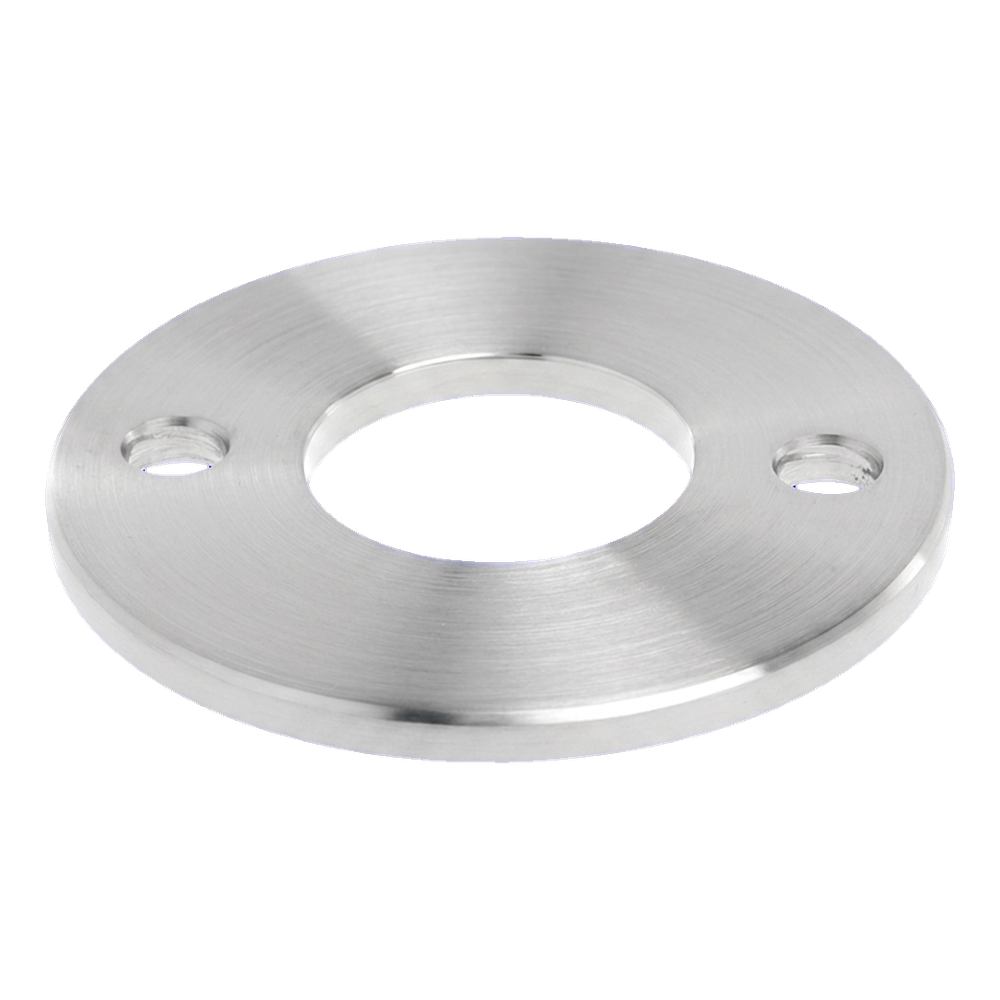

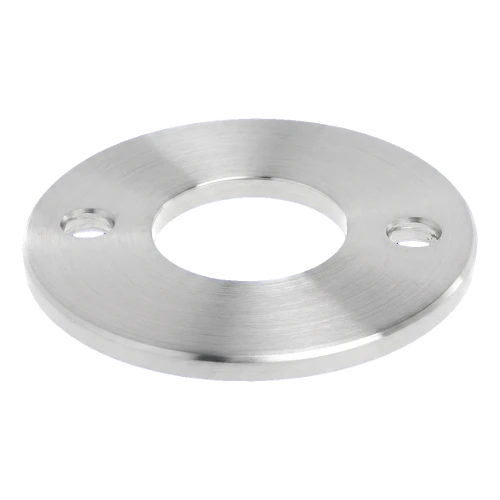

Balustrade post base for welding ⌀100 mm – stainless steel AISI 304, system 42.4
Balustrade post base for welding is an essential structural element designed for permanent mounting of balustrade posts in the 42.4 mm system. Made from stainless steel AISI 304 with satin finish, it provides high corrosion resistance and an aesthetic, coherent appearance with other balustrade elements.
The base is intended for welding — the tubular post with diameter 42.4 mm is inserted into the central hole and permanently joined with a weld, guaranteeing maximum stability and strength of the entire structure. Two elongated mounting holes (slots) enable the base to be screwed to the substrate with some adjustment tolerance, facilitating precise installation even with minor irregularities.
The mounting part can be covered with a dedicated cover plate (available separately), which conceals the fixing holes and weld, giving the balustrade an elegant, finished appearance.

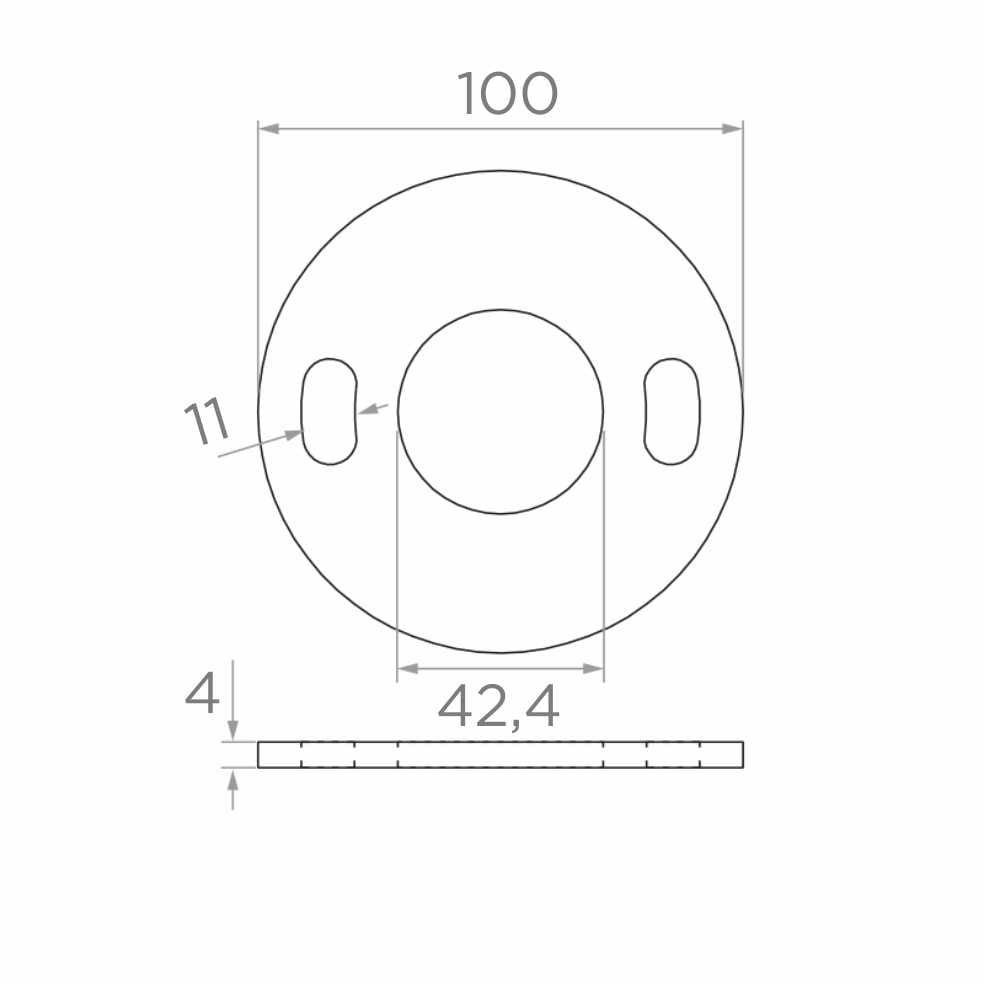

Dimensions and technical parameters
- External diameter: 100 mm
- Central hole diameter (for tube): 42.4 mm
- Base thickness: 4 mm (height with collar: 6 mm)
- Mounting holes: 2 × ⌀11 mm (slots)
- Material: stainless steel AISI 304
- Surface finish: satin
- System: 42.4
- Weight: 0.28 kg
- Connection to post: welding
- EAN: 5901289673440
Application and compatibility
The base is dedicated to balustrade systems based on round tube ⌀42.4 mm — the most commonly used standard in internal and external stainless steel balustrades. The range also includes post bases in round and square variants with different dimensions, allowing the solution to be adapted to individual project requirements and construction style.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
