Mounting accessories

Filters
Filters
Filters

in category: Mounting accessories

Chosen

Clear

Price



Mounting accessories

Products: 61
Products: 61

List of products

Default Default Product name: A to Z Product name: Z to A Price: from lowest Price: from highest
Adjustable angle bracket 65x65mm stainless steel M10 PV-08-28 (1) Adjustable angle bracket 65x65mm stainless steel M10 PV-08-28 (2)

Adjustable angle bracket 65x65mm stainless steel M10

Price €0.96
Price €0.78
without VAT
Aluminum adapter 40x80x5 PV-07-05 Aluminum adapter 40x80x5 PV-07-05 (2)

Aluminium Mounting Adapter 40x80x5mm

Price €0.40
Price €0.32
without VAT

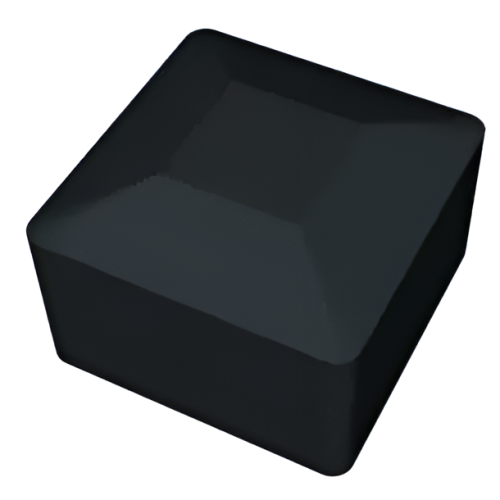

Black End Cap for PV Mounting Profile 40×40 mm – LLDPE Type 1

Price €0.16
Price €0.13
without VAT

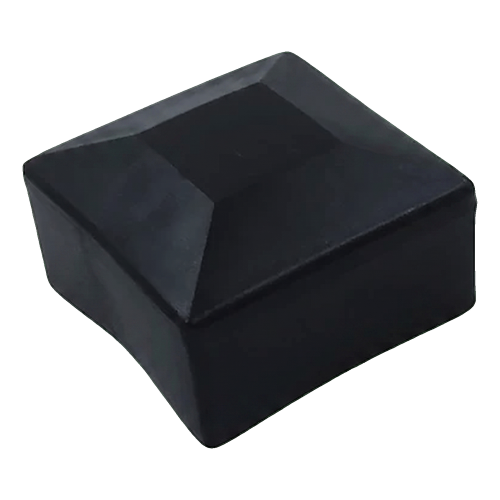

Black flat end cap for 40×40 mm PV mounting profile – type 3 LLDPE

Price €0.12
Price €0.10
without VAT

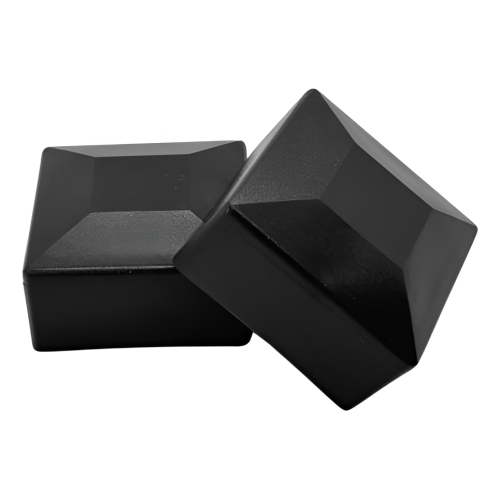

Black LLDPE End Cap for 40×40 mm PV Mounting Profiles – Type 2

Price €0.14
Price €0.11
without VAT
Cable seal EJOT® - 3 PV-21-01 Cable seal EJOT® - 3 PV-21-01 (2)

Cable seal EJOT® - 3

Price €42.13
Price €34.25
without VAT

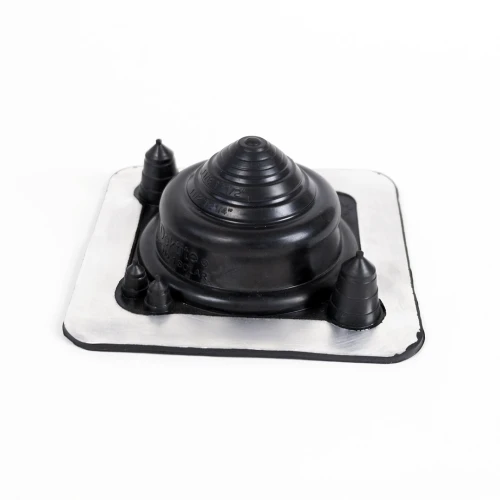

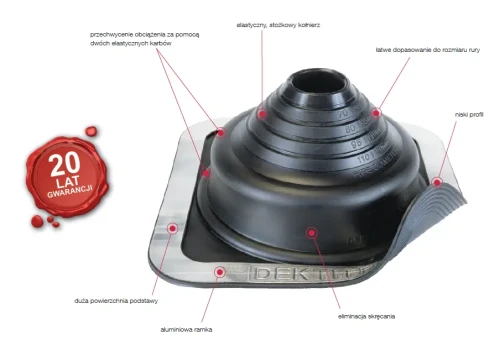

Cable seal EJOT® - 5 PV-21-02 Cable seal EJOT® - 5 PV-21-02 (2)

Cable seal EJOT® - 5

Price €45.34
Price €36.87
without VAT
Center clamp H25 L50 Raw with M8x20 screw and insert for 30 mm panels PV-04-16 Center clamp H25 L50 Raw with M8x20 screw and insert for 30 mm panels PV-04-16 (2)

Center clamp H25 L50 Raw with M8x20 screw and insert for 30 mm panels

Price €0.92
Price €0.75
without VAT
Center clamp H25 L50 Raw with M8x25 screw and insert for 35 mm panels PV-04-17 Center clamp H25 L50 Raw with M8x25 screw and insert for 35 mm panels PV-04-17 (2)

Center clamp H25 L50 Raw with M8x25 screw and insert for 35 mm panels

Price €0.94
Price €0.76
without VAT

Dual-thread bolt M10x300 with mounting adapter for PV structures

Price €1.41
Price €1.14
without VAT
End clamp - adjustable by sliding grooves M8 30-50mm PV-03-20 End clamp - adjustable by sliding grooves M8 30-50mm PV-03-20 (2)

End clamp - adjustable by sliding grooves M8 30-50mm

Price €1.93
Price €1.57
without VAT
End clamp - adjustable by sliding grooves M8 30-50mm - anodized PV-03-21 End clamp - adjustable by sliding grooves M8 30-50mm - anodized PV-03-21 (2)

End clamp - adjustable by sliding grooves M8 30-50mm - anodized

Price €1.95
Price €1.59
without VAT
End clamp 30mm with screw and insert PV-03-22 End clamp 30mm with screw and insert PV-03-22 (2)

End clamp 30mm with screw and insert

Price €0.74
Price €0.60
without VAT
End clamp 30mm with screw and insert - black painted PV-03-23 End clamp 30mm with screw and insert - black painted PV-03-23 (2)

End clamp 30mm with screw and insert - black painted

Price €0.88
Price €0.71
without VAT
End clamp 35mm with screw and insert PV-03-24 End clamp 35mm with screw and insert PV-03-24 (2)

End clamp 35mm with screw and insert

Price €0.81
Price €0.66
without VAT
End clamp 35mm with screw and insert - black painted PV-03-25 End clamp 35mm with screw and insert - black painted PV-03-25 (2)

End clamp 35mm with screw and insert - black painted

Price €0.91
Price €0.74
without VAT
End clamp H30 Aluminium 6060 Hole M8 painted PV-03-30 End clamp H30 Aluminium 6060 Hole M8 painted PV-03-30 (2)

End clamp H30 Aluminium 6060 Hole M8 painted

Price €0.48
Price €0.39
without VAT
End clamp H30 aluminum 6060 hole M8 PV-03-01 End clamp H30 aluminum 6060 hole M8 PV-03-01 (2)

End clamp H30 aluminum 6060 hole M8

Price €0.31
Price €0.25
without VAT
End Clamp H30 KLIK silver L50 (type 2) PV-03-27 End Clamp H30 KLIK silver L50 (type 2) PV-03-27 (2)

End Clamp H30 KLIK silver L50 (type 2)

Price €1.33
Price €1.08
without VAT
Side pressure clamp - H30 with grounding pin PV-03-32 (1) Side pressure clamp - H30 with grounding pin PV-03-32 (2)

End clamp H30 L50 raw with grounding pin

Price €0.59
Price €0.48
without VAT
End clamp H32 Aluminium 6060 Hole M8 painted PV-03-31 End clamp H32 Aluminium 6060 Hole M8 painted PV-03-31 (2)

End clamp H32 Aluminium 6060 Hole M8 painted

Price €0.48
Price €0.39
without VAT
End clamp H32 aluminum 6060 hole M8 PV-03-03 End clamp H32 aluminum 6060 hole M8 PV-03-03 (2)

End clamp H32 aluminum 6060 hole M8

Price €0.35
Price €0.28
without VAT
End clamp H32 aluminum 6060 hole M8 anodized PV-03-04 End clamp H32 aluminum 6060 hole M8 anodized PV-03-04 (2)

End clamp H32 aluminum 6060 hole M8 anodized

Price €0.55
Price €0.45
without VAT
End clamp H35 aluminum 6060 hole M8 PV-03-05 End clamp H35 aluminum 6060 hole M8 PV-03-05 (2)

End clamp H35 aluminum 6060 hole M8

Price €0.33
Price €0.27
without VAT

Mounting accessories for PV panels: clamps, adapters, seals

Mounting accessories is the category for the small parts that complete a photovoltaic installation. It covers module clamps, roof adapters, cable seals, end caps and gaskets. The range is aimed at installers and builders who fix PV modules to profiles on flat and pitched roofs.

What you will find in this category

  • Clamps - end and middle clamps in aluminium 6060 for fixing modules, with M8 holes, in silver or black.
  • Adapters - stainless steel and aluminium roof adapters, double-threaded screw sets and an adjustable angle bracket.
  • Seals and Covers - EPDM cable seals, end caps for 40×40 mm profiles and a self-adhesive EPDM gasket.
  • Rubber mats - a small subcategory with a single product.

How to choose

  • Panel frame thickness: end clamps are offered for 30, 32, 35 and 40 mm frames. Adjustable versions cover 30-50 mm.
  • Clamp position: use end clamps at the edge of a row and middle clamps between two adjacent modules.
  • Finish and colour: clamps come in silver or black, as anodised or painted aluminium 6060.
  • Adapter material and thread: choose stainless steel 1.4016 or 1.4301, or aluminium. Threads are M10 or M12, so match them to your double-threaded screw.
  • Grounding and fitting: some middle clamps have a grounding pin. KLIK versions use a click latch with nut and bolt.

Typical applications

Adapters with double-threaded screws are used on metal sheet, shingle and felt roofs, and on flat roofs with timber structures. Clamps hold modules on T-slot, hexagonal-bolt and trapezoidal profiles. Cable seals suit cable penetrations through roofs and facades. End caps close the ends of 40×40 mm profiles.

Often used together

Frequently asked questions

Which clamp fits my module frame?

Check the frame thickness first. Fixed end clamps are made for 30, 32, 35 and 40 mm frames. Adjustable end clamps hold 30-50 mm. The H24 middle clamp suits frames of 30-40 mm.

Are there clamps with a grounding pin?

Yes. Middle clamps H25 L50 are available with a grounding pin, in aluminium 6060. One version has black anodising. They support lightning and surge protection installations.

What are the mounting adapters used with?

The adapters are compatible with double-threaded screws. They are used on metal and bitumen roofing. Some sets include the M10 screw, EPDM washer and flange nuts.

Not sure which clamp or adapter suits your roof and modules? Contact our technical support for help with selection.
