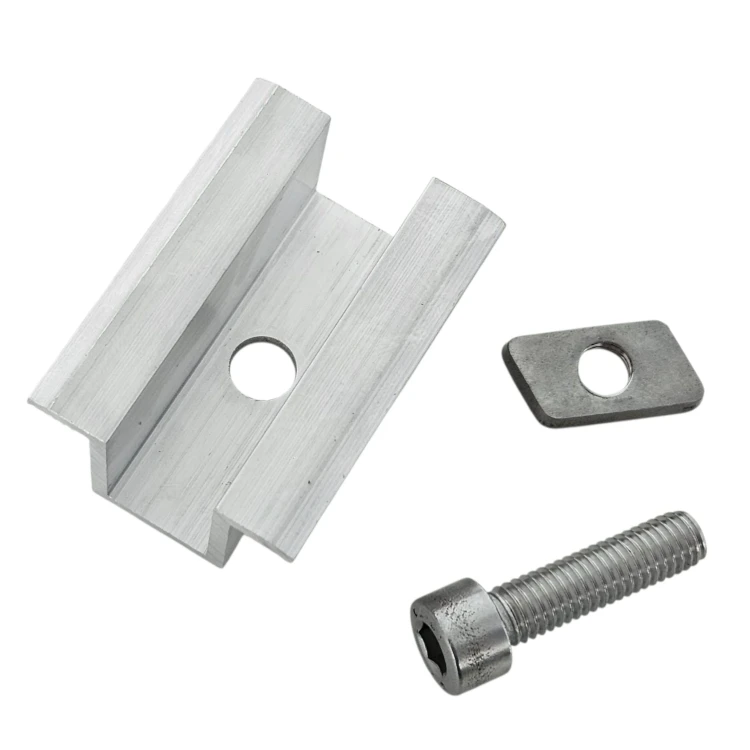

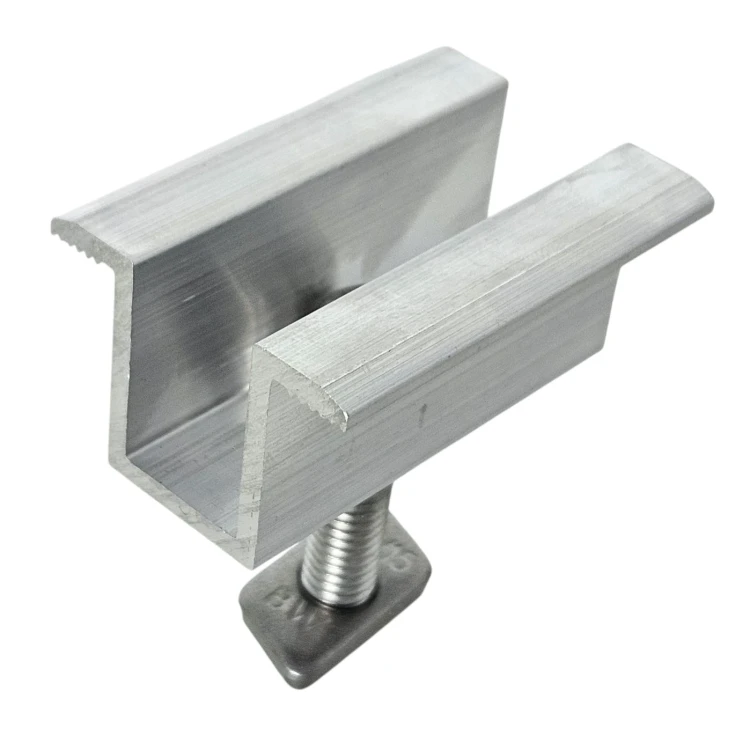

Center clamp H25 L50 Raw with M8x25 screw and insert for 35 mm panels

H25 L50 center clamp with M8x25 screw and insert made of 6060 aluminum, for mounting 35 mm photovoltaic modules using DIN 912 screws.

The center clamp, complete with screw and insert, is an essential component of photovoltaic systems. It securely attaches solar modules to the mounting structure and prevents unwanted movement that could affect performance or safety. It is used to install photovoltaic panels on both flat and sloped roofs.

Made of 6060 aluminum, the central clamp combines strength, corrosion resistance, and good weldability. This alloy is widely used due to its excellent ductility and is particularly well suited for anodizing, a process that enhances the material's natural protective oxide layer. The result is a durable, lightweight clamp that contributes to the longevity of the system and is resistant to various environmental conditions.

Please check the thickness of the panel to determine the clamp height range.

For information on screw sizes, click here - Information on clamps - Screw size table (DIN 912).

The clamp is compatible with the following mounting profiles:
