Center clamp H25 L50 Raw with M8x20 screw and insert for 30 mm panels
product unavailable
add to wish list
Description

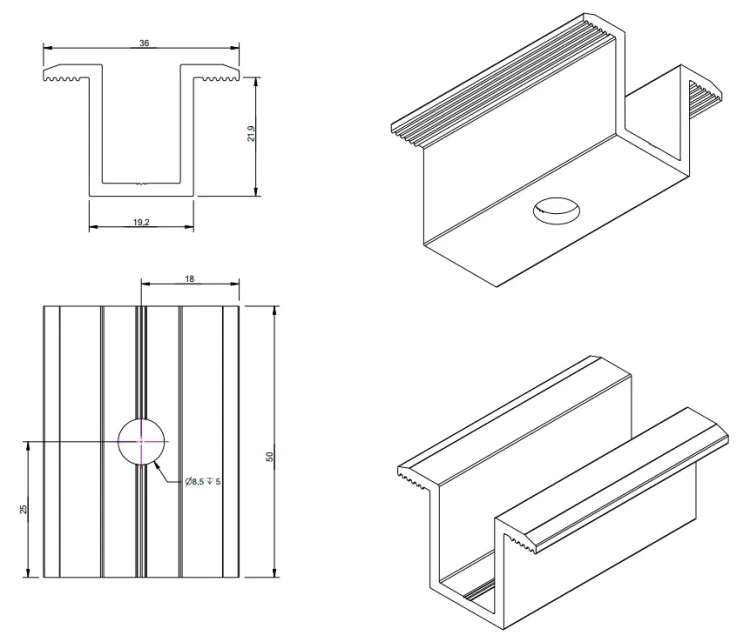

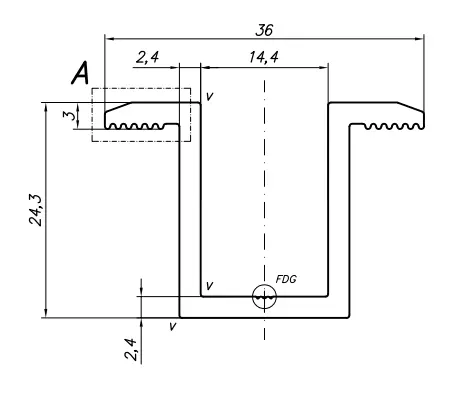

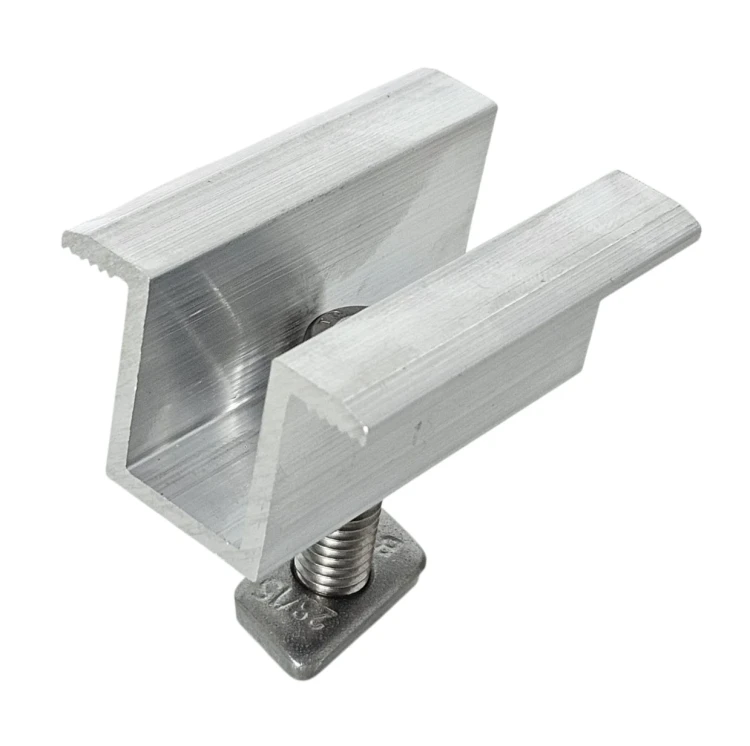

Center clamp H25 L50 Raw with M8x20 screw and 30mm panel insert
H25 L50 center clamp with M8x20 screw and insert made of 6060 aluminum, for mounting 30 mm photovoltaic modules using DIN 912 screws.
The center clamp, complete with screw and insert, is an essential component of photovoltaic systems. It securely attaches solar modules to the mounting structure and prevents unwanted movement that could affect performance or safety. It is used to install photovoltaic panels on both flat and sloped roofs.
Made of 6060 aluminum, the central clamp combines strength, corrosion resistance, and good weldability. This alloy is widely used due to its excellent ductility and is particularly well suited for anodizing, a process that enhances the material's natural protective oxide layer. The result is a durable, lightweight clamp that contributes to the longevity of the system and is resistant to various environmental conditions.
Please check the thickness of the panel to determine the clamp height range.
For information on screw sizes, click here - Information on clamps - Screw size table (DIN 912).
The clamp is compatible with the following mounting profiles:
- Aluminum profiles for hexagon screws.
- Trapezoidal profiles for hexagon screws for roofs made of trapezoidal sheet metal.
Specification
- Material: Aluminum 6060
- Mounting Profile: M8x20 screw

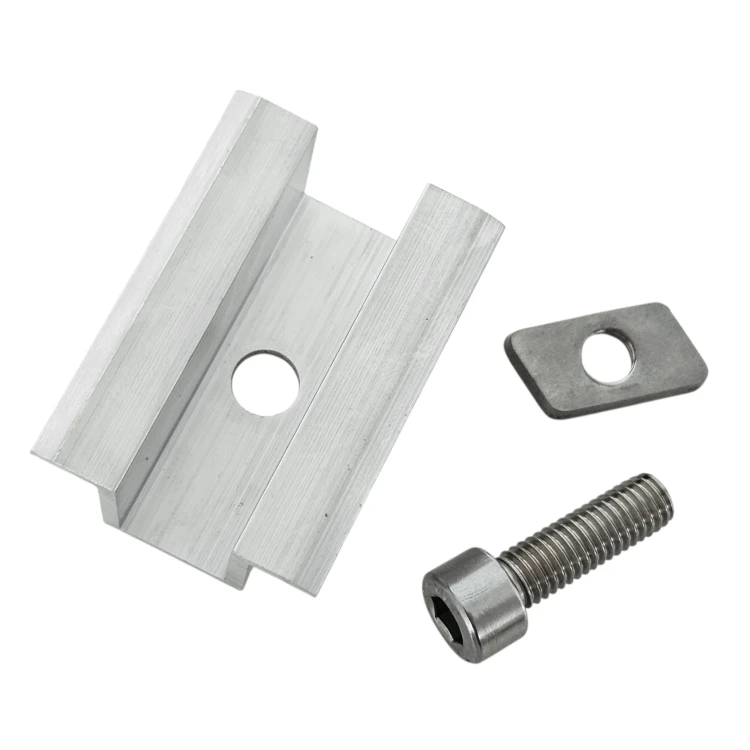

- Set: Clamp, Screw and Insert
Available Sizes
Available Materials
Properties of Aluminum 6060
- Resistant to corrosion and external factors.
- Good mechanical strength and impact resistance.
- Suitable for anodizing, providing additional protection and a decorative finish.
Technical data
| Panel thickness [mm] | - |
| Colour | Silver |
| Adjustment | - |
| Additional equipment | Set screw + insert |
| Grounding pin | None |
