End clamp H32 aluminum 6060 hole M8 anodized

Availability: In stock (large quantity)

Dispatched within: 10 Business days

Delivery: The price does not include any possible payment costs

Weight: 0.02 kg

check the delivery methods

Price / pcs.: £0.30 0.30

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 250 pieces
Package: 5000 pieces
Package: 10000 pieces

quantity pcs.

product unavailable

* - Field mandatory

add to wish list

Rating:

4.63636

Vendor: Synerga

Product code: PV-03-04

recommend to a friend

Description

End clamp H32 aluminum 6060 hole M8 anodized

Available Sizes

Available Materials

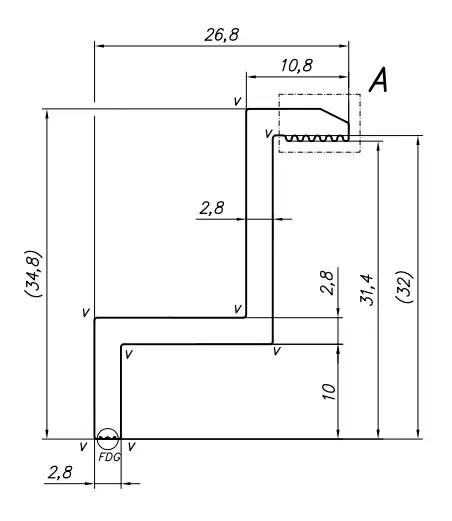

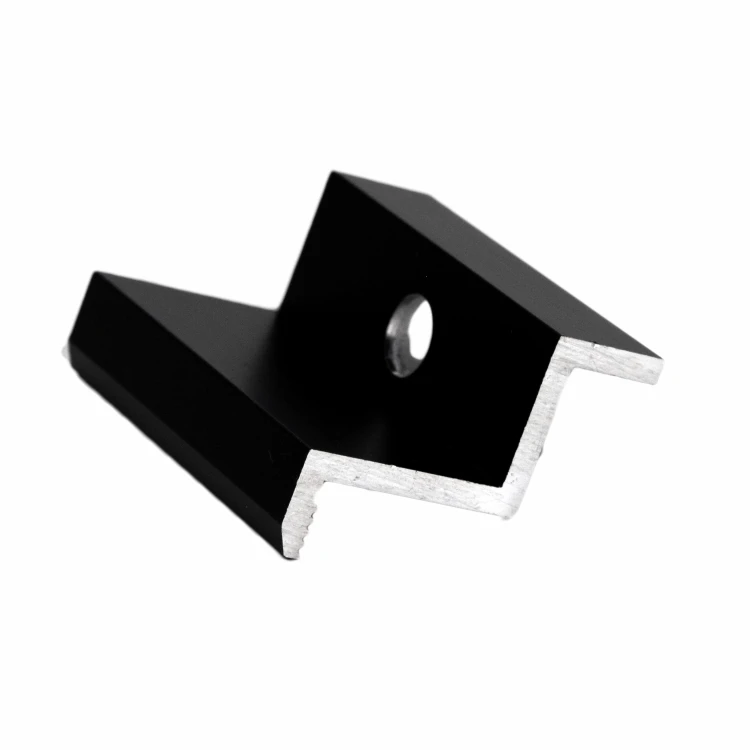

Pressure Clamp made of Aluminium 6060 Anodised, 32mm, hole M8, for securing photovoltaic modules.

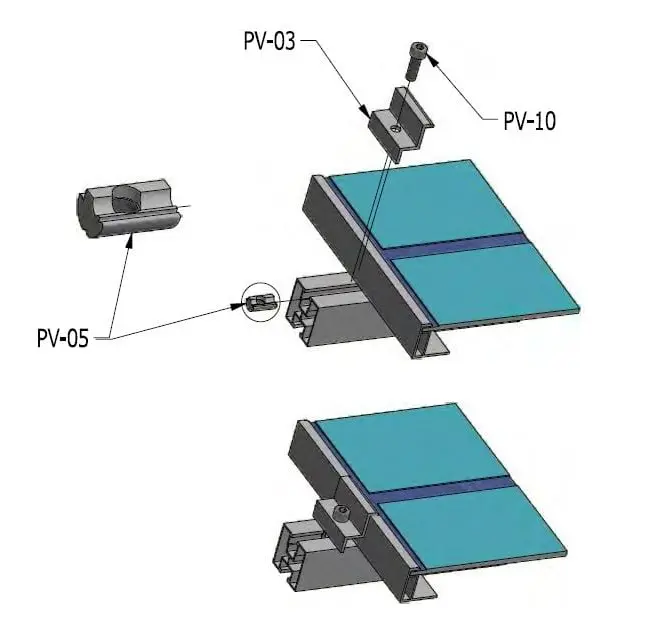

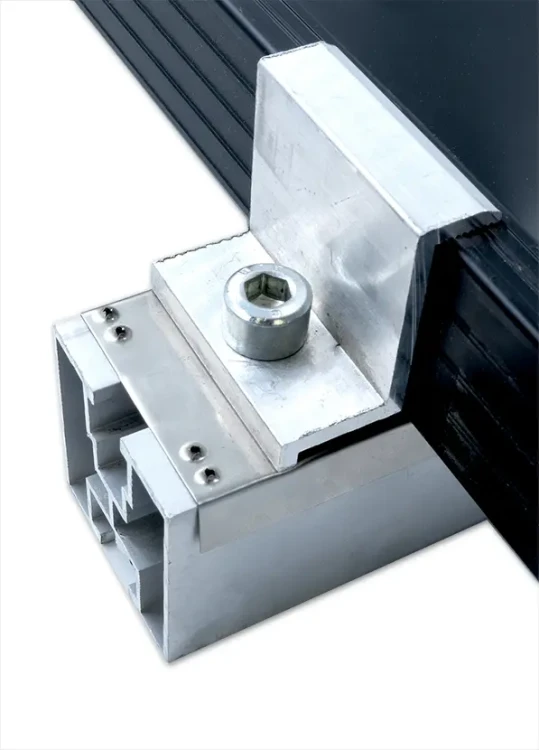

The pressure clamp or side clamp is an essential fastening component for the installation of solar modules and is used to secure the solar module to the aluminium profile. It is used for mounting solar modules on both flat and sloped roofs.

Use side clamps for the finishing panels placed in a row on the building's roof. Use middle clamps between the panels.

The most important technological parameter of the clamp is its working height, which must match the height of the installed photovoltaic panel. The H30 clamp has a working height suitable for a panel with a thickness of 30mm, the H35 clamp for a panel with a thickness of 35mm, and so on.

For aesthetic reasons, these clamps have a black anodised finish to enhance the durability of the component by increasing its resistance to environmental conditions.

Please check the panel thickness to ensure it matches the clamp height.

For information on screw sizes, click here - Clamp Information - Screw Size Chart (DIN 912).

The clamp is compatible with the following mounting profiles:

Aluminium profiles for hexagonal bolts.

Aluminium profiles for T-bolts.

Trapezoidal profiles for roofs made of trapezoidal sheet metal.

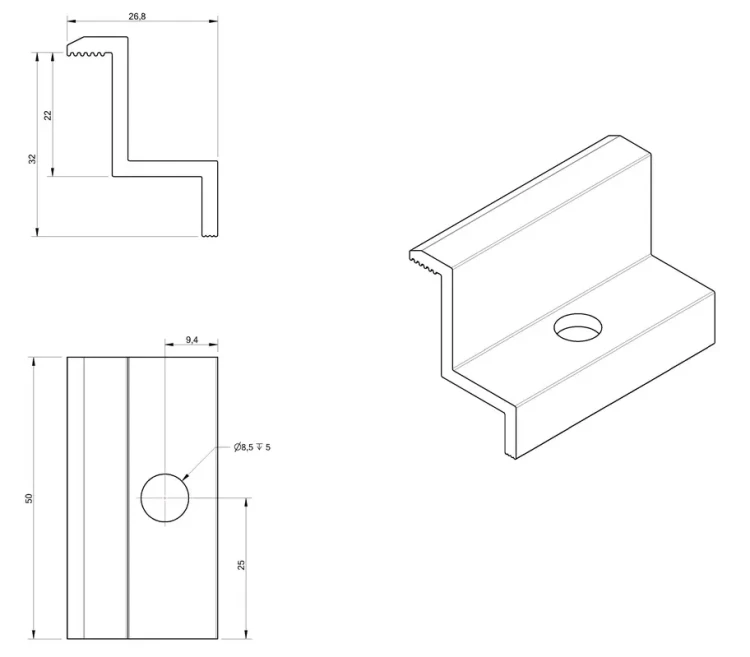

Specifications

Material: Aluminium 6060 Anodised
Mounting Profile: hole for M8 bolt
Length: 50mm

Properties of Aluminium 6060

Resistant to corrosion and external factors.
Good mechanical strength and impact resistance.
Suitable for anodising, providing additional protection and a decorative finish.

Available Sizes

Type

Panel thickness

H-30

30 mm

H-32

32 mm

H-35

35 mm

H-40

40 mm

Available Materials

Material

ALU

Alu Anodised

Technical data

Panel thickness [mm]	-
Colour	Black
Adjustment	-
Additional equipment	None
Grounding pin	None

Safety
