M8 Sliding T-Nut with Spring Ball for PV Profile – Aluminium 6060

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.004 kg

Price / pcs.: £0.10 0.10

excl. shipping costs

* Packaging options:

Piece
Package: 500 pieces
Package: 5000 pieces
Package: 10000 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

Vendor: -

Product code: PV-05

recommend to a friend

Description

M8 Sliding T-Nut with Spring Ball for PV Profile – Aluminium 6060

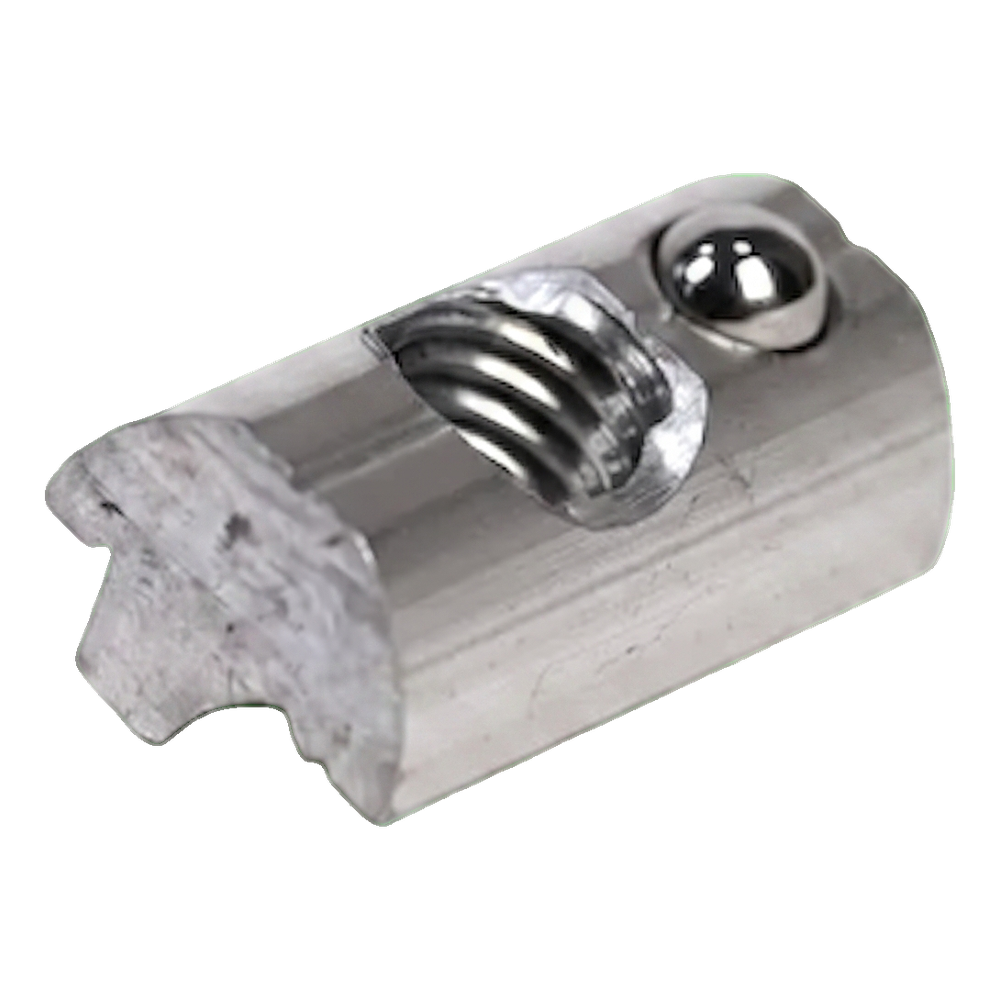

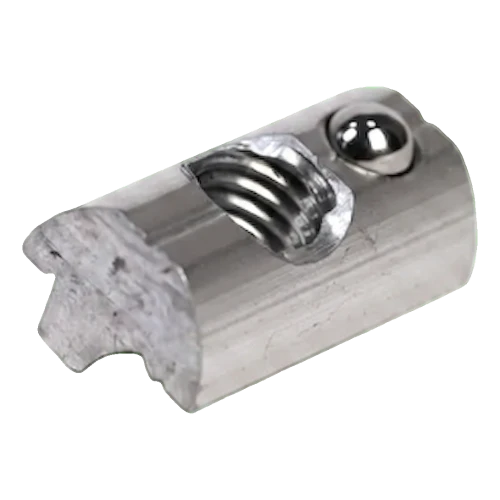

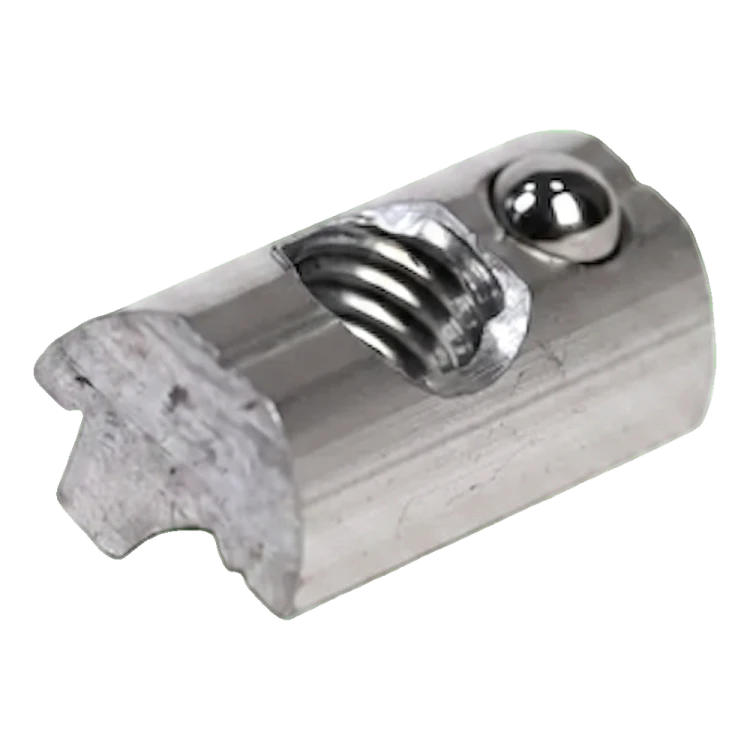

M8 sliding T-nut with spring ball – product view

M8 sliding T-nut with spring ball (nutenstein) is a key fastening component used in photovoltaic installations. Made from aluminium 6060, it combines high mechanical strength with light weight and corrosion resistance. The T-nut allows mid and end clamps to be fixed anywhere along the mounting profile, giving the installer full freedom to position PV modules.

The built-in spring ball prevents the T-nut from falling out of the profile groove before the bolt is finally tightened, which significantly simplifies work on the roof — the component stays in the desired position while clamps and panels are being fitted.

Application and installation

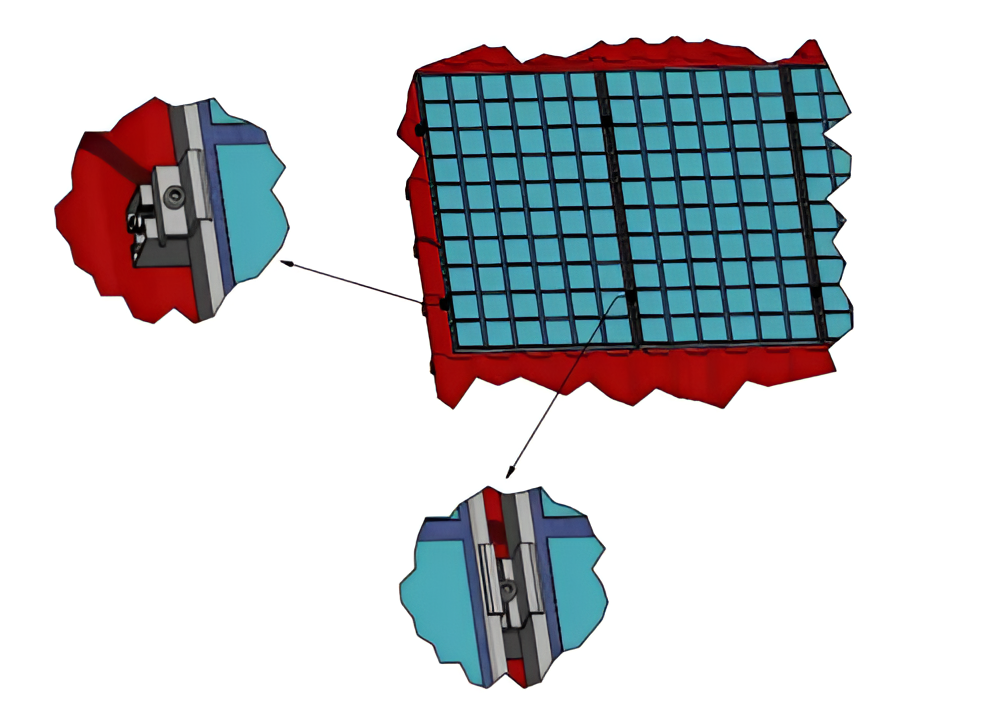

Diagram showing the installation of a sliding T-nut in a profile under a photovoltaic panel on a roof

The sliding T-nut is fitted into the top rail of the aluminium profile. Once inserted into the profile groove, the spring ball locks it in position, allowing it to be freely slid to the desired location. An M8 bolt is then used to tighten the clamp securing the PV module. This solution enables precise positioning of both mid and end clamps along the entire length of the profile.

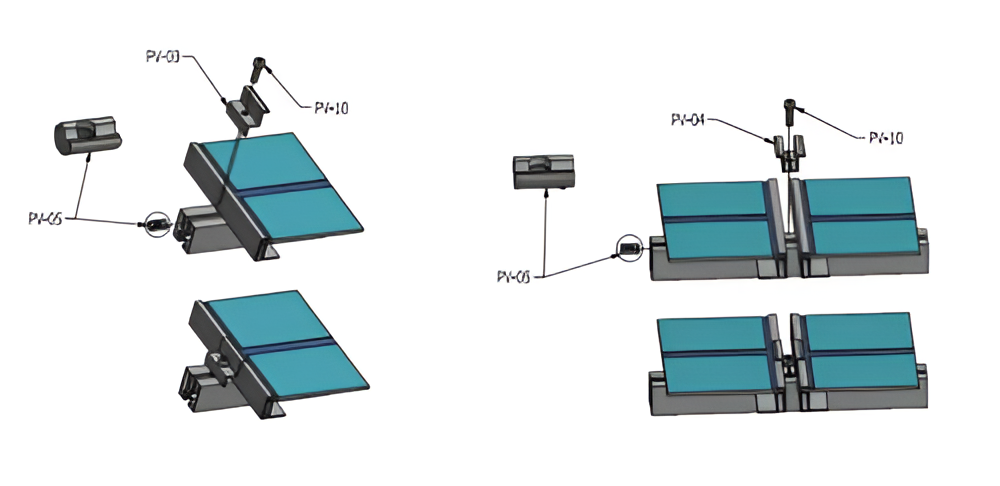

Diagram showing the installation of mid and end clamps using a sliding T-nut and bolt

Technical specification

Parameter	Value
Material	Aluminium 6060
Thread	M8
Installation location	Top rail of the profile
Weight	0.004 kg

Installation instructions

The video below shows the installation of sliding T-nuts and bolts in the aluminium profile of a photovoltaic system.

Installation instructions for sliding T-nuts and bolts in the aluminium profile of a photovoltaic system

Technical data

Thread type

Safety
