Middle clamp H25 L50 with grounding pin
product unavailable
add to wish list
Description

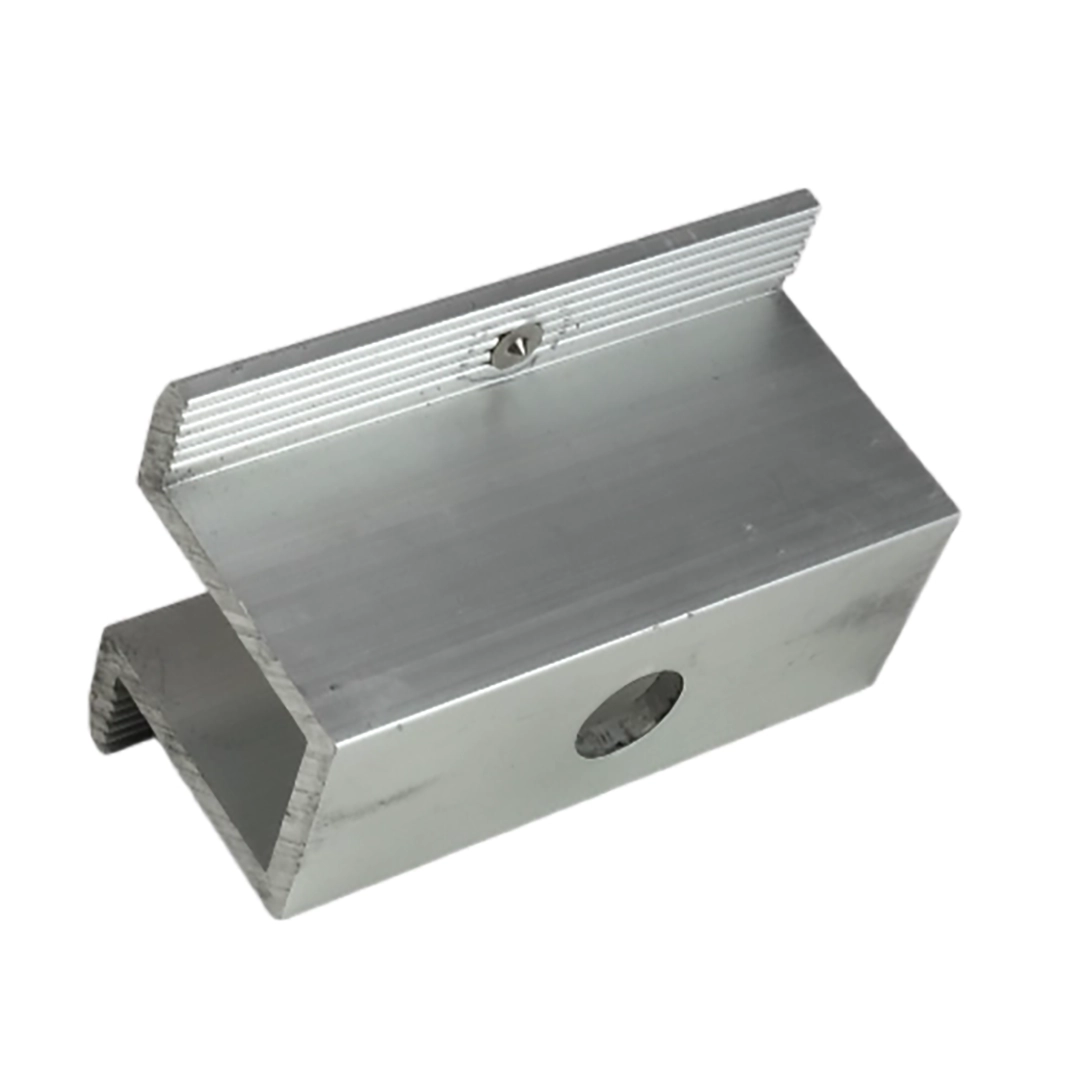

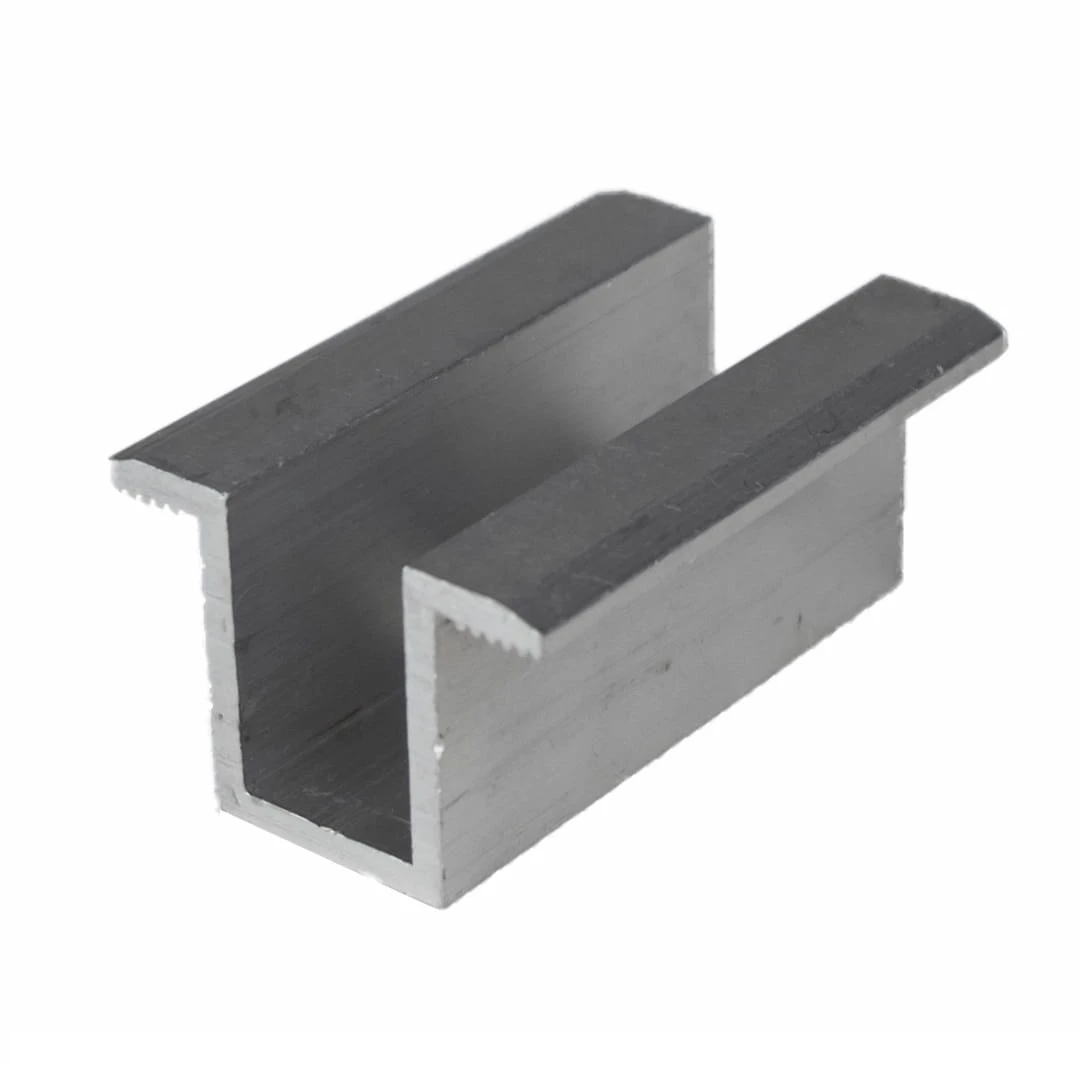

Middle clamp H25 L50 with grounding pin
Middle clamp made of Aluminum 6060, 25mm, M8 bolt hole for photovoltaic modules is an innovative solution to support lightning and surge protection installations, especially useful in photovoltaic systems.
Pressure clamp or middle clamp is a mounting element for photovoltaic installations and is used to fix a photovoltaic panel to an aluminum structural profile. It is used to mount photovoltaic panels on both flat and pitched roofs.
With built-in grounding pins on both sides, the clamp allows for quick and effective potential equalization between photovoltaic modules, piercing their anodized layer as they are tightened. This solution not only simplifies installation by eliminating the need for additional grounding pads, but also significantly reduces the time required for installation, while ensuring a high level of safety and efficiency for the entire system.
Made of high quality 6060 aluminum, so it is characterized by high resistance to weather conditions. The high quality workmanship guarantees the permanent fixing of the photovoltaic panel structure.
The offered clamps, for aesthetic reasons, are also available in a black anodized version. Anodizing also improves the durability of the component by increasing its resistance to environmental conditions.
This clamp can be used universally. For information about screw sizes, Click here - Information about clamps - Table of screw sizes (DIN 912).
The pressure clamp is compatible with the following mounting profiles:
- Aluminum profiles for hexagonal screws.
- Aluminum profiles for T-bolts.
- Trapezoidal profiles for roofs made of trapezoidal metal sheets.
Properties of Aluminum 6060
- Resistant to corrosion and the influence of external factors.
- Good mechanical strength, impact strength.
- Suitable for anodizing providing extra protection and decorative finish.
Available Sizes
Available Materials
Technical data
| Panel thickness [mm] | - |
| Colour | Silver |
| Adjustment | - |
| Additional equipment | None |
| Grounding pin | Present |
| Clamp Type | Mid |
| Panel thickness [mm] | 30-45 |
| Colour | Silver |
| Grounding pin | Yes |
| Additional accessories | None |
