Middle clamp H8 aluminum 6060 hole M8
product unavailable
add to wish list
Description

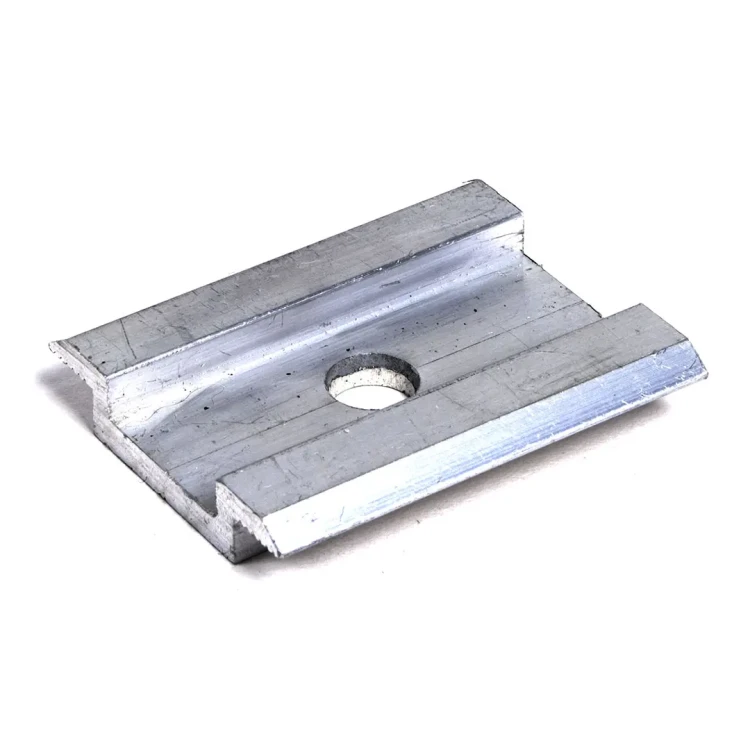

Middle clamp H8 aluminum 6060 hole M8
Middle clamp in Aluminium 6060, 8mm, M8 screw hole for photovoltaic modules.
The Pressure clamp or centre clamp is a mounting component for photovoltaic installations and is used to fix the photovoltaic panel to the aluminium structural profile. It is used for mounting photovoltaic panels on both flat and pitched roofs.
Made from high-quality 6060 aluminium, making it highly weather-resistant. The high quality workmanship guarantees the permanent fixing of the photovoltaic panel structure.
The offered clamps, for aesthetic reasons, are also available in a black anodised version. Anodising also improves the durability of the component by increasing its resistance to environmental conditions.
This clamp is of limited use. The DIN 912 screw for the H8 centre terminal will be 15 mm longer than the screw of the terminal selected in the design except for terminal blocks H-35 and H-40, for these terminals the H24 centre terminal must be selected.
This clamp is universal. For information on bolt sizes, Click here - Information about clamps - Table of screw sizes (DIN 912).
The pressure clamp is compatible with the following mounting profiles:
- Aluminium profiles for hexagon screws.
- Aluminium profiles for T-screws.
- Trapezoidal profiles for roofs made of trapezoidal sheet metal.
Specifications
- Material: Aluminium 6060
- Mounting profile: M8 screw hole
- Length: 50mm
Available Sizes
Available Materials
Properties Aluminium 6060
- Resistant to corrosion and external influences.
- Good mechanical resistance, impact resistant.
- Suitable for anodising, providing additional protection and a decorative finish.
Technical data
| Panel thickness [mm] | - |
| Colour | Silver |
| Adjustment | - |
| Additional equipment | None |
| Grounding pin | None |
| Clamp Type | Mid |
| Panel thickness [mm] | 30-45 |
| Colour | Silver |
| Grounding pin | No |
| Additional accessories | None |
