Middle clamp H8 aluminum 6060 hole M8 anodized
Description

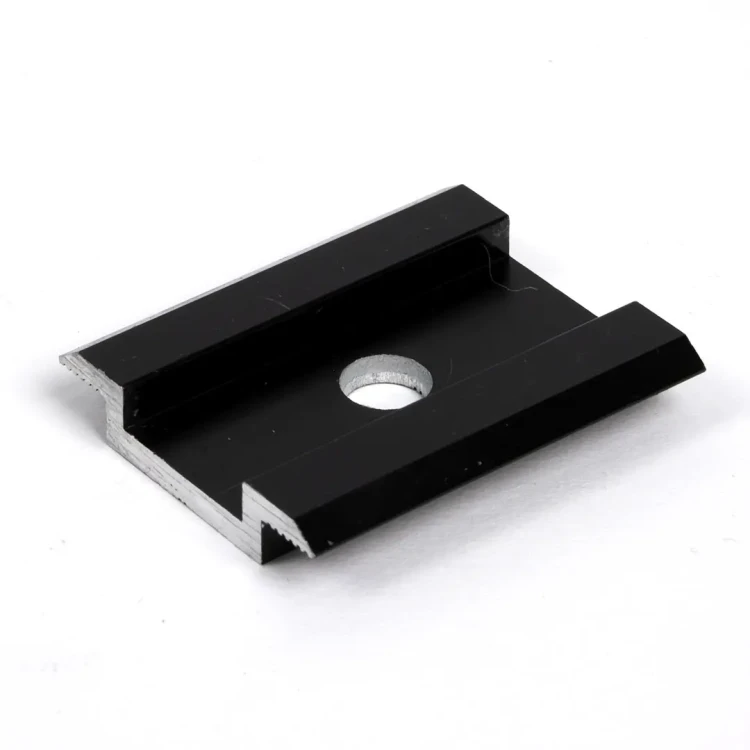

Middle Clamp H8 Black
Middle clamp for securing two adjacent photovoltaic modules. Working height 8 mm — designed for panels with a frame thickness of 30–32 mm. Suitable for use on both flat and pitched roofs.
The insert (T-shaped or ball-type) is placed into the profile groove. Tightening the bolt presses both panels against the mounting profile. The teeth on both sides of the clamp grip the panel frames, preventing them from shifting.

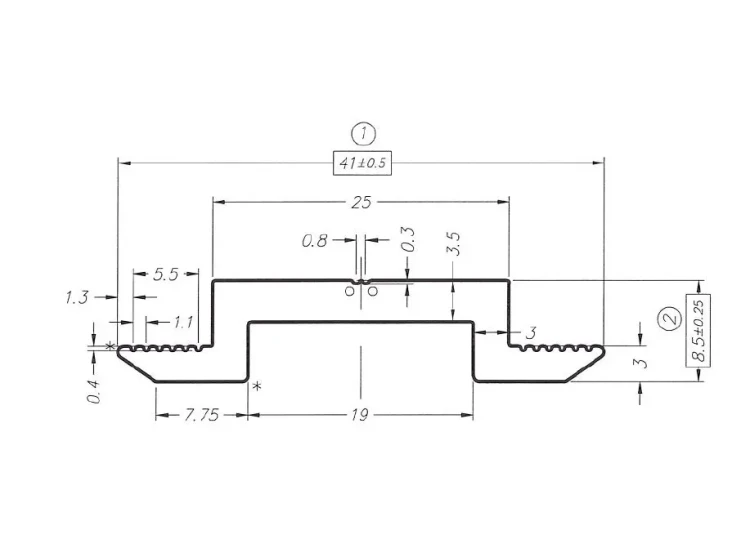

The clamp is made of 6060 aluminium with black anodising. Dimensions: 41 × 8.5 mm, Ø8 mm hole.
Bolt length is the same as for the side clamp + 15 mm. For panels with a thickness of 35–40 mm, the H24 middle clamp should be used.
Compatible with hex-bolt profiles, T-groove profiles and trapezoidal bridges.
Note: select the tightening torque in accordance with the panel manufacturer's guidelines.
Technical data
| Panel thickness [mm] | - |
| Colour | Black |
| Adjustment | - |
| Additional equipment | None |
| Grounding pin | None |
| Clamp Type | Mid |
| Panel thickness [mm] | 30-45 |
| Colour | Black |
| Grounding pin | No |
| Additional accessories | None |
