Middle clamp H24 aluminum 6060 hole M8
Leave feedback on the product
Middle clamp in Aluminium 6060, 24mm, M8 screw hole for photovoltaic modules.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
Filter clamps
- Panel thickness [mm] -
- Colour Silver
- Adjustment -
- Additional equipment None
- Grounding pin None
[PIM] Klemy #34
- Clamp Type Mid
- Panel thickness [mm] 30-45
- Colour Silver
- Grounding pin No
- Additional accessories None
Description

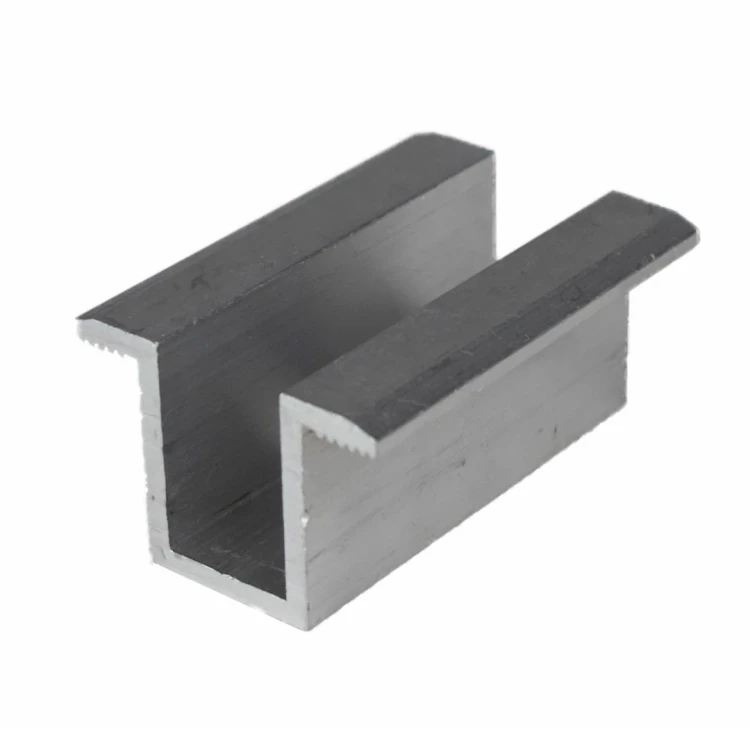

Middle clamp H24 silver
Middle clamp for mounting two adjacent photovoltaic modules. The working height of 24 mm allows the installation of panels with a frame thickness of 30–40 mm. Used on both flat and pitched roofs.

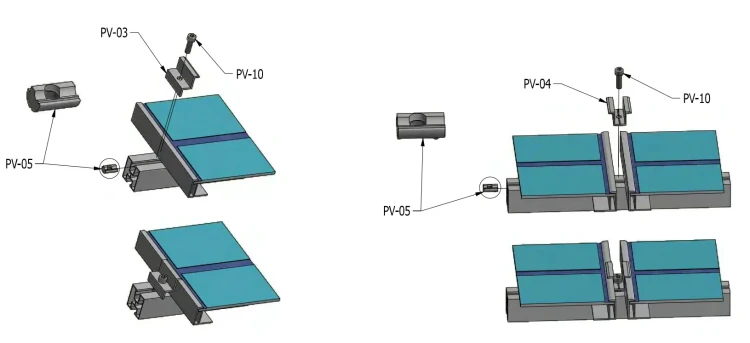

The insert (T-shaped or ball-type) is placed in the profile's slot. Tightening the bolt presses both panels against the mounting profile. The teeth on both sides of the clamp grip the panel frames, preventing them from shifting.

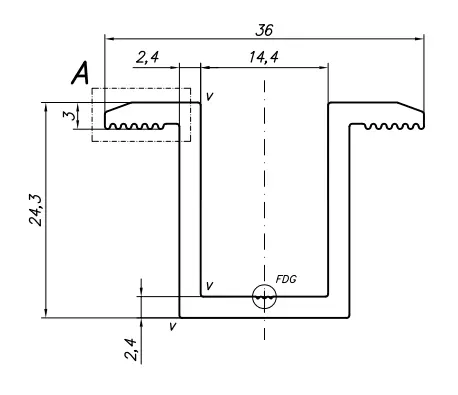

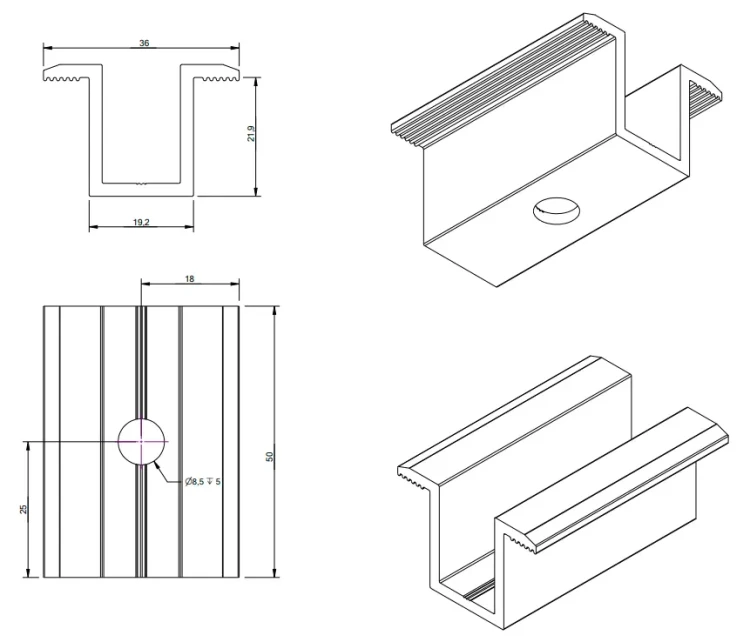

The clamp is made of aluminium 6060 in a natural silver colour. Dimensions: 36 × 24.3 mm, Ø8.5 mm hole.
The bolt length is the same as for the end clamp, corresponding to the thickness of the panels being mounted.
Compatible with hex-bolt profiles, T-slot profiles and trapezoidal bridges.
Note: select the tightening torque according to the panel manufacturer's guidelines.
