Aluminium Profile 221cm 40x40 for Hammer Head Bolts
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
2 kg
Price / pcs.:
incl. 20% TAX, excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

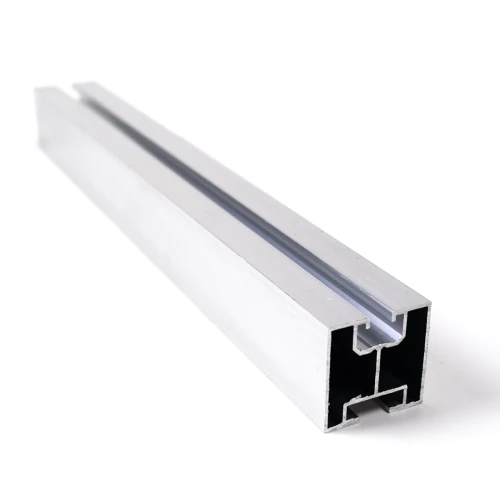

Aluminium Profile 221cm 40x40 for Hammer Head Bolts
Mounting profile made of Aluminium 6060, 221cm long, for 28/15 M10 hammer head bolts, designed for photovoltaic modules.

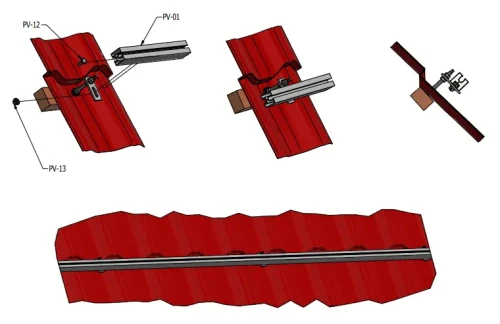

The mounting profile is suitable for securing photovoltaic panels using mid and end clamps. The clamps are attached to the upper rail channel of the profile. The lower rail channel enables mounting of the profile on adapters, roof hooks or triangular brackets.
- Installation is carried out using M10 T-bolts and M10 flange nuts.
- Mounting profiles measuring 4x4cm for hexagonal bolts are manufactured from high-quality aluminium 6060.
- The length of the profiles can be extended using profile connectors, which are sold separately.
- Also available in black anodised finish, providing high durability and protection against environmental influences.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Coating type | Raw |
| Mounting type | T-bolt |
| Cross-section | 40x40 |
| Length [cm] | 221 |
| Cable channel | None |
| Length [mm] | 2210 |

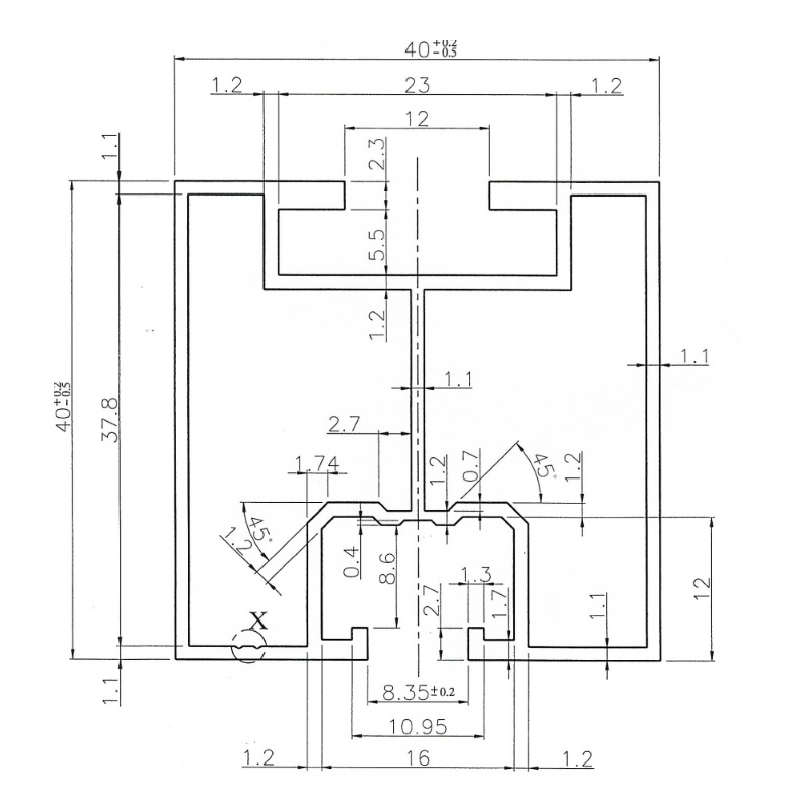

| Profile [mm] | 40×40 |
| Slot Type | Hammer bolt groove |
| Finish | Natural |
