Aluminium PV Mounting Rail Connector 120 mm – 25×45×25 Channel

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.07 kg

Price / pcs.: £0.57 0.57

excl. shipping costs

* Packaging options:

Piece
Package: 200 pieces
Package: 5000 pieces
Package: 10000 pieces

quantity pcs.

Total:

product unavailable

add to wish list

* - Field mandatory

Rating:

4.38462

Vendor: -

Product code: PV-18-02

recommend to a friend

Description

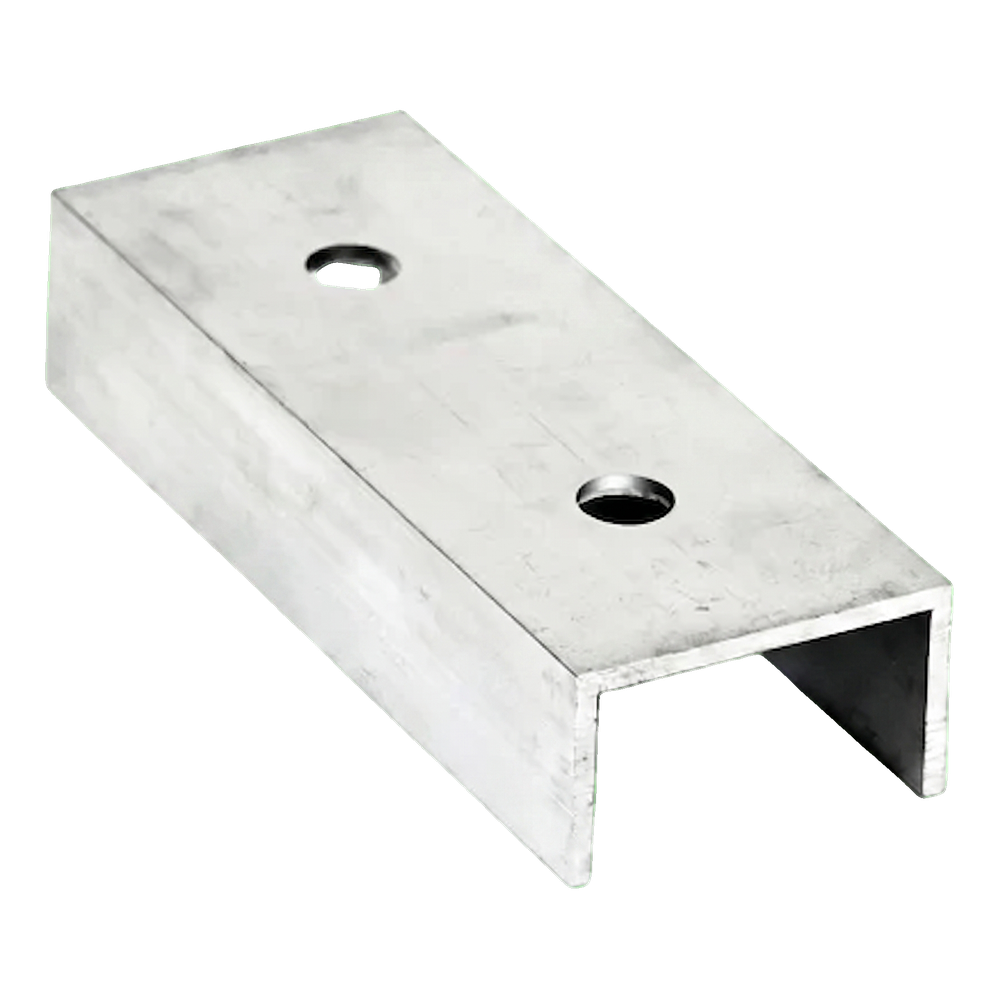

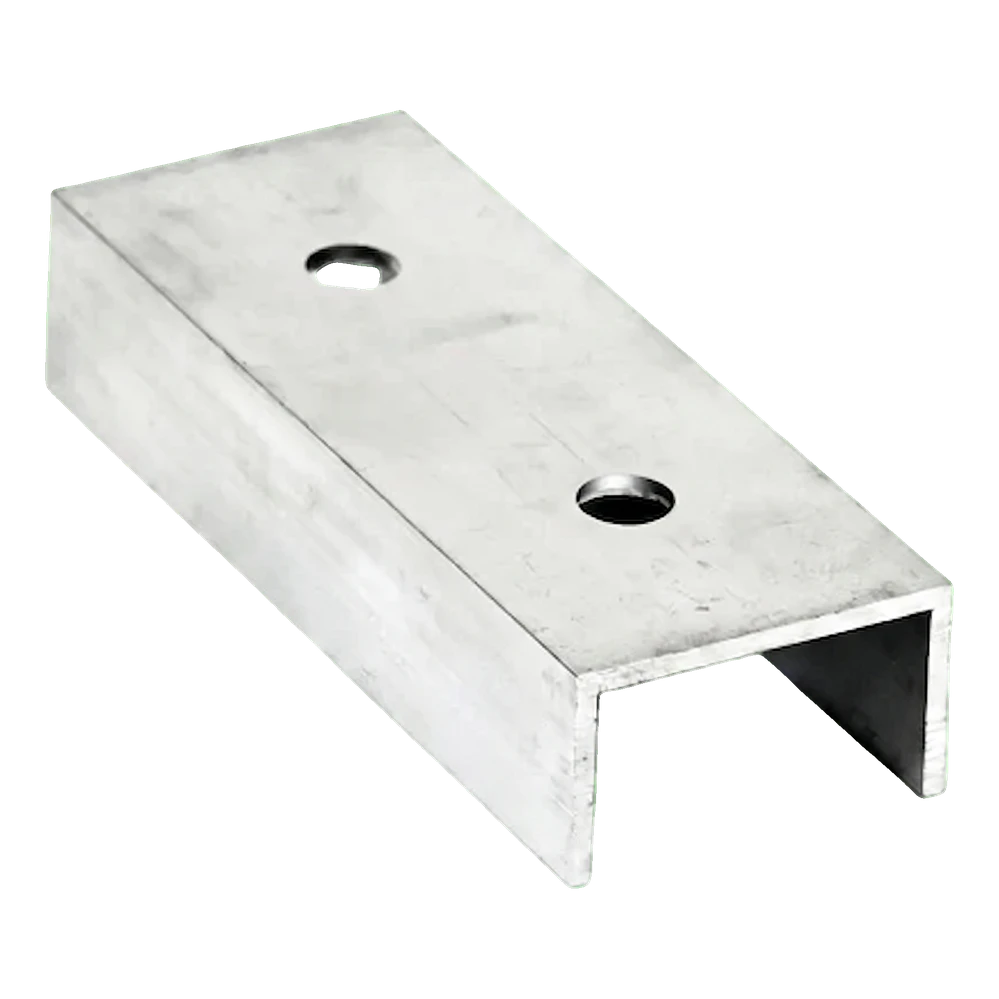

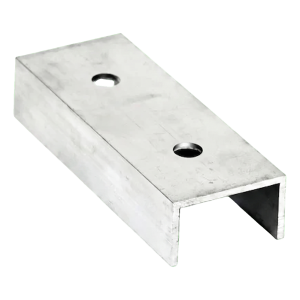

Aluminium PV Mounting Rail Connector 120 mm – 25×45×25 Channel

The 120 mm mounting rail connector is a structural component designed for extending rails in mounting systems for photovoltaic panels. Its channel shape provides a rigid and stable connection between two adjacent rails, allowing profile runs of any length to be built. Made from an aluminium grade that ensures natural corrosion resistance and good mechanical strength, the connector operates trouble-free for years in outdoor conditions — with no need for additional maintenance. Two symmetrically positioned mounting holes enable a secure bolted connection. The connector is also available in a black anodised version, providing additional protection against weather conditions and a discreet, aesthetic finish on roofs with dark coverings.

Key benefits for the installer

Quick extension of mounting rails without the need for additional intermediate components

High resistance to corrosion and weather conditions — long-term durability with no maintenance

Low weight, making transport and roof installation easier

Precisely made mounting holes ensuring repeatability and easy bolted connections

Channel profile matched to standard PV mounting rails

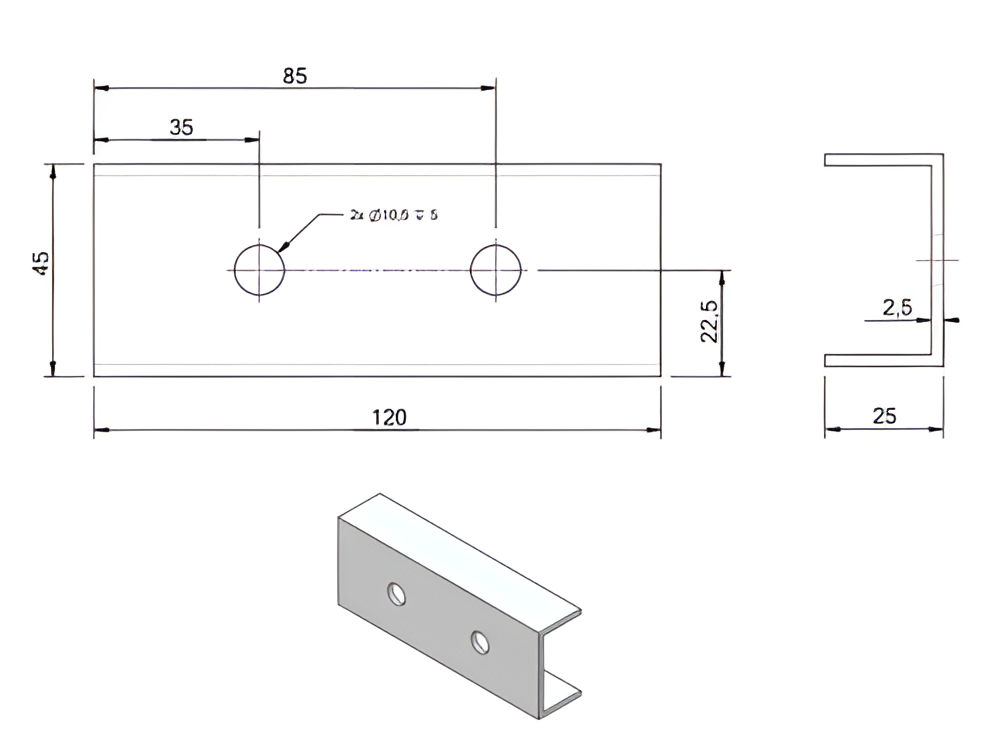

Dimensional drawing of the 120 mm rail connector – top, side and perspective views with dimensions

Video showcasing the PV mounting rail connector

Video showcasing components of a photovoltaic mounting structure

Technical parameters

Component type	rail connector (channel)
Length / adjustment range	120 mm

Dimensions

Channel (width × height × width)	25 × 45 × 25 mm
Wall thickness	2.5 mm
Hole diameter	10.5 mm
Number of holes	2
Hole spacing (axis-to-axis)	85 mm
Distance of first hole from edge	35 mm

Material and finish

Material	6060 aluminium
Coating / corrosion resistance	natural corrosion resistance of aluminium; black anodised version available

Other parameters

Weight	0.07 kg

Safety
