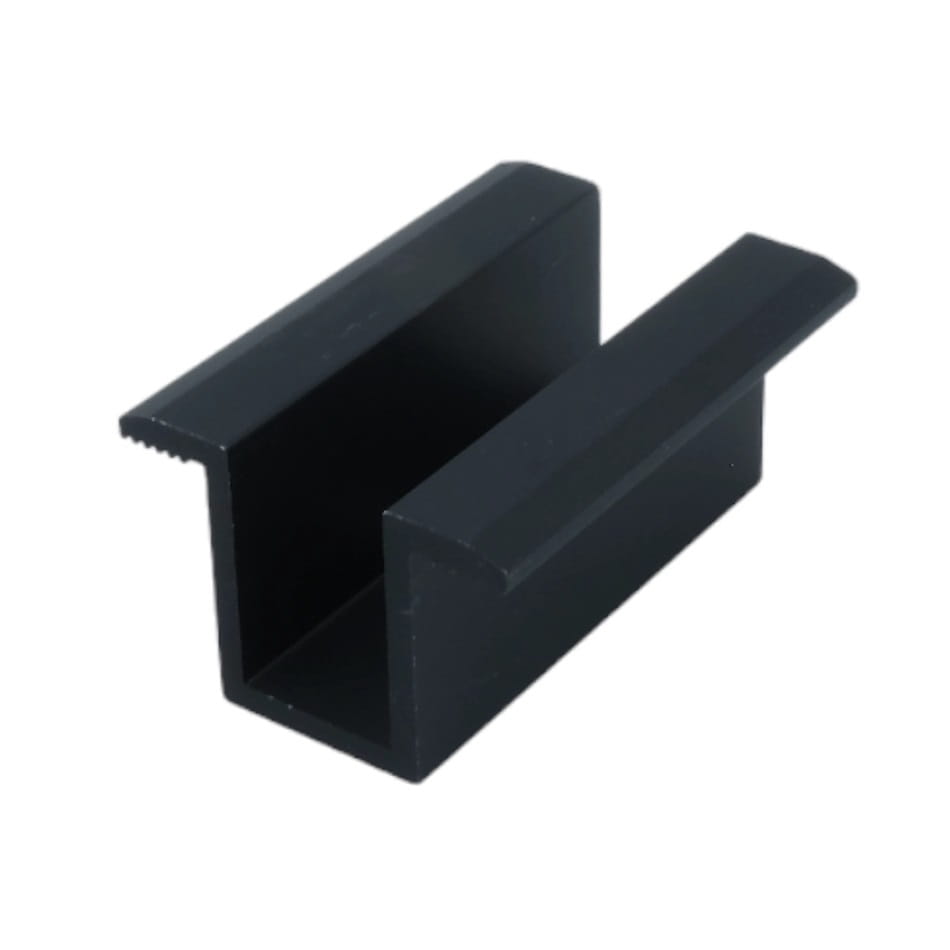

Mid clamp - H25 L50 with grounding pin black
Leave feedback on the product
Middle clamp H25 with earthing pin for securing two adjacent PV panels. Made from 6060 aluminium with black anodising. Compatible with hex bolt profiles, T-slot rails and trapezoidal bridges.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Product features
Filter clamps
- Panel thickness [mm] -
- Colour Black
- Adjustment -
- Additional equipment None
- Grounding pin Present
[PIM] Klemy #34
- Clamp Type Mid
- Panel thickness [mm] 30-45
- Colour Black
- Grounding pin Yes
- Additional accessories None
Description
Mid Clamp H25 Black with Earthing Pin
Mid clamp with earthing pin for securing two adjacent photovoltaic modules. Working height 25 mm. Suitable for use on both flat and pitched roofs.
Built-in earthing pins on both sides of the clamp pierce the anodised layer of the panel frames during tightening, ensuring equipotential bonding without the need for additional earthing washers.
The insert (T-bolt or ball-head) is placed in the profile groove. Tightening the bolt clamps both panels against the mounting profile. Serrations on both sides of the clamp grip the panel frames, preventing lateral movement.
Clamp manufactured from 6060 aluminium with a black powder coat finish.
Bolt length is the same as for the end clamp corresponding to the thickness of the panels being installed.
Compatible with hex bolt profiles, T-slot profiles and trapezoidal bridges.
Note: tightening torque must be selected in accordance with the panel manufacturer's guidelines.
