Synerga

Mid clamp H8 L50 - low profile - raw with grounding pin

Go to Product feedback

Aluminium 6063-T66 mid clamp for PV modules with frame from 30 mm, featuring two grounding pins ensuring potential equalisation. Dimensions: 40x50x11.6 mm, M8 hole, raw surface finish.

Go to full description
with VAT without VAT
Price €0.41
incl. 23% VAT

Choose a variant:

Individual variants may differ in price

Packaging options

pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

Filter clamps

  • Panel thickness [mm] 30-45
  • Colour Silver
  • Adjustment -
  • Additional equipment None
  • Grounding pin Present

[PIM] Klemy #34

  • Clamp Type Mid
  • Panel thickness [mm] 30-45
  • Colour Silver
  • Grounding pin Yes
  • Additional accessories None

Description

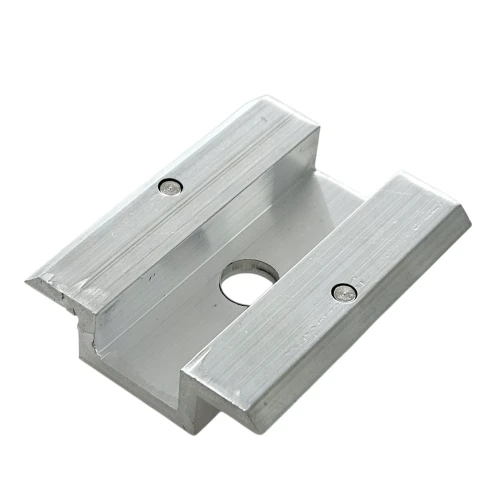

Mid clamp H8 - raw with earthing pin

Mid clamp H8 with earthing pin is a professional mounting component designed for securing photovoltaic modules with frame heights from 30 mm upwards. Manufactured from high-grade aluminium alloy 6063-T66, it provides durable and secure fastening of solar panels to the mounting structure. The component surface remains raw, without additional protective coatings, enabling precise and reliable potential equalisation between installation elements.

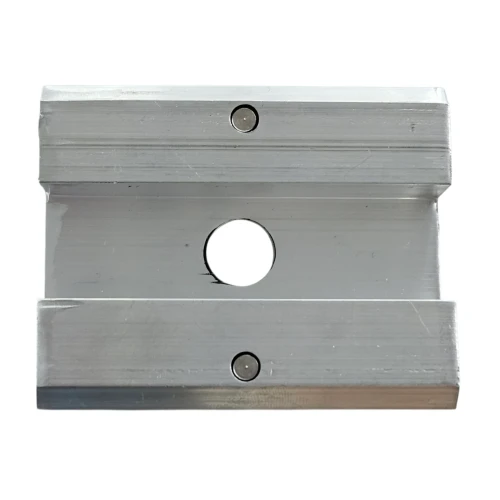

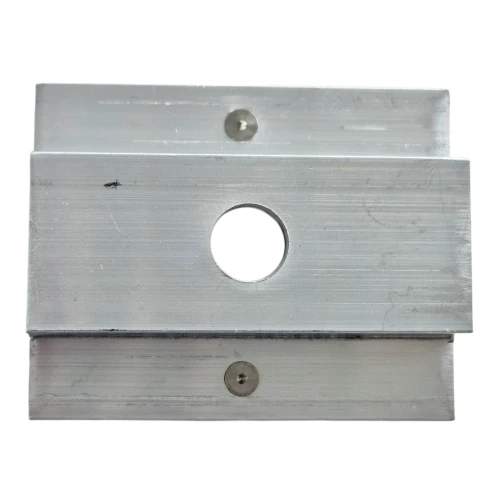

The distinguishing feature of this clamp is two integrated earthing pins – one on each side – which enable quick and effective potential equalisation between adjacent photovoltaic modules by penetrating their anodised layer during tightening. This solution not only facilitates installation by eliminating the need for additional earthing washers, but also significantly reduces installation time whilst ensuring a high level of safety and efficiency for the entire system.

This is an innovative solution supporting lightning and surge protection installations, particularly useful in photovoltaic systems.

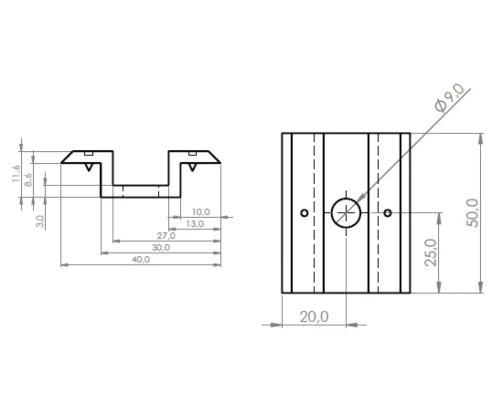

Technical specifications

  • Module frame height: from 30 mm upwards
  • Overall width: 40 mm
  • Overall height: 11.6 mm
  • Overall length: 50 mm
  • Internal channel width: 14.4 mm
  • Mounting hole diameter: 9 mm (M8)
  • Material: aluminium 6063-T66
  • Finish: raw aluminium
  • Recommended tightening torque: exact value should always be verified in the module manufacturer's specification
  • Bolts used: M8

Application The mid clamp is an essential fastening component for solar module installations – it serves to connect and secure two adjacent panels to the aluminium profile. The product is designed for mounting solar modules on flat and pitched roofs. Use mid clamps between adjacent panels in a row. For securing end panels (at row ends), end clamps should be used.

Compatibility

  • Aluminium profiles adapted for hexagonal bolts
  • Aluminium profiles for T-bolts
  • Trapezoidal profiles for trapezoidal sheet metal roofs

Advantages

  • High-quality material – manufactured from aluminium 6063-T66, characterised by high resistance to weather conditions.
  • Durability – high manufacturing quality guarantees durable fastening of photovoltaic panel structures.
  • Corrosion resistance – resistant to external factors and corrosion.
  • Mechanical strength – resistant to impacts and mechanical damage.
  • Reliable conductivity – specially designed pins penetrate the anodised coating of panels, ensuring safe potential equalisation without the need for earthing washers.
  • Potential equalisation – ensures continuity of conduction between modules and the mounting structure.
  • Serrated surface – toothed clamping edges provide secure grip and prevent panel displacement.

Installation guidelines

  • Mount the clamp on the mounting rail using a sliding nut and M8 bolt.
  • Position two adjacent photovoltaic panels within the clamp, ensuring that the earthing pins make contact with the frames of both modules.
  • Tighten the bolt – check the panel manufacturer's specification – this determines the optimal tightening torque.

Package contents Mid clamp H8 with earthing pin. Note: bolts, nuts and sliding nuts must be purchased separately.
