End clamp H32 aluminum 6060 hole M8

Availability: In stock (large quantity)

Dispatched within: 10 Business days

Delivery: The price does not include any possible payment costs

Weight: 0.02 kg

check the delivery methods

Price / pcs.: £0.16 0.16

Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!

* Packaging options:

Piece
Package: 250 pieces
Package: 5000 pieces
Package: 10000 pieces

quantity pcs.

product unavailable

* - Field mandatory

add to wish list

Rating:

4.38462

Vendor: Synerga

Product code: PV-03-03

recommend to a friend

Description

End clamp H32 aluminum 6060 hole M8

Available Sizes

Available Materials

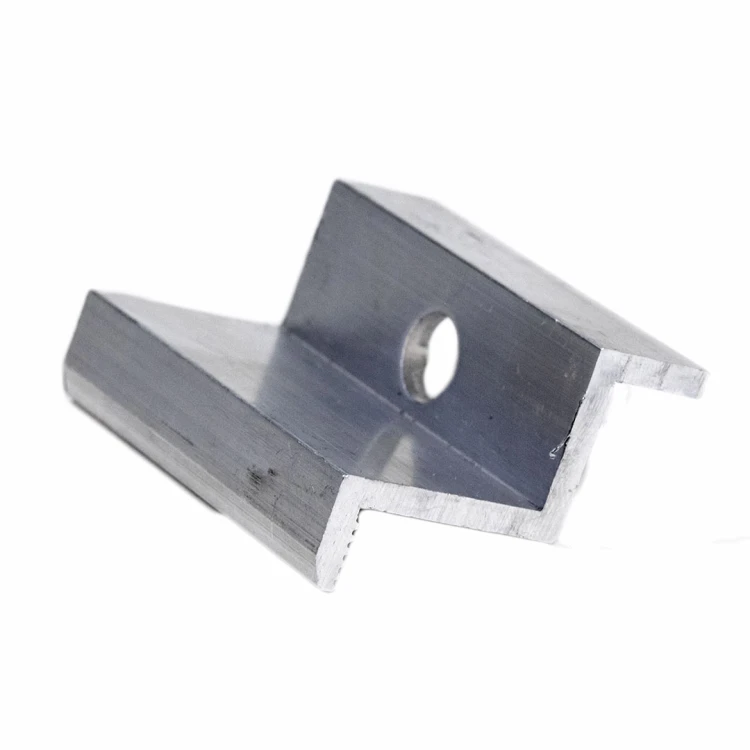

Side Clamping Bracket made of Aluminium 6060, 32mm, M8 hole, for photovoltaic modules.

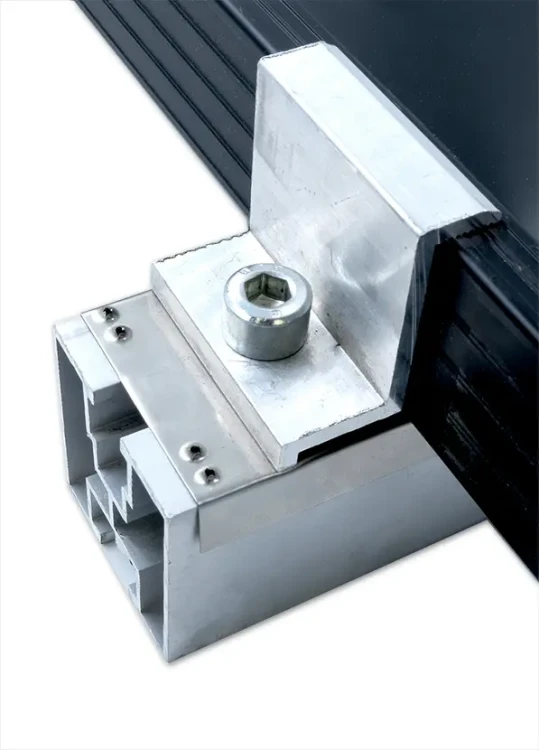

The side clamping bracket or side clamp is an essential mounting component for solar module installations, used to secure the solar module to the aluminium profile. It is designed for mounting solar modules on both flat and pitched roofs.

Use side clamps for finishing panels placed in a row on the building's roof. Use middle clamps between panels.

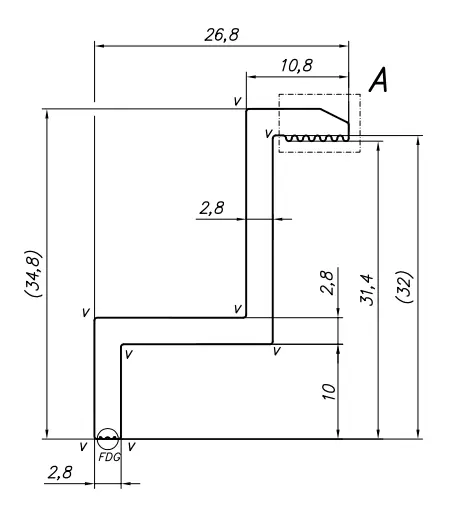

The most important technological parameter of the clamp is its working height, which must match the height of the mounted photovoltaic panel. The H30 clamp has a working height suitable for a panel with a thickness of 30mm, the H35 clamp for a panel with a thickness of 35mm, and so on.

For aesthetic reasons, these brackets are also available in a black anodised version. Anodising also enhances the durability of the component by increasing its resistance to environmental conditions.

Please check the panel thickness to ensure it matches the clamp height.

For information on screw sizes, click here - Clamping Information - Screw Size Table (DIN 912).

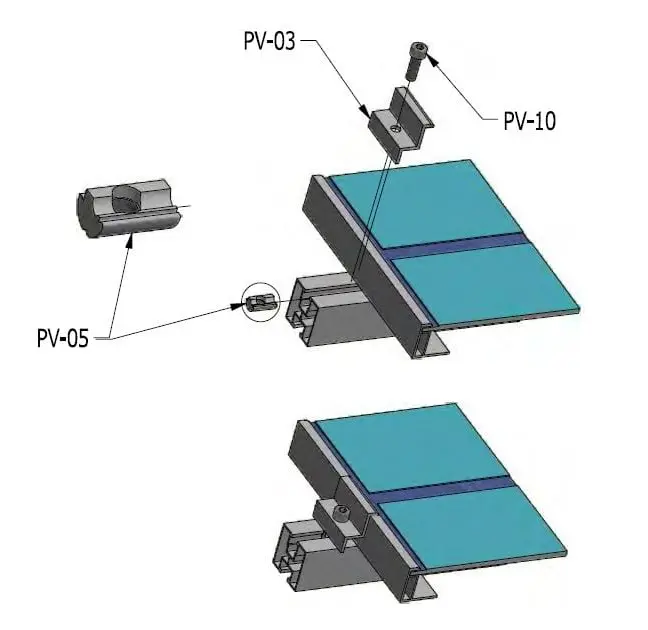

The clamp is compatible with the following mounting profiles:

Aluminium profiles for hexagon head screws.

Aluminium profiles for T-bolts.

Trapezoidal profiles for roofs made of trapezoidal sheet metal.

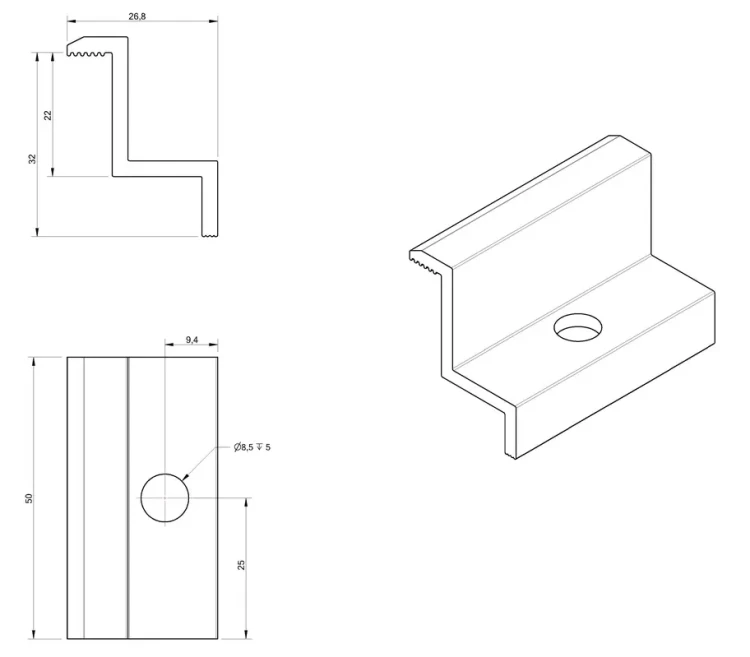

Specifications

Material: Aluminium 6060
Mounting Profile: Hole for M8 screw
Length: 50mm

Properties of Aluminium 6060

Corrosion-resistant and resistant to external factors.
Good mechanical strength and impact resistance.
Suitable for anodising, providing additional protection and a decorative finish.

Available Sizes

Type

Panel thickness

H-30

30 mm

H-32

32 mm

H-35

35 mm

H-40

40 mm

Available Materials

Material

ALU

Alu Anodised

Technical data

Panel thickness [mm]	-
Colour	Silver
Adjustment	-
Additional equipment	None
Grounding pin	None

Safety
