End clamp H30 Aluminium 6060 Hole M8 painted
product unavailable
add to wish list
Description
H30 Black Side Clamp

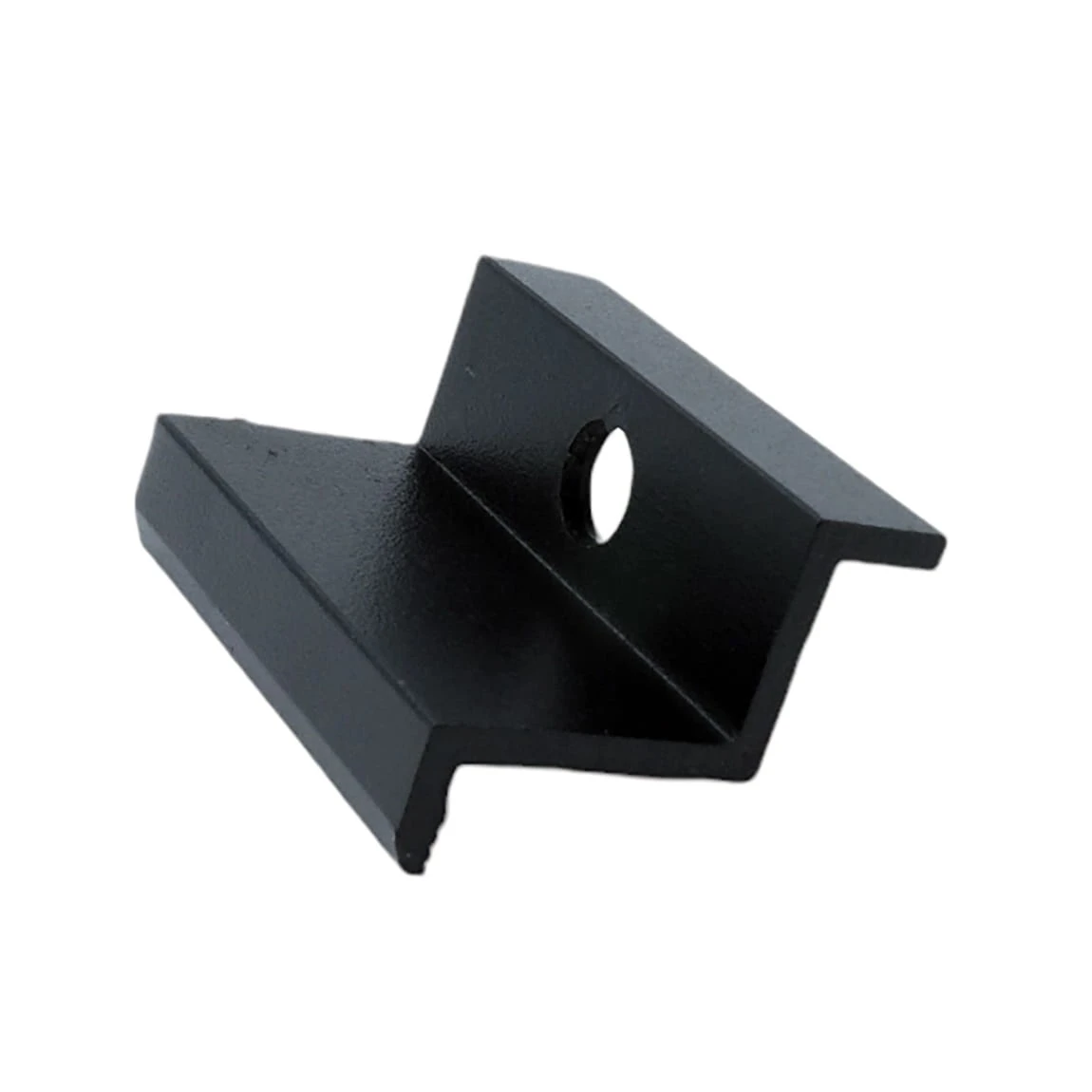

Side clamp (end clamp) for mounting photovoltaic modules with a frame thickness of 30 mm. Used at the ends of panel rows — on both flat and pitched roofs.
Included: the aluminium clamp itself. The bolt and insert must be purchased separately.

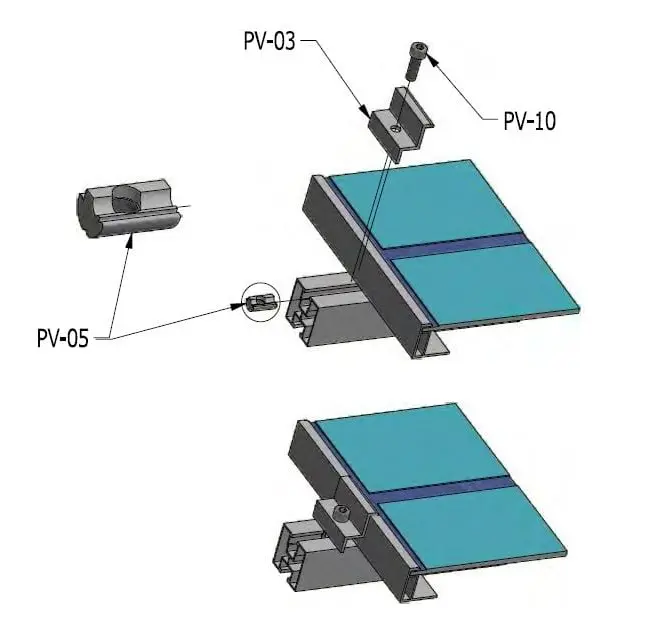

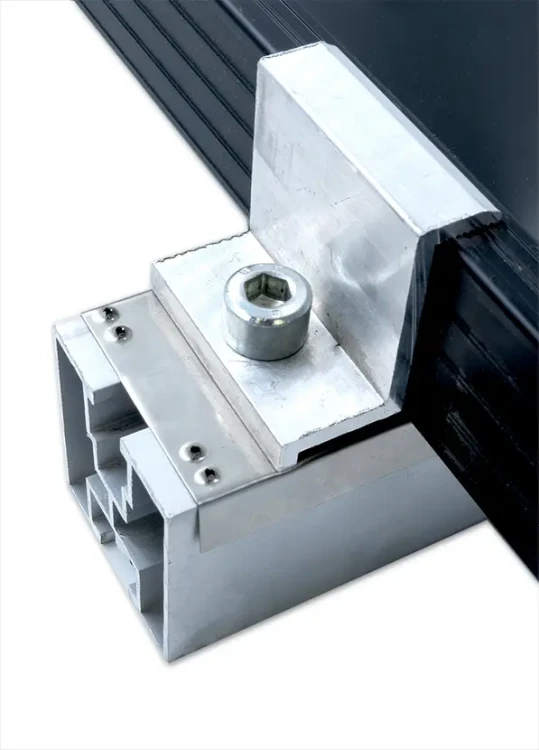

The insert (T-slot or ball-head type) is placed in the profile groove. Tightening the bolt presses the panel against the mounting profile. The teeth on the underside of the clamp grip the frame, preventing the module from shifting.

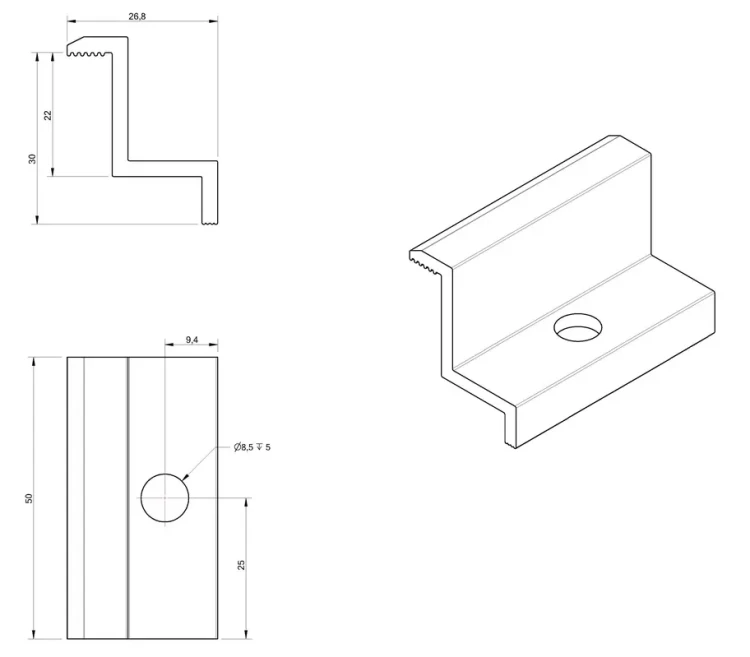

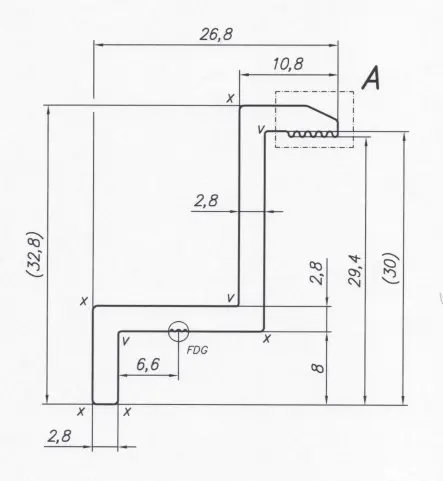

The clamp is made of 6060 aluminium with a black lacquer coating. Dimensions: 26.8 × 32.8 mm, hole Ø8.5 mm.
Bolt length selection DIN 912 M8
| T-slot profile / sliding key | M8×20 |
| Hex-bolt profile / trapezoidal bracket | M8×25 |
Compatible with hex-bolt profiles, T-slot profiles and trapezoidal roof brackets for metal sheet roofs.
Note: select the tightening torque in accordance with the panel manufacturer's guidelines.
Technical data
| Panel thickness [mm] | - |
| Colour | Black |
| Adjustment | - |
| Additional equipment | None |
| Grounding pin | None |
| Clamp Type | End |
| Panel thickness [mm] | 30 |
| Colour | Black |
| Grounding pin | No |
| Additional accessories | None |
