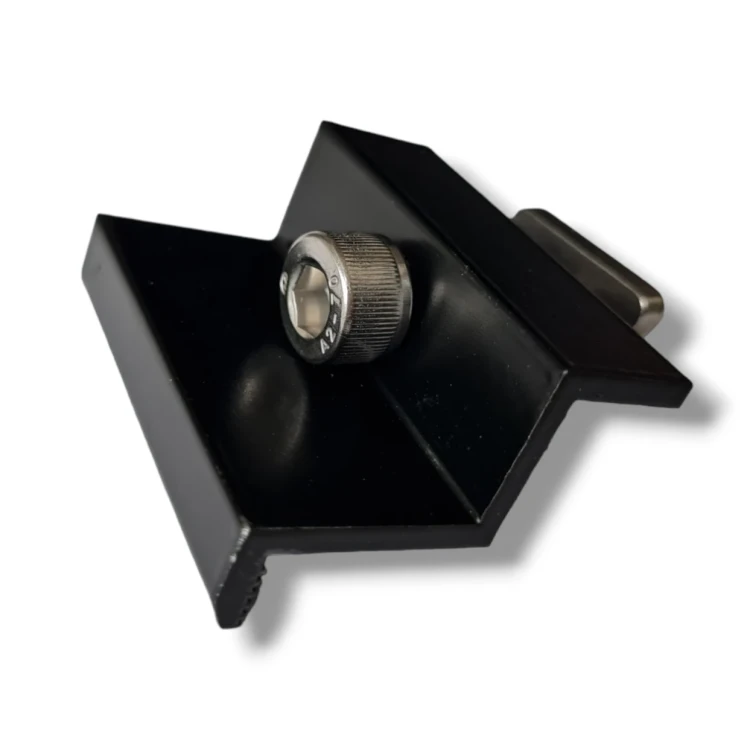

End clamp 35mm with screw and insert - black painted
End clamp 35mm with screw and insert made of aluminum 6060, black painted for mounting 35 mm photovoltaic modules with DIN 912 M8x25 screws.
The end clamp, complete with screw and insert, is an essential component of photovoltaic systems. It firmly fixes the solar modules to the mounting structure and prevents unwanted movements that could affect efficiency or safety. It is usually placed at the ends of the row of modules and ensures a firm hold of the modules, allowing a robust and reliable installation of the solar system.
Made of 6060 aluminum, the end clamp combines strength, corrosion resistance and good weldability. This alloy is widely used for its excellent formability and is particularly well suited for anodizing, a process that reinforces the material's natural protective oxide layer. The result is a durable, lightweight clamp that contributes to the longevity of the system and withstands various environmental conditions.
Please check panel thickness to determine the height range of the clamp.
For information about screw sizes, Click here - Information about clamps - Table of screw sizes (DIN 912).
The clamp is compatible with our following mounting profiles:
- Aluminum profiles for hexagonal screws.
- Trapezoidal profiles for hexagonal screws for roofs made of trapezoidal sheet metal.
Specifications
- Material: Aluminum 6060 - Black painted
- Mounting profile: M8x25 screw

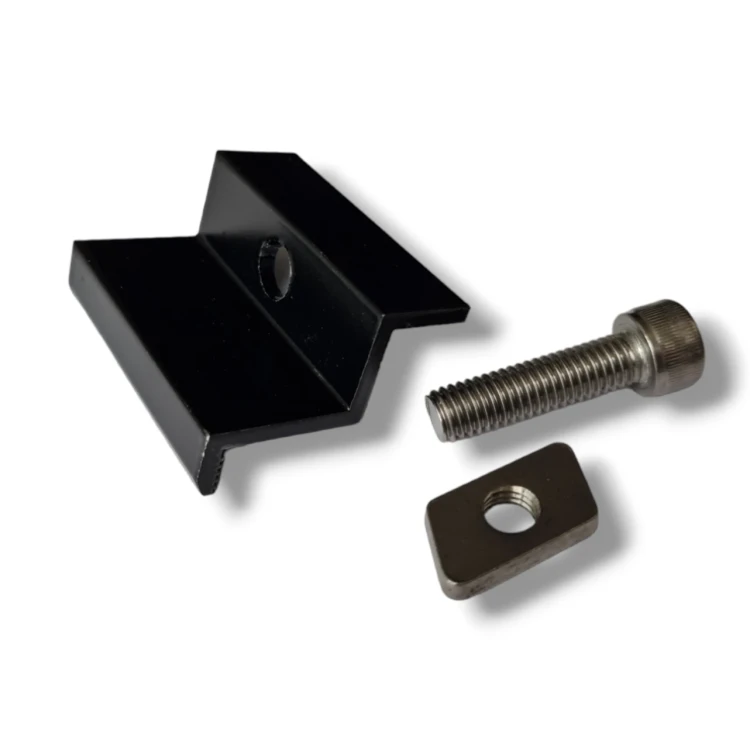

- Set: Clamp, screw and insert
Available materials
Properties of Aluminum 6060
- Resistant to corrosion and the influence of external factors.
- Good mechanical strength, impact strength.
- Suitable for anodizing providing extra protection and decorative finish.
Technical data
| Panel thickness [mm] | - |
| Colour | Black |
| Adjustment | - |
| Additional equipment | Set screw + insert |
| Grounding pin | None |
