End clamp H32 Aluminium 6060 Hole M8 painted
product unavailable
add to wish list
Description
H32 Black Side Clamp

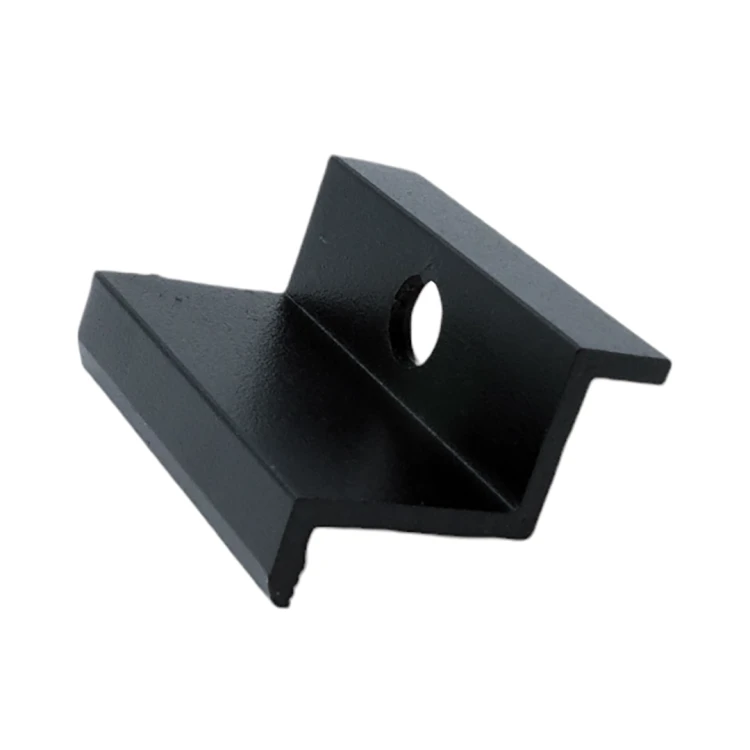

Side clamp (end clamp) for mounting photovoltaic modules with a frame thickness of 32 mm. Used at the ends of panel rows — on both flat and pitched roofs.
Included: the aluminium clamp only. The bolt and insert must be purchased separately.

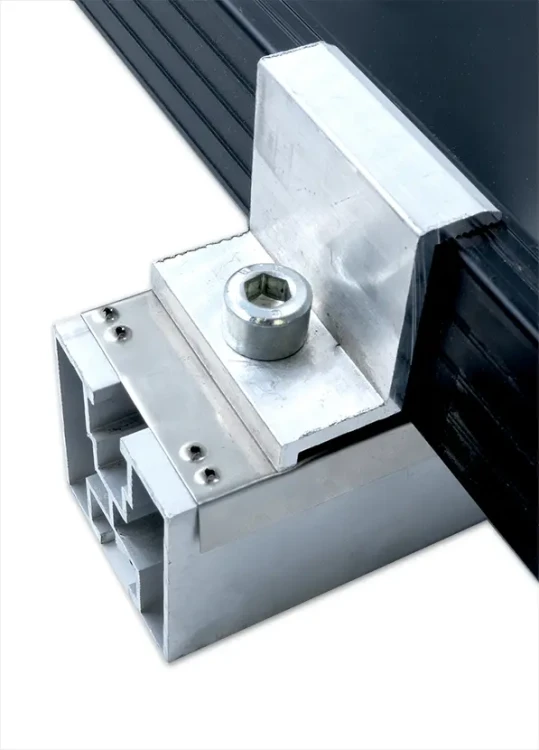

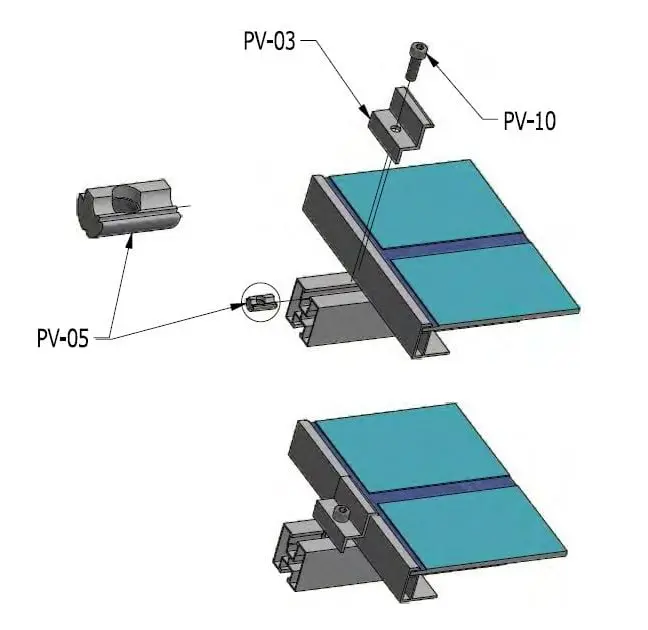

The insert (T-slot or ball-type) is placed in the profile groove. Tightening the bolt presses the panel against the mounting profile. The teeth on the underside of the clamp grip the frame, securing the module against movement.

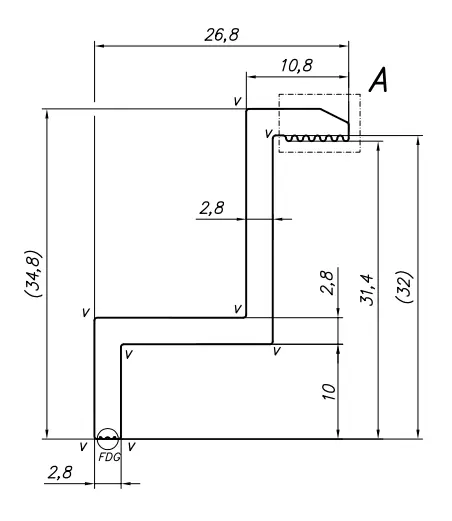

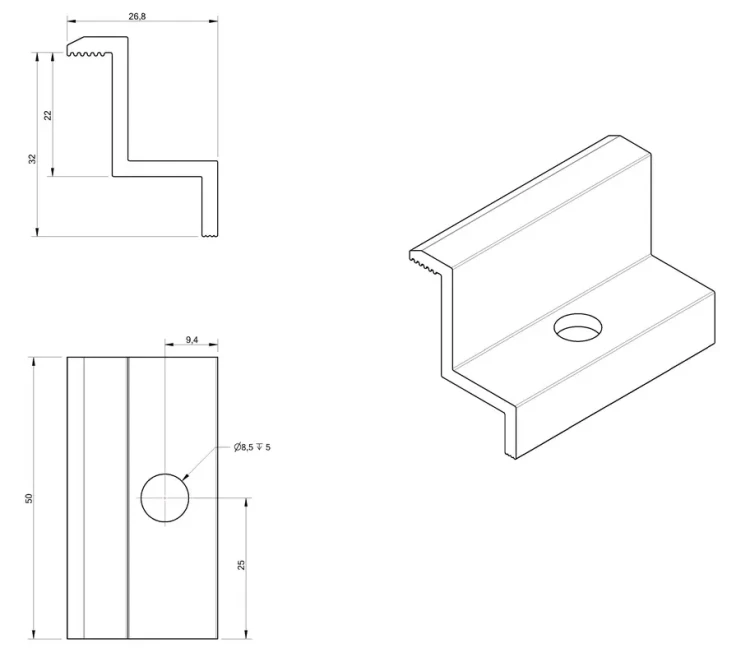

The clamp is made of 6060 aluminium with a black lacquer coating. Dimensions: 26.8 × 34.8 mm, Ø8.5 mm hole.
Selecting DIN 912 M8 bolt length
| Profile with T-slot / sliding key | M8×20 |
| Profile for hexagon bolt / trapezoidal bridge | M8×25 |
Compatible with hexagon bolt profiles, T-slot profiles and trapezoidal bridges.
Note: select the tightening torque according to the panel manufacturer's guidelines.
Technical data
| Panel thickness [mm] | - |
| Colour | Black |
| Adjustment | - |
| Additional equipment | None |
| Grounding pin | None |
| Clamp Type | End |
| Panel thickness [mm] | 32 |
| Colour | Black |
| Grounding pin | No |
| Additional accessories | None |
