Balustrade post base for welding ø 100 mm – AISI 304 stainless steel satin
0
Description

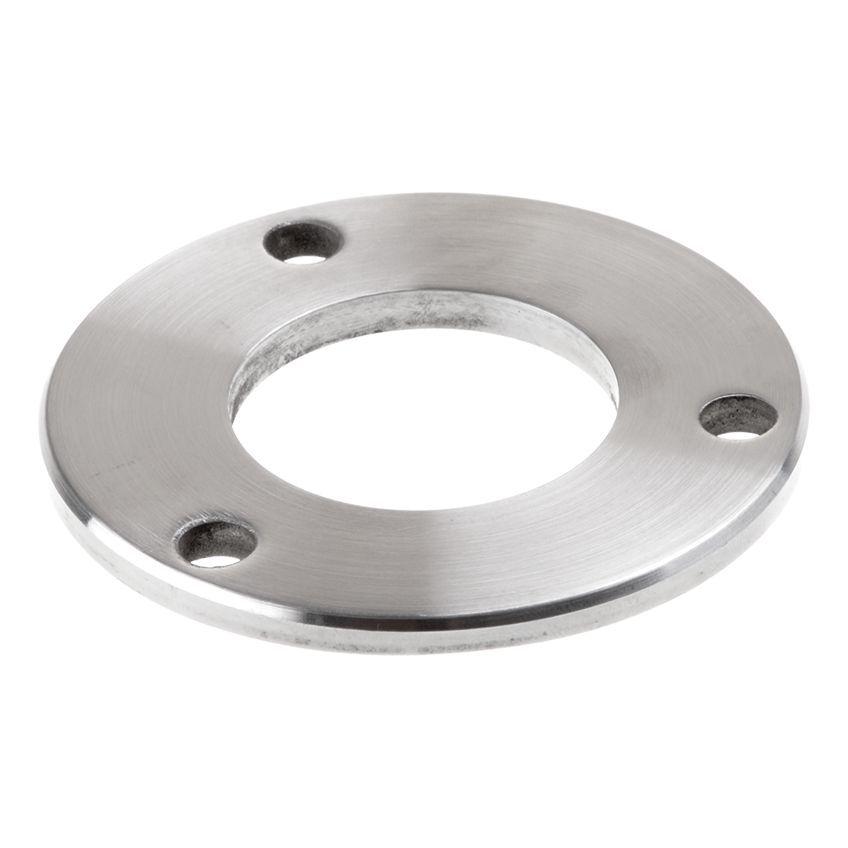

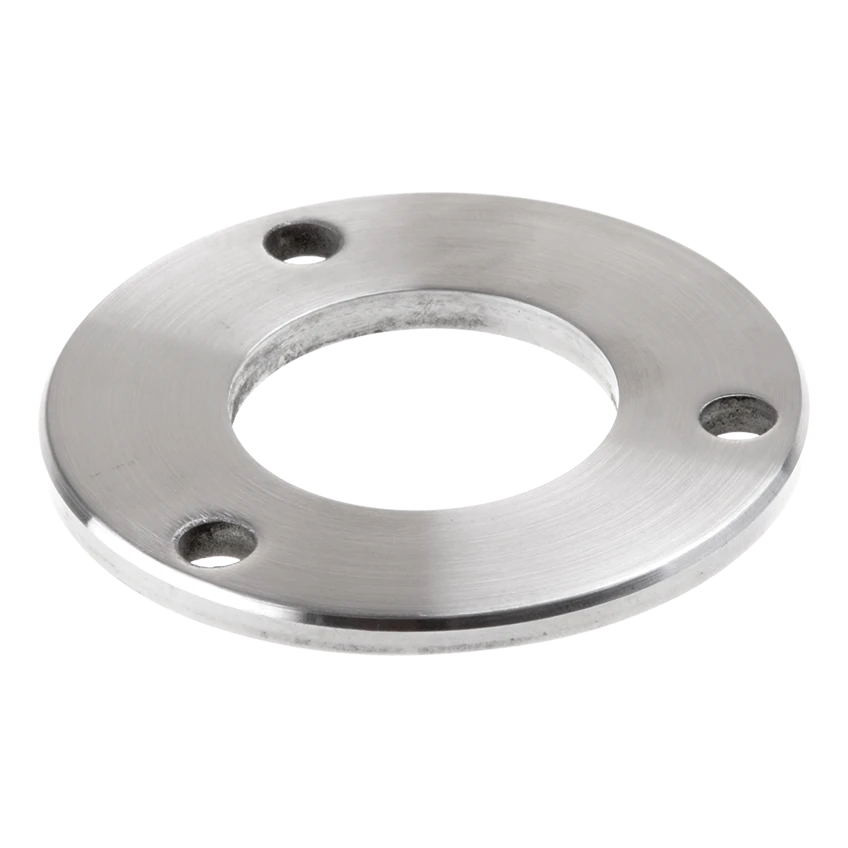

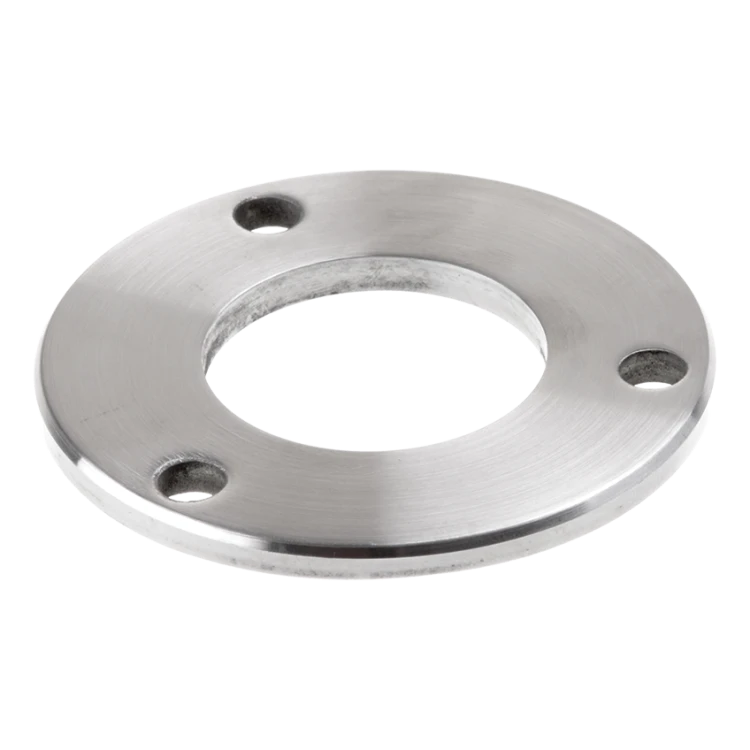

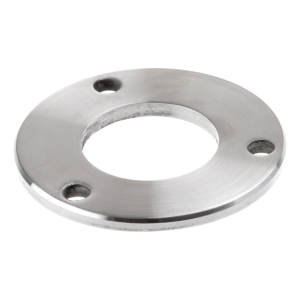

Balustrade post base for welding ø 100 mm – AISI 304 stainless steel satin
Balustrade post base for welding is an essential structural element designed for the 42.4 mm balustrade system. Made from AISI 304 stainless steel with a satin surface finish, it ensures durability, corrosion resistance and aesthetic appearance of the entire structure. Solid mounting of the post to the base guarantees stability and strength of the balustrade — after installation, the mounting part can be covered with a dedicated cover, achieving an elegant, professional visual effect.
The base features three mounting holes with a diameter of 11 mm evenly distributed around the perimeter, enabling secure and symmetrical fastening. The central hole with a diameter of 42.4 mm is matched to the 42.4 mm system post tubes — the post is welded directly into the hole, creating a permanent and rigid connection.

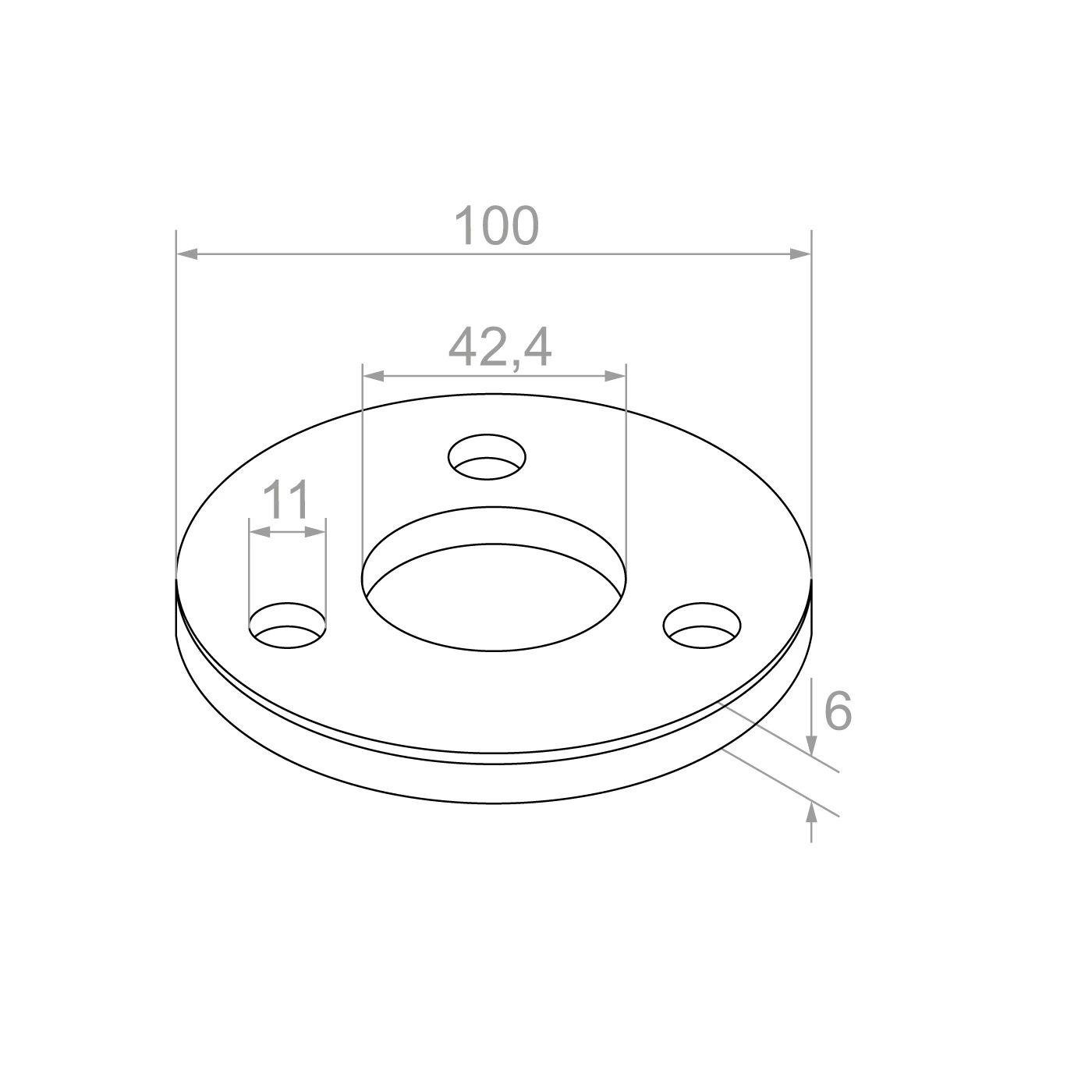

Dimensions and technical parameters
- External diameter: 100 mm
- Central hole diameter: 42.4 mm
- Thickness (height): 6 mm
- Mounting holes: 3 × ø 11 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Base system type: 42.4 mm
- Installation method: welding
- Weight: 0.26 kg
- EAN: 5901289673464
The base is designed for welding — the balustrade post is permanently mounted in the central hole using a weld, ensuring maximum rigidity and load-bearing capacity of the connection. This solution is particularly recommended for structures exposed to high mechanical loads, where a permanent, non-detachable connection between the post and substrate is required.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
