Balustrade post base for welding 100x100 mm – system 40x40, stainless steel AISI 304
0
Description

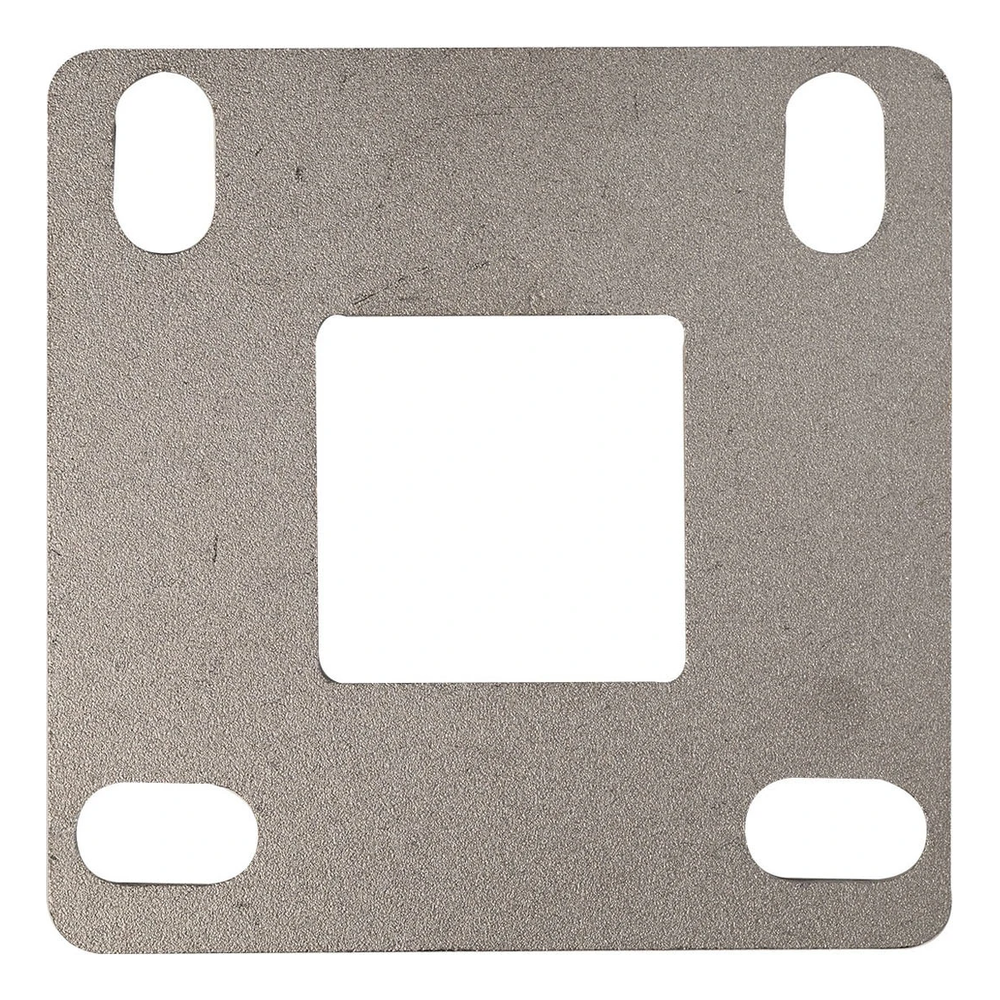

Balustrade post base for welding 100x100 mm – system 40x40, stainless steel AISI 304
Balustrade post base for welding is a square structural element made from stainless steel AISI 304, designed for permanent mounting of balustrade posts in the 40x40 mm system. Thanks to the welded mounting method, it ensures maximum stability and rigidity of the entire balustrade structure — a solution dedicated to professional installation companies that prioritise reliable connections.
The base features a central square opening 40x40 mm fitted to the post profile and four mounting holes of slotted type (11x20 mm), which enable precise position adjustment during bolting to the substrate. The raw finish (without additional treatment) allows welding without the need to remove coatings — ready for work immediately upon unpacking.

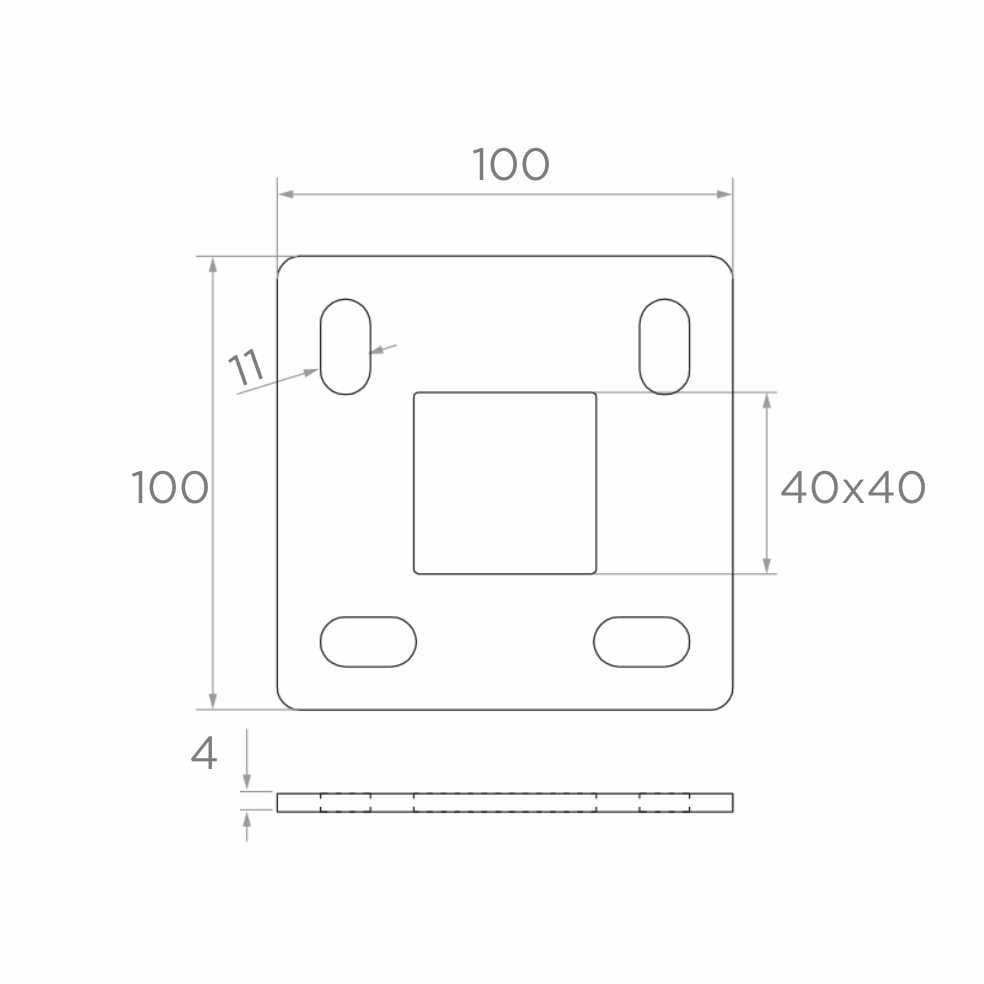

Dimensions and technical specification
- External dimensions: 100 × 100 mm
- Central opening (for post): 40 × 40 mm
- Sheet thickness: 4 mm
- Mounting holes: 4 × Ø 11 × 20 mm (slotted type)
- Material: stainless steel AISI 304
- System: 40 × 40 mm
- Finish: raw (unfinished)
- Mounting method: for welding
- Weight: 0.238 kg
- EAN: 5901289673587
Benefits for the installer
- Corrosion resistance — stainless steel AISI 304 guarantees years of durability both indoors and outdoors
- Structural stabilisation — welded connection of the post to the base ensures the highest balustrade rigidity
- Simple and quick installation — slotted holes allow adjustment of anchor position, speeding up work on site
- Aesthetic finish — mounting points can be covered with dedicated covers, ensuring a clean, professional appearance of the finished balustrade
The base is a fundamental element of every stainless steel balustrade in the 40x40 mm system. Our range also includes post mounting brackets in round and square variants of various dimensions — you can match them to the style and parameters of your construction project.
Technical data
| Material | AISI 304 |
| Finish | Satin |
