PSG end bracket for 6mm cable – cable balustrade system, 42.4mm tube, AISI 304 satin
Description
PSG end bracket for 6mm cable – cable balustrade system, 42.4mm tube, AISI 304 satin

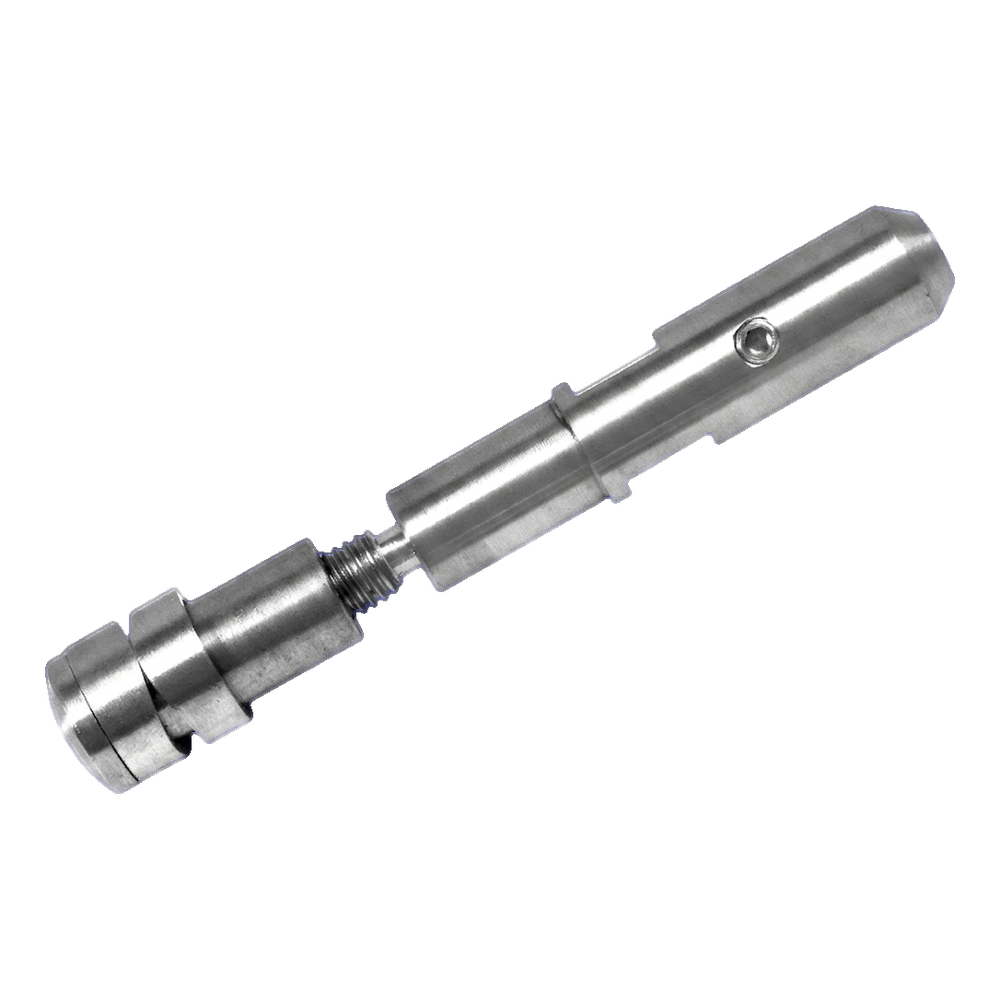

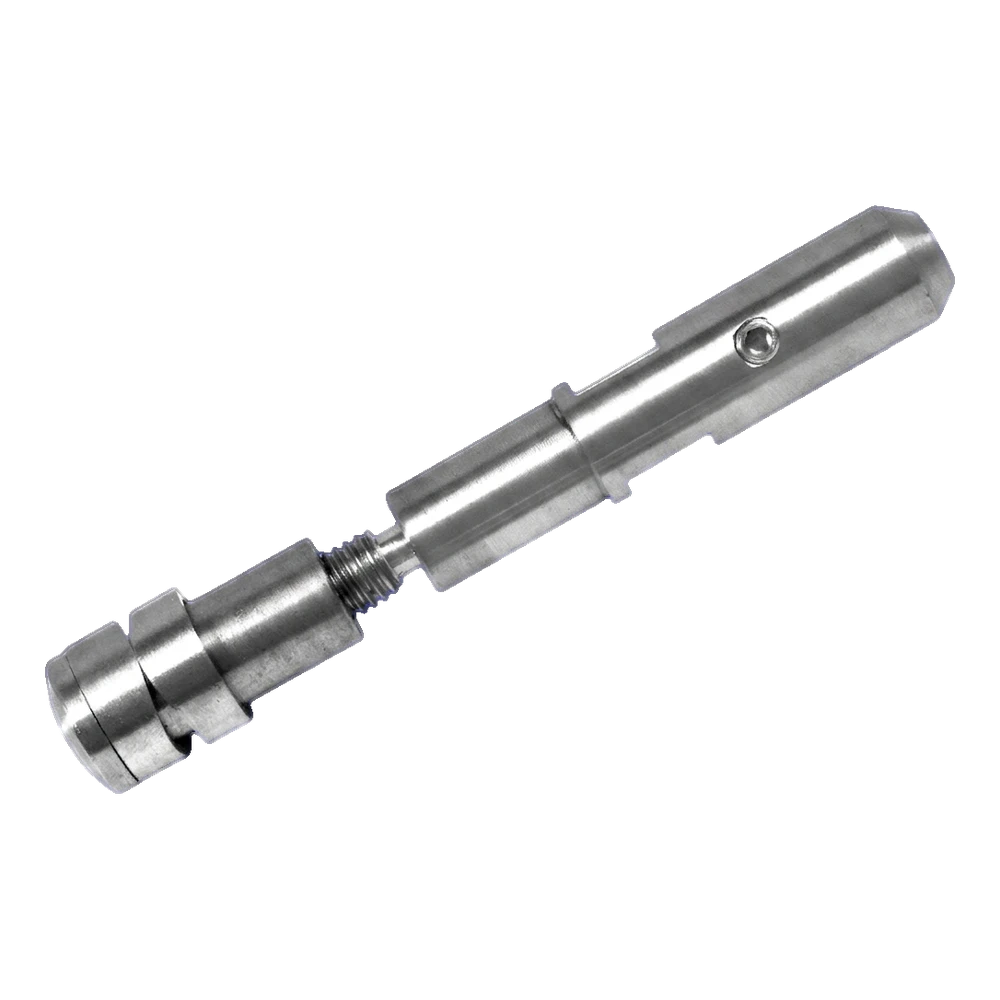

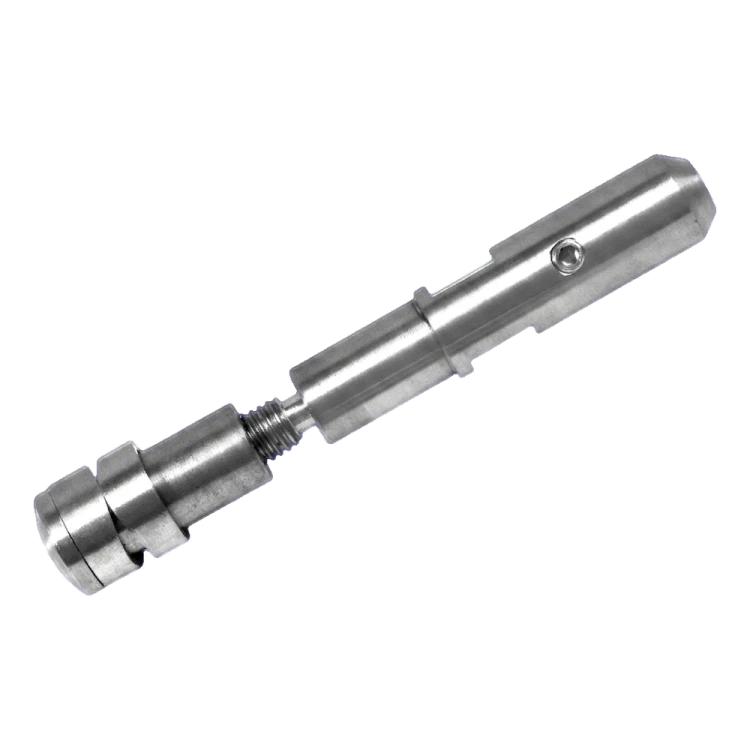

End bracket (starting bracket) for 6mm cable designed for mounting in steel balustrade cable systems. Component mounted on the terminal balustrade post (tube Ø 42.4mm) or directly to a surface, e.g. wall — universal application in one product. Thanks to the threaded construction with M6 thread, the bracket requires no welding, which significantly reduces installation time and eliminates the need for welding equipment on site.
Made from AISI 304 stainless steel with satin finish, it provides high corrosion resistance and aesthetic, modern appearance of the finished balustrade. Two-part construction with central thread facilitates precise positioning and adjustment during installation.

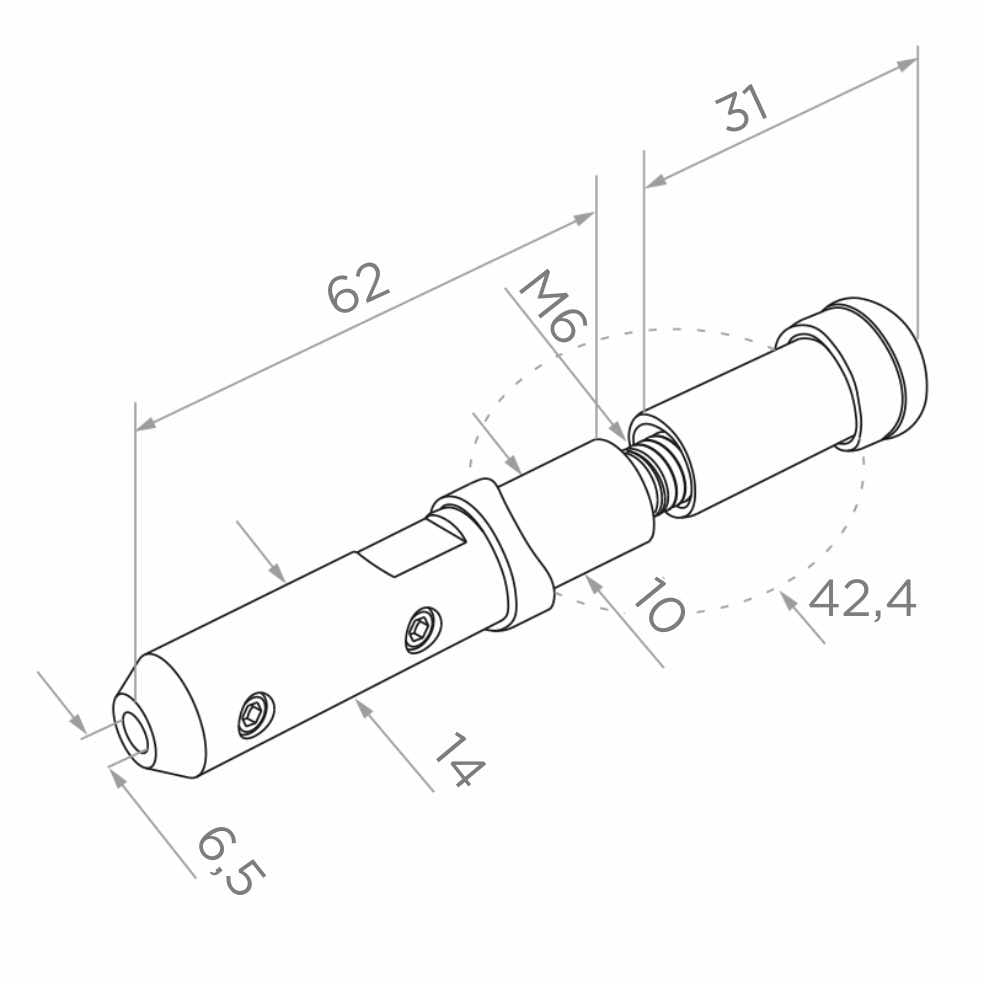

Dimensions and technical parameters
- Cable diameter: 6mm (hole Ø 6.5mm)
- Main body length: 62mm
- Mounting element length: 31mm
- Body diameter: Ø 14mm
- Mounting element diameter: Ø 10mm
- Connecting thread: M6
- Mounting tube diameter: Ø 42.4mm
- Material: AISI 304 stainless steel
- Finish: satin
- Type: universal (tube or flat surface)
- Weight: 0.08kg
- EAN: 5901289671514
Installation without welding
The bracket is designed to be screwed in, not welded — the installer doesn't need welding equipment or additional finishing after installation. This solution is particularly beneficial for system balustrade installations where repeatability and working speed matter. The profiled base perfectly fits tube Ø 42.4mm, and when mounting to a wall or other flat surface, the element serves as cable starting anchorage.
Application
The bracket is dedicated as a starting/end element for cables in cable balustrade systems — mounted on terminal posts or to walls. It forms an integral part of the cable system, working with eyelets, tensioners and other brackets of the same standard. The satin finish ensures consistent appearance with other stainless steel balustrade elements.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
