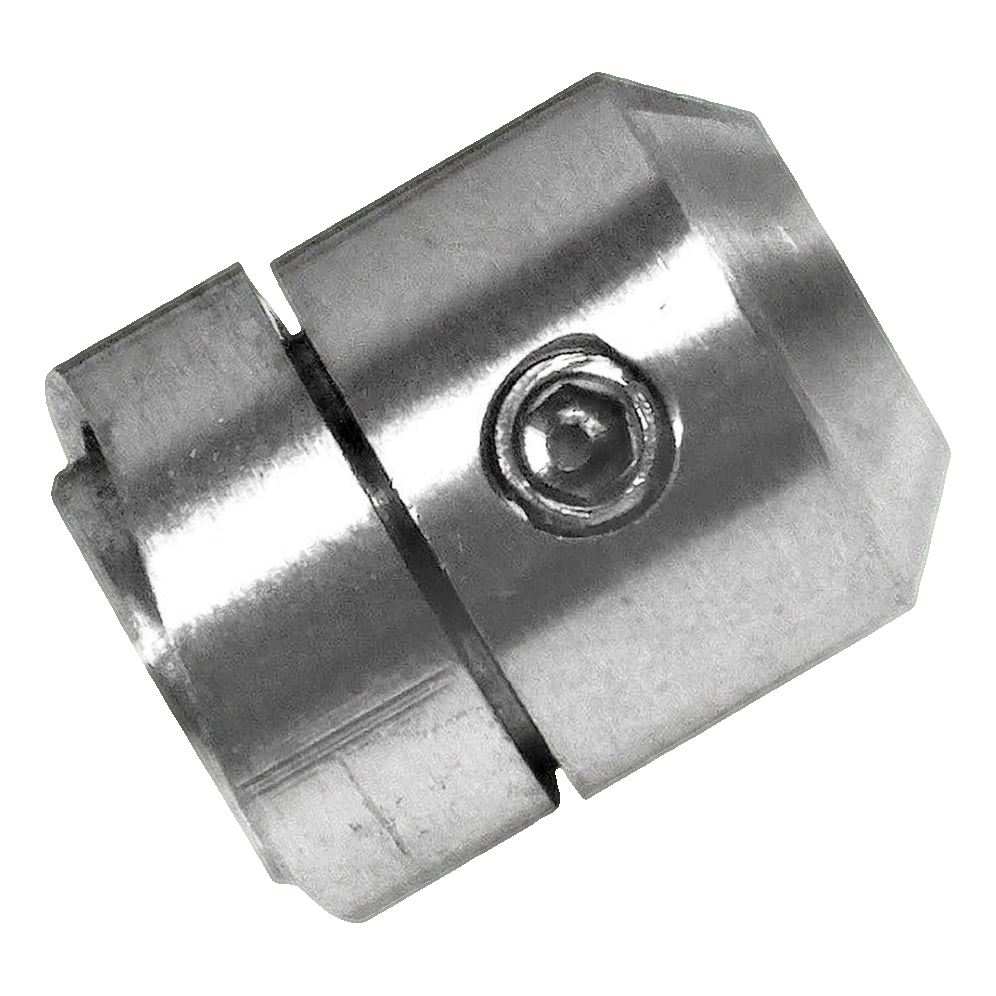

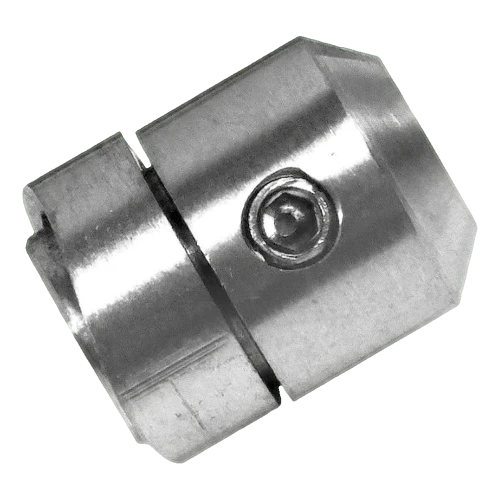

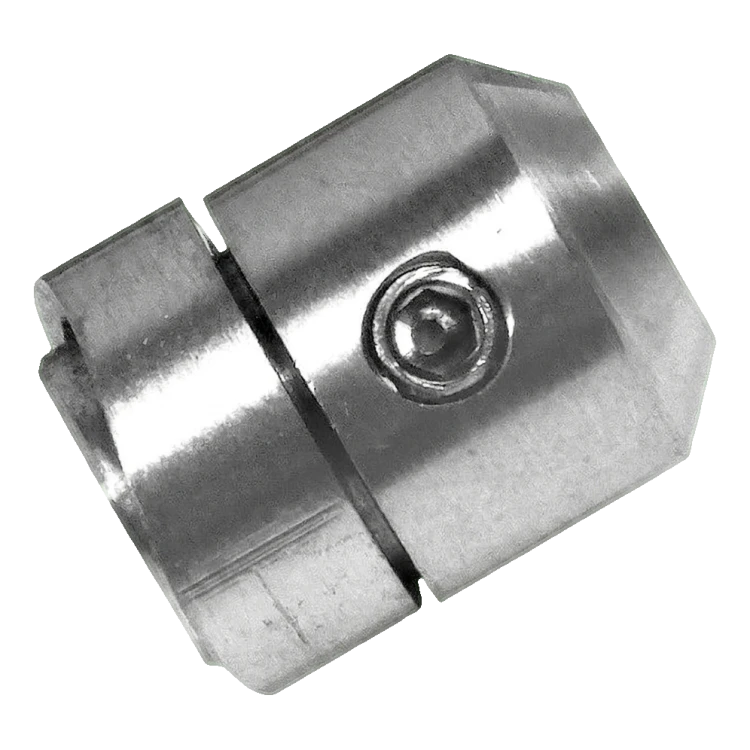

PSG through-cable holder for 6 mm cable – mounting to 42.4 mm pipe, AISI 304 satin
Description
PSG through-cable holder for 6 mm cable – mounting to 42.4 mm pipe, AISI 304 satin
Through-cable holder for 6 mm cable designed for mounting on 42.4 mm diameter pipes or directly to flat surfaces (e.g. walls). Serves as an element of cable systems providing infill for steel balustrades. Thanks to its construction enabling screw-in mounting — without the need for welding — it significantly reduces balustrade system construction time, translating to lower labour costs during installation.
The holder is universal — it can be used both on tubular posts and on flat mounting surfaces. Made from AISI 304 stainless steel with satin finish, it provides high corrosion resistance and aesthetic appearance that harmonises with modern balustrade constructions.

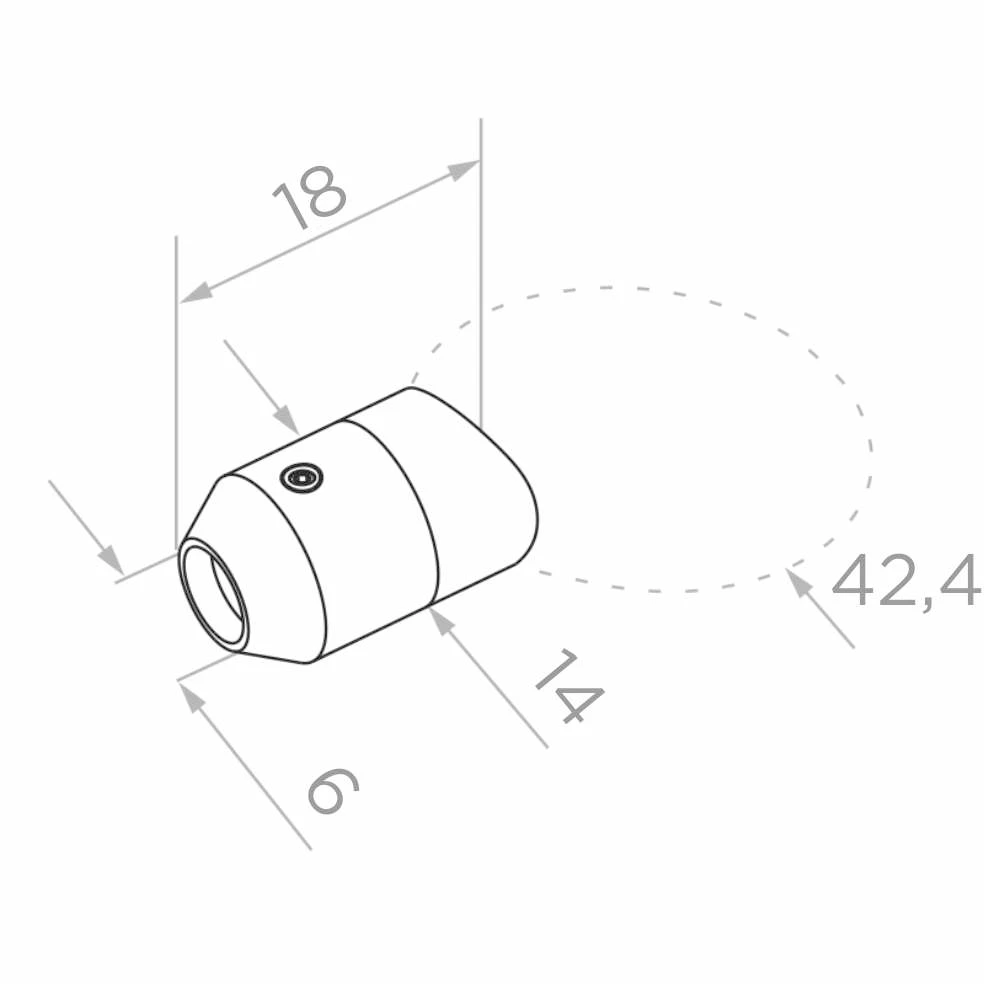

Technical parameters
- Type: through-cable holder (cable passes right through)
- Cable hole diameter: 6 mm
- Mounting pipe diameter: 42.4 mm (or mounting to flat surface)
- Holder length (L): 18 mm
- External body diameter: 14 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting: screw-in — no welding required
- Weight: 0.02 kg
- EAN: 5901289671538
- Manufacturer: PSG
Application
The holder is intended for cable systems used as infill for internal and external balustrades. Mounted on end posts of tubular balustrades or directly to walls — it enables the bearing cable to run through successive mounting points. An ideal solution for installation teams carrying out system balustrades who need quick, repeatable mounting without using a welder.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
