Cable clamp fi 4–6 mm for balustrade – surface mounting, stainless steel AISI 304, satin
0
Description

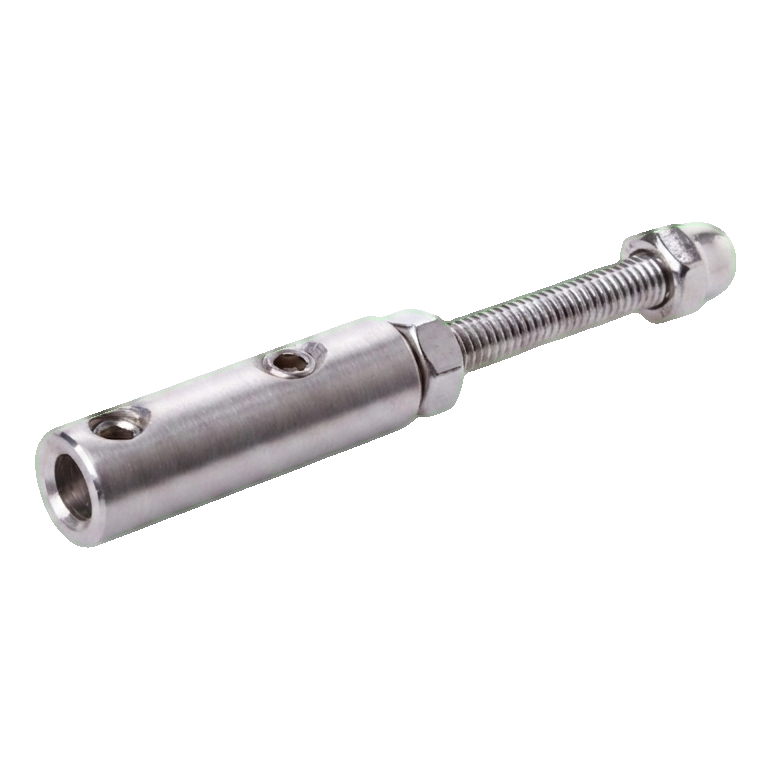

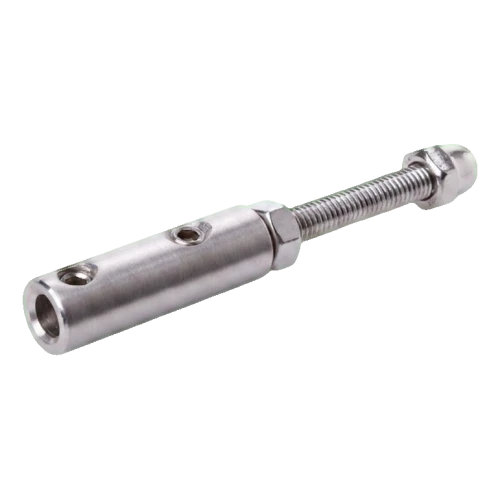

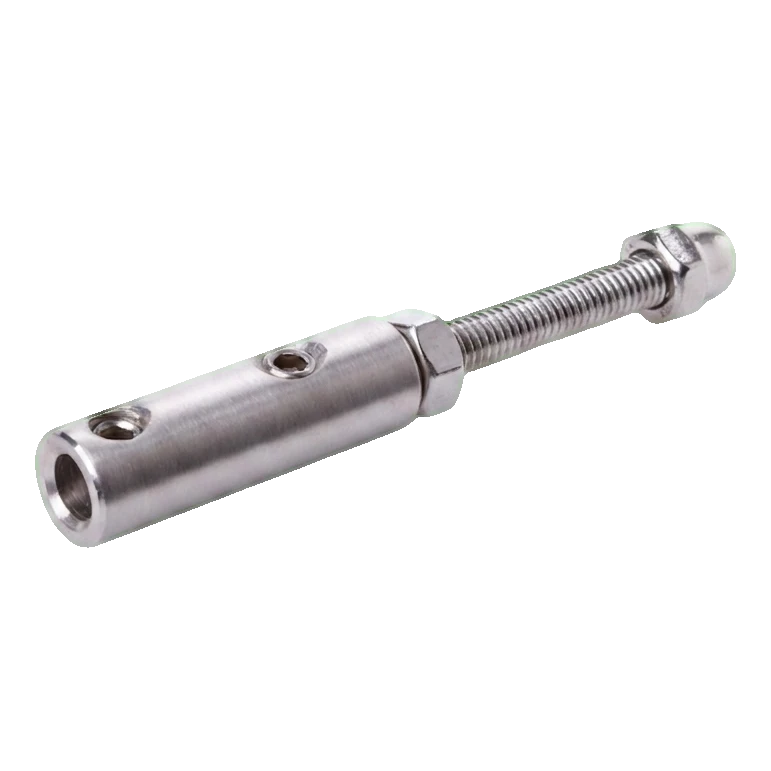

Cable clamp fi 4–6 mm for balustrade – surface mounting, stainless steel AISI 304, satin
Cable clamp fi 4–6 mm designed for mounting on flat surfaces — balustrade posts, walls or other flat surfaces. Enables quick and secure cable routing in cable balustrade systems, providing an elegant alternative to glass or bar infills.
Made entirely from stainless steel AISI 304 with satin finish, the clamp ensures lasting corrosion resistance and an aesthetic, matte appearance that complements modern balustrades perfectly. Installation is carried out by screwing the threaded stud M6×50 to the substrate, and the cable is locked by compression screws on M5 thread, allowing for precise adjustment and secure cable retention.

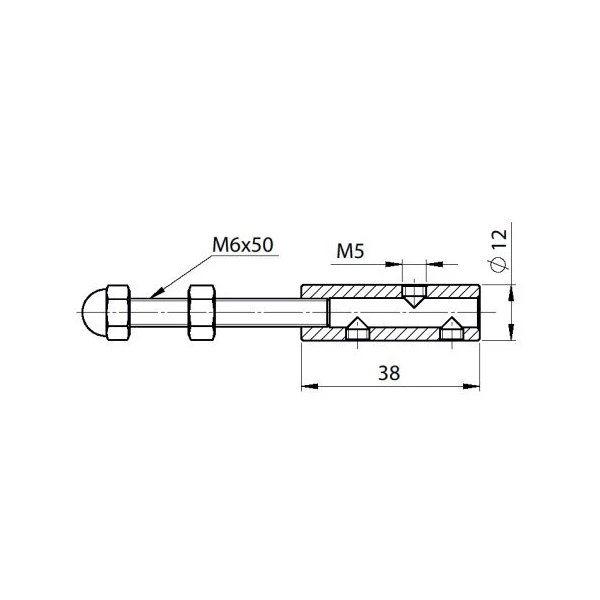

Dimensions and technical data
- Cable diameter: fi 4–6 mm
- Total length (L): 130 mm
- Body length: 38 mm
- Body external diameter: Ø12 mm
- Mounting stud thread: M6×50
- Compression screw thread: M5
- Material: stainless steel AISI 304
- Finish: satin
- Weight: 0.037 kg
- System type: for flat surfaces
- Mounting method: screw-on
Application and benefits
The clamp is designed for cable balustrade systems — it serves as a replacement for glass infills or other decorative elements. The cylindrical body with holes enables easy threading and locking of the cable, whilst the threaded stud with cap nut ensures aesthetic and stable mounting to flat surfaces. Stainless steel AISI 304 guarantees resistance to atmospheric conditions, making the clamp suitable for both indoor and outdoor use — on balconies, terraces and staircases.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
