Height-adjustable post base 160×160 mm, M24 thread – height 500 mm, galvanised
Leave feedback on the product
Height-adjustable post base 160×160 mm, galvanised steel. 4 mm thick plate, M24 threaded rod 500 mm long. Height adjustment with nuts. For anchoring timber posts in a concrete foundation: carports, pergolas, fences.
Product code: 002-480
Description
Height-adjustable post base 160×160 mm, M24 thread – height 500 mm, galvanised
The adjustable post bracket 160 is a durable steel connector designed for anchoring timber posts in a concrete foundation. Thanks to the M24 threaded rod with a length of 500 mm, it allows precise adjustment of the post seating height, which makes it easier to level the structure even on uneven ground.

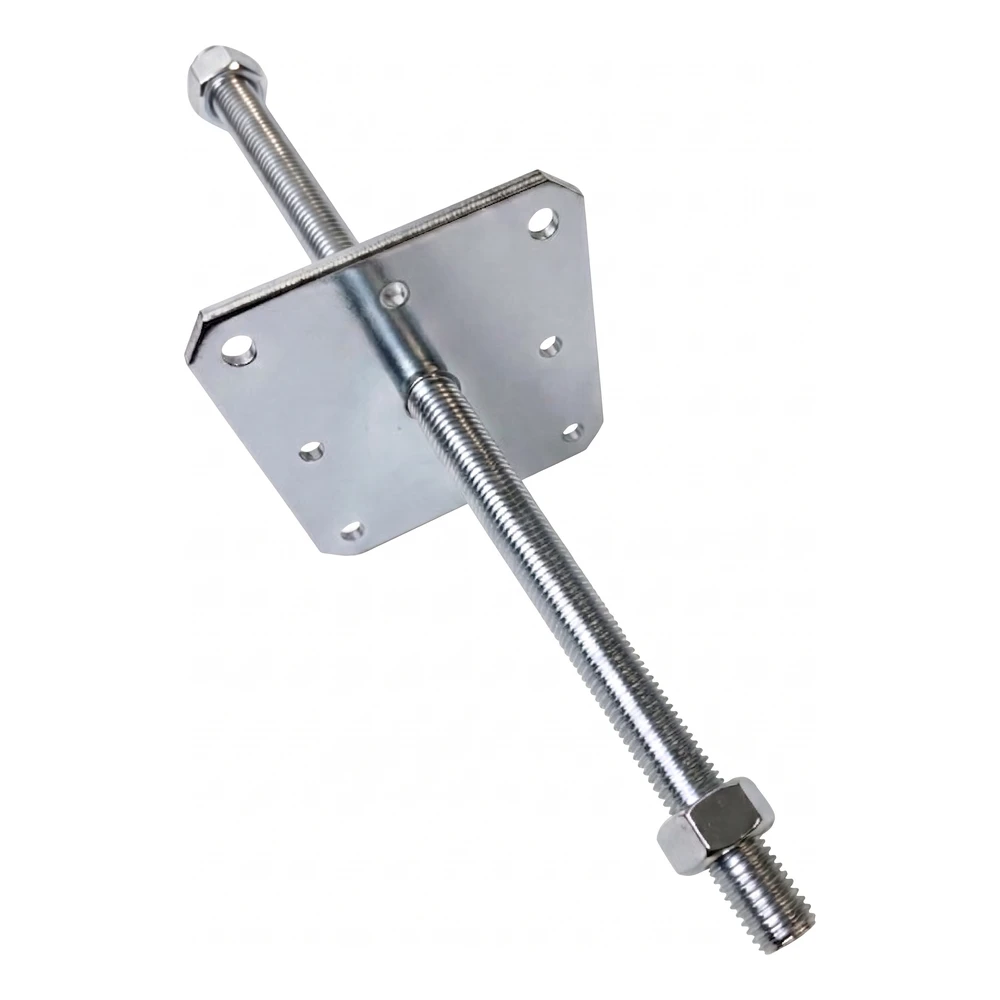

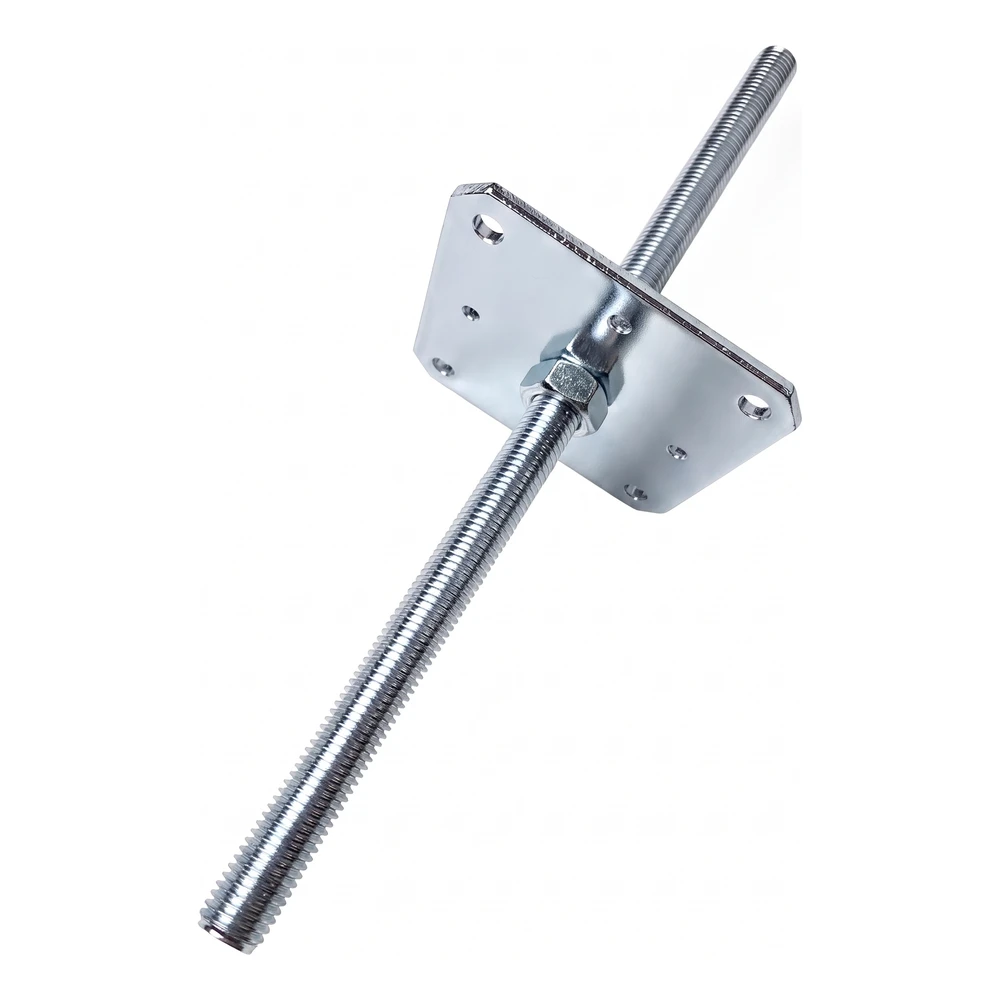

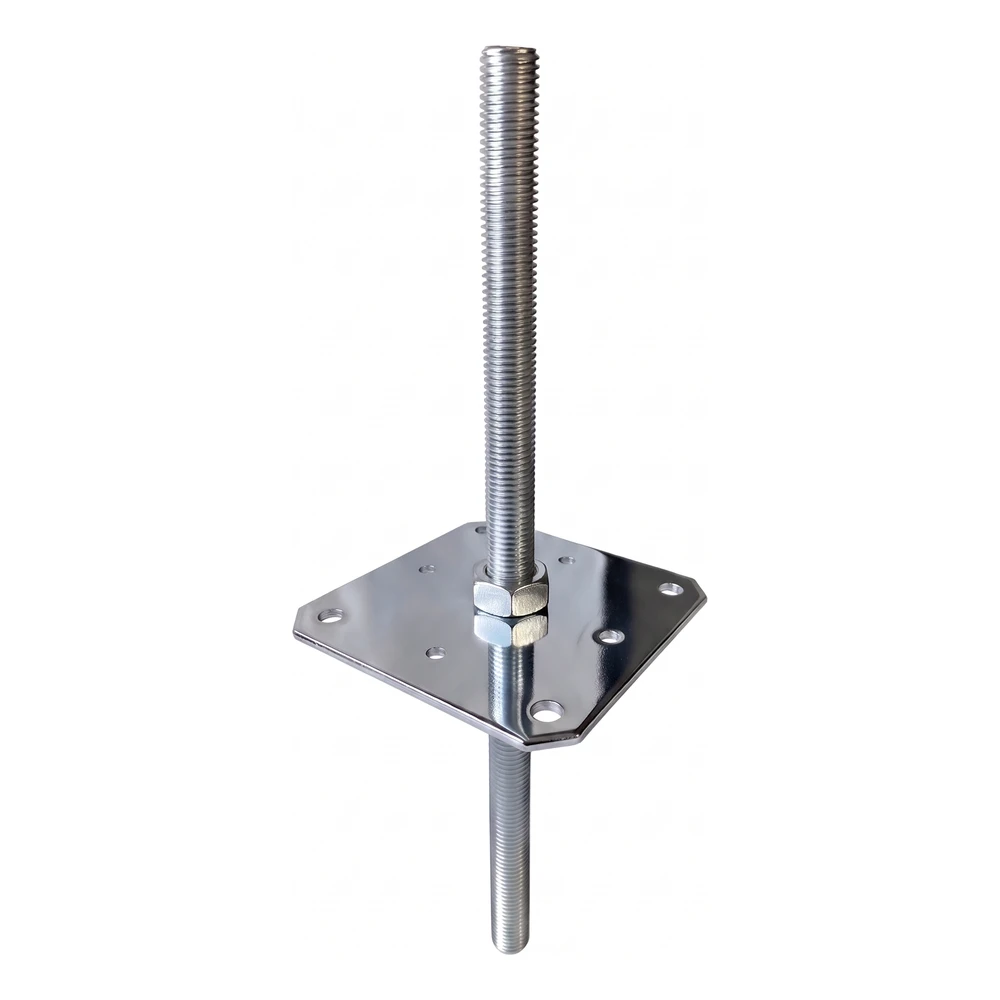

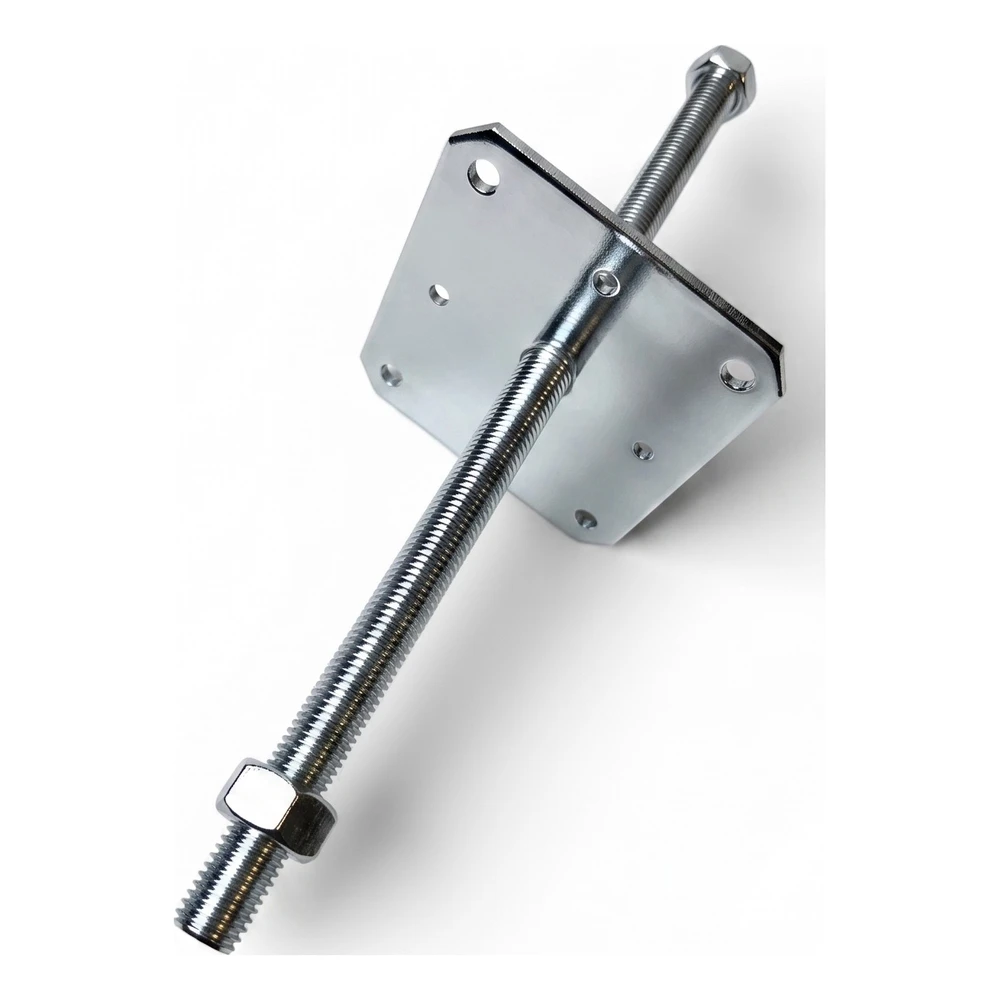

The bracket consists of a base plate measuring 160×160 mm made of steel sheet with a thickness of 4 mm and an M24 threaded rod with a length of 500 mm. The whole unit is galvanised, which ensures corrosion resistance and long-lasting use in outdoor conditions — both in garden structures and in utility buildings.

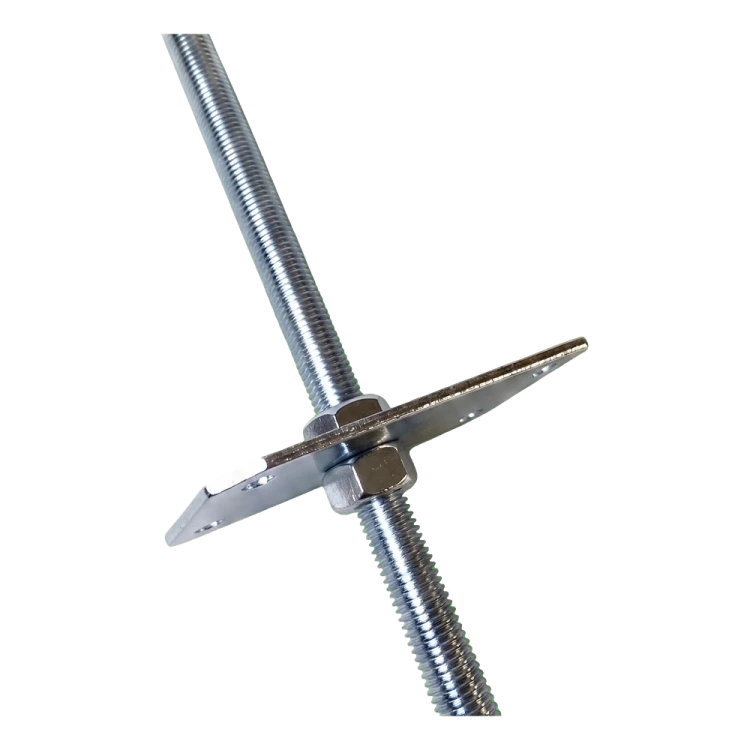

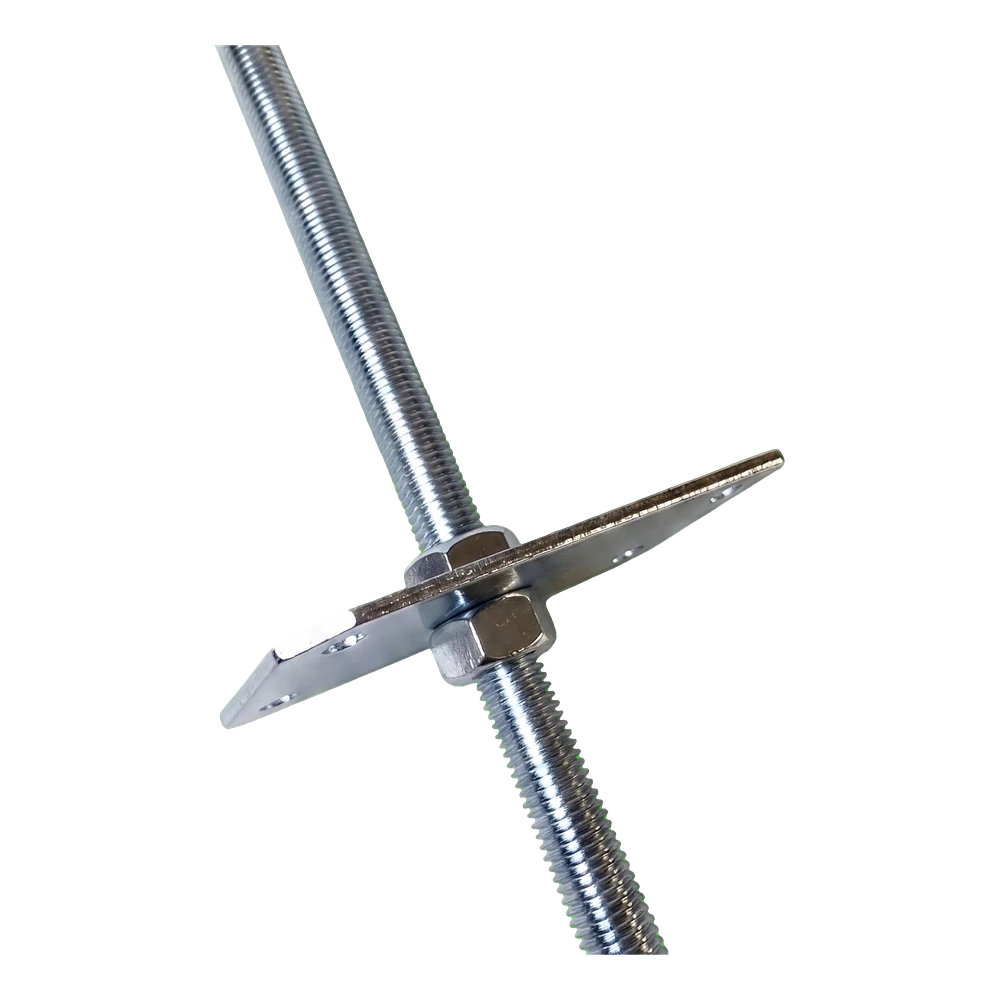

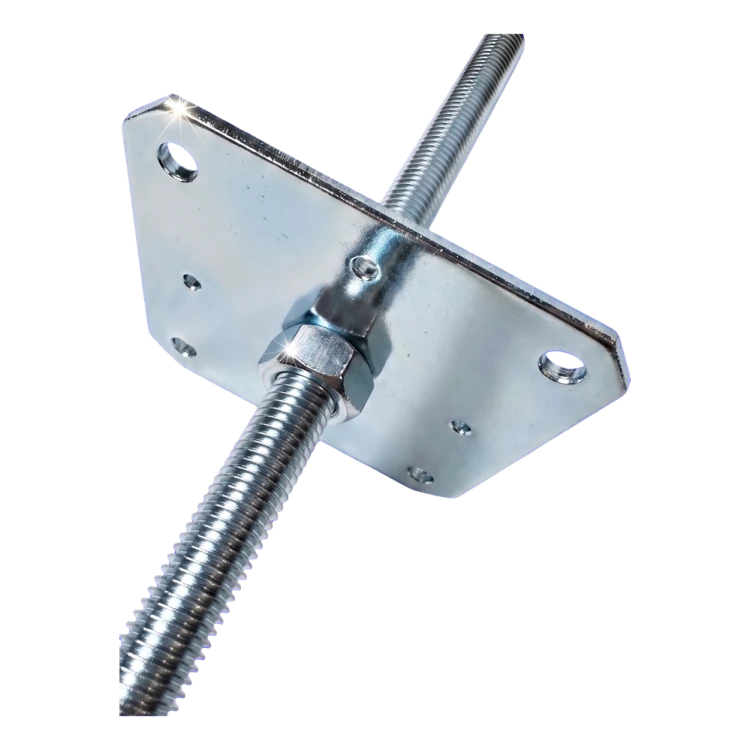

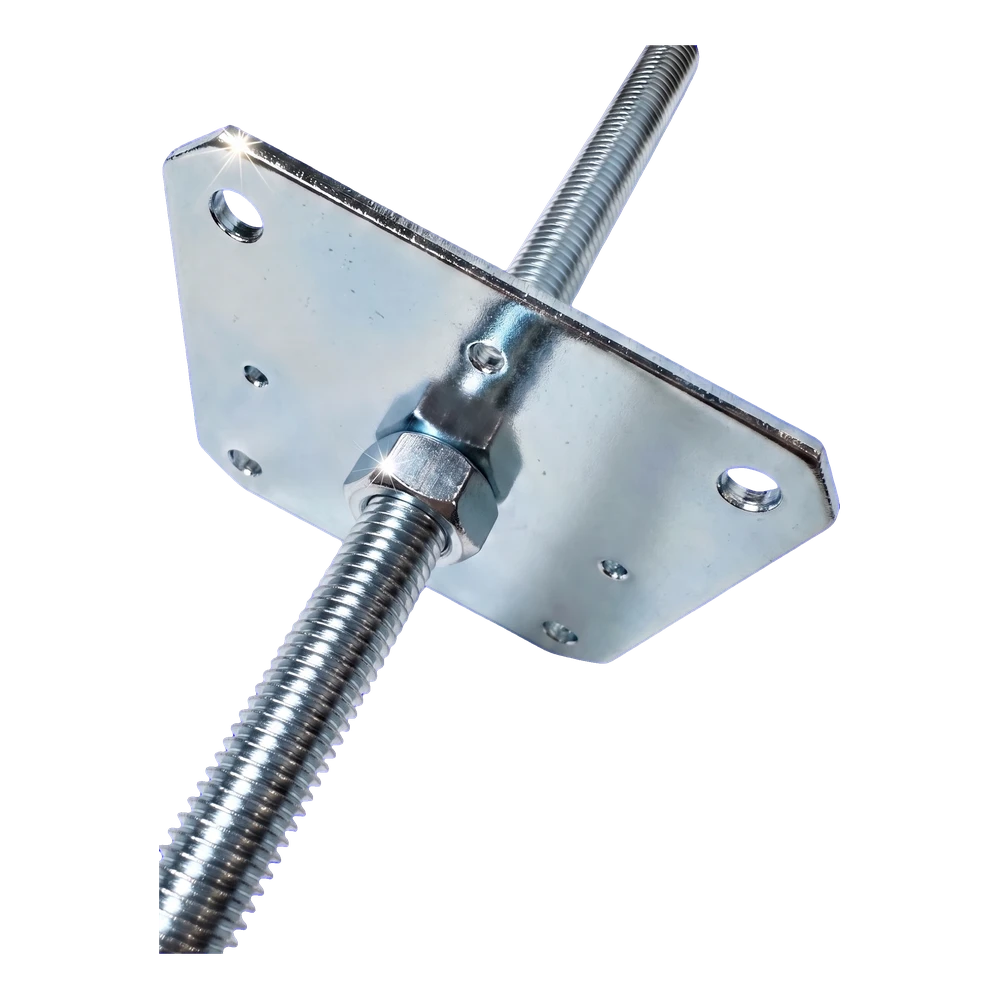

The bracket design is simple and proven — the threaded rod passes through the central hole in the plate, and two M24 nuts enable accurate levelling of the post after the spigot has been set in concrete. Adjustment requires no special tools — an open-ended spanner is all you need. This design allows quick installation even with a large number of support points, which is important in larger projects — carports, pergolas, canopies or structures for ground-mounted photovoltaic installations.
Bracket features
- Galvanised steel — corrosion protection for years of use
- M24 thread — standard size that makes it easier to choose nuts and washers
- 500 mm rod length — wide range of height adjustment and anchoring depth
- 160×160 mm plate — stable base suited to posts with a larger cross-section
- 4 mm sheet steel — thickness that ensures a rigid connection with the post
- Adjustment with nuts — precise levelling without special tools
- Sold individually — order exactly as many as you need
Applications
- Timber posts — anchoring in foundation footings for carports, pergolas and canopies
- Fences — setting load-bearing posts in a plinth or pad foundation
- Garden structures — gazebos, carports, decks and other structures on timber posts
- PV structures — supporting frames and load-bearing beams in ground-mounted photovoltaic installations
- Outbuildings — storage sheds, canopies over work areas and other frame structures

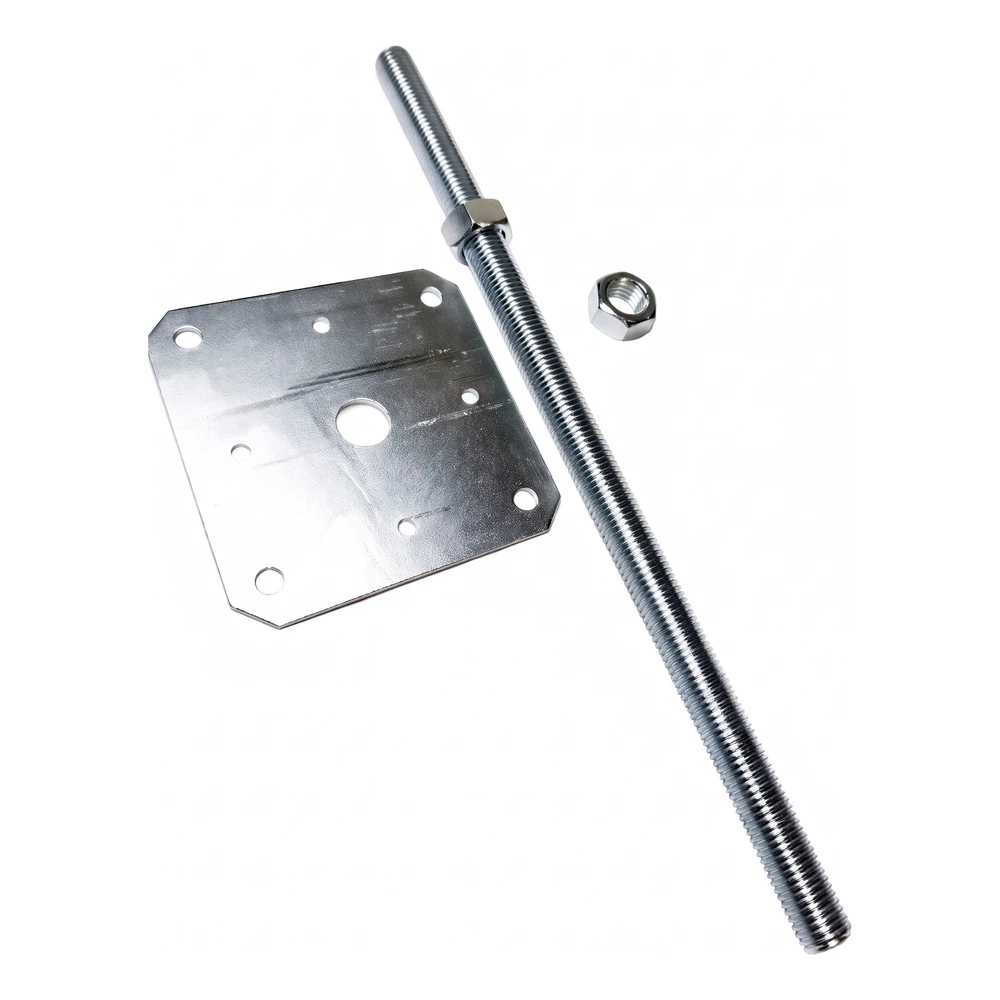

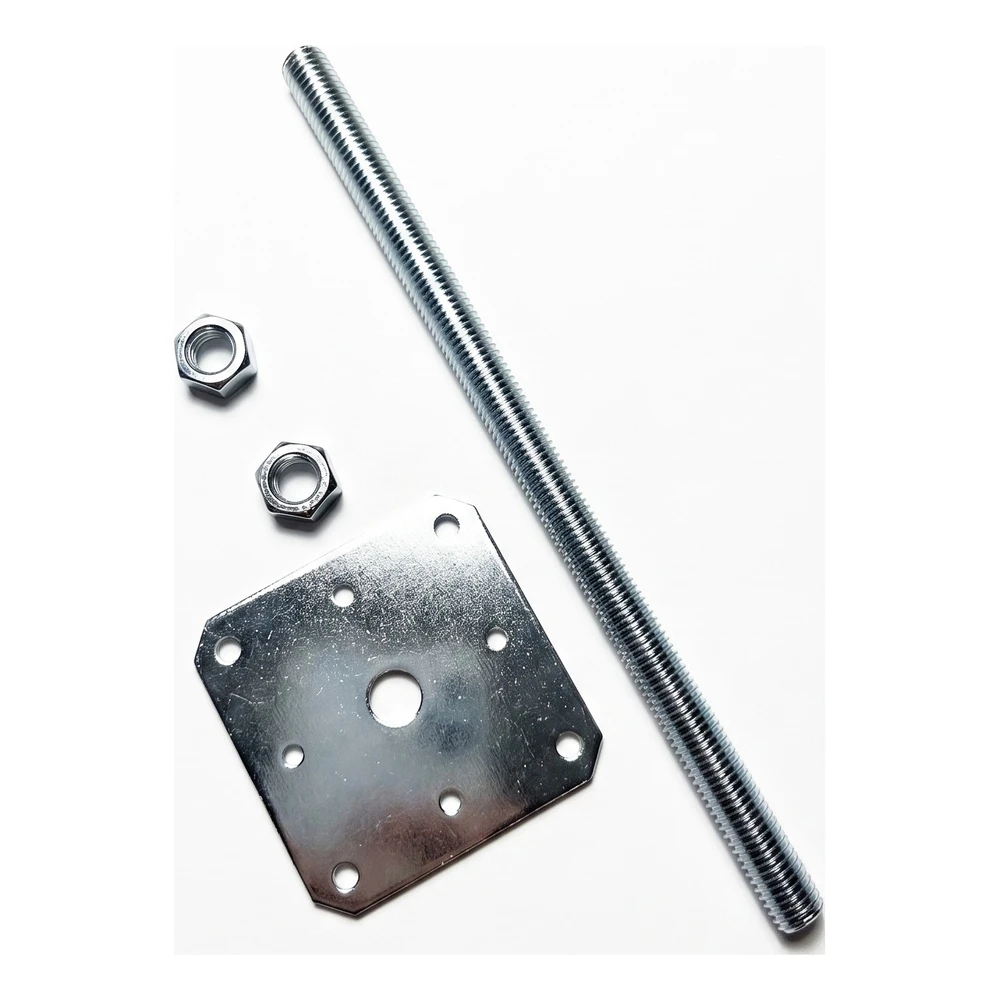

The bracket is supplied as a complete set ready for installation — a base plate with a threaded rod and two M24 nuts. Simply set the spigot in the concrete foundation, wait for the concrete to cure and fit the post, adjusting its height with the nuts. The galvanised surface requires no additional painting or maintenance, so the bracket is ready to use straight out of the packaging.
