Flat Timber Connector LP 2 140x55x2.5
Description

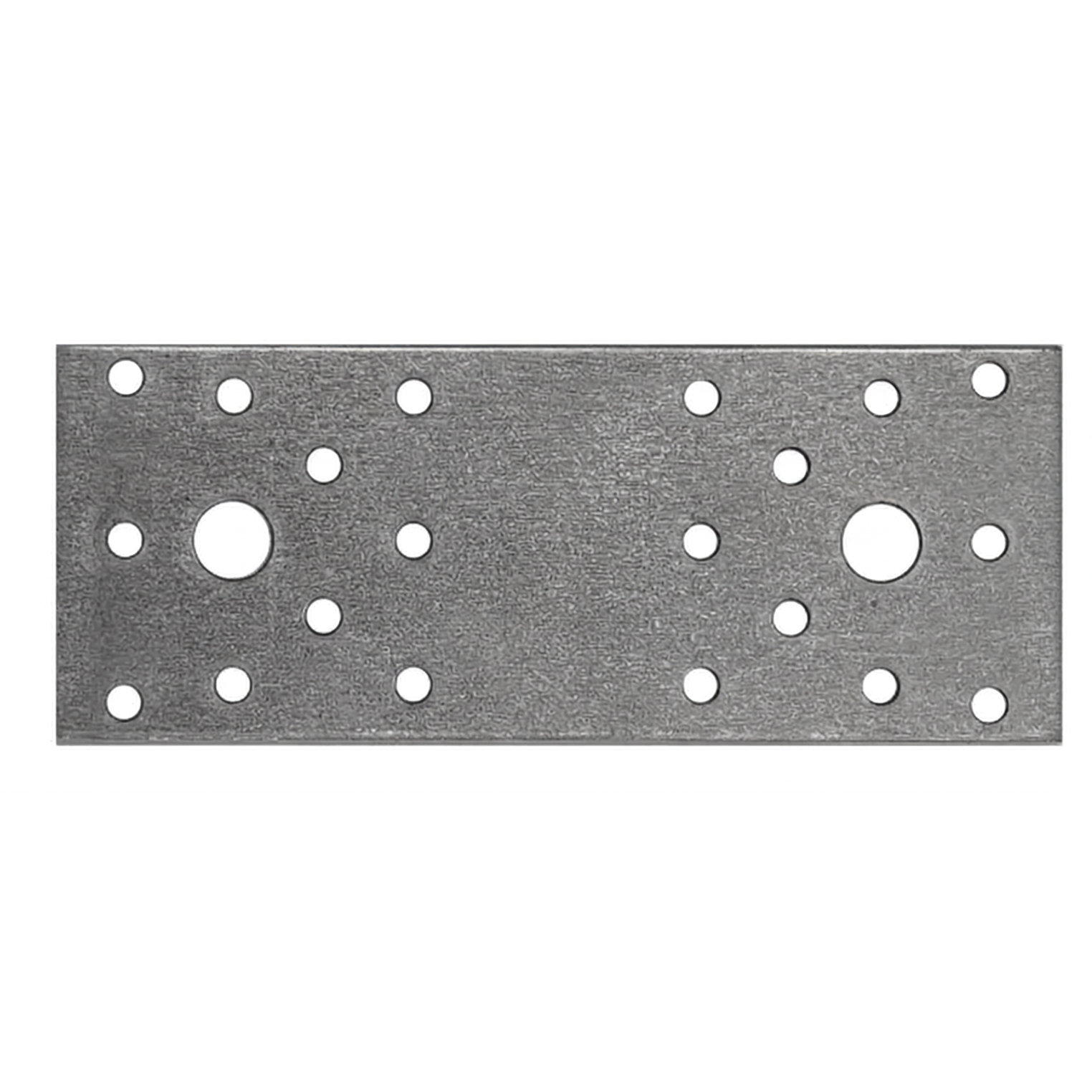

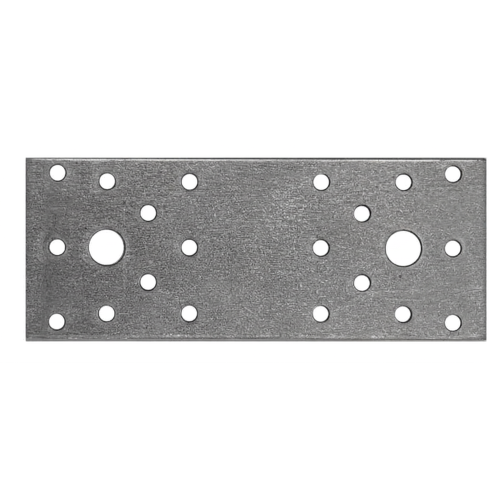

Flat Timber Connector LP2 140×55×2.5 mm Galvanised
Flat connector LP2 140×55×2.5 mm is a robust timber strap designed for joining wooden elements whose lateral surfaces lie in the same plane. Thanks to its compact width of 55 mm, it is ideally suited for fixing to the narrow edges of boards and panels — in joinery, furniture making, and timber construction alike.
The connector is manufactured from DX51D + Z275 steel sheet with a thickness of 2.5 mm, ensuring high rigidity and a durable joint. The surface is protected by a galvanised zinc coating, which effectively guards against corrosion under typical service conditions. The thoughtfully arranged pattern of 22 holes allows the connector to be used in both standard applications and custom-designed joints, giving the installer full flexibility in the choice of fasteners.
The load-bearing capacity of the connector is 3.70 kN, confirming its suitability for loaded timber structures. The product carries the CE marking.

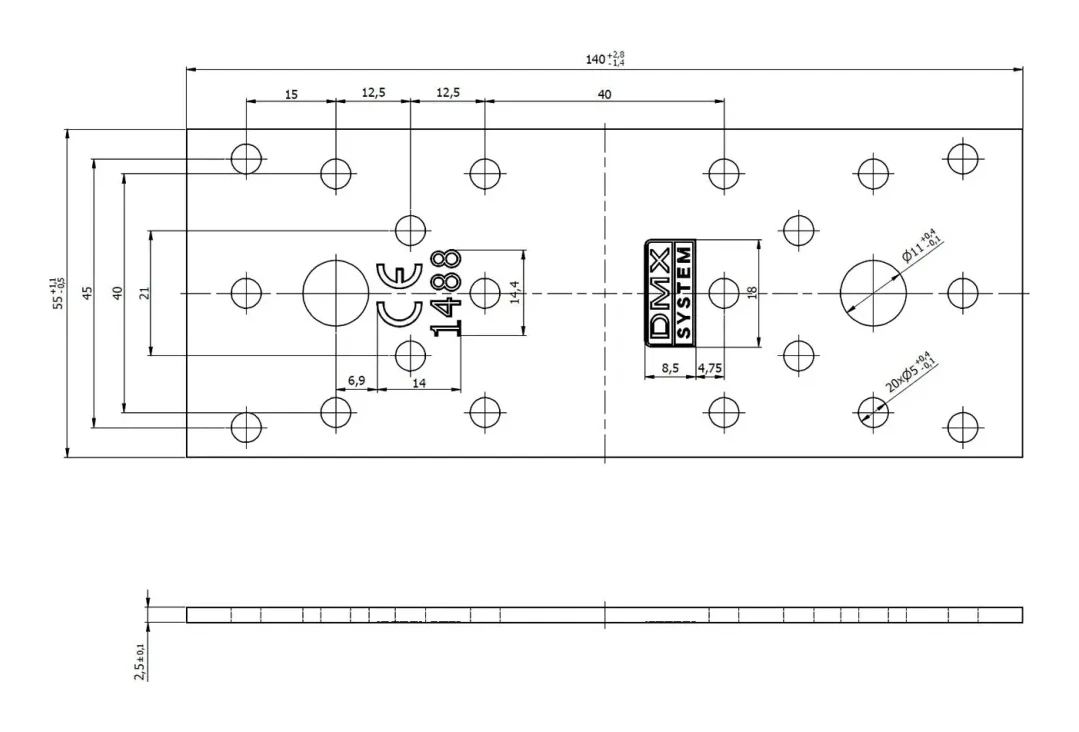

Technical Specifications
- Length: 140 mm (tolerance +2.8 / −1.4)
- Width: 55 mm (tolerance +1.4 / −0.85)
- Sheet thickness: 2.5 mm (tolerance ±0.1)
- Material: DX51D + Z275
- Corrosion protection: galvanised zinc
- Fixing holes: 20 holes ø5 mm + 2 holes ø11 mm
- Load-bearing capacity: 3.70 kN
- Marking: CE
Applications

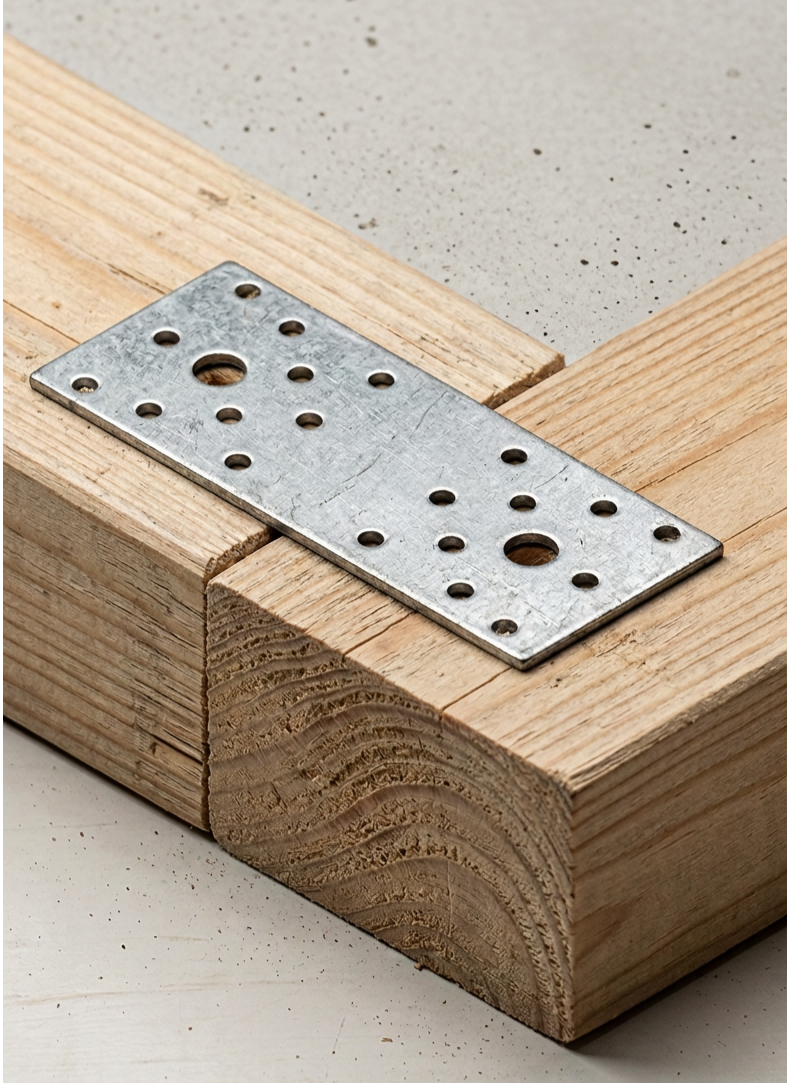

Flat connectors are used wherever joined timber elements must remain in the same plane — for example when extending beams, joining shuttering boards, assembling furniture components, or reinforcing timber joints. The wide range of holes allows flexible fastening using various types of mechanical fixings.
Recommended Fasteners
- ANCHOR ring shank nails ø4 mm
- Timber connector screws
- Wood screws ø6 mm and ø10 mm
- Bolts M10 and M12
- Concrete anchors M10 and M12
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Sheet metal thickness [mm] | 2.5 |
| Connector Type | Flat Timber Connector Plate |
| Material | Steel |
