Furniture angle bracket KW 40 40x40x15x1.5 electro-galvanised
Description

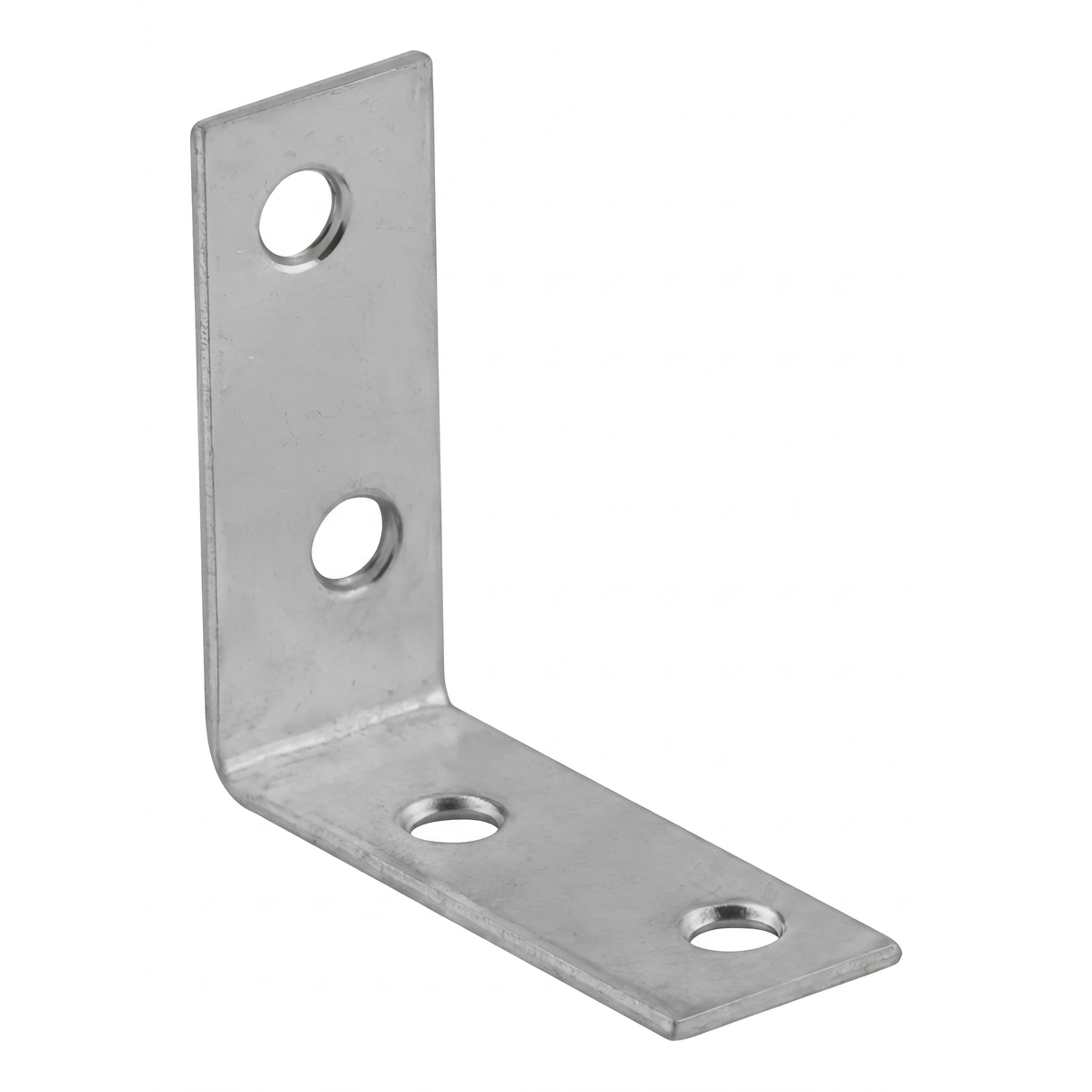

Steel Galvanised Furniture Angle Bracket 40x40x15 mm, Thickness 1.5 mm

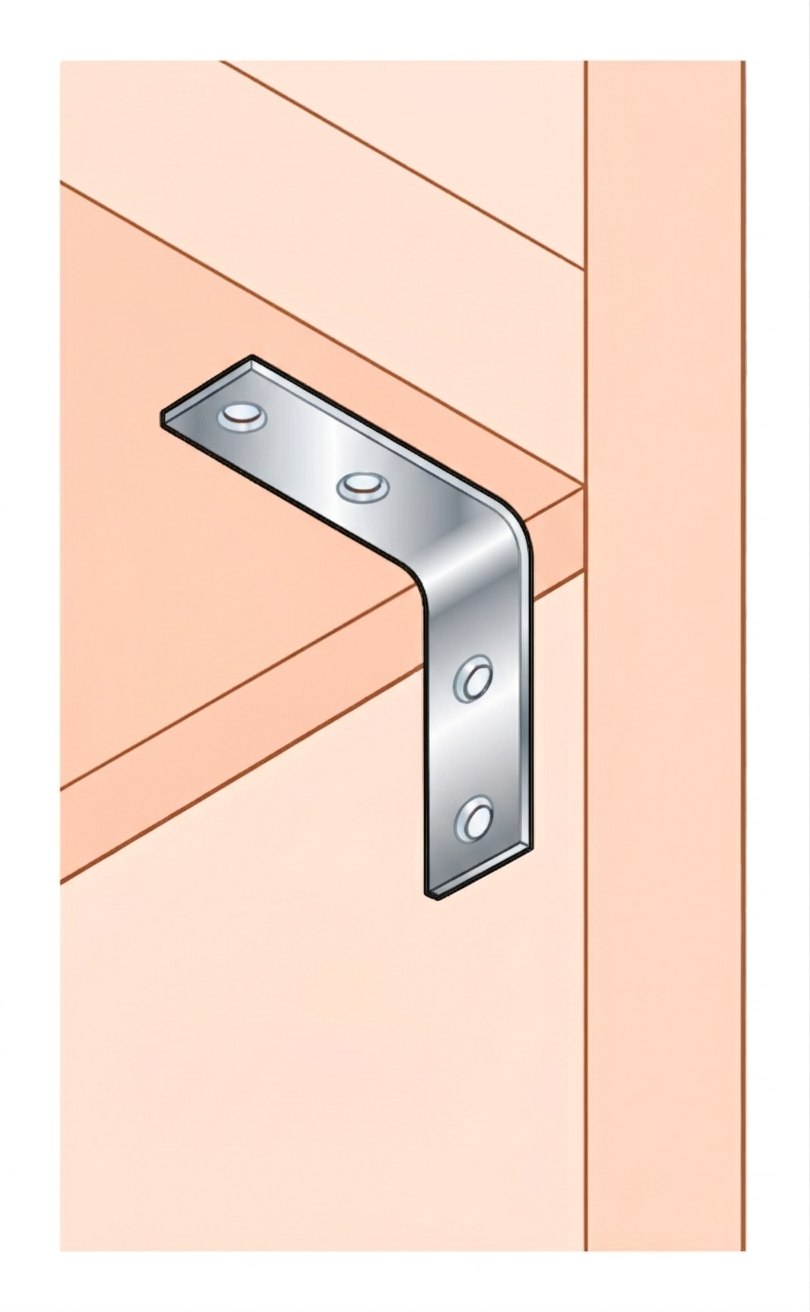

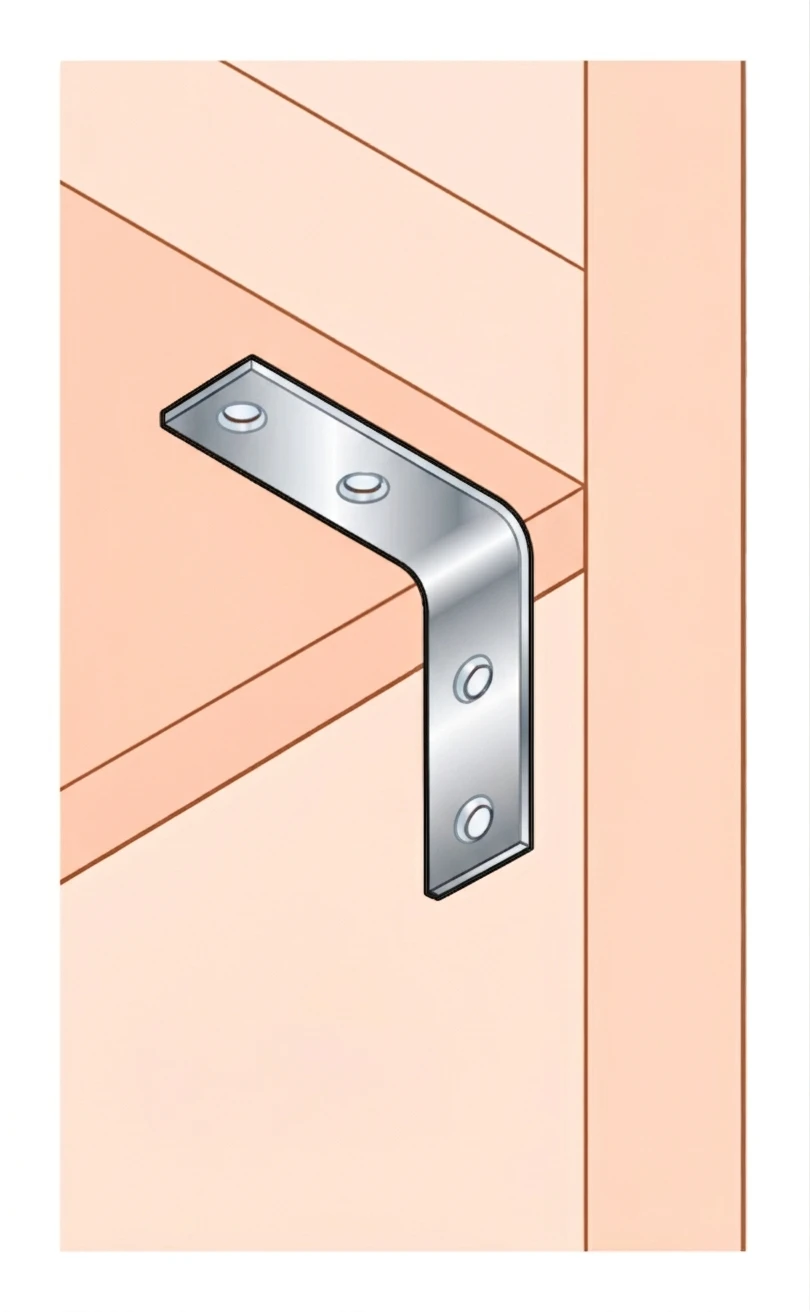

The furniture angle bracket 40×40×15 mm is a compact corner connector designed for light joinery and furniture assembly work. Thanks to its narrow width of just 15 mm, it is ideally suited for fixing to the narrow edges of boards, furniture panels, and structural components. Made from electro-galvanised steel sheet, it provides effective corrosion protection and long-lasting durability for corner joints.
This angle bracket offers a practical and quick solution for reinforcing corners — just a few screws or nails are all it takes to achieve a stable and secure right-angle connection between two elements. The attractive silver zinc coating also makes the bracket suitable for use in visible locations.
Technical Specifications

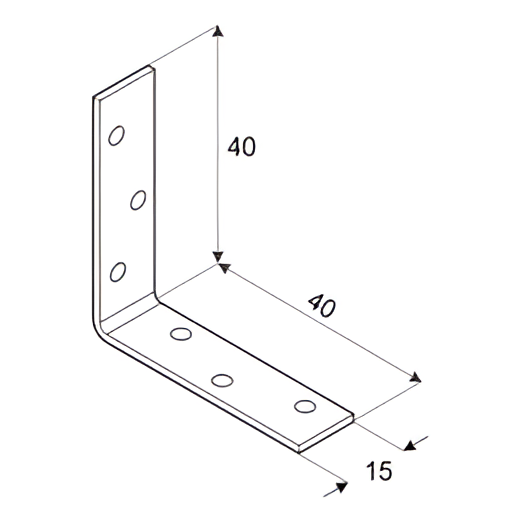

- Arm dimensions: 40 × 40 mm
- Width: 15 mm
- Sheet thickness: 1.5 mm
- Material: steel DC01 / DX51+Z275
- Coating: electro-galvanised zinc
- Colour: silver
- Number of fixing holes: 4 pcs
- Quantity per pack: 1 pc
Applications
- Light joinery and assembly work

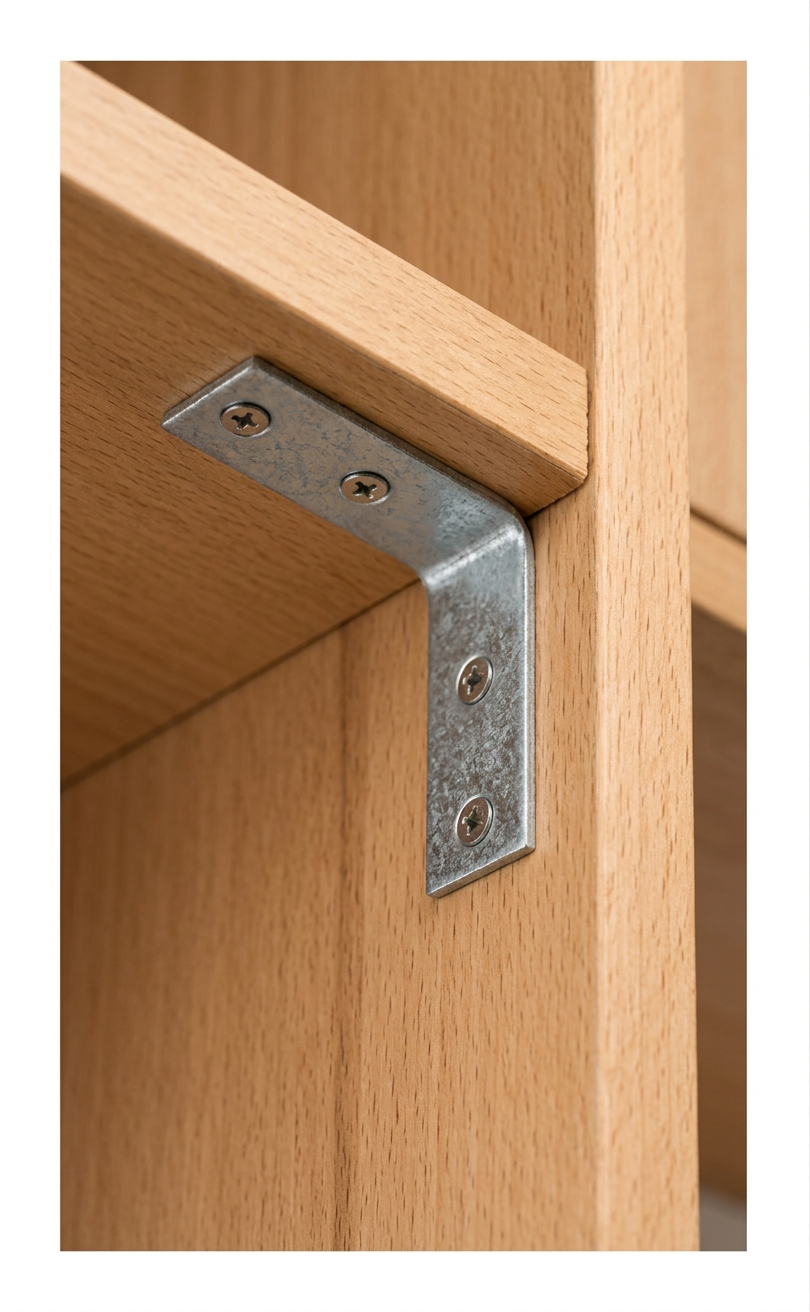

- Assembling and reinforcing furniture
- Stabilising corner joints in lightweight timber structures
- Fixing to the narrow edges of boards and furniture panels
- Timber structures, pergolas, roofs, and wooden posts
Recommended Fixings
- Ring shank nails ∅ 4 mm
- Wood screws ∅ 4 mm
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Sheet metal thickness [mm] | 1.5 |
| Connector Type | Mounting Angle Bracket |
| Material | Steel |
