Height-adjustable post base 110×110 mm, M24 thread – height 250 mm, galvanised

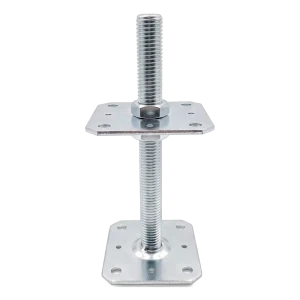

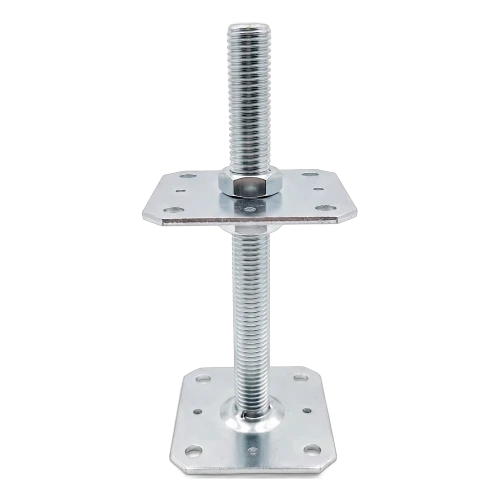

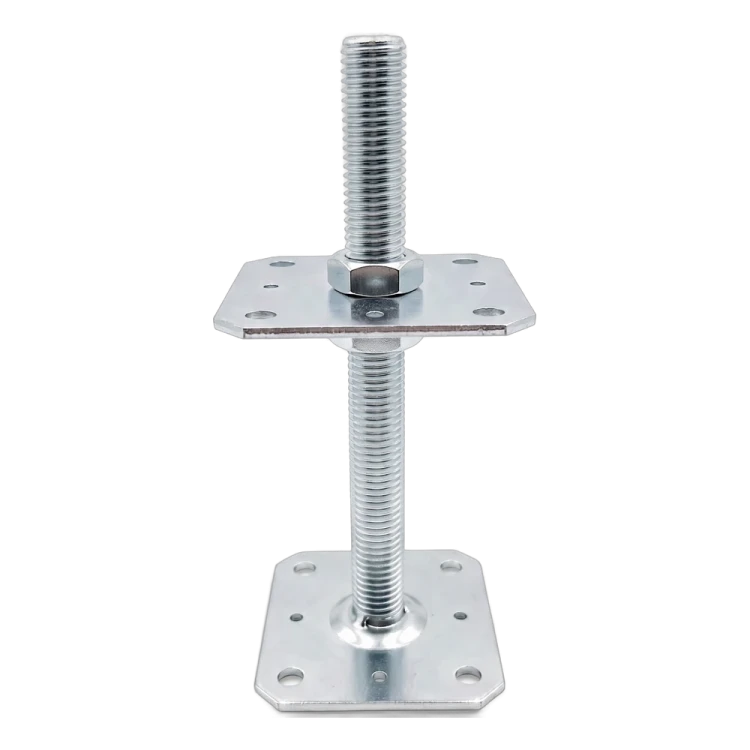

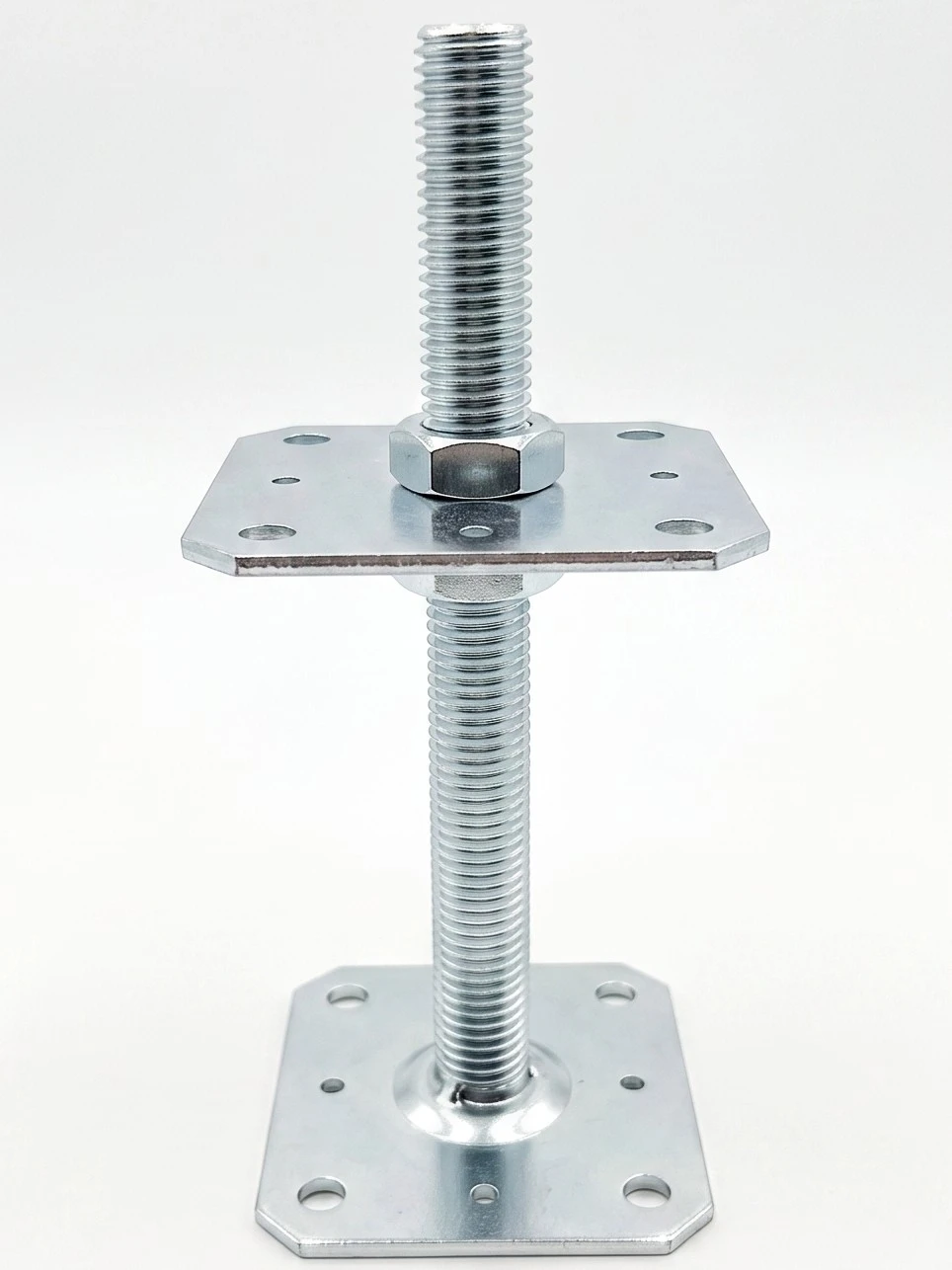

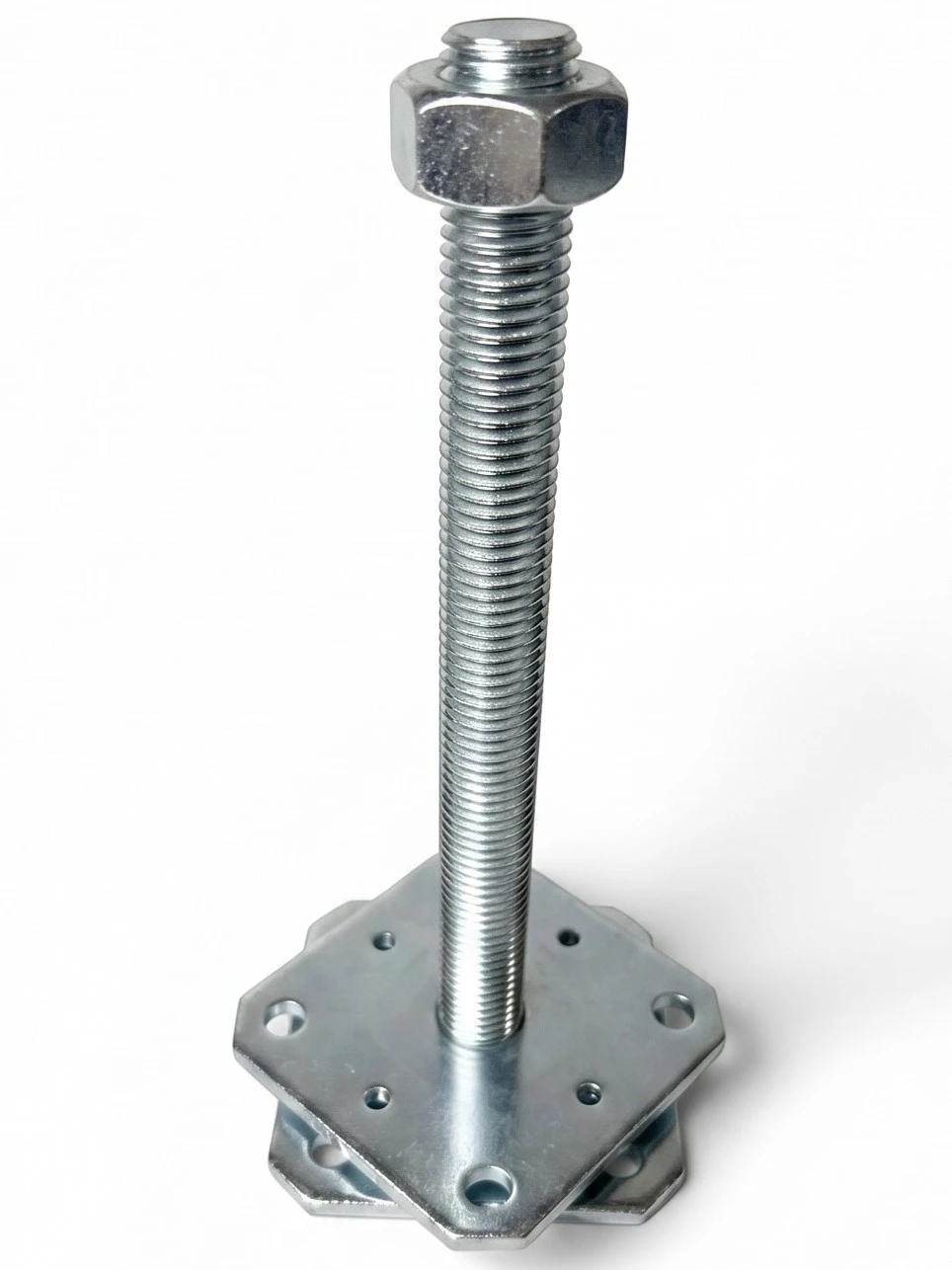

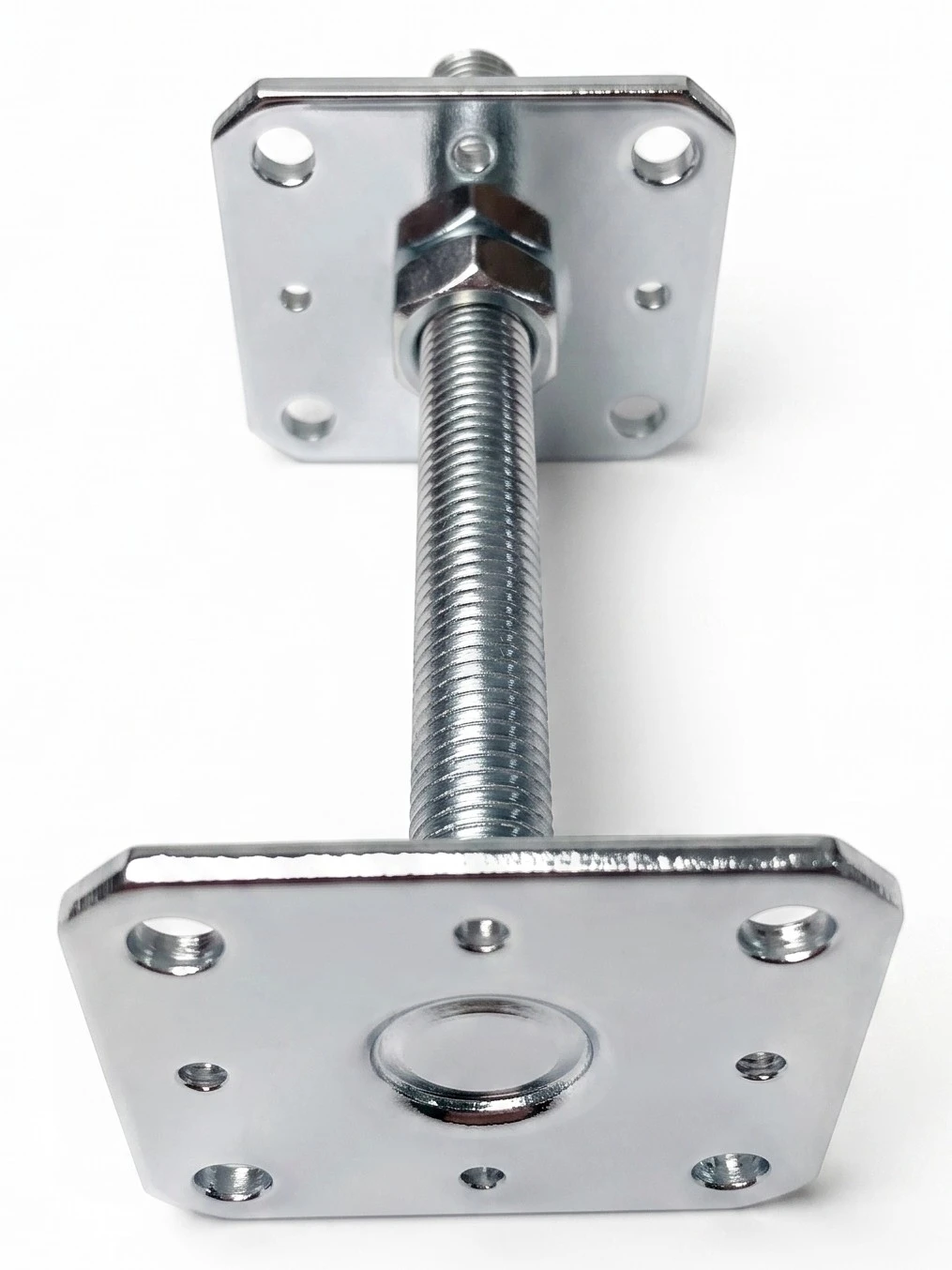

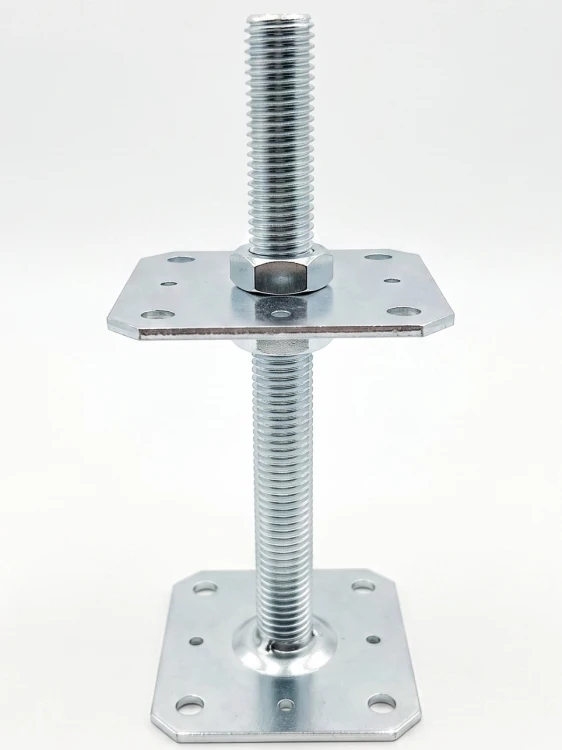

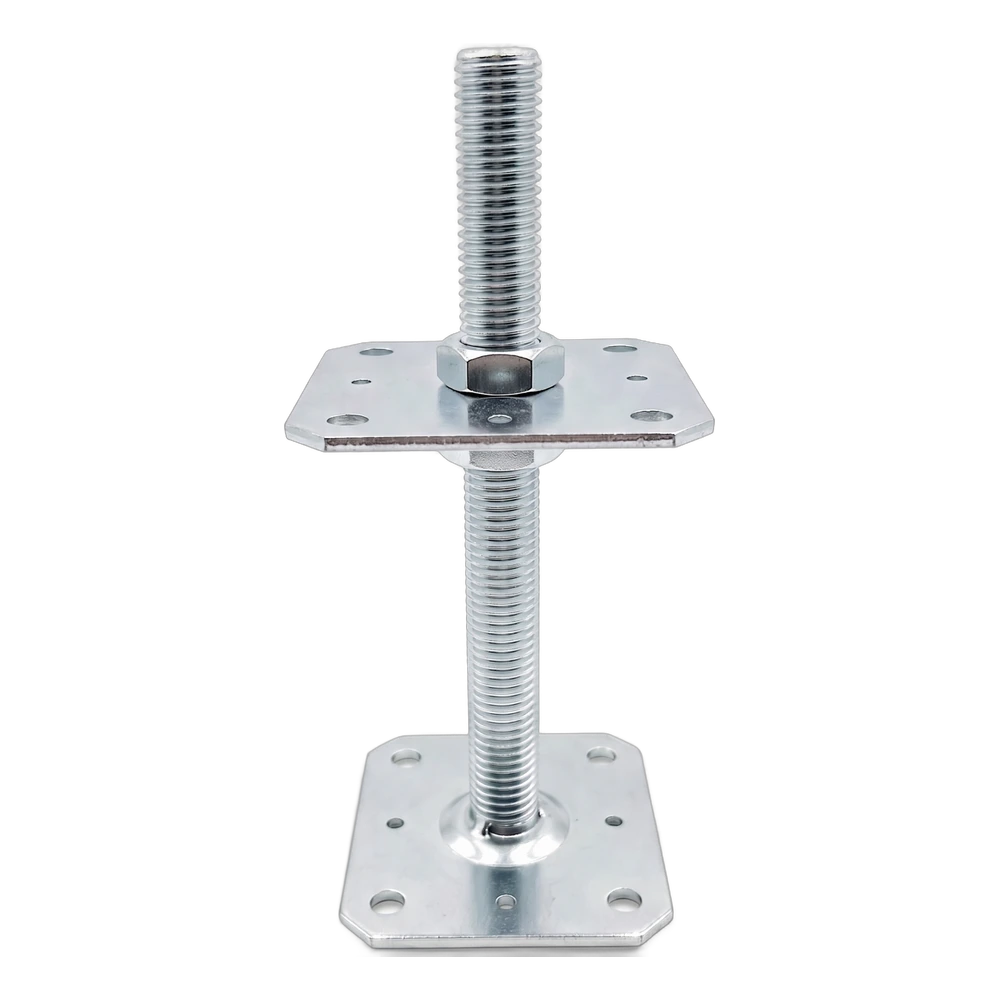

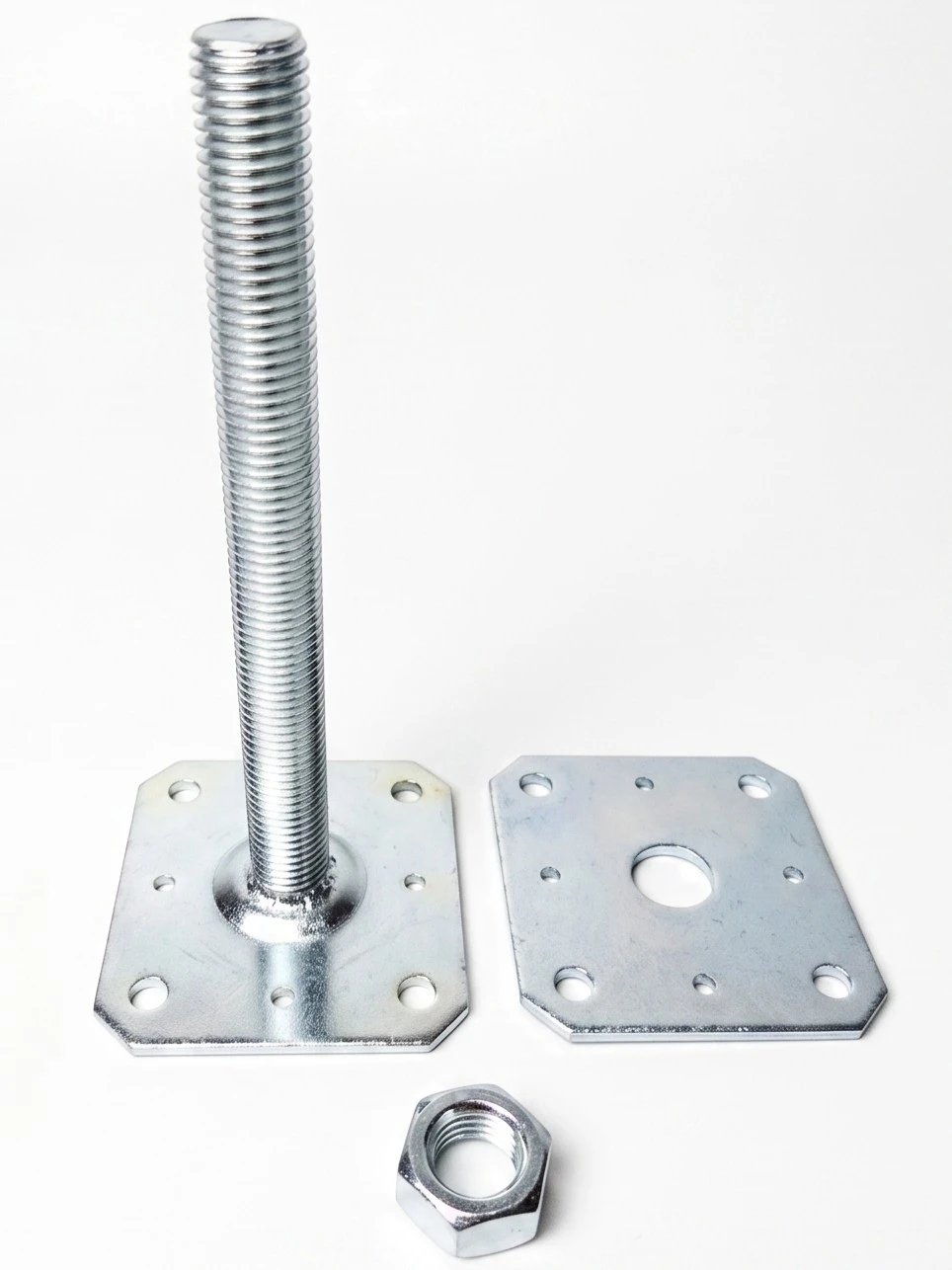

Height-adjustable post base with a M24 threaded rod: bottom plate for fixing to the substrate, top plate for a 110 × 110 mm post; galvanised steel

Open the dimension drawing in full size

About the product

The height-adjustable post base is used to support a post above the substrate. It consists of a bottom plate fixed to the substrate, a top plate for the post and a M24 threaded rod used to adjust the support height.

Select this model for a post with a cross-section of 110 × 110 mm. H denotes the height specified by the manufacturer, which is 250 mm, and M24 indicates the rod thread. The base plate is 4 mm thick. Secure the bottom plate to a load-bearing substrate using fixings suitable for its type, such as concrete anchors. Set the height using the nut on the M24 rod, and secure the post to the top plate through its holes.

Material: steel. Coating: silver zinc-coated. The zinc coating protects steel against corrosion under typical conditions. In the event of contact with salt, chemicals or constant moisture, the finish must be selected to suit the exposure conditions. The manufacturer does not specify the load capacity of the support. Selection to suit the loads on the structure, such as a carport or pergola, is determined by the design.

Dimensions

Material and coating

Unit of sale

Selection and installation

• ✓Check the post cross-section – this support is designed for a 110 × 110 mm post.
• ✓Secure the bottom plate to a load-bearing substrate using fixings suitable for its type (e.g. concrete anchors).
• ✓Set the height using the nut on the M24 rod, and secure the post to the top plate through its holes.
