Domax

Adjustable Mounting Bracket KR 2 60x40x60x2.5 mm Galvanised

Go to Product feedback

Adjustable angle bracket 60×40×60×2.5 mm with slotted holes for position adjustment, load capacity 6.70 kN. Hot-dip galvanised Z275 steel plate. For timber structures, roofs and pergolas.

Go to full description
with VAT without VAT
Price €0.47
incl. 23% VAT
Availability:
Temporarily unavailable
Unavailable

Product features

[PIM] Łączniki #79

  • Sheet metal thickness [mm] 2.5
  • Connector Type Mounting Angle Bracket
  • Material Steel
  • Thread type M10
  • Length [mm] 6
  • Coating Black anodised

Description

Adjustable Mounting Bracket 60×40×60×2.5 mm Galvanised

Adjustable mounting bracket 60×40×60×2.5 mm is a robust angle connector designed for professional joints in timber structures. Thanks to its slotted holes, it allows precise position adjustment of connected elements, significantly simplifying the installation of rectangular or square-section beams and eliminating expansion stresses caused by changes in timber moisture content.

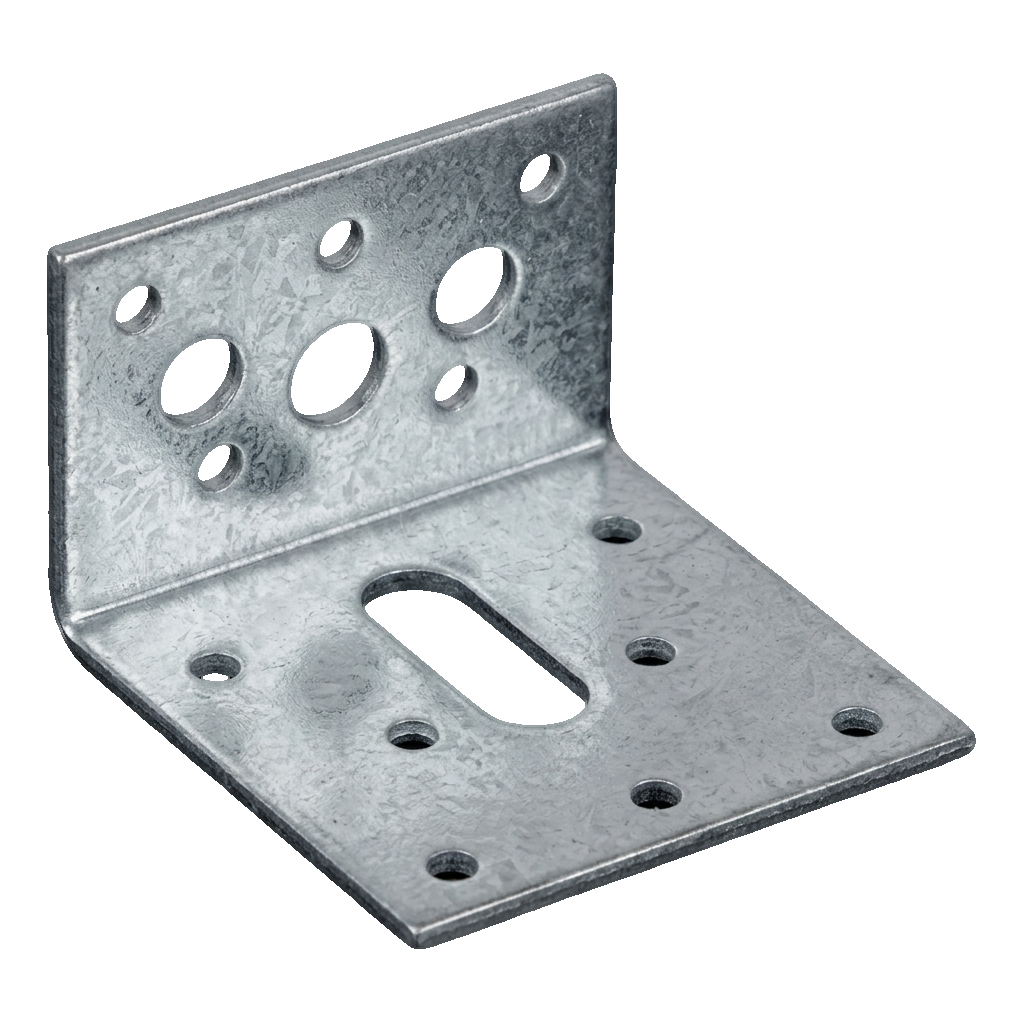

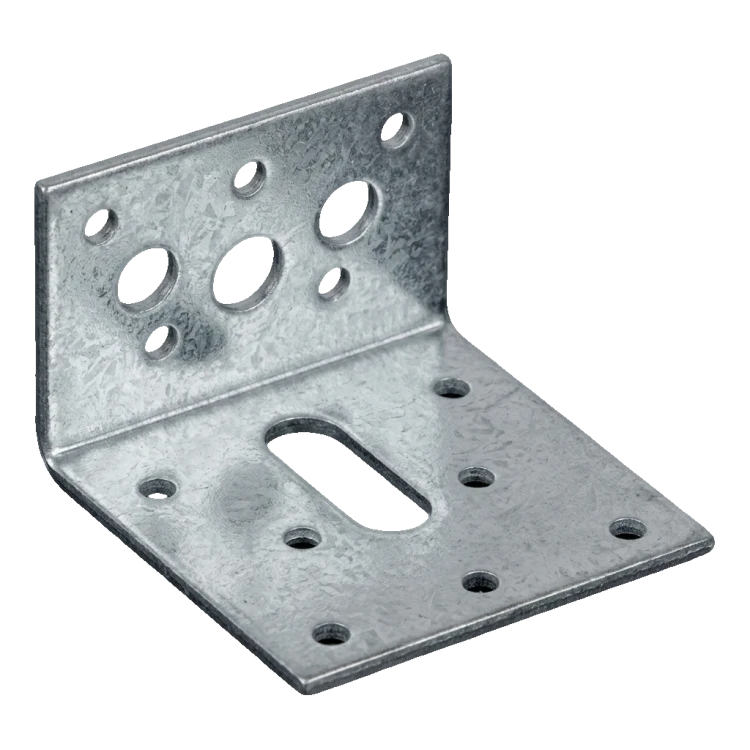

Adjustable mounting bracket 60×40×60 mm — product view
Adjustable mounting bracket 60×40×60 mm — product view

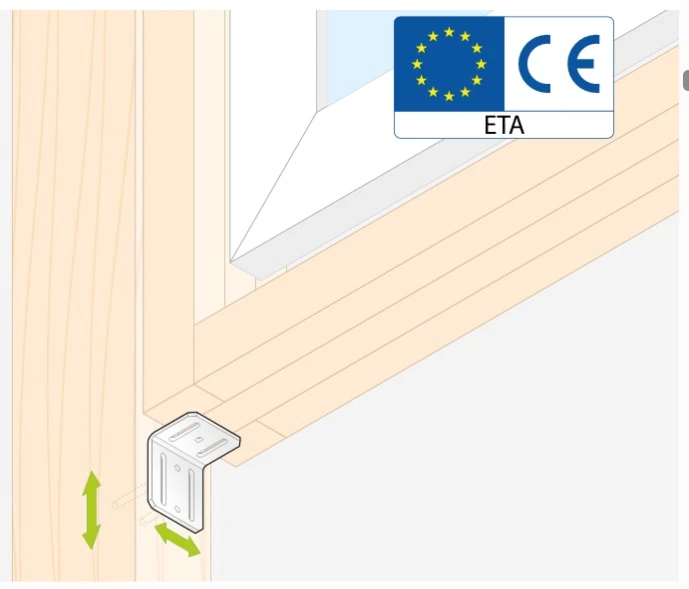

Benefits for the installer

The ability to mutually shift connected elements means that the joint carries no loads from thermal deformation or changes in timber moisture content. Slotted holes allow the installation of non-standard elements and compensation for minor dimensional deviations — saving time on site and reducing the need for corrections. The bracket is compatible with bases featuring rectangular or hexagonal plates.

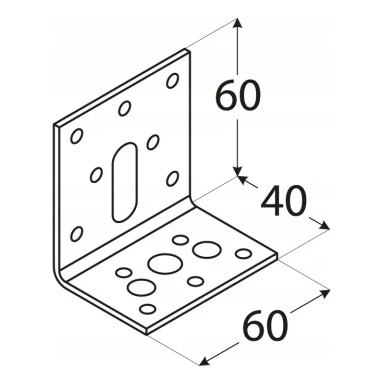

Dimensional drawing of the 60×40×60 mm bracket with marked dimensions
Dimensional drawing of the 60×40×60 mm bracket with marked dimensions

Dimensions and technical specifications

  • Vertical arm height: 60 mm
  • Horizontal arm length: 60 mm
  • Width: 40 mm
  • Sheet thickness: 2.5 mm
  • Load capacity: 6.70 kN
  • Material: hot-dip galvanised Z275 steel sheet
  • Colour: silver

Fixing holes

  • ø 5 mm — 12 pieces
  • ø 9 mm — 2 pieces
  • ø 11 mm — 1 piece
  • Slotted hole 11×19 mm — 1 piece

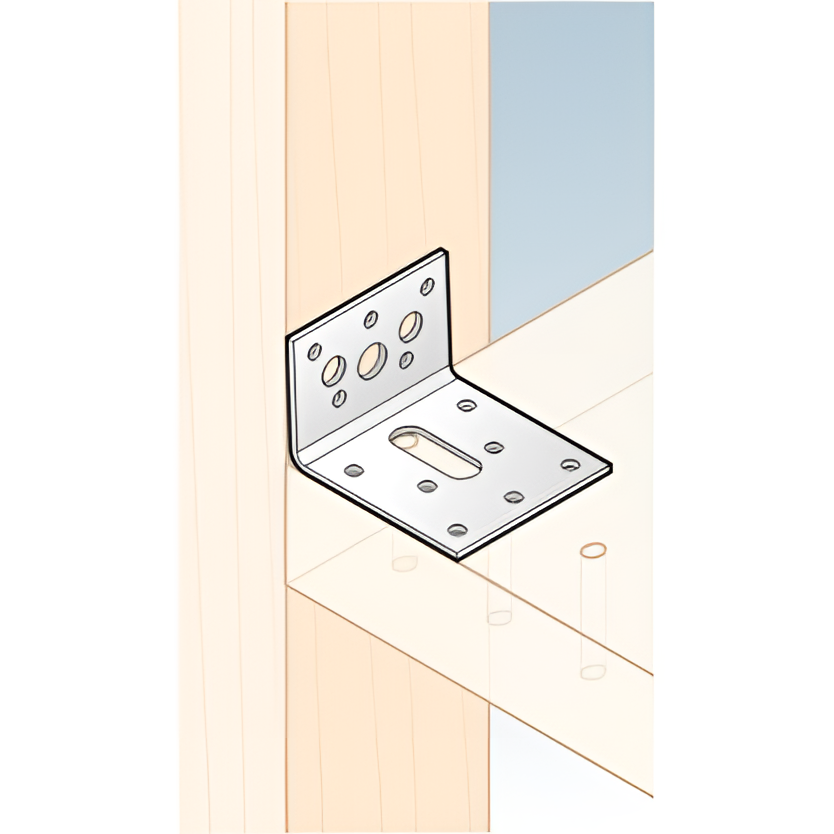

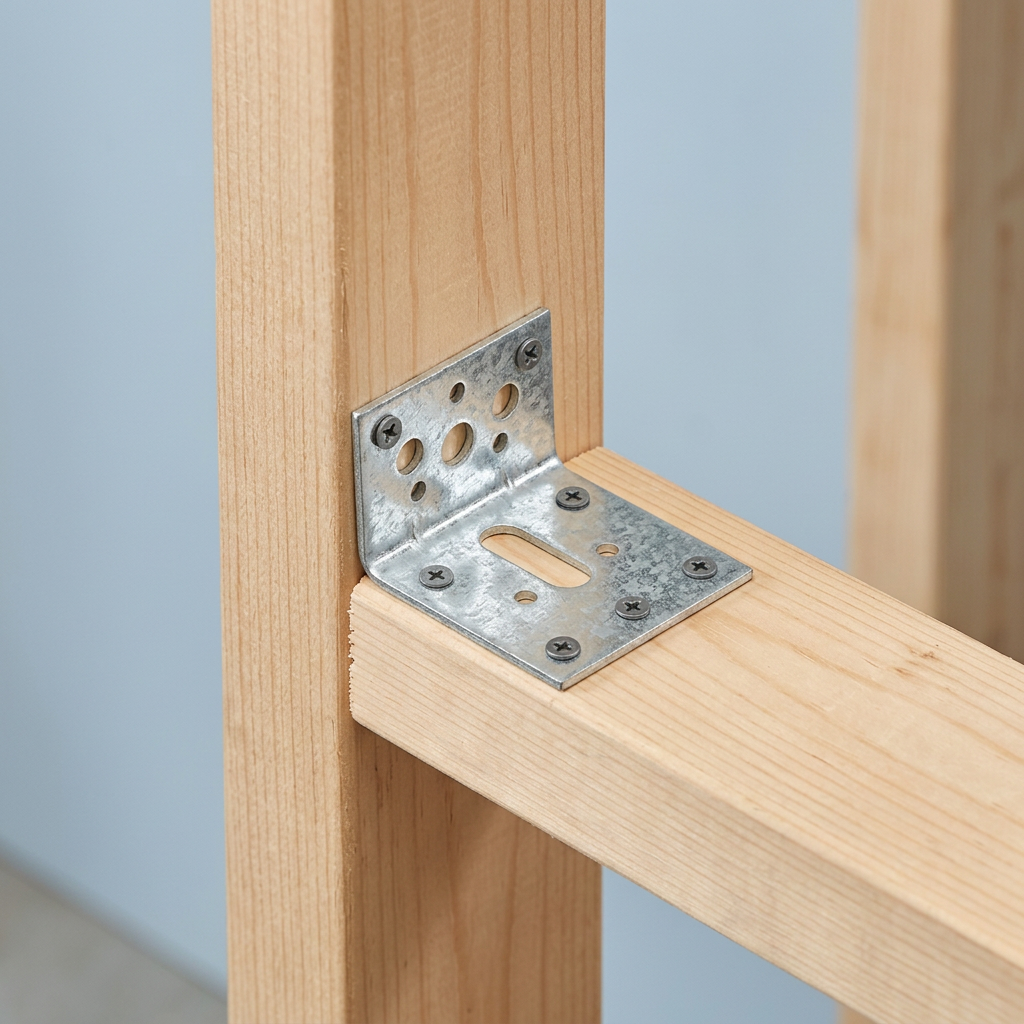

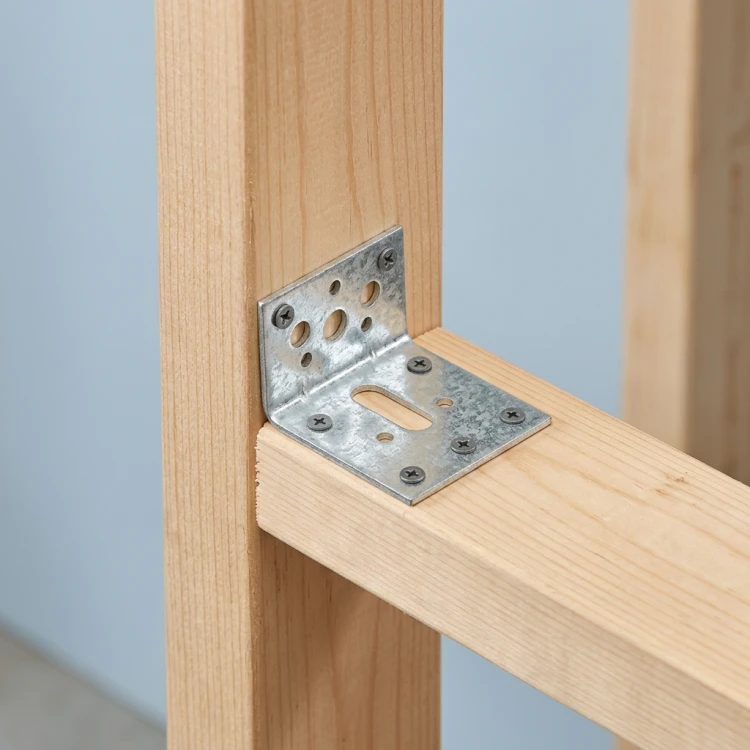

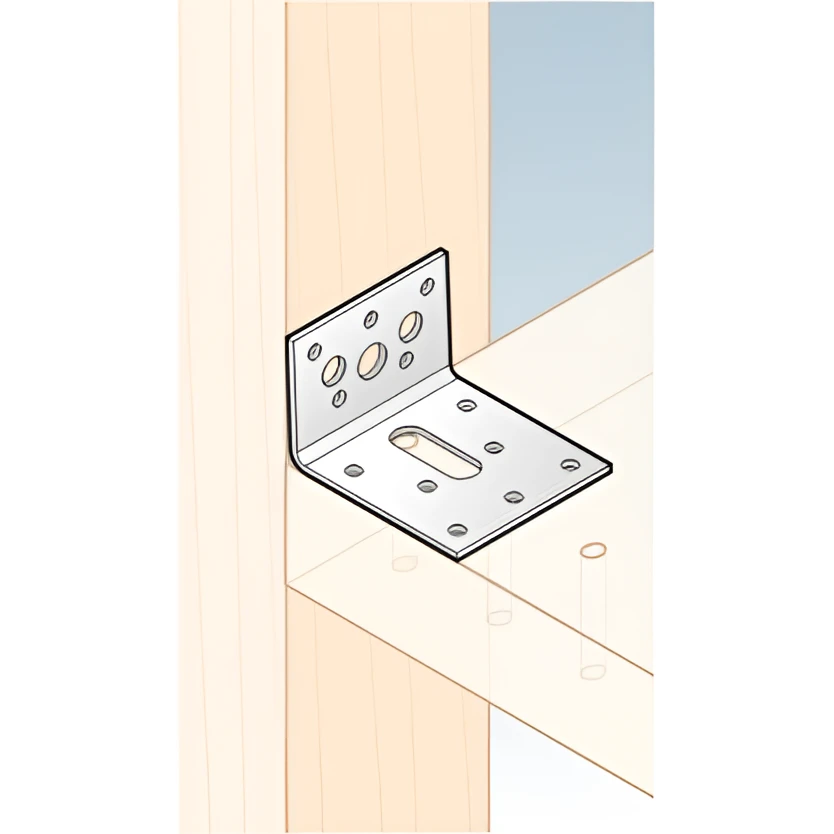

Illustration of bracket installation at a beam-to-timber post connection
Illustration of bracket installation at a beam-to-timber post connection

Applications

  • Timber and timber-frame structures
  • Garden pergolas and gazebos
  • Timber roofs — rafter, wall plate and beam connections
  • Timber posts — fixing to sole plates
  • Joinery and furniture connections

The Z275 zinc coating (hot-dip galvanising) provides high corrosion resistance, making the bracket suitable for use both indoors and outdoors — in the elevated moisture conditions typical of roof structures, pergolas and terraces.
